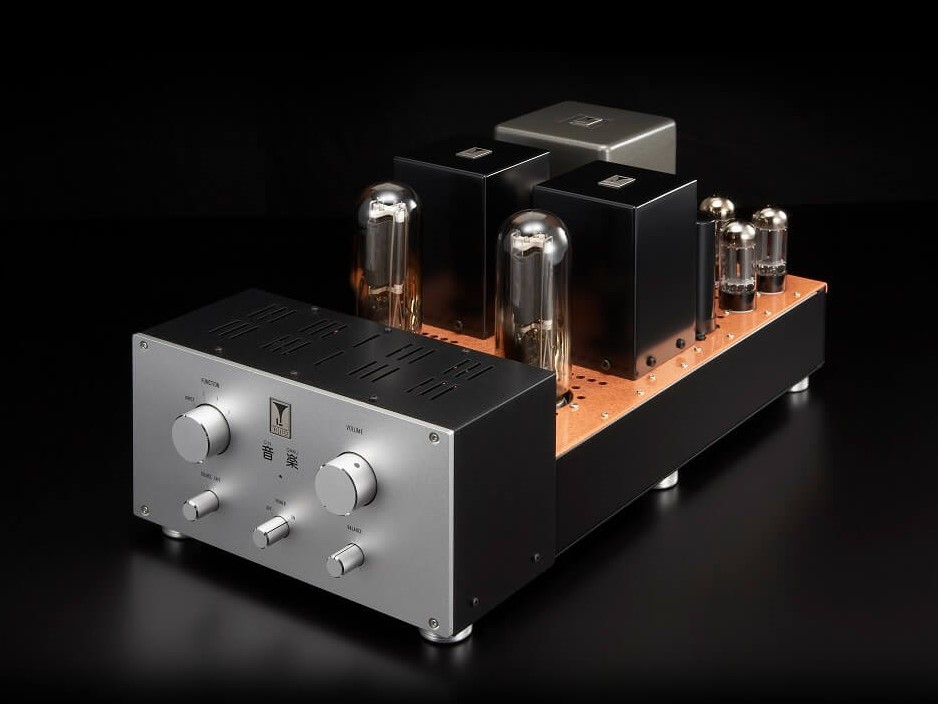

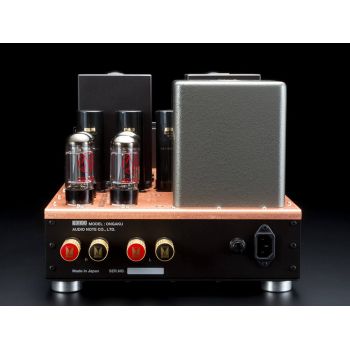

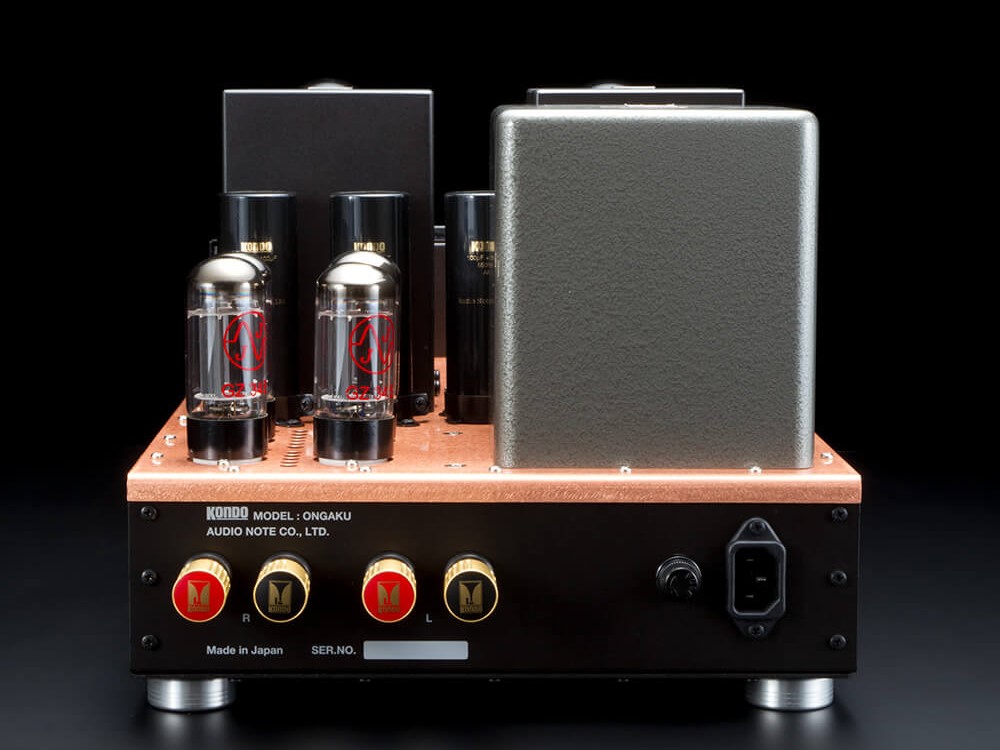

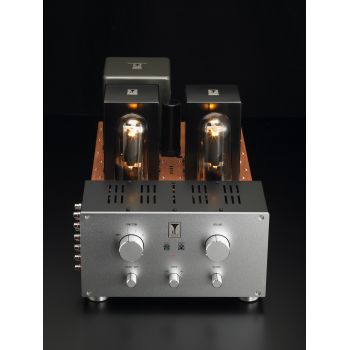

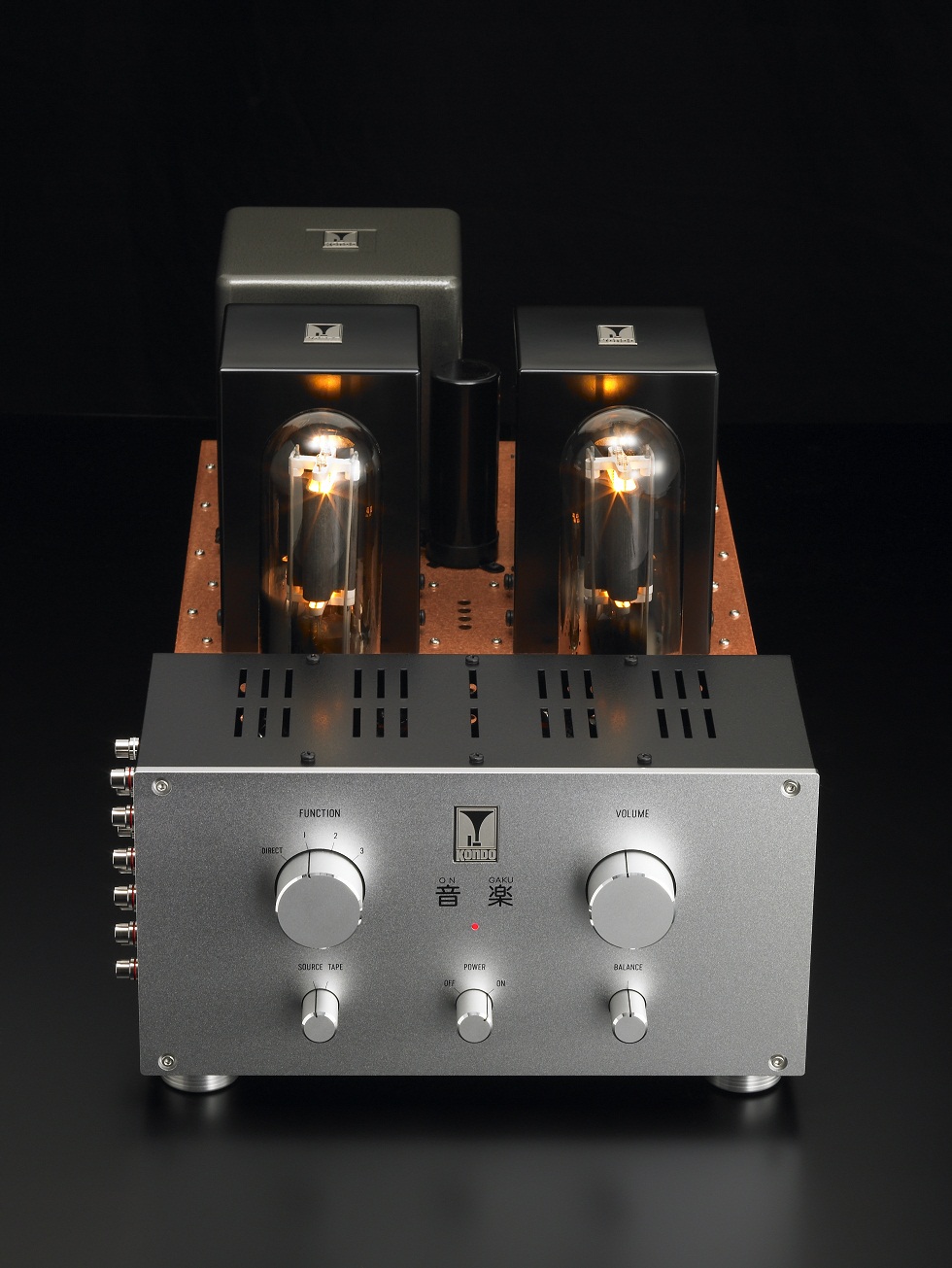

Ο Kondo Audio Note Ongaku ειναι δικαναλος τελικος ενισχυτης 2x 27 wrms και υλοποιειται με EL34.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα ανταλλαγων, δοσεων.

Silver Output Transformers: In order to realize the best performance of output transformer, it is designed to a high impedance of 12kΩ with multi-layer, multi-compartment structure. Winding are all done by skillful technician hands using pure silver wires. It is one of the most important procedure to keep the graceful and dignity sound of 211. We also applied special insulating materials in considering its high voltage operation.

Silver Capacitors: Silver capacitor which use pure silver foil as electrode. It is specially designed to prevent the potential oscillation with the foil, which can easily generate muddy sound when lignal surge from low to high level. All silver foil capacitors are Audio Note hand made.

Original Silver wire "SSW": All conductor materials are pure silver. In order to supress the unwanted vibrations, natural silk is used and twisted around the silver conductor. It works as an insulating layer between the silver wires and the exterior PVC jacket.

Features

• Circuit which fully utilize the merits of 211.
  The best circuit designed to retain high linearity and low distortion characteristic of 211.
• Silver winding output transformer to keep the graceful and dignity sound of 211.
  High impedance of 12kΩ with multi-layer, multi-compartment structure.
• Best routes and wiring by skillfull technician to secure the best quality.
• Copper chassis which help improving sound extends and liveliness.

Specifications

• Product 211 single ended stereo amplifier
• Rated Power 27W + 27W @1kHz, 5% THD
• Frequency Response 10Hz ? 21kHz (+0dB, -3dB @1W)
• Input/Impedance 4pairs (RCA, unbalanced) / 100kΩ
• Output speaker (8Ω), REC OUT 1pair
• Noise Less than 1mV
• Vacuum tube 211 x2, 6072 x2, 5687 x2, GZ34 x4
• Power consumption 270W
• Dimension 284mm(W) 240mm(H) 550mm(D) (excluding protrusions)
• Weight 34kg
