Το Acrolink 7N-PC8100 Leggenda ειναι καλωδιο ρευματος 3x10AWG, κατασκευασμενο με αγωγους απο χαλκο 7Ν για την φαση και τον ουδετερο, 5Ν για την γειωση. Οι ακροδεκτες εχουν μεταλλικα στοιχεια επαργυρα και επιροδιωμενα.

Εγγυηση αντιπροσωπειας. Δυνατοτητα δοσεων.

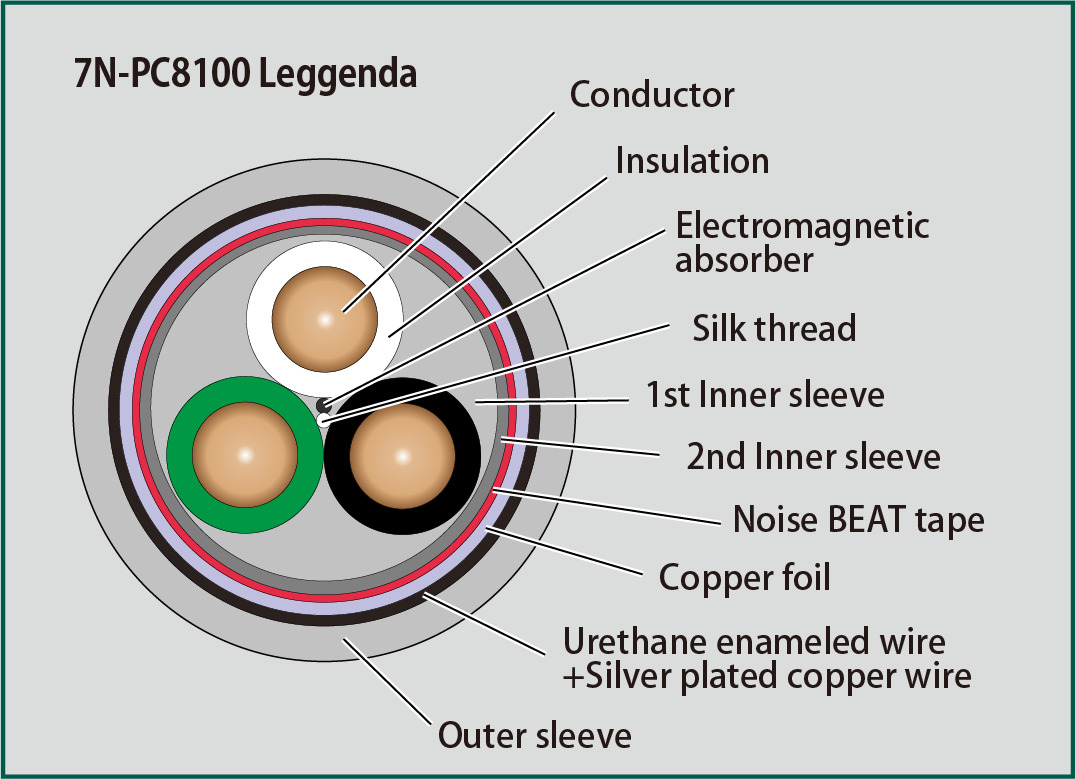

Specifications

• Conductor     :     7N Cu D.U.C.C Stressfree 0.37Φ x 50 strands x 2 cores(AWG 10)
• 5N Cu for ground 0.37Φ x 50 strands(AWG 10)
• Insulation material     :     High molecular Polyolefin Resin(Black & White & Green)
• 1st Inner sleeve     :     High molecular Polyolefin + tungsten + amorphous + carbon powder
• 2nd Inner sleeve     :     Polyolefin with Resonance control powder
• Final shielding     :     Polyurethane enameled wire(Black) + Silver plated copper(Silver) braided wire
• Outer sleeve     :     UV resistant Polyurethane
• Conductor resistance     :     3.3mΩ/m
• Cable diameter     :     16.0mm

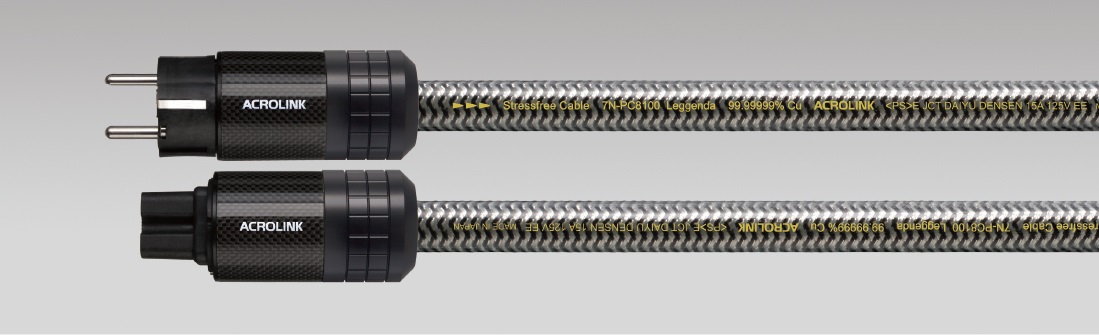

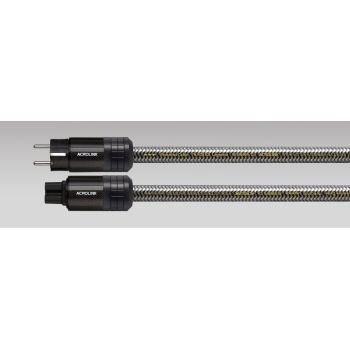

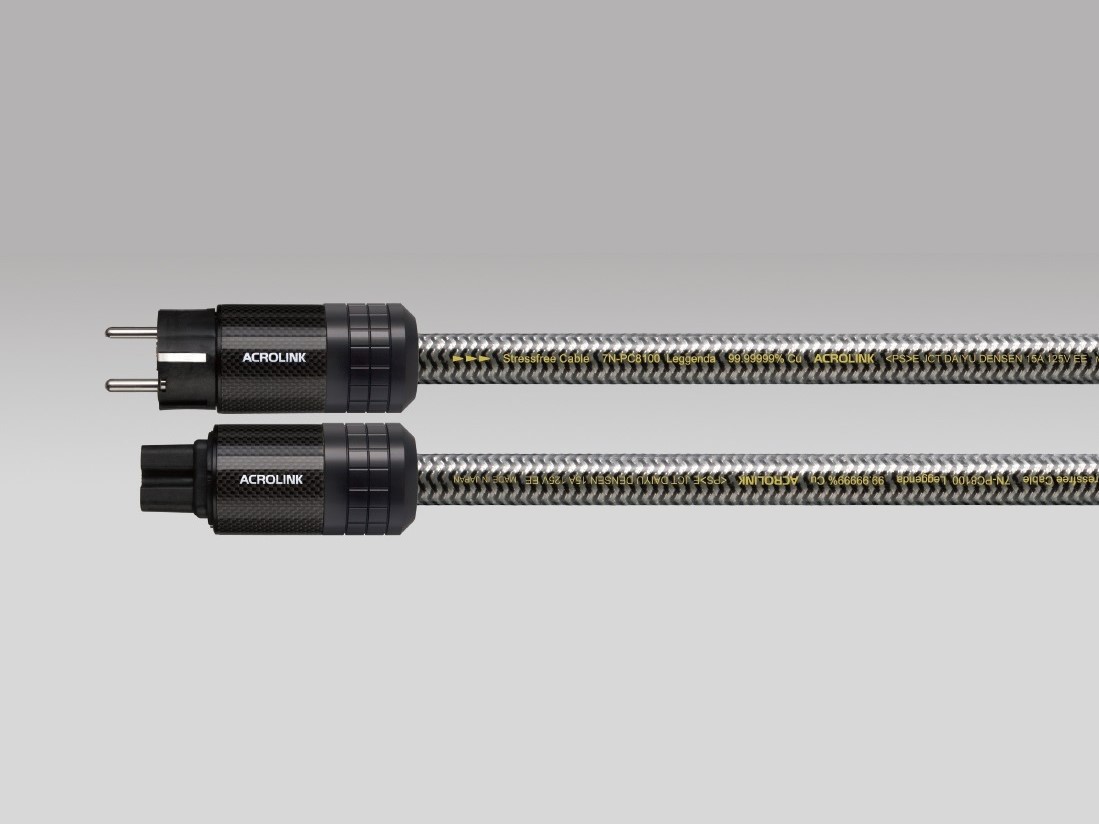

Power plug & IEC connector

• Contact parts     :     Beryllium copper
• Plating     :     Silver layered rhodium(polished before plating)
• Body     :     Special resin + brass + carbon fiber + aluminum
• Black anodized aluminum specially for 7N-PC8100 Leggenda

Standard length of 7N-PC8100 Leggenda is 1.5m.
Special length order is available.

D.U.C.C stands for Dia Ultra Crystallized Copper which is specifically developed copper wire for high-end audio cables. D.U.C.C has controlled crystal structure and the minimized transmission loss. Patent technology and registered trade mark of Mitsubishi Materials LTD.

Noise BEAT tape is a thin aluminum resin tape which is able to efficiently absorb noise current. Developed and trade mark of NTT AT(Nippon Telegraph and Telephone Corporation Advanced Technology)
