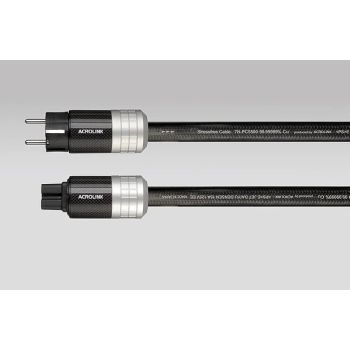

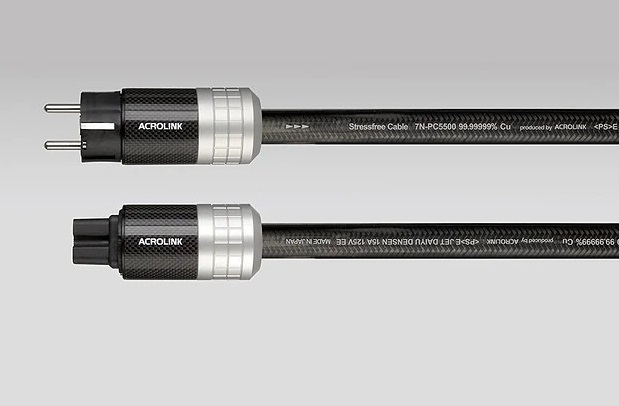

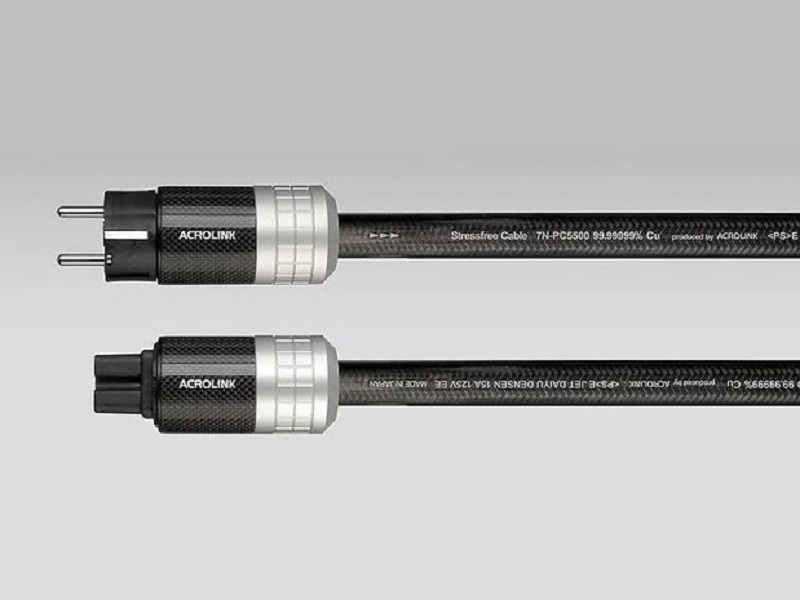

Το Acrolink 7N-PC5500 Special Edition ειναι καλωδιο ρευματος 3x10AWG, κατασκευασμενο με αγωγους απο χαλκο 7Ν για την φαση και τον ουδετερο, 4.5Ν για την γειωση. Οι ακροδεκτες εχουν μεταλλικα στοιχεια επαργυρα και επιροδιωμενα.

Εγγυηση αντιπροσωπειας. Δυνατοτητα δοσεων.

Akrolink power cords incorporate high purity "Stressfree" copper conductors. The material purity of conductors used for critical areas is 7N (99.99999%) copper. This high purity material was originally developed for the semiconductor industry which requires an extremely high level of quality certification, and guarantees 7N purity with less-than-0.01 ppm (parts per million), of metallic impurities. This quality level is maintained by using 'GD-Ms' high precision material analysis technology. The high purity copper wire uses special "Stressfree" annealing technology to minimize distortion of the crystalline structure of the copper. These new power cords also feature extra-large crystalline structure conductor technology, "D.U.C.C." (Dia Ultra Crystallized Copper) in order to farther optimize the high purity and conductivity of the power path.

Specifications

• Cable Type     Screened 3 core cable
• Conductor       Hot     Stressfree D.U.C.C. 7N Cu / 0.26φ × 100
• Conductor       Cold     Stressfree D.U.C.C. 7N Cu / 0.26φ × 100
• Conductor       Ground     Super-anneal 4.5N Cu / 0.26φ × 100
• Conductor jacket     Polymer polyolefin
• Insulation     Polymeric polyolefin
• Shield     Tinned 4N Cu braid
• Cu laminated polyester tape
• Outer Jacket     UV polyurethane
• External Diameter     16mm
• Resistance     2.7mΩ/m
• Capacitance     13pF/m
• Maximum ampacity     50 Ampere
• Connector Types     IEC / Wall plug US
• Connector     Furutech standard power plug / IEC connector with beryllium copper contact elements (silver + rhodium plating)
