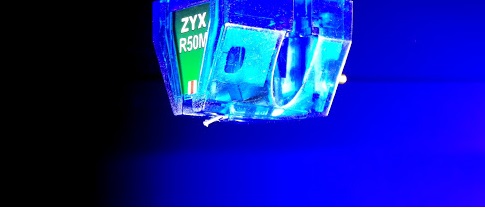

Η Zyx R50 Bloom MONO ειναι κεφαλη πικαπ Κινητου Πηνιου (MC) χαμηλης εξοδου (1mV).

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

Our styli used in all type of MONO have the edges of the diamond shank set parallel to the sides of the cantilever. Using this type of stylus, the hardest axis of the crystal is aligned to act as the contact point with the record groove. This gives stable and smooth tracing and produces a very refined sound, with the additional benefit of giving the stylus an extended life. The contact point of the stylus is of course spherical, and its contact radius is 1.0mil with refined mirror finish.

Specifications

• Type: Monaural Moving Coil (Dynamic), “REAL STEREO” Generator System
• Cryogenic Treatment Temperature: -196°C (-320°F)
• Output Voltage: 1.0mV (5.0cm/sec, 1kHz)
• Frequency Response: 10Hz–25kHz
• Frequency Response ±1dB: 20Hz–18kHz
• Recommended Tracking Force: 2.5g (20–25°C)
• Tracking Force Range: 2.0–3.5g
• Trackability: ≥60μm / 2.0g
• EQ Compliance:
  • Horizontal: 12 × 10^-6cm/dyne
  • Vertical: 12 × 10^-6cm/dyne
• Internal Impedance: 10Ω
• Load Impedance: ≥100Ω
• Coil Wire: 6N OFC φ0.035 mm
• Cantilever Material: ALMg5 tube φ0.45 × φ0.30 mm
• Stylus: Spherical Solid Diamond, 0.1 mm
• Contact Radius: 1.0 mil
• Stylus Life: 1000 hours / 2.5g
• Output Terminals: φ1.25 mm gold plated (EIA)
• Terminal Board: Glass Epoxy Plate
• Dimensions (W x L x H): 16.2 x 19.7 x 17.6 mm
• Net Weight:
  • 5.0g
  • 7.7g (TB)
  • 9.0g (SB)
