Το Vertere Phono-1 LX ειναι phono stage MM και MC, κατασκευασμενο με εξαιρετικης ποιοτητας υλικα. Διαθετει τεραστιo αριθμο επιλογων παραμετροποιησης, προκειμενου να ταιριαξει απολυτα σε οποιαδηποτε κεφαλη.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

Features

Technology

New Upgraded PCB: Our upgraded PCB features a superior gold-plated finish, ensuring consistent, high-quality component soldering across every connection. Designed for long- term reliability, it allows each circuit to perform at its best - every time.

Upgraded Internal DC Power Supply: Improved components in the internal DC power supply deliver cleaner, more stable DC power throughout. The result is reduced noise and a more consistent power feed to each circuit - directly enhancing the performance of the Phono Preamplifier.

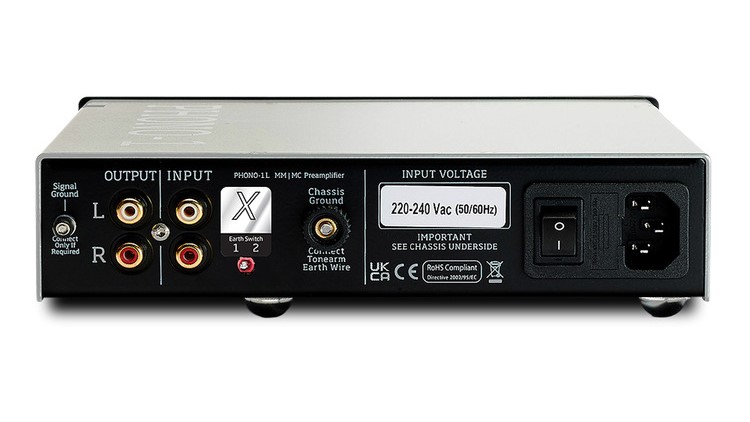

New 2-way Phono Amplifier Earthing Switch: The new 2-way earthing switch offers a longer operational lifetime and easier operation, toggling simply between ‘Earth Lift’ or ‘Earth Connection’ to suit your audio setup.

Improved AC Input: A specialised inductor on the AC input impedes high-frequency interference before it enters the circuit, with a second inductor on the post-transformer output providing an additional layer of filtering - keeping the feed to the DC power supply circuit free from unwanted RF interference.

Vertere Blue-Green Power Indicator LED:
The new blue-green power indicator LED aligns the PHONO-1LX visually with the DG X, Tempo, Imperium and CALON - giving the unit a striking, consistent look across the product range.

New Chassis & Cover: The new cover features a fine textured, metallic silver finish with a premium tactile feel - giving the PHONO-1LX a bold, refined look worthy of any high-end setup. Eliminating the top four fixing screws creates a cleaner, uninterrupted aesthetic, bringing the PHONO-1LX in line with the CALON and cementing its place in a family of products designed without compromise.

Specifications

• Type: MM / MC phono preamplifier
• Construction:
  • Precision components
  • Gold-plated PCB
• Power Supply:
  • Linear, internally switchable power supply
  • Ultra-low-noise encapsulated transformer
• Gain:
  • 40dB to 63dB
  • 12 selectable gain settings
  • High Gain version: +6.4dB on all gain settings
• Input Impedance:
  • MM: 47kΩ
  • MC: 78Ω to 47kΩ, 14 selectable steps
• Input Capacitance:
  • MM: 100pF or 430pF
  • MC: 100pF to 1.02µF, 9 selectable steps
• Frequency Response: 20Hz – 20kHz, ±0.2dB
• Signal-to-Noise Ratio: <-78dB, A-weighted
• Total Harmonic Distortion + Noise: 0.009%, @1V output
• Idle Power Consumption: 1.7W

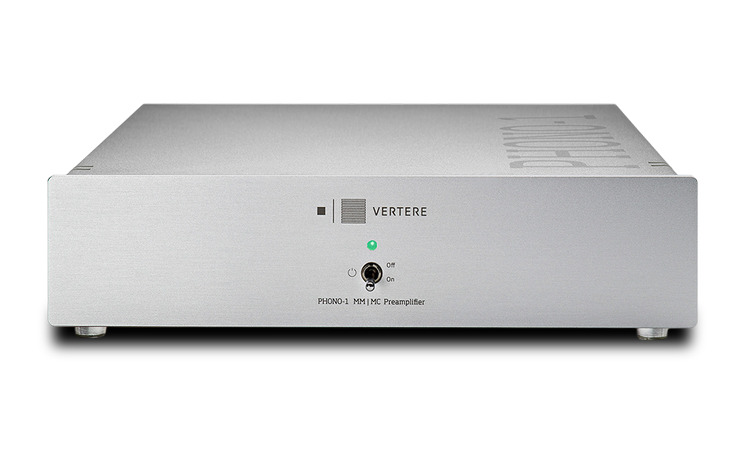

• Front Panel Finishes:

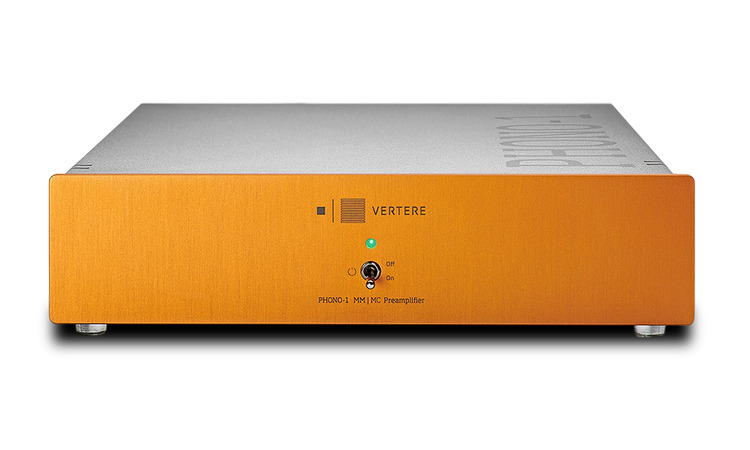

  • Anodised Vertere Orange
  • Anodised Silver

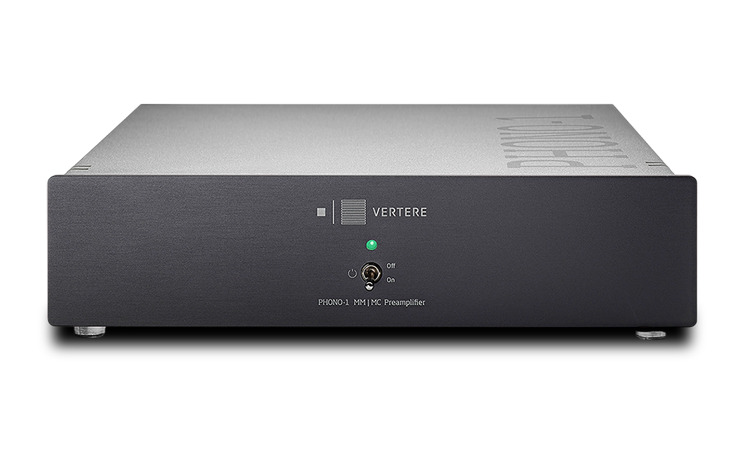

  • Anodised Black

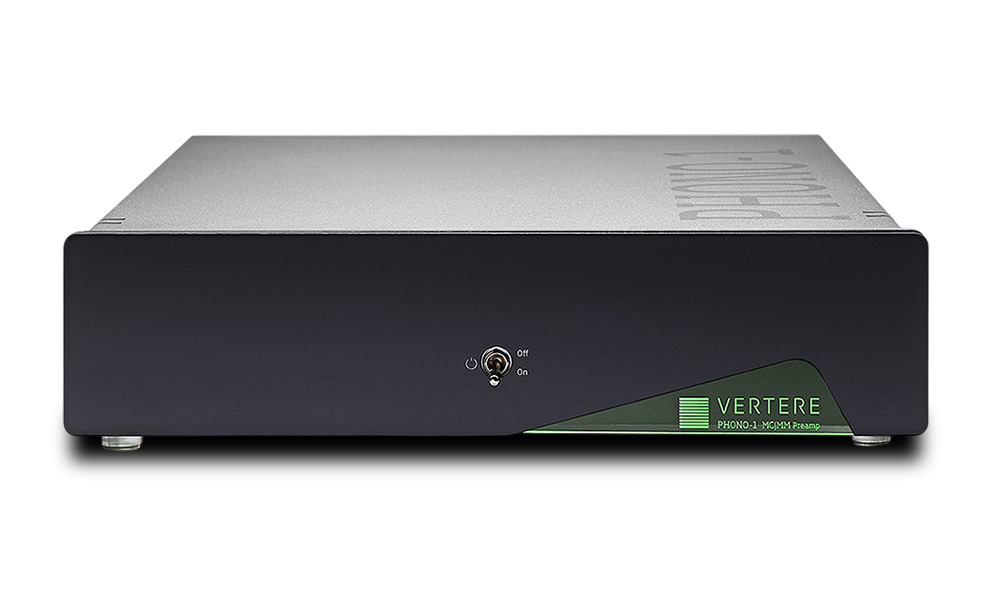

  • Black Acrylic DG Style
• Dimensions: 210 x 240 x 55 mm, W x D x H, including switches and feet
• Weight: 2.20 kg
