Το FiiO QX13 είναι φορητό USB DAC και ενισχυτής ακουστικών (dongle) υψηλής απόδοσης, με έξοδο 3.5mm single-ended και 4.4mm balanced, σχεδιασμένο για χρήση με υπολογιστές, tablets και smartphones. Διαθέτει χρωματιστή οθόνη 1.99" και σώμα από ανθρακονήμα ή αλουμίνιο για αντοχή και premium εμφάνιση.

Εγγύηση Αντιπροσωπείας. Δυνατότητα δόσεων.

The FiiO QX13 is a flagship USB dongle DAC and headphone amplifier that brings desktop-class performance to a truly portable form factor. At its core sits the ESS SABRE PRO ES9027SPRO DAC working in a fully differential 8-channel configuration, paired with the XMOS 16-core XU316 USB controller for ultra-low latency and support for up to 768kHz/32-bit PCM and DSD512 (Native), with full MQA decoding.

Amplification is handled by a specially designed analog stage featuring four TI INA1620 precision amplifier chips and two OPA1692 op-amps, delivering up to 900mW + 900mW of balanced output power at 32Ω in Desktop Mode—enough to drive demanding full-size headphones while maintaining excellent control, dynamics, and channel separation.

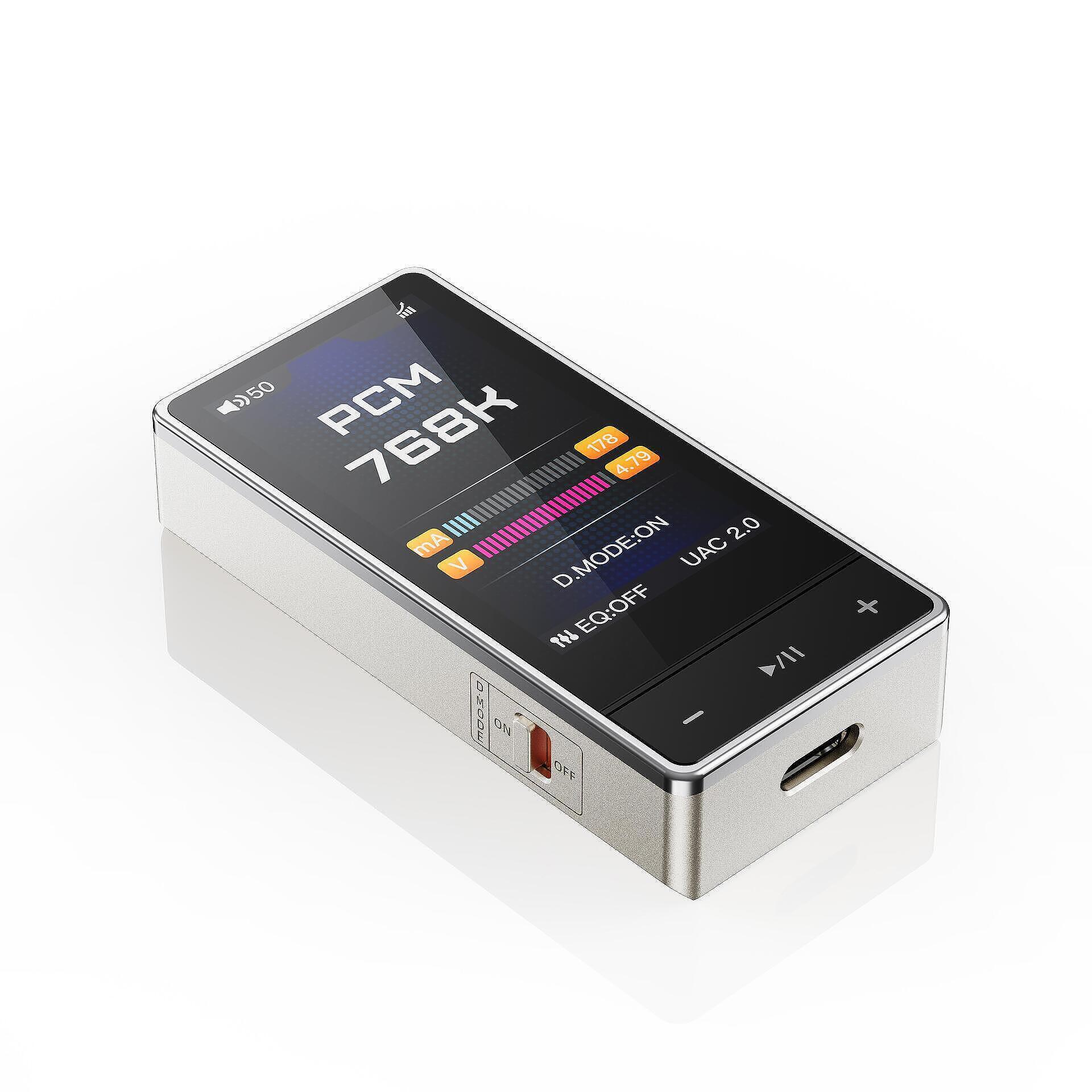

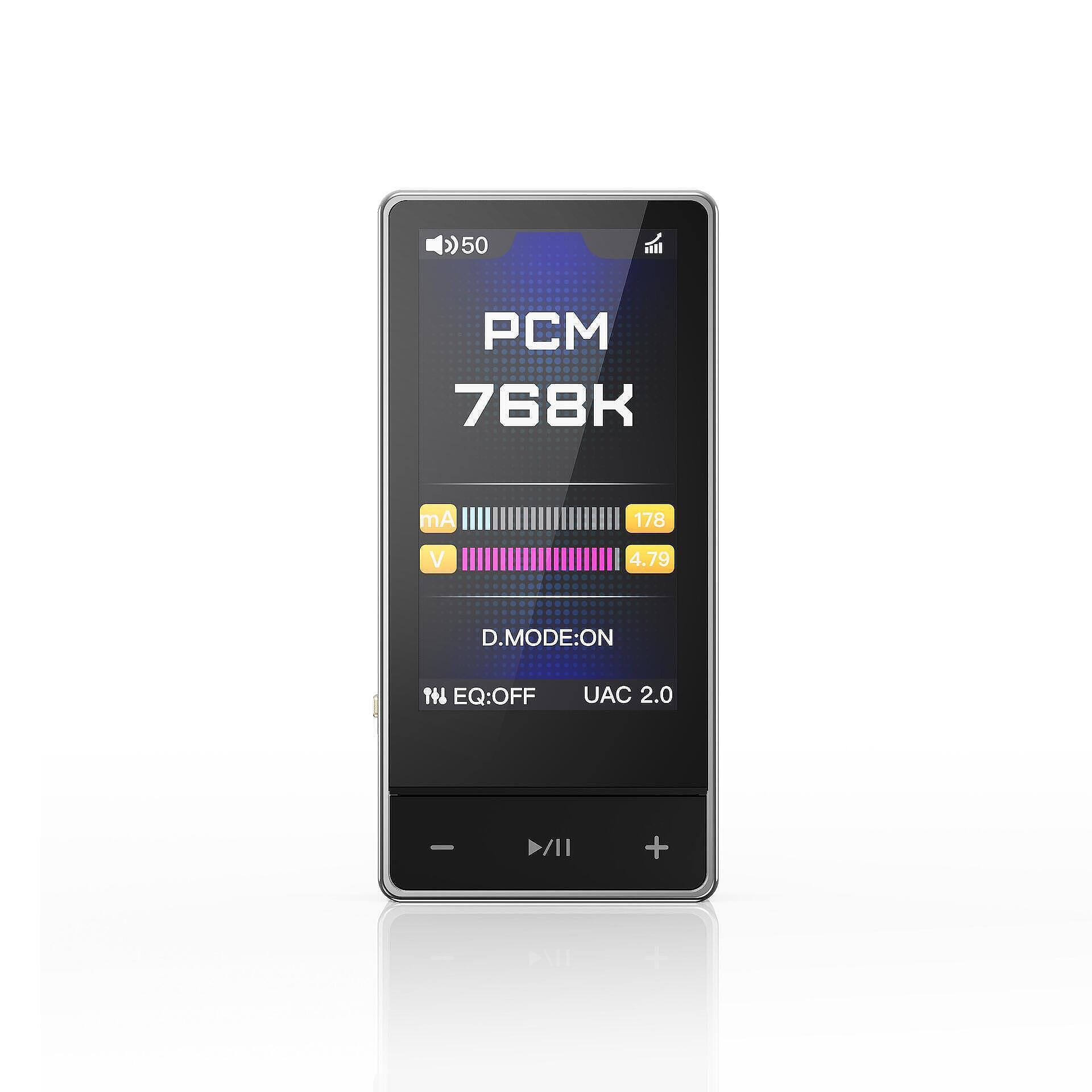

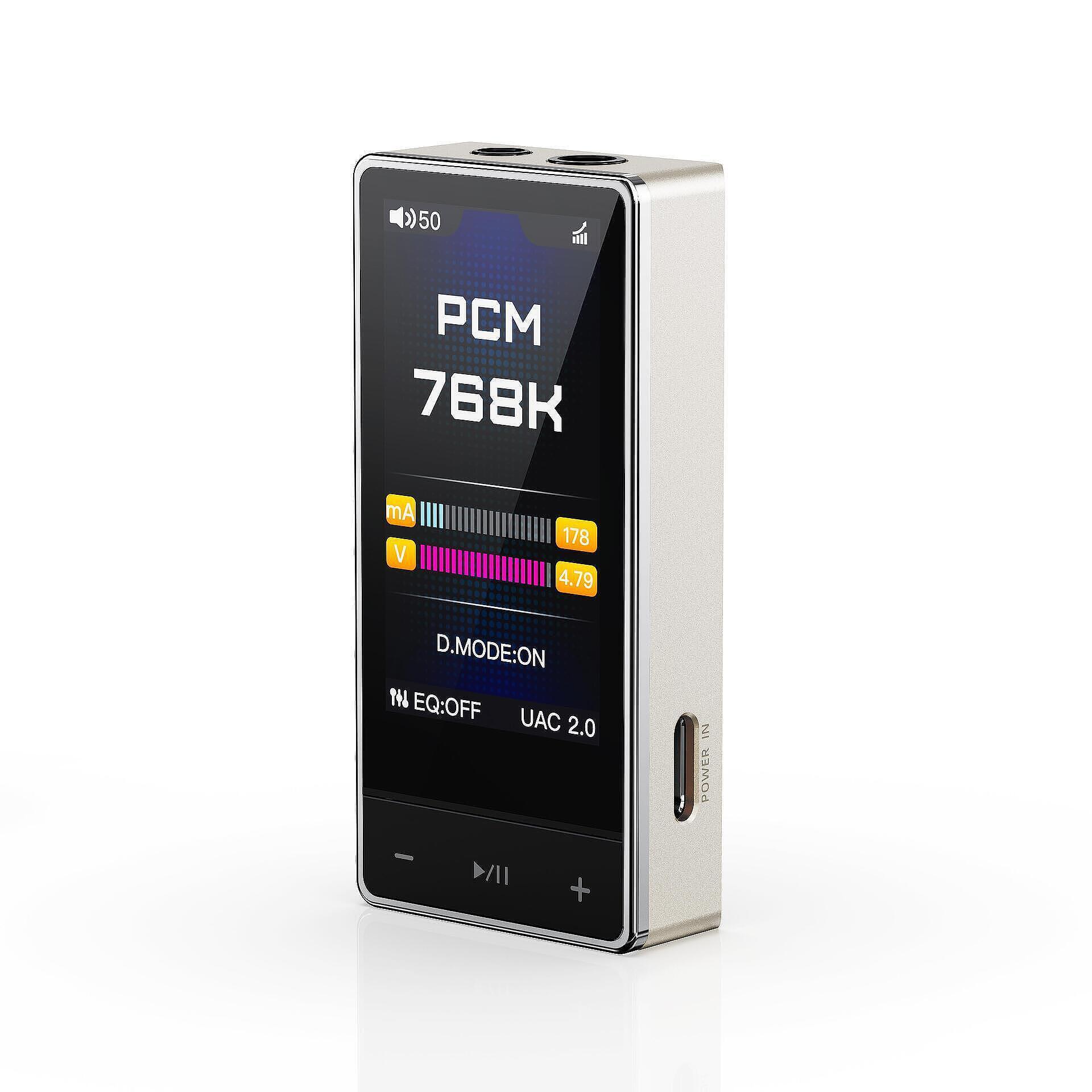

The 1.99-inch color LCD with Corning third-generation high-strength glass provides clear visual feedback for volume, gain, sampling rate, USB mode, and EQ status, while multiple UI themes and both portrait/landscape modes offer a polished and modern user experience. Thanks to the patented Desktop Mode with adaptive regulation, the QX13 intelligently balances performance and power consumption depending on the USB power source.

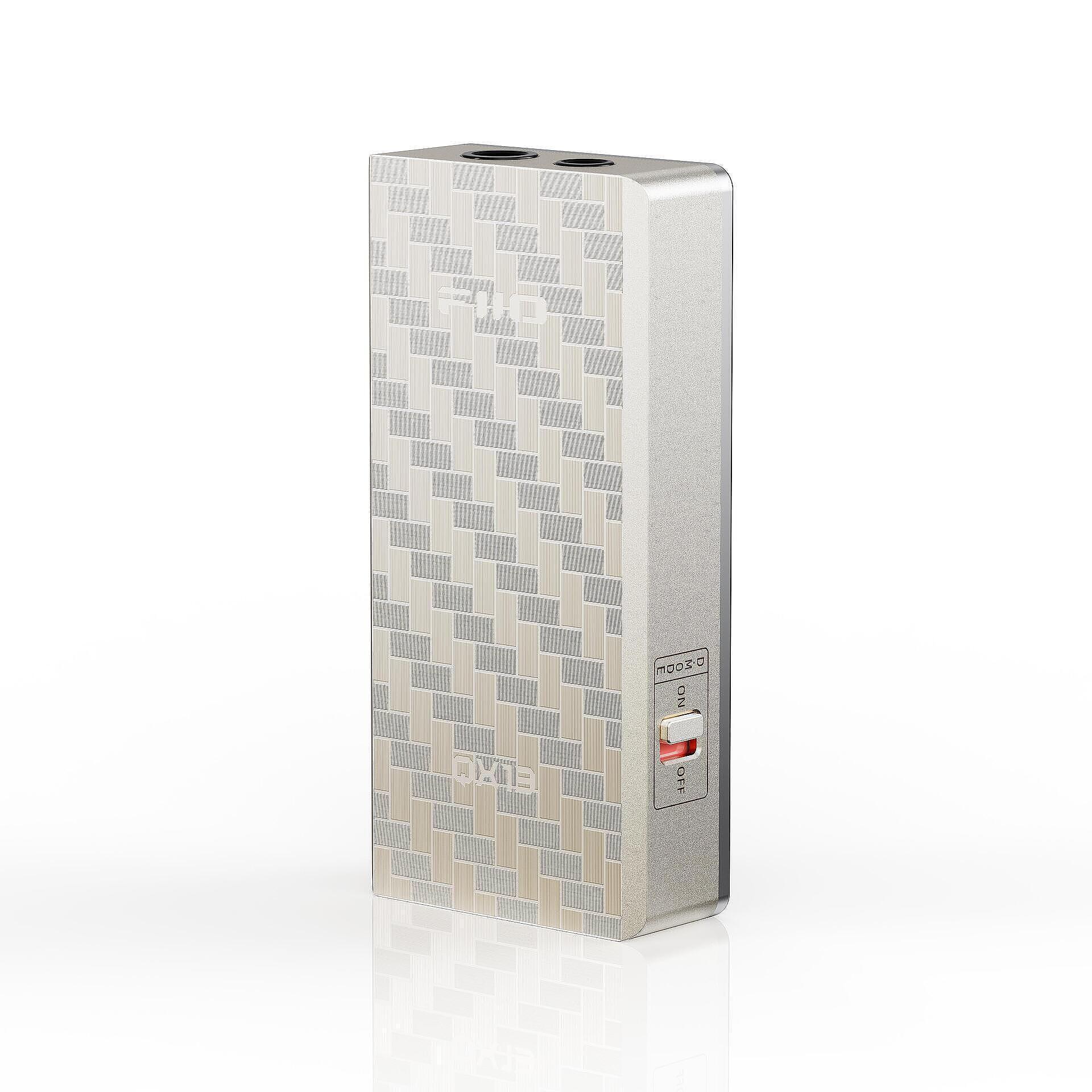

Housed in a fully carbon fiber or aluminum alloy body, the QX13 not only looks and feels premium but also benefits from improved shielding and heat dissipation. It integrates seamlessly into FiiO’s ecosystem via the included magnetic leather case and compatibility with the ESTICK mini power banks, allowing you to build a compact “mini desktop” rig on the go.

With a 10-band high-precision PEQ (accessible via the FiiO Control Android app or web interface), SPDIF output from the 3.5mm port, support for UAC1.0 mode for devices like Nintendo Switch/PS5, and finely stepped volume control, the FiiO QX13 is a reference-level dongle DAC/AMP for audiophiles who want maximum flexibility and performance in a pocketable device.

Specifications

• General Specifications
  • Name/Model: QX13
  • Hardware solution: DAC: ES9027SPRO ×1; USB decoding: XU316; Amplifier: INA1620 ×4
  • Color: Black (carbon fiber) / Titanium gold (aluminium alloy)
  • Weight: about 33.7 g (carbon fiber) / about 39.2 g (aluminium alloy)
  • Dimensions: about 64.2 × 30.7 × 13 mm
  • Volume control: Physical buttons
  • Display: 1.99-inch (170 × 320) LCD
  • Recommended headphone impedance:
    • PO: 8–350 Ω
    • BAL: 8–350 Ω
  • Gain: H / L
  • Max. supported sampling rate:
    • USB DAC: up to 768 kHz / 32-bit; DSD512 (Native)
    • Coaxial output: up to 96 kHz / 24-bit
  • MQA: supports MQA full decoding
  • Firmware upgrade: supports USB-OTA upgrade
• Buttons and Ports
  • Buttons:
    • Volume buttons ×2
    • Play/Pause button ×1
  • USB ports:
    • Type-C USB 2.0 (power supply / data transmission)
    • Type-C USB POWER IN (orange, power supply / OTA upgrade)
  • Slide switch: Desktop mode switch ×1
  • Balanced headphone output port: standard 4.4 mm port
  • Headphone output: standard 3.5 mm port
  • Coaxial output port: standard 3.5 mm port (shared with PO)
• Special Function
  • Desktop mode: Supported
  • Status indication: The display indicates transmission format, volume level, gain level, USB mode, sampling rate, current display, etc.
  • EQ adjustment: 10-band dynamic EQ adjustment (±12 dB), 8 built-in preset EQ styles, supports user-defined EQ
  • MQA: supports MQA full decoding
  • Screen rotation: Supported
  • Charging setting: supports charging the mini POWER supply ESTICK through the POWER IN port
  • Max. supported sampling rate:
    • USB DAC: supports up to 768 kHz / 32-bit; DSD512 (Native)
    • Coaxial output: supports up to 96 kHz / 24-bit
  • Firmware upgrade: supports USB-OTA upgrade
• Power Supply Parameters
  • Power supply: DC 5 V ≥ 1 A
• Audio Parameters – Headphone Output 3.5 mm (USB decoding, Desktop mode, High gain)
  • Output power:
    • L+R ≥ 440 mW + 440 mW (16 Ω, THD+N < 1%)
    • L+R ≥ 310 mW + 310 mW (32 Ω, THD+N < 1%)
    • L+R ≥ 40 mW + 40 mW (300 Ω, THD+N < 1%)
  • Output impedance: < 1 Ω
  • Crosstalk: ≥ 77 dB
  • Peak output voltage: 9.8 Vp-p
  • SNR: ≥ 124 dB (A-weighted)
  • THD+N: < 0.0004% (1 kHz / -2 dB @ 32 Ω)
  • Frequency response:
    • 20 Hz–90 kHz: attenuation < 2.8 dB
    • 20 Hz–20 kHz: attenuation < 0.07 dB
  • Noise floor: < 2 μV (A-weighted)
• Audio Parameters – Headphone Output 4.4 mm (USB decoding, Desktop mode, High gain)
  • Output power:
    • L+R ≥ 480 mW + 480 mW (16 Ω, THD+N < 1%)
    • L+R ≥ 900 mW + 900 mW (32 Ω, THD+N < 1%)
    • L+R ≥ 125 mW + 125 mW (300 Ω, THD+N < 1%)
  • Output impedance: < 1.5 Ω
  • Crosstalk: ≥ 113 dB
  • Peak output voltage: 17.5 Vp-p
  • SNR: ≥ 124 dB (A-weighted)
  • THD+N: < 0.0006% (1 kHz / -8 dB @ 32 Ω)
  • Frequency response:
    • 20 Hz–70 kHz: attenuation < 2.8 dB
    • 20 Hz–20 kHz: attenuation < 0.07 dB
  • Noise floor: < 3.4 μV (A-weighted)
• Audio Parameters – Headphone Output 3.5 mm (USB decoding, Non-desktop mode, High gain)
  • Output power:
    • L+R ≥ 370 mW + 370 mW (16 Ω, THD+N < 1%)
    • L+R ≥ 250 mW + 250 mW (32 Ω, THD+N < 1%)
    • L+R ≥ 30 mW + 30 mW (300 Ω, THD+N < 1%)
  • Output impedance: < 1 Ω
  • Crosstalk: ≥ 75 dB
  • Peak output voltage: 8.7 Vp-p
  • SNR: ≥ 123 dB (A-weighted)
  • THD+N: < 0.0004% (1 kHz / -2 dB @ 32 Ω)
  • Frequency response:
    • 20 Hz–90 kHz: attenuation < 2.8 dB
    • 20 Hz–20 kHz: attenuation < 0.07 dB
  • Noise floor: < 2 μV (A-weighted)
• Audio Parameters – Headphone Output 4.4 mm (USB decoding, Non-desktop mode, High gain)
  • Output power:
    • L+R ≥ 470 mW + 470 mW (16 Ω, THD+N < 1%)
    • L+R ≥ 605 mW + 605 mW (32 Ω, THD+N < 1%)
    • L+R ≥ 70 mW + 70 mW (300 Ω, THD+N < 1%)
  • Output impedance: < 1.5 Ω
  • Crosstalk: ≥ 113 dB
  • Peak output voltage: 13 Vp-p
  • SNR: ≥ 122 dB (A-weighted)
  • THD+N: < 0.0006% (1 kHz / -6 dB @ 32 Ω)
  • Frequency response:
    • 20 Hz–90 kHz: attenuation < 2.8 dB
    • 20 Hz–20 kHz: attenuation < 0.07 dB
  • Noise floor: < 3.5 μV (A-weighted)
