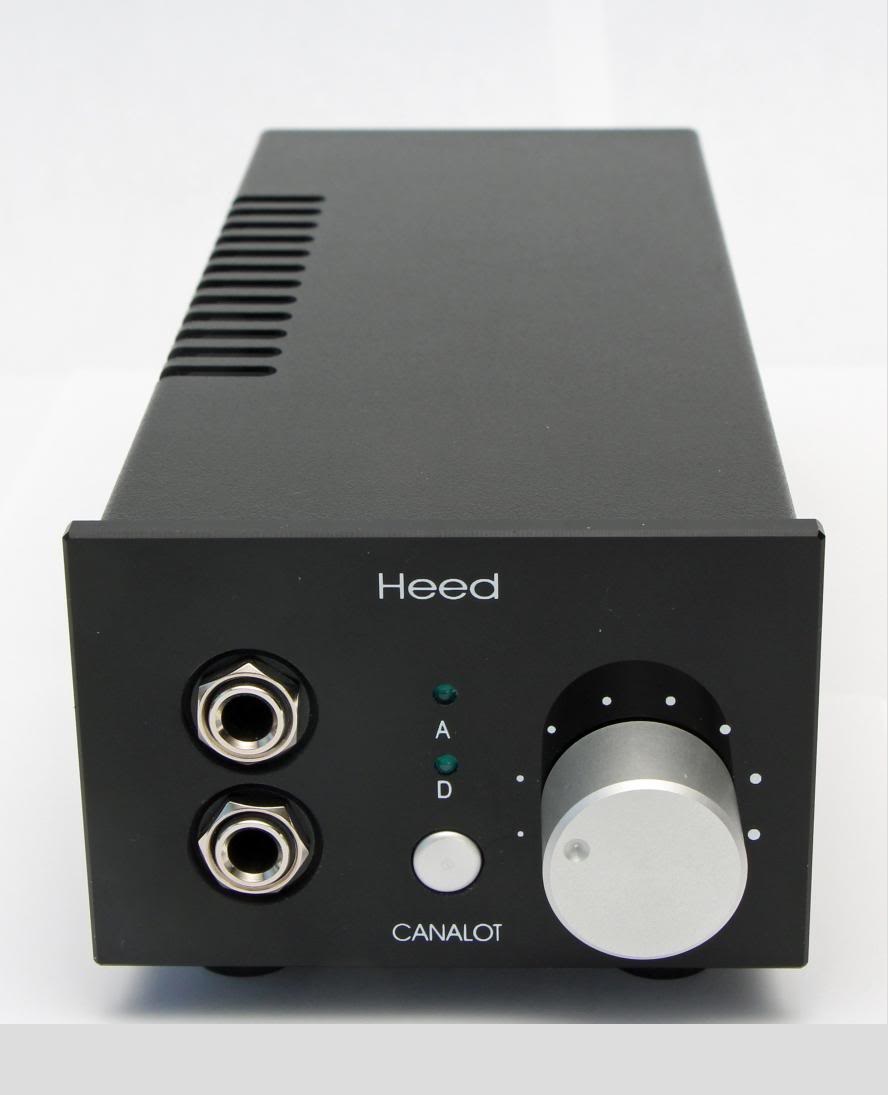

Ο Heed Audio Canalot III ειναι ενισχυτης ακουστικων Class A, με εξωτερικο τροφοδοτικο και volume control.

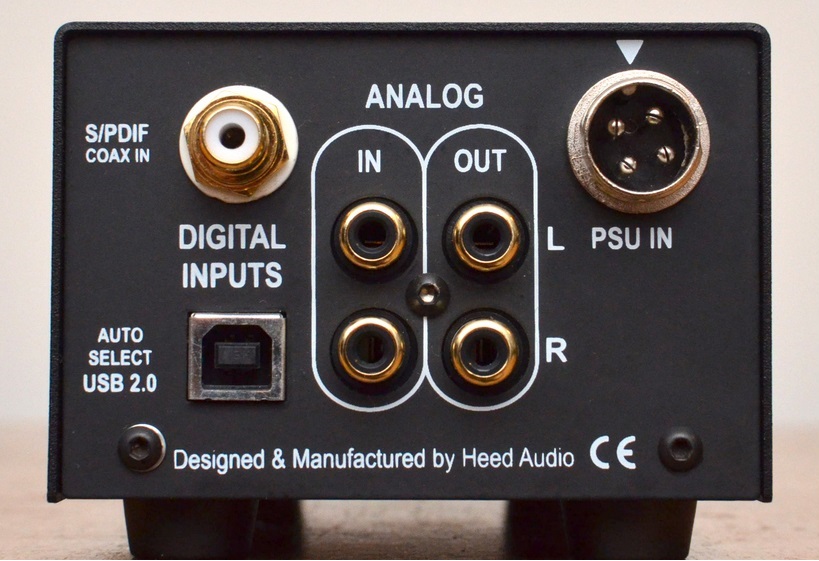

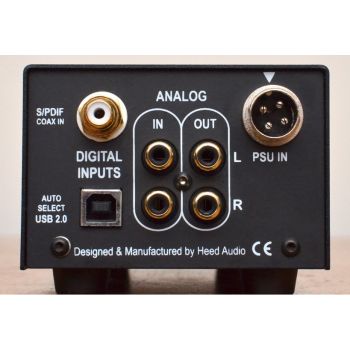

Εισοδοι: 1x pair RCA και για συνδεση των extra dac και usb modules: 1x Coaxial, 1x USB-B. Εξοδοι: 2x 6.35mm Jacks, 1x pair RCA preout.

Κατασκευασμενος με διακριτα υλικα (και οχι επιφανειακης στηριξης) υψηλοτατης ποιοτητας (freq responce 6 Hz – 260 kHz), δινει ηχο φυσικο (και οχι αποστειρωμενο, οπως πολλοι αλλοι ενισχυτες της ιδιας κατηγοριας τιμης). Δυνατοτητα ακροασης.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

The Canalot is akin to a nice black brick on steroids. The classic design of Heed Modular devices meets the high-tech solutions of the digital world and in addition, our unique speaker driving system. If you are not into the many-box hi-fi racks or space-eating speakers and amplifiers, Canalot provides a nice alternative.

Like the Canamp, this is also a two-stage amplifier, and has a pure class-A output stage as well. But similarities end here. Canalot is a rare piece amongst the headphone amplifiers with its RC-coupled output. It almost works like our Transcap-technology amplifiers, conveying all of their benefits. Of course, the power delivery system is tuned to the lower demands of the headphones.

For a nice and smooth sound the Canalot has a regulated power supply. It works well with the supplied outboard PSU, but of course, there is always an upgrade option. Q-PSU is the next step up with its generously sized linear, regulated power rails.

Features

• 2 headphone connectors
• Two-stage topology
• Class A power amplifier section
• High grade components
• Capacitor-coupled output

Specifications

• Inputs: 1x analogue / 1x S/PDIF RCA / 1x USB

• Outputs: 2x 6.35mm headphone / 1x line out

• Frequency response (+0, -1 dB): 6 Hz – 260 kHz

• Input impedance: 10 kΩ

• Gain: 20 dB

• Input sensitivity: 320 mV

• Power: 200 mW (32 Ω) / 100 mW (120 Ω) / 20 mW (600 Ω)

• SNR: > 100 dB

• Upgrade card options: 1 DAC 1.3 / 1 USB 2.0

• Supported sampling frequencies: 44.1 / 48 / 88.1 / 96 / 176.4 / 192 kHz

• Power supply options: X-PSU 40 (standard) / Q-PSU / Obelisk PX

• Max. consumption: 17 W

• Weight: 1.2 kg

• Dimensions (W x H x D): 9.5 x 7.5 x 25 cm
