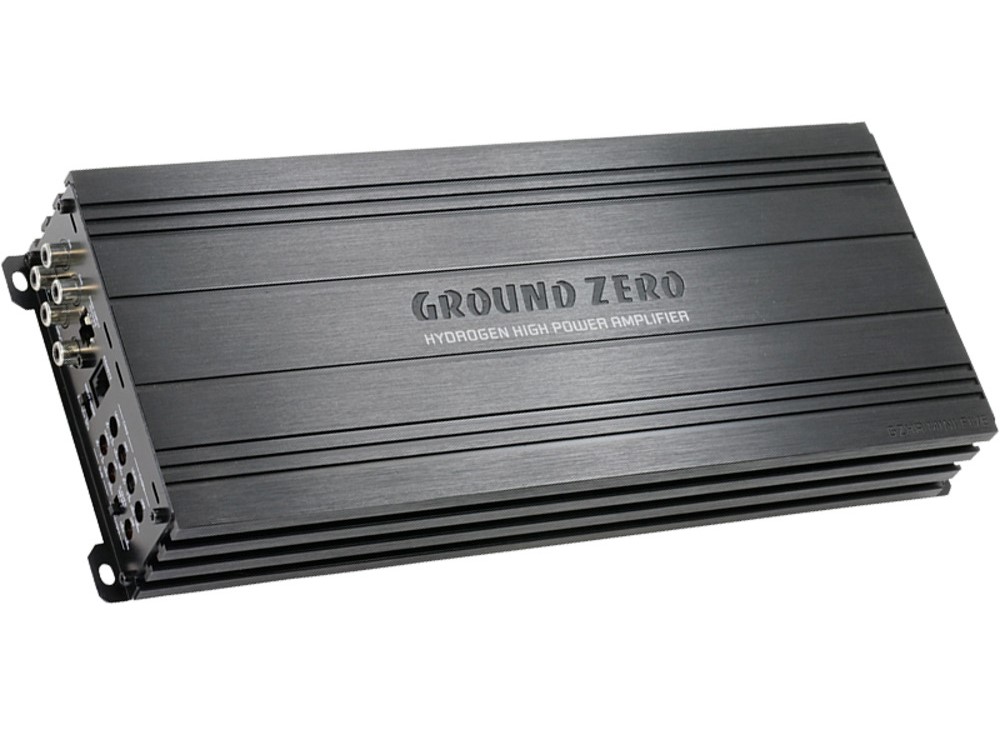

Ο Ground Zero GZHA Mini Five ειναι πεντακαναλος ενισχυτης αυτοκινητου (5 channels car amplifier), class-D, ισχυος 4x 75 wrms 1x 190 wrms στα 4Ω. Εισοδοι: RCA και High Level In.Διαθετει high pass, low pass filters και τηλεκοντρολ.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

Features

• Highly efficient 5-channel Class D amplifier
• 2 ohm stable in stereo operation
• 4 ohm stable in bridge operation
• 1 ohm stable (channel 5 / subwoofer)
• Variable high pass filter
• Variable low pass filter

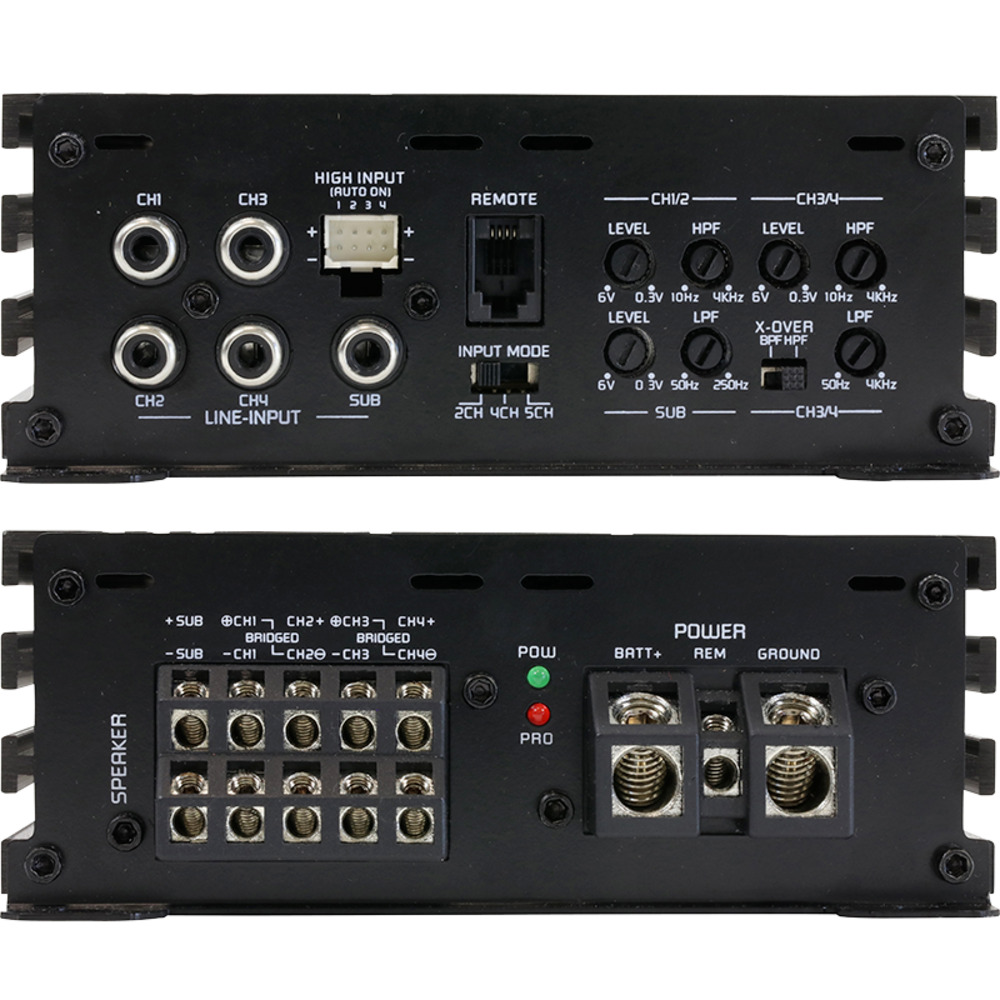

• 2x stereo RCA input
• RCA input for channel 5
• Input selection (2/4/5 channel)
• High level input with auto-on function
• Adjustable input sensitivity
• Switch-on delay
• Thermal protection circuit
• Short circuit protection circuit
• Overload protection circuit
• Instructions inside
• Wired level remote control (GZTA bass remote) included in delivery

Specifications

• RMS Power at 4 Ω CEA Standard CEA-2006-A 4 x 75 W (1% THD+N)
• RMS Power at 2 Ω CEA Standard CEA-2006-A 4 x 125 W (1% THD+N)
• RMS Power at 4Ω in bridge operation (channels 1 to 4), 2 x 250W (1% THD+N)
• Damping factor > 100
• High pass filter (channel 1 and 2) 10 Hz – 4000 Hz (12 dB/Oct.)
• High pass and low pass filters (channels 3 and 4) (bandpass filter) HPF: 10 Hz – 4000 Hz (12 dB/Oct, LPF: 50 Hz – 4000 Hz (12 dB/Oct.)
• Low Pass Filter (Channel 5) (Subwoofer) 50 Hz – 250 Hz (12 dB/Oct.)
• Frequency response 10 Hz – 60 kHz (± 3 dB)
• Input sensitivity 300 mV – 6 V (± 5%)
• Bass level remote control
• Fuse(s) 2 x 40A (under the bottom of the housing)
• Dimensions W x H x L (mm) 135 x 52 x 322
