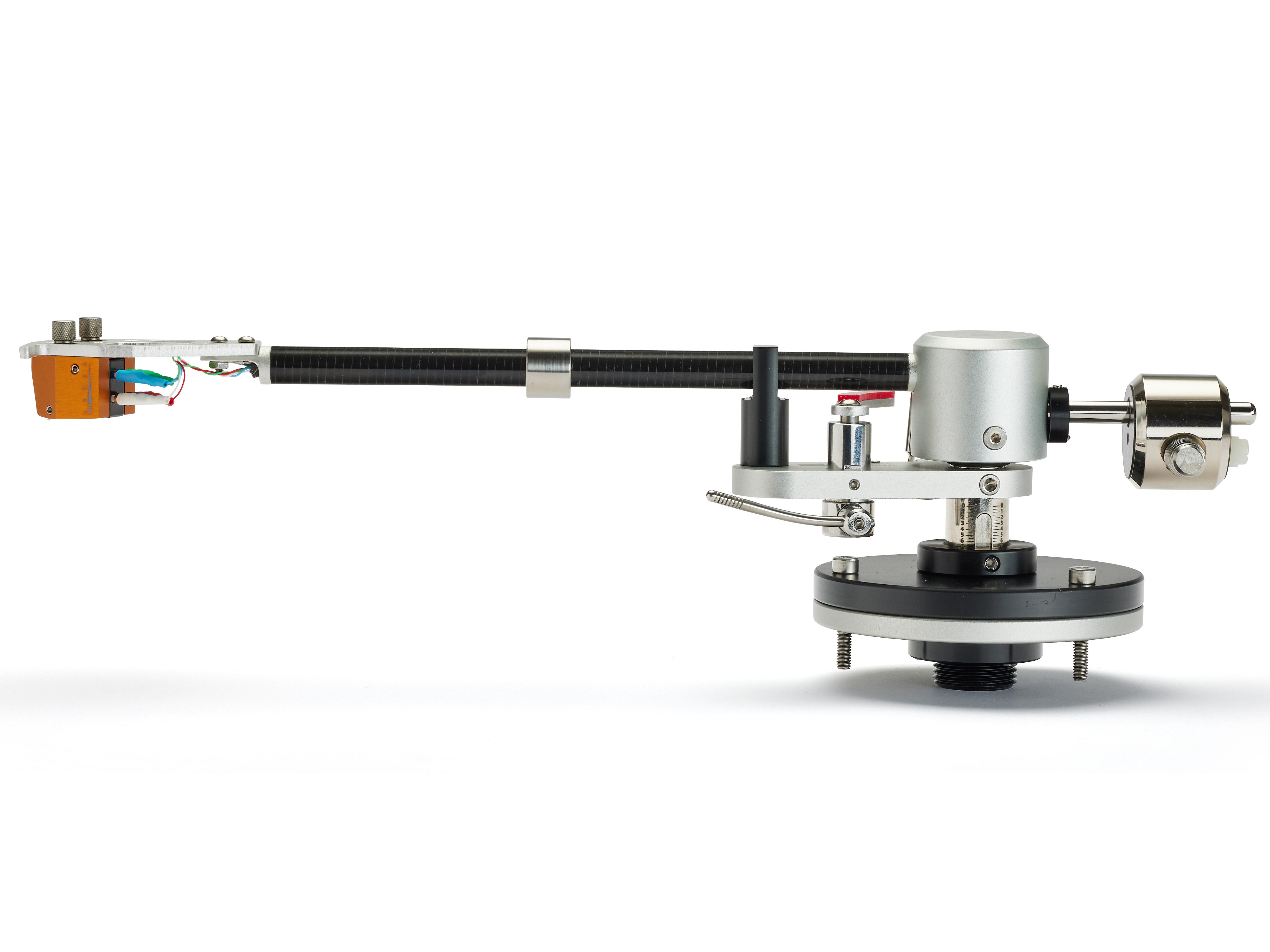

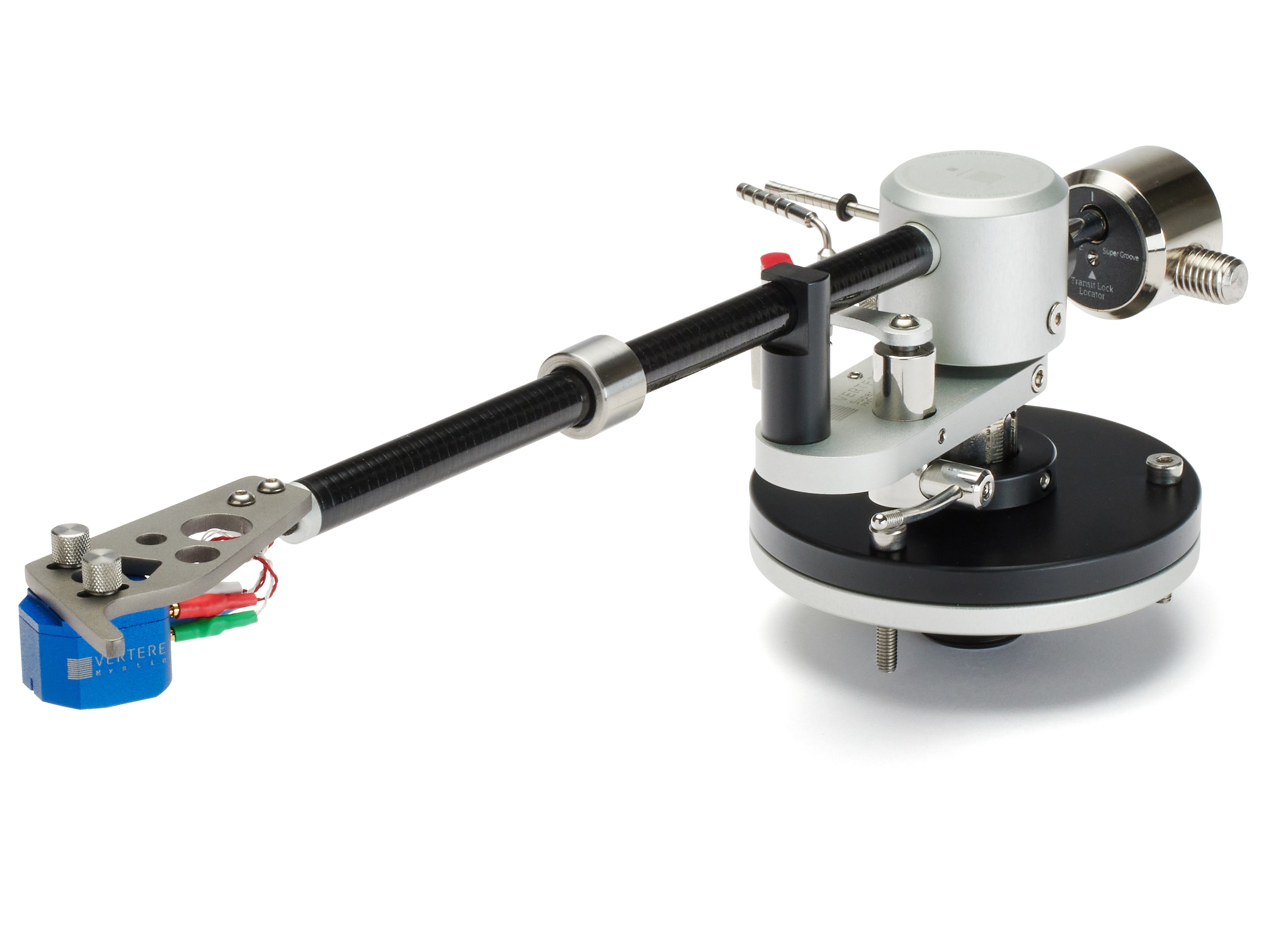

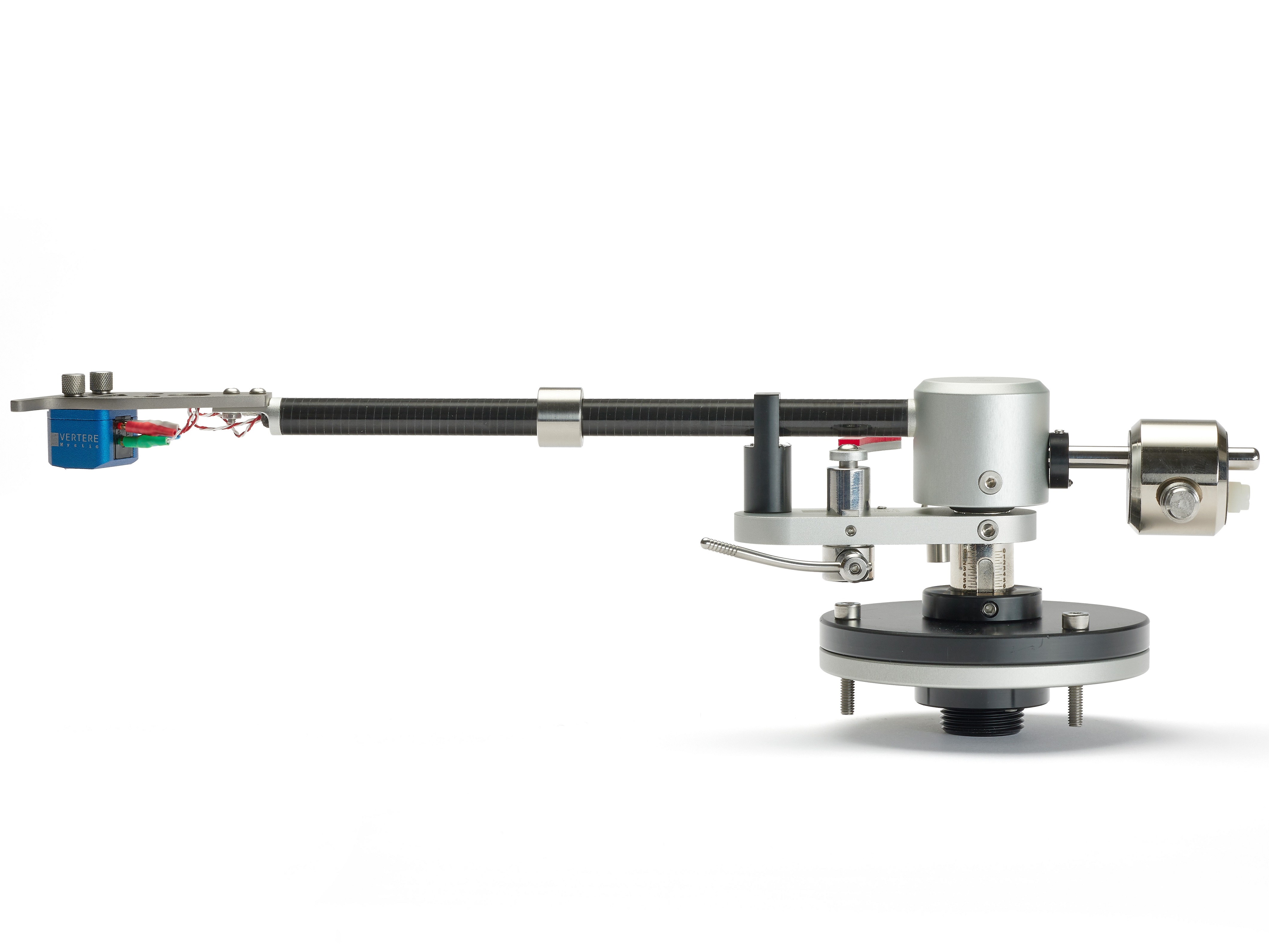

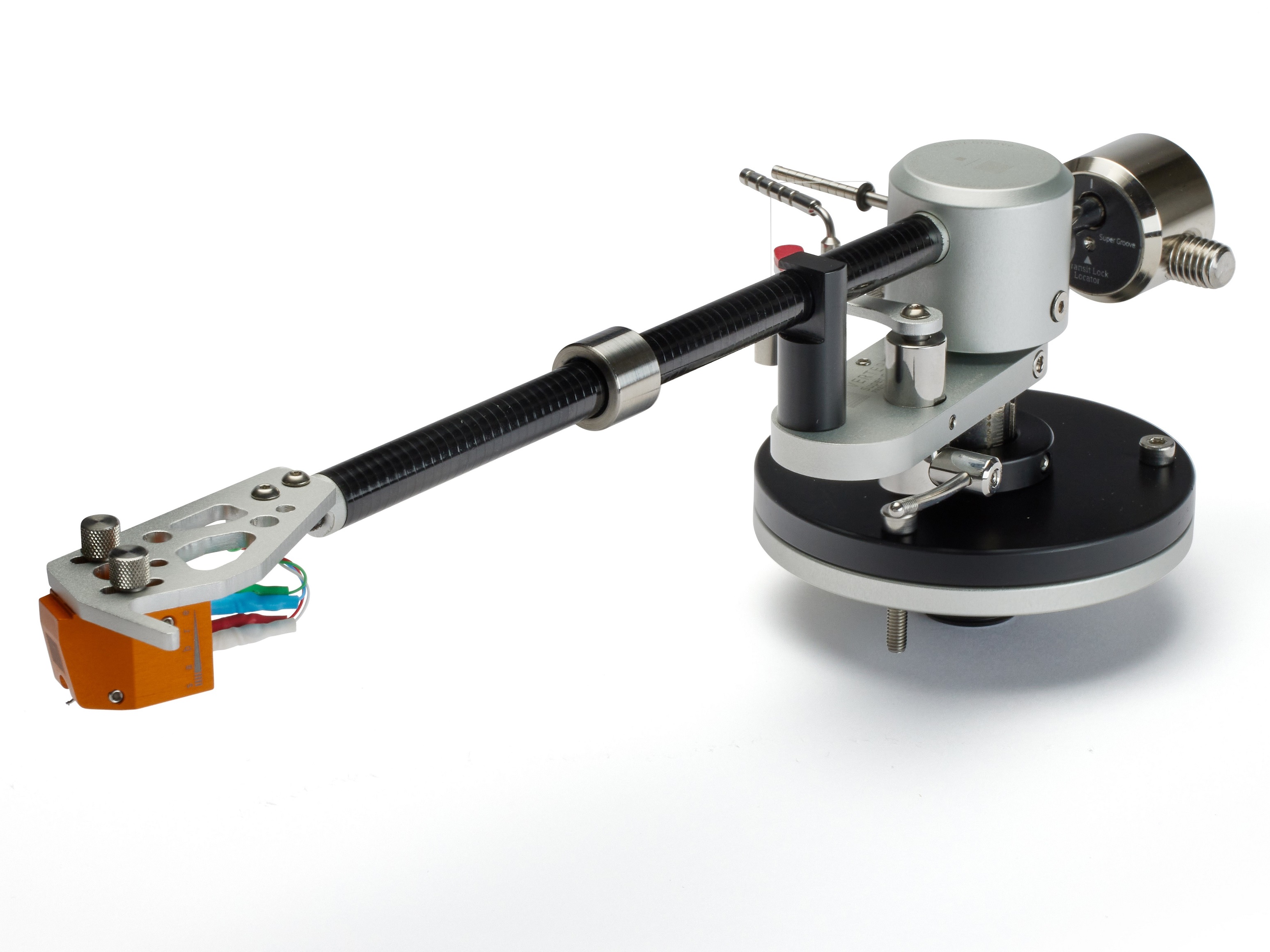

Ο Vertere Super Groove PTA  Precision Tonearm ειναι βραχιονας 9" uni pivot αλλα με αντιστηριξη 3 σημειων για εξαλειψη των δονησεων των bearings. Μερικα χαρακτηριστικα: carbon Arm Tube, aluminium Headshell, ρυθμιση σε κλιμακα μικροχιλιοστου, ρυθμιζομενο Effective Mass, ρυθμιζομενο VTA, μαγνητικο antiscating κλπ. Εσωτερικη καλωδιωση Vertere Pulse.

Εγγυηση Αντιπροσωπειας 10 ετη. Δυνατοτητα δοσεων, ανταλλαγων.

Technology

Vertere Reference Tonearm is a milestone in vinyl replay. Its design, build quality and attention to detail have provided us with performance that is second to none. Of course such quality comes at a price.

It was only natural to ask if by a parallel, albeit different, approach to design could we develop a much more affordable tonearm that was similarly capable of breath-taking performance? This was the beginning of our journey that has led us to the introduction of our latest Vertere Super Groove Precision Tonearm.

At first sight the SG PTA Tonearm may come across as a uni-pivot, it is in fact anything but a uni-pivot. A uni-pivot will ‘skate’ about on its bearing point of contact while the tonearm moves side-to-side and up-and-down. This is because there is no such thing as a point; there is in fact one surface supported by another and sliding relative to each other.

And because of this there is always some ‘skating’ of the contact point on the support bearing surface. Although the ‘skating’ or ‘chatter’ may be in fractions of microns but so is the magnitude of some of the information stored in the vinyl groove.

To eliminate this ‘loss’ of information due to unwanted bearing chatter, we have designed a Tri Point Articulated bearing or TPA. Three silicon nitride precision balls and a precision machined pivot point provide the support and the articulation for the arm. Although the tonearm may appear to behave as a uni-pivot, it is however, without any of the bearing ‘chatter’, preserving as much of the signal information as possible. The result is a life like dynamic response with unexpected clarity, musicality and detail – truly unparalleled.

Why Super Groove Precision Tonearm?

• New unique precision Tri-Pivot Articulated, ultra-low stiction bearing.
• New Aluminium head-shell.
• New heavier decoupled main counterweight with fine azimuth adjustment screw.
• New fine-tuning of tracking weight and arm/cartridge resonance control adjustment weight ring.
• New connections all custom manufactured and triple gold-plated.
• Non-resonant, high-rigidity roll-wrapped carbon fibre arm tube.
• Bias-curve adjustable anti-skate mechanism.
• Custom Vertere internal wiring

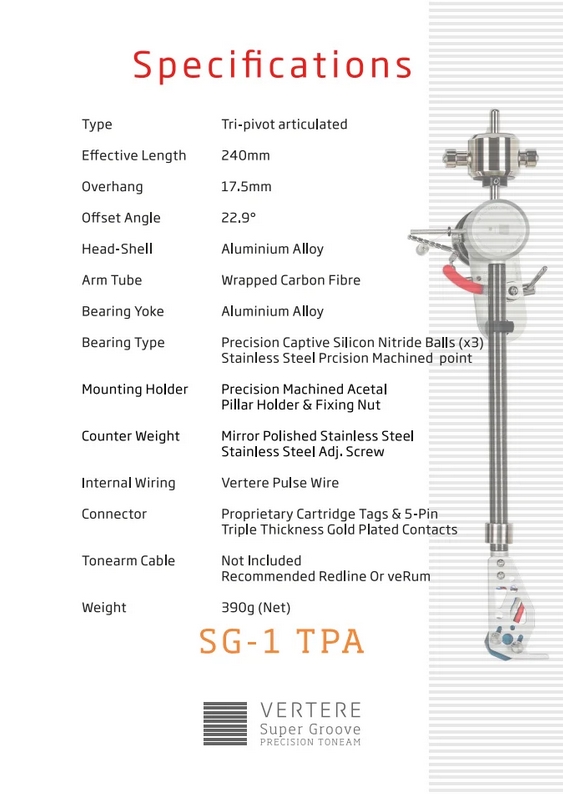

Specifications

• Type: Tri Point Articulated
• Effective Length: 240mm
• Overhang : 17.5mm
• Offset Angle: 22.9°
• Head-Shell: Aluminium Alloy
• Arm Tube: Wrapped Carbon Fibre
• Bearing Yoke Structure: Aluminium Body
• Bearing Type: Captive silicon Nitride Ball (x3) Precision
• Counter Weight: Mirror Chromed Brass, Stainless Steel T/W Adj. Sleeve
• Internal Wiring; Vertere Pulse Wiring
• Connector: Proprietary Cartridge Tags & 5-Pin x3 Thickness Gold Plated Contacts
• Tonearm Cable Optional: PULSE HB, veRum or Redline
• Weight 428g

Technology more detailed

SG-TPA Tonearm Bearing

The unique Tri-Pivot Articulated (TPA) bearing is comprised of three precision silicon nitride balls captive in a precision machined Acetal ball retaining ring supporting the super precision machined stainless pivot. The pivot point centred between the silicon nitride balls provides flawless support and articulation.

TPA eliminates bearing point ‘skating’ and allows the stylus to track the most delicate pieces of information that are typically lost with uni-pivot designs. This ensures accurate play back due to the strict adherence of the stylus to the record groove.

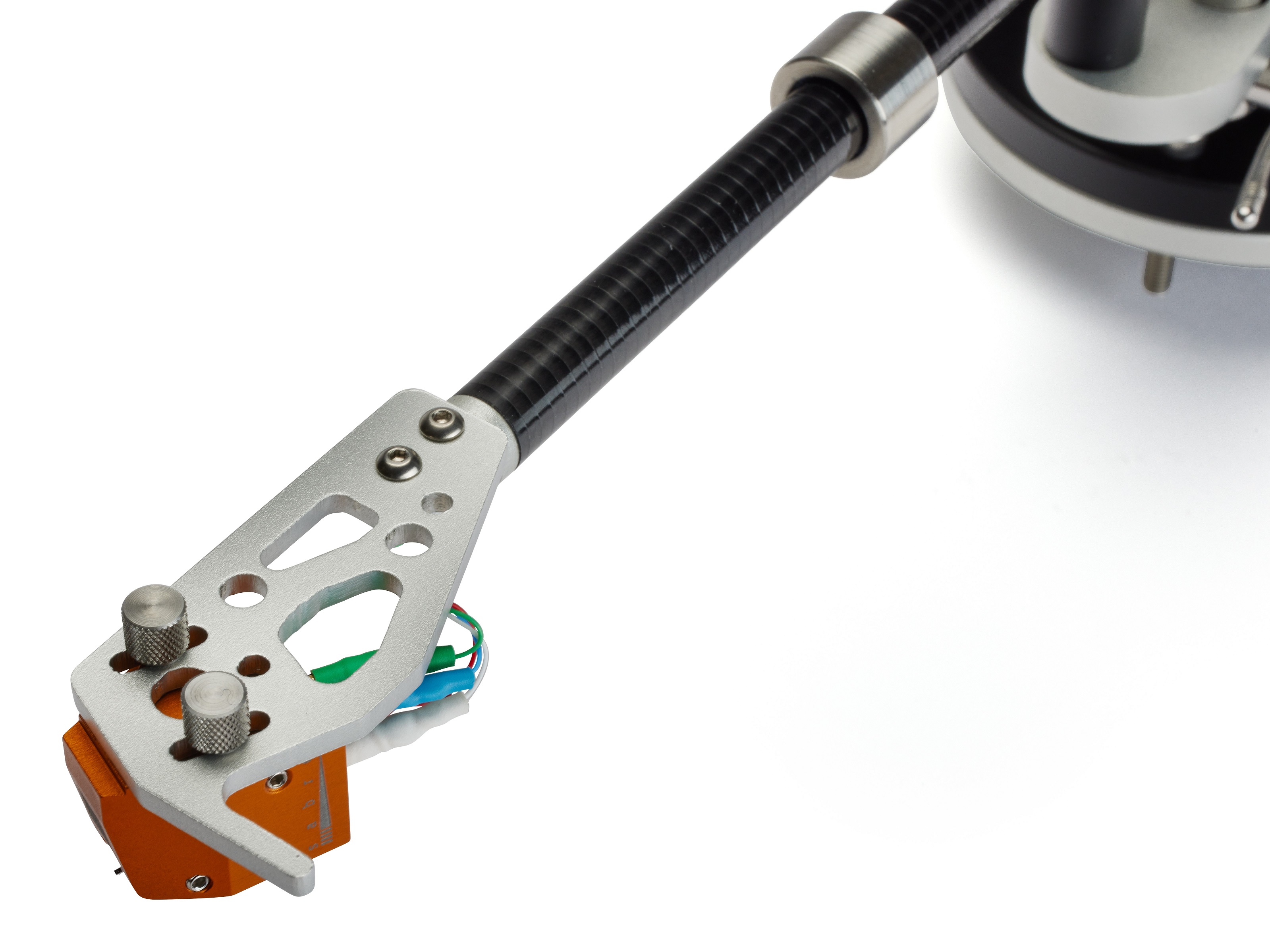

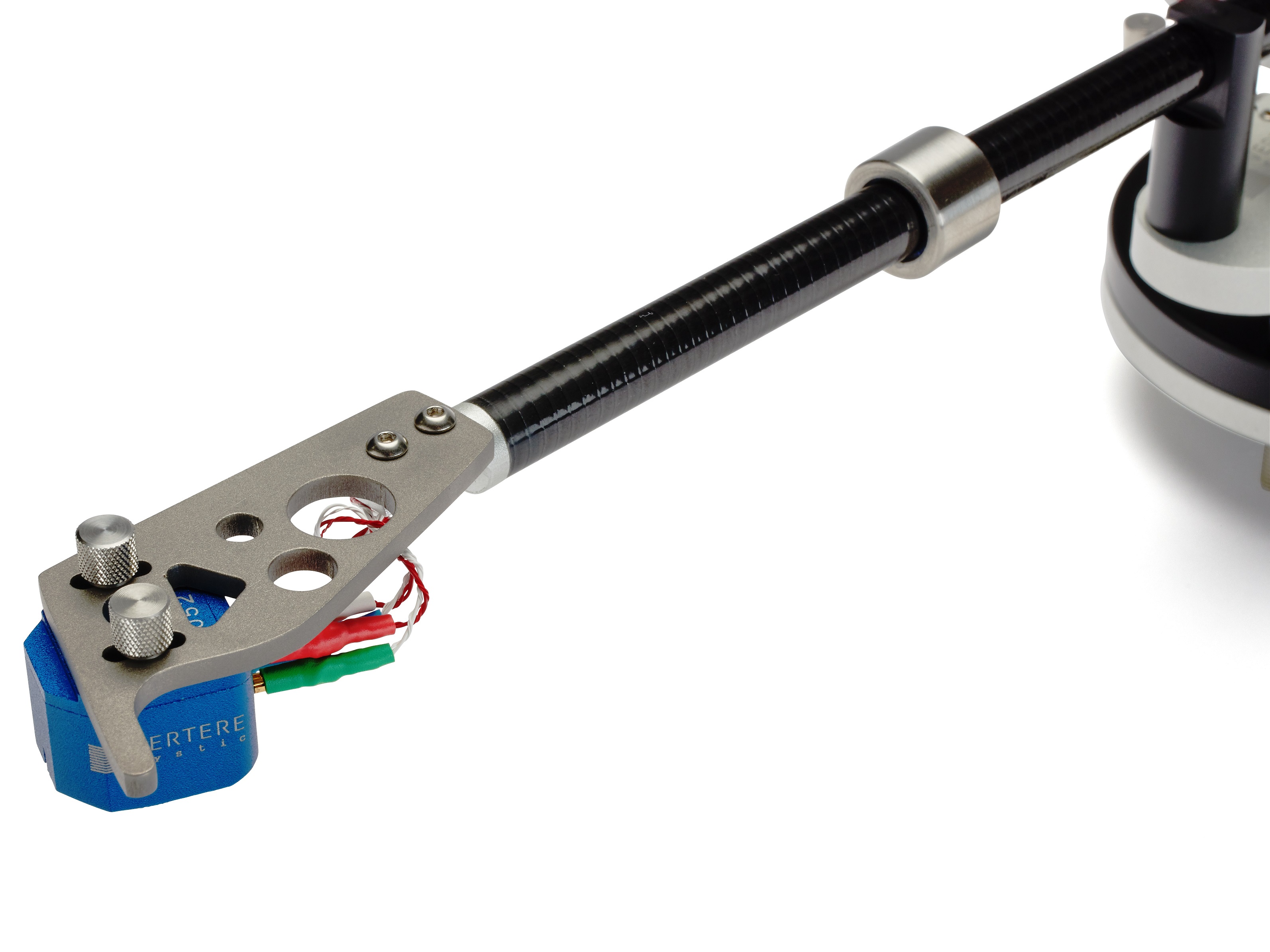

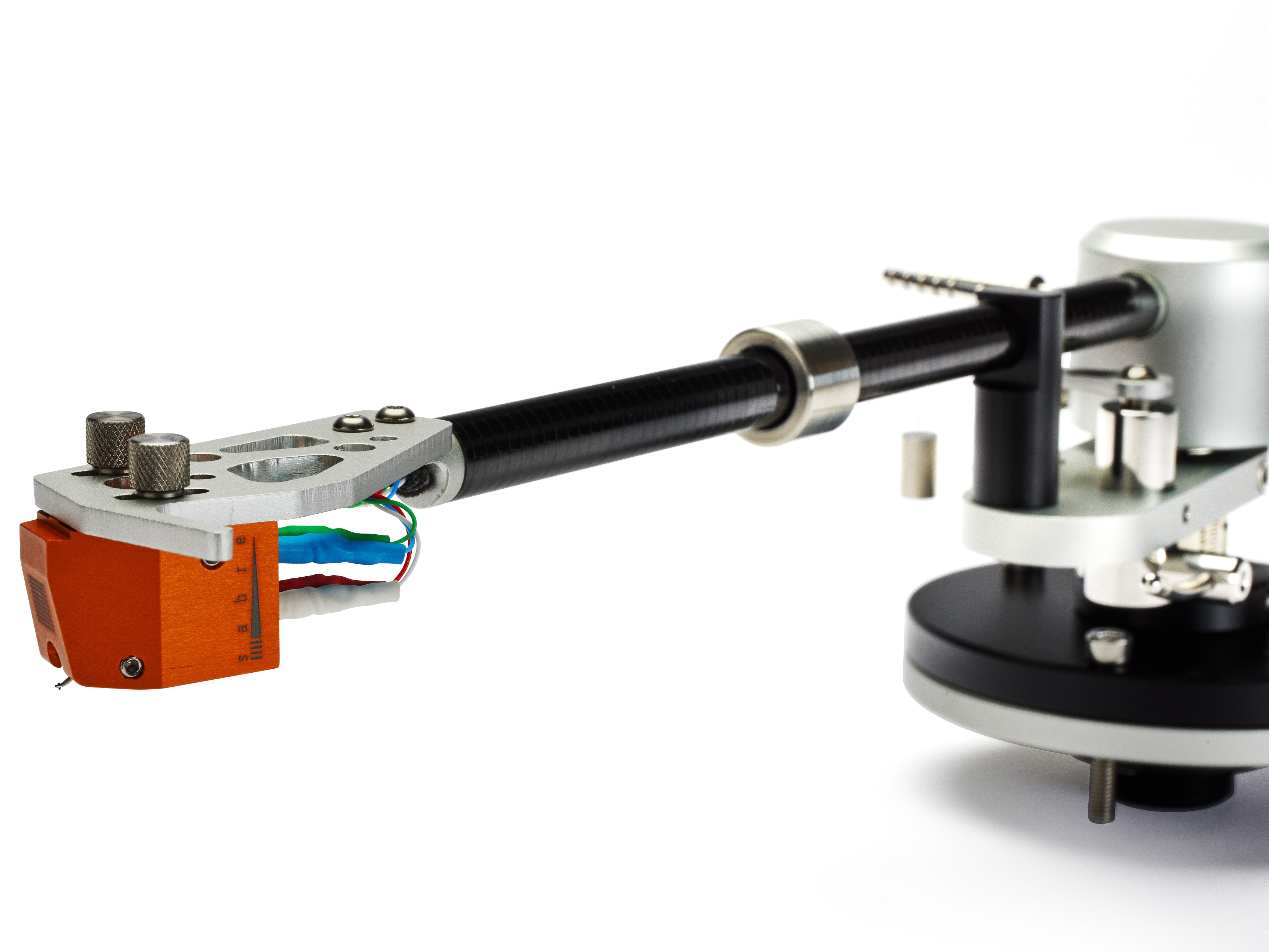

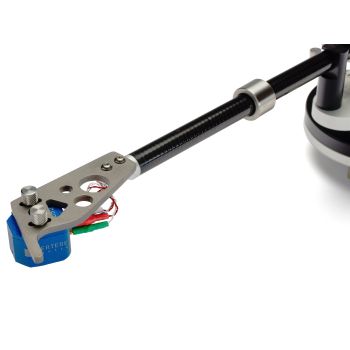

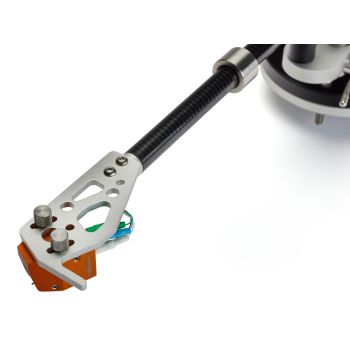

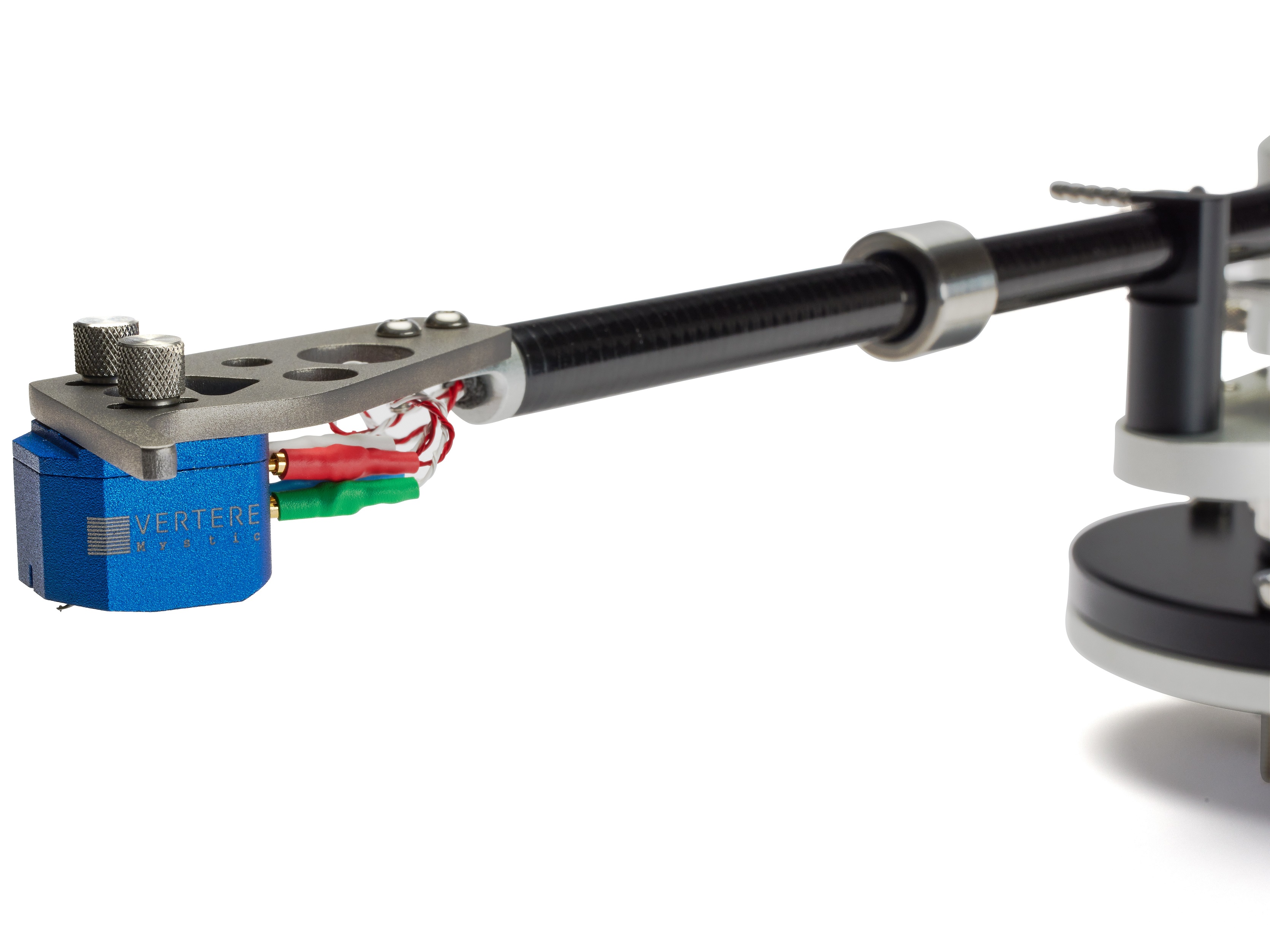

SG-PTA Tonearm Tube & Head-shell

Roll wrapped carbon fibre is used in the construction of the arm tube. This provides higher strength and more homogenous fibre structure than a Pultruded or moulded equivalent.

The head-shell is made from aluminium alloy and connected to the arm tube via structurally bonded alloy end insert. Naturally non-resonant and higher strength to weight ratio of this configuration provides the optimum cartridge platform.

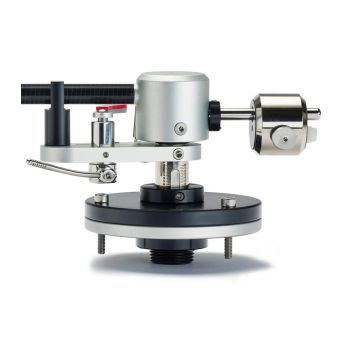

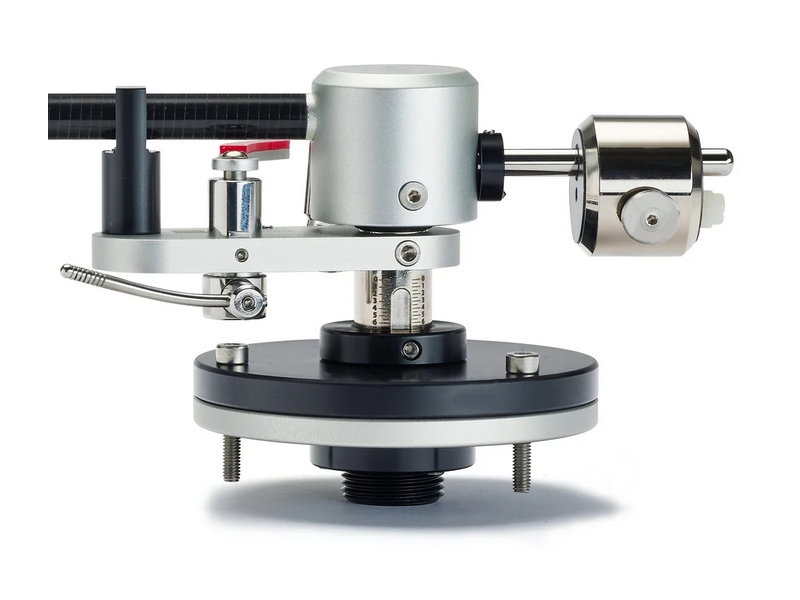

Aluminium Bearing Yoke and Brass Pillar

The bearing pivot is structurally bonded to the precision machined aluminium alloy yoke. The assembly provides the support required for the arm tube, the main counterweight and the anti-skate mechanism.

The pivot point and the counterweight centre of gravity are vertically positioned to be as low as possible. This in turn retains the tonearm in its most stable position by the chrome plated brass main tonearm pillar.

Bearing Transit Screw & Counter Weight Locator

SG-PTA tonearm transit screw will prevent any accidental damage to the precision Tri-pivot bearing during shipping. And the counterweight locator will ensure accurate repositioning of the counterweight and eliminate the need to setup the Tracking Weight & Azimuth again.

Arm/Cartridge Resonance Frequency & Fine Tracking Weight Adjustment

An adjustable and de-coupled stainless ring allowed to move along the arm tube provides fine tracking weight adjustment.

The relative position of this ring and of the main counterweight can also be used to alter the arm/cartridge resonance frequency and optimise play back performance of the cartridge.

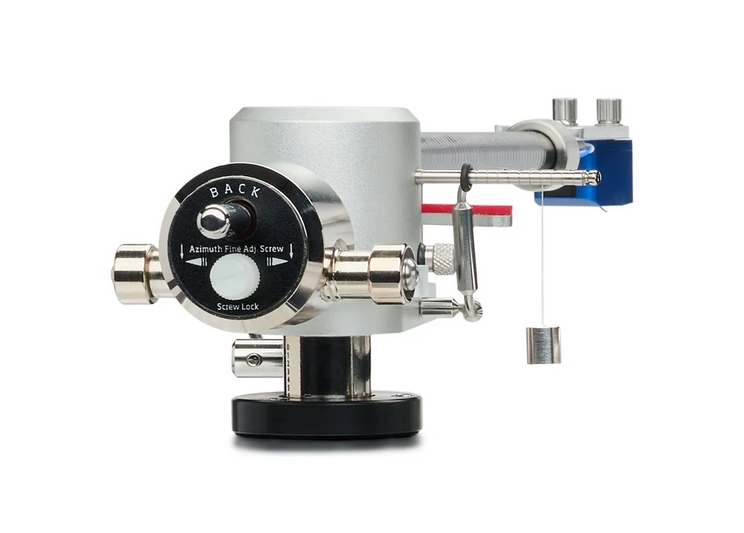

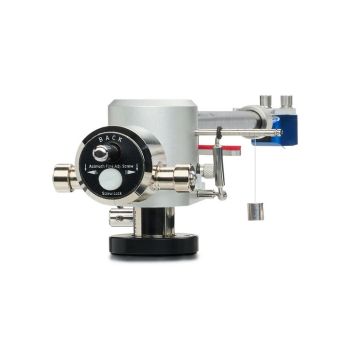

SG-PTA Tonearm Main Counterweight

Attention to detail is clearly seen in the mirror chrome plated brass counterweight and polished stainless steel peg.

Two pairs of silicone de-coupling rings are utilised to provide the necessary grip for location and the required isolation of the counterweight. Side-to-side moving and lockable Fine Adjustment Azimuth Screw offers easy and accurate setting of the cartridge azimuth to ensure optimum musical performance.

SG-PTA Tonearm Pillar Holder and Clamp

Precision machined from Acetal the SG Tonearm Pillar Holder and Clamp utilises a Tri-point fixing method to provide the tonearm/cartridge the required interface rigidly coupled to the record player.

Internal Wiring & Contact Connectors

Both the cartridge tags and the 5-pin connector pins are designed, machined and gold plated to Vertere exact specifications for the SG PTA tonearm. The 5-pin connector main body is also machined form solid PTFE for its superior di-electric characteristics. SG-PTA tonearm is internally wired with Vertere Pulse wiring.
