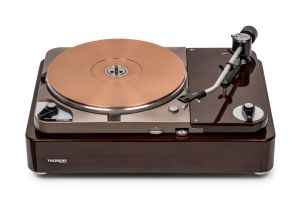

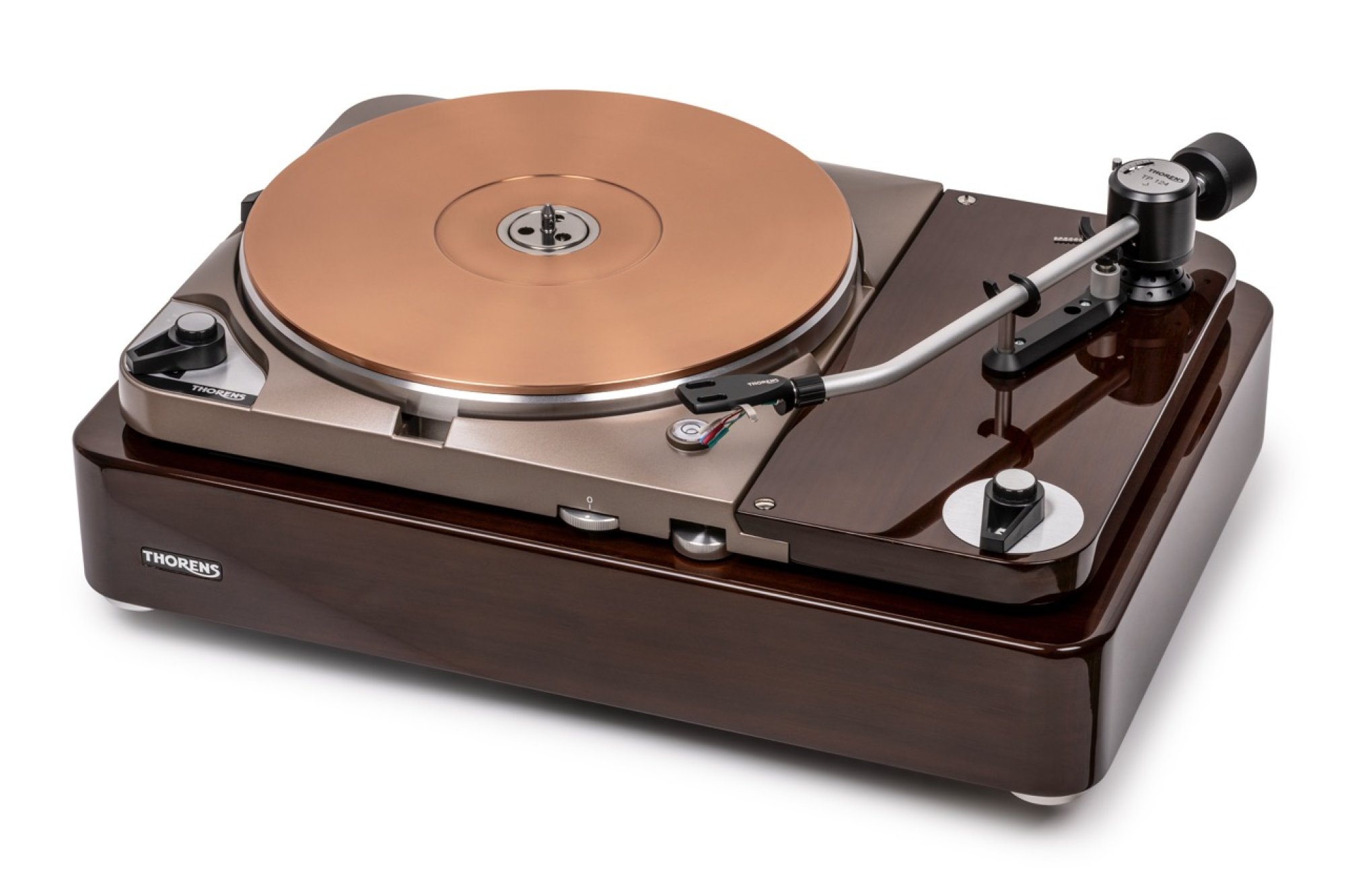

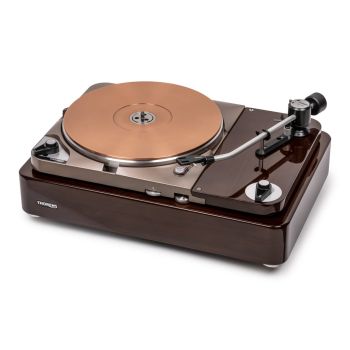

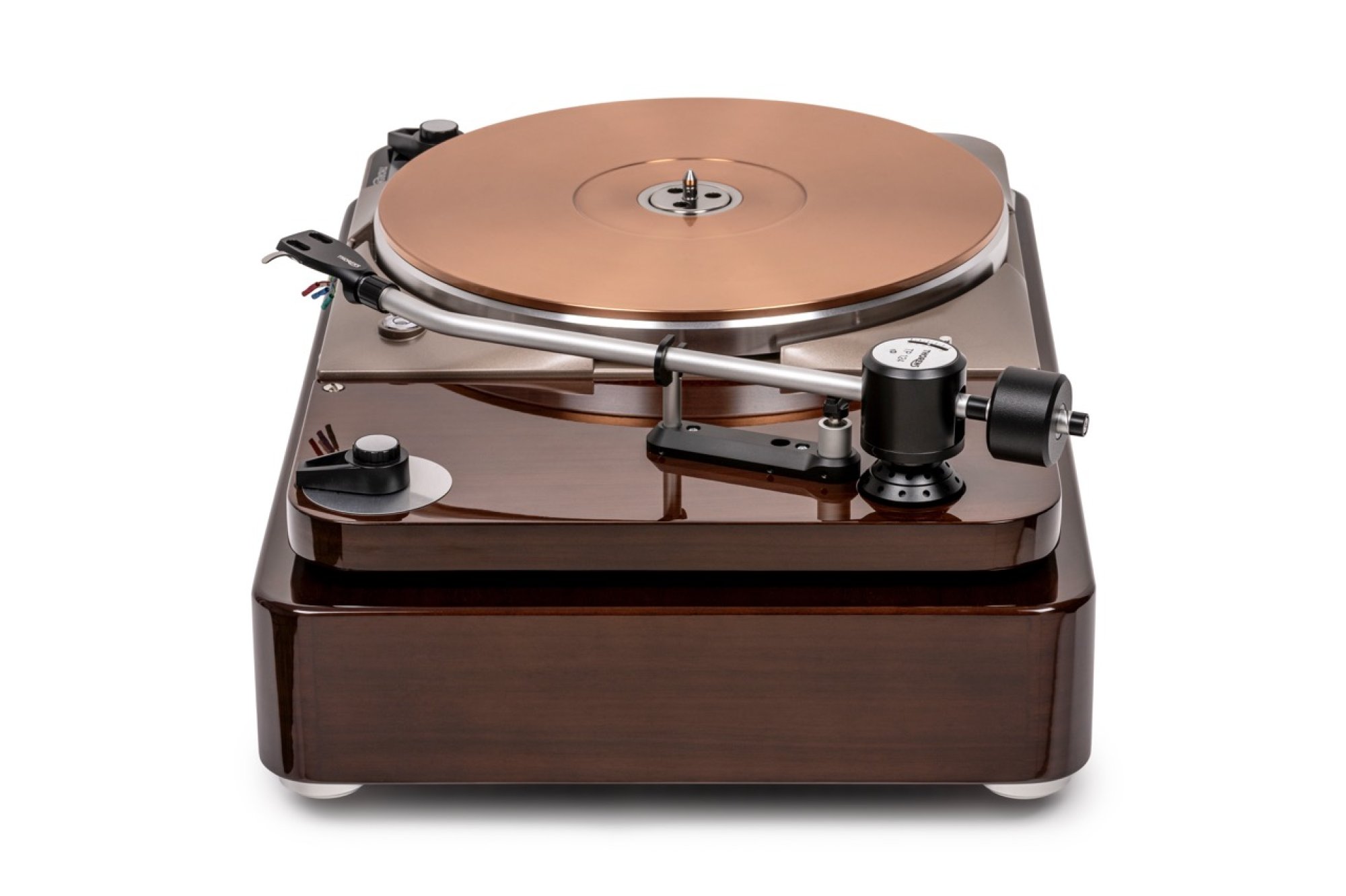

Το Thorens TD-124 DD Exclusive ειναι χειροκινητο πικαπ direct drive με εξωτερικο τροφοδοτικο. Διαθετει σασσι αναρτημενο με ελαστομερη στοιχεια σε υποσασσι και τον βραχιονα Thorens TP124. Πλατω απο χαλκο, εξοδους RCA και XLR. Διαθετει πτοτοποθετημενη την κεφαλη ΕΜΤ.

Εγγυηση αντιπροσωπειας. Δυνατοτητα δοσεων.

The central feature of the TD 124 DD Exclusive is the new 12-inch TP 124 tonearm, whose extended length ensures a significantly reduced tracking error angle and thus minimises distortion.

A special highlight is the specially developed cartridge from EMT Tontechnik in Switzerland. The design is reminiscent of the legendary ‘Tondose’ from professional radio technology, but has been specifically optimised for the 12-inch TP 124 tonearm. Equipped with an SME connector.

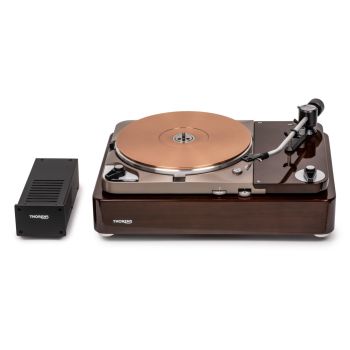

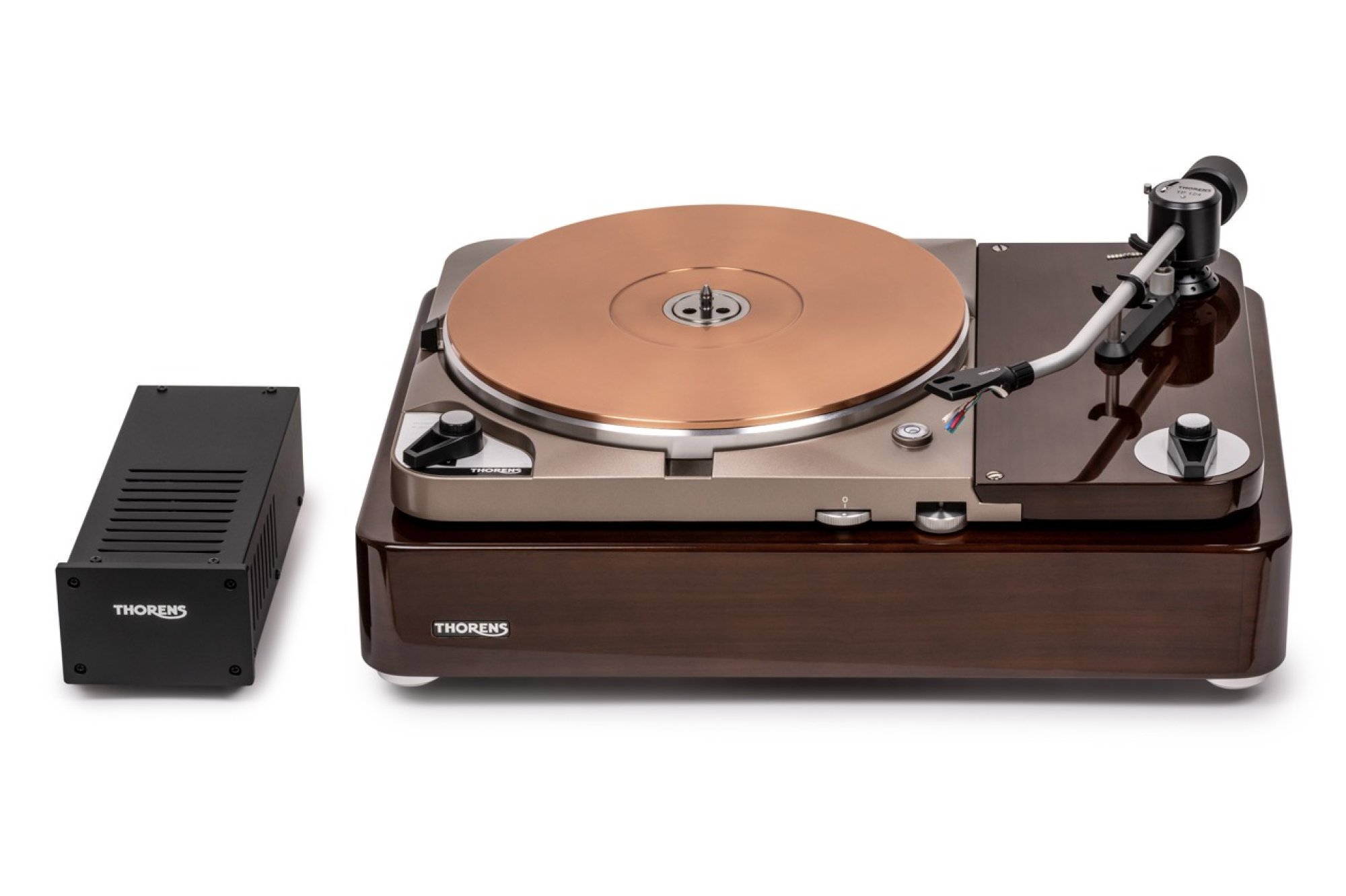

This technical equipment ensures outstanding channel separation, enormous dynamics and the finest detail resolution - ideal for lovers of high-quality analogue sounds. As with the TD 124 DD, the proven, powerful direct drive motor is used, which in this edition is powered by the TPN 124 linear power supply unit included in the scope of delivery.

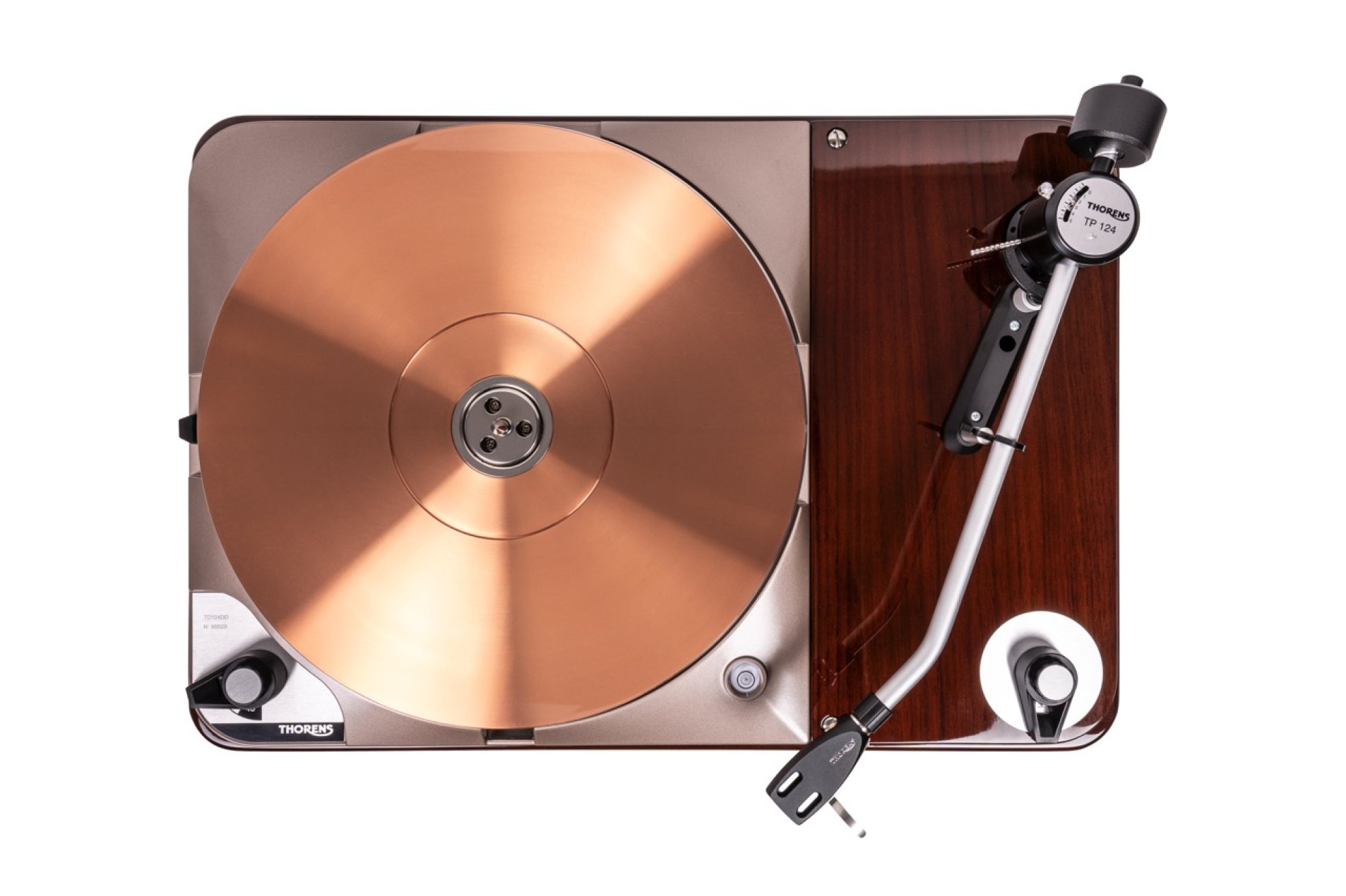

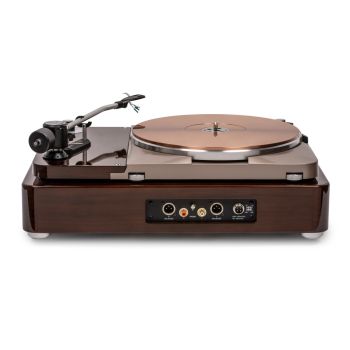

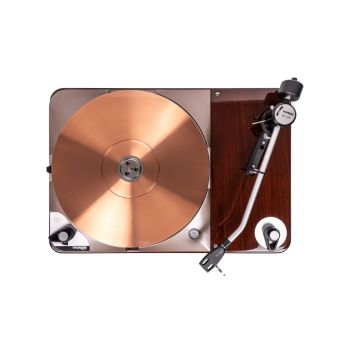

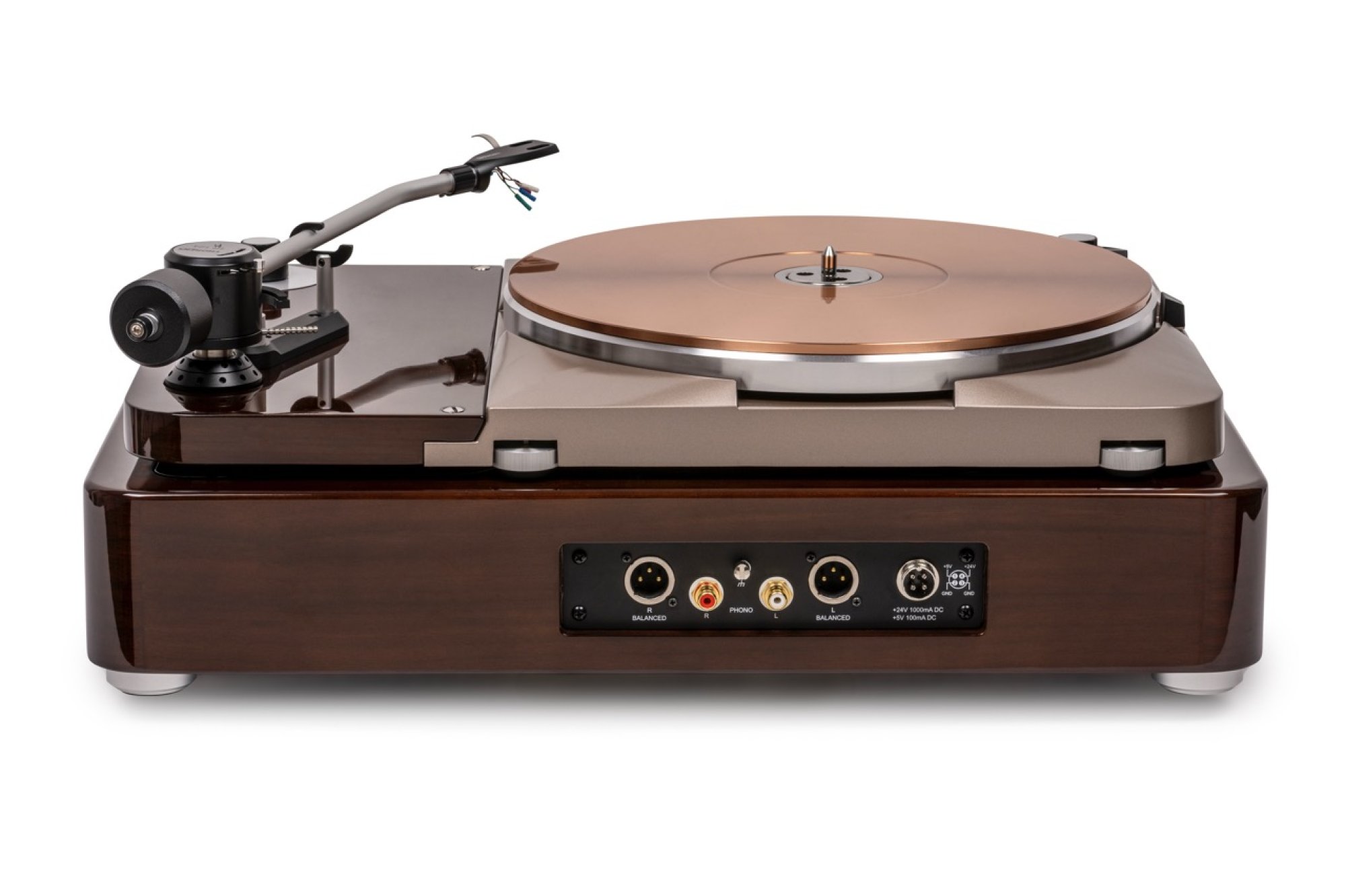

A pure copper platter support additionally improves the acoustic coupling between platter and disc and reduces resonances, resulting in even greater sound precision. The TD 124 DD Exclusive offers both gold-plated RCA outputs and balanced XLR outputs.

Features

• New 12-inch TP 124 tonearm
• Internal pure-silver cabling
• Exclusive EMT cartridge
• with ruby cantilever and Gyger stylus
• Direct-drive motor
• External TPN 124 linear power supply
• Copper platter
• Gold-plated RCA outputs and balanced XLR outputs

Specifications

• Function
  • Manual operation
  • Electric tonearm lift
• Drive System: Direct drive
• Motor: Fully electronically controlled DC motor
• Speeds
  • 33? rpm
  • 45 rpm
• Wow & Flutter
  • DIN / WRMS (DIN): 0.035%
  • WRMS: 0.007%
• Speed Select: Electronic
• Platter: 12", 3.5 kg, aluminium platter with 5 mm copper plate
• Tonearm: TP124 12" special version with pure silver cable
• Effective Tonearm Length: 309.0 mm
• Offset Angle: 23.66°
• Overhang: 17.8 mm
• Effective Mass of the Tonearm: 20 g
• Cartridge: Optional EMT-TSD Exclusive
• Anti-Skating: Ruby-mounted counterweight
• Shut Off: No
• Outputs
  • RCA
  • Balanced XLR
• Power Supply: External power supply TPN124
• Dimensions (W × H × D): 510 × 190 × 352 mm
• Weight: 15 kg (without power supply)
• Finish: High Gloss Walnut
• Scope of Delivery
  • Linear power supply TPN124
  • User manual

Cartidge Specifications

• Cantilever: Ruby
• Needle cut: Gyger
• Coil wire: Pure gold
• Output voltage: 0.7 mV @ 5 cm/s
• Channel balance: 0.5 dB
• Impedance: 12 Ohm
