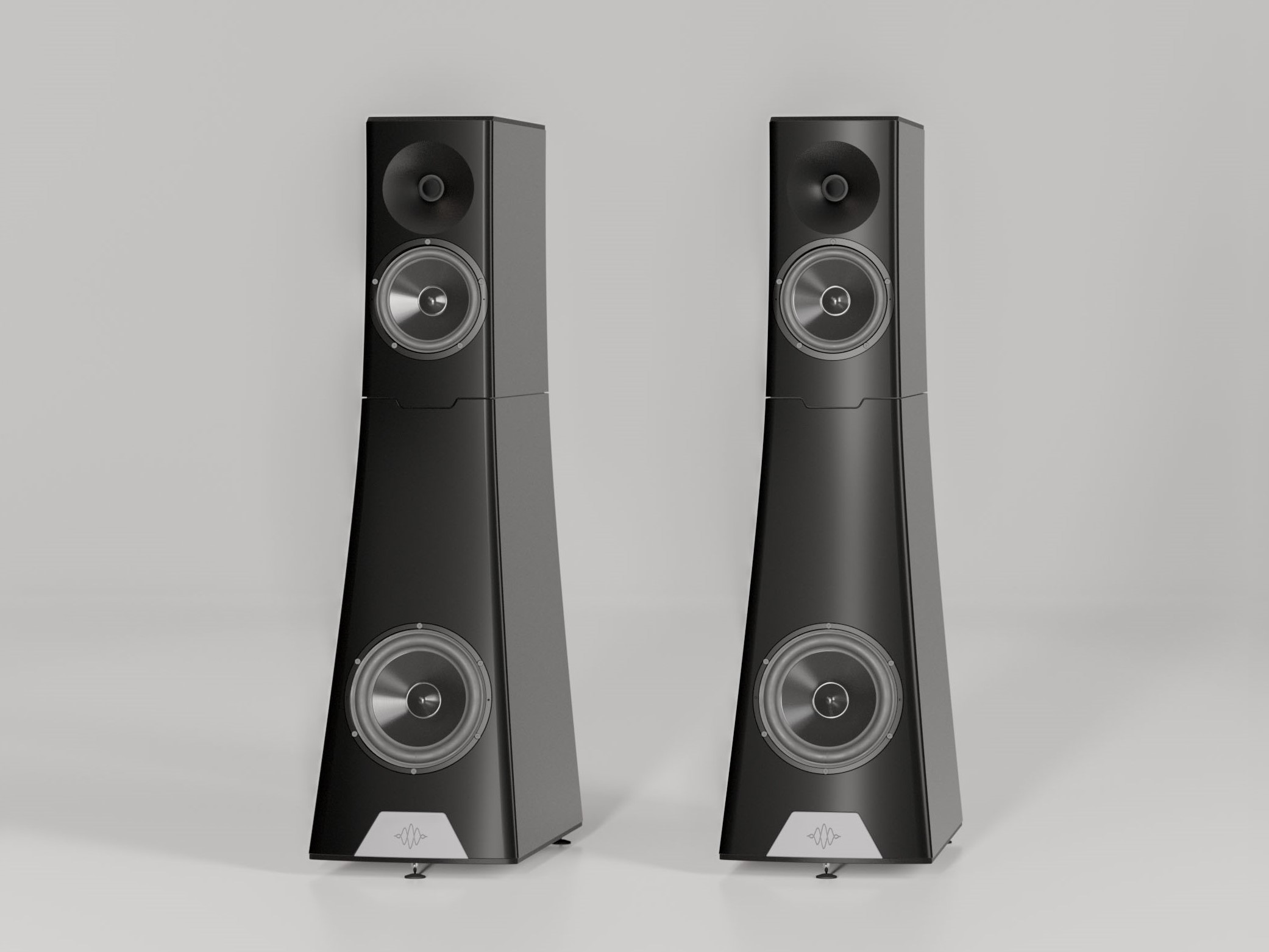

Τα YG Acoustics Reference Vantage 3 ειναι ζευγος ενεργων ηχειων δαπεδου 3 δρομων, με 1x 8.75" woofer, 1x 7.25" midwoofer και 1x tweeter.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα ανταλλαγων, δοσεων.

The Reference speakers are structured from high-grade aerospace aluminum, machined in-house to an incredible precision. The speakers are meticulously hand-built by experts in our Colorado workshop.

The Reference 3 models include new technologies and design innovations based on novel theoretical models, detailed multi-domain simulations and thousands of hours of listening. The end result: loudspeakers which convey every nuance of emotion, each musical cue from the tiniest micro-detail to the visceral impact of the most thunderous crescendo.

An entirely new, hybrid Lattice tweeter uses a novel airframe in a specially-selected aerospace alloy, machined by YG Acoustics. It delivers exceptionally low distortion over a huge bandwidth, with wide angular dispersion to support a large sweet-spot.

Groundbreaking, third-generation Ultracoherent crossovers apply a deep understanding from simula-tion to deliver performance never before possible.

Our BilletCore drivers use advanced motors and cones machined in-house from solid billet, offering some of the highest performance and lowest distortion in any driver available today

Specifications

• Speaker Type 3-way passive floor-standing loudspeaker
• Drivers
  • Lattice hybrid tweeter with advanced airframe
  • 18.5 cm (7.25”) BilletCore driver with advanced neodymium motor magnets
  • 22 cm (8.75”) BilletCore driver with ultra-high field strength motor
• Crossover
  • Ultracoherent circuit with crossovers at 90 Hz and 1.75 kHz
  • Exceptional phase alignment: ±5° relative phase over range where driver relative output is within 20 dB
  • Optimized for phase alignment, phase slope and transient response
  • Custom capacitors including pure metal foil models
  • Advanced resistors including multiple foil resistors for exceptional imaging and transient response
  • Advanced resonance-damped inductors including ultra-high area rectangular wire bass inductors
  • Computationally optimised layouts to minimise component interactions
• Response
  • Usable output extends from 26 Hz to 40 kHz
  • Exceptionally low distortion throughout range
  • Excellent pair matching
• Sensitivity 87 dB
• Impedance 4 Ohms average, 2.8 Ohms minimum
• Dimensions 112 × 33 × 54 cm (H × W × D)
• Weight 85kg per speaker
• Finishes
  • Standard finishes are silver and black
  • Please contact your dealer for other finish options
