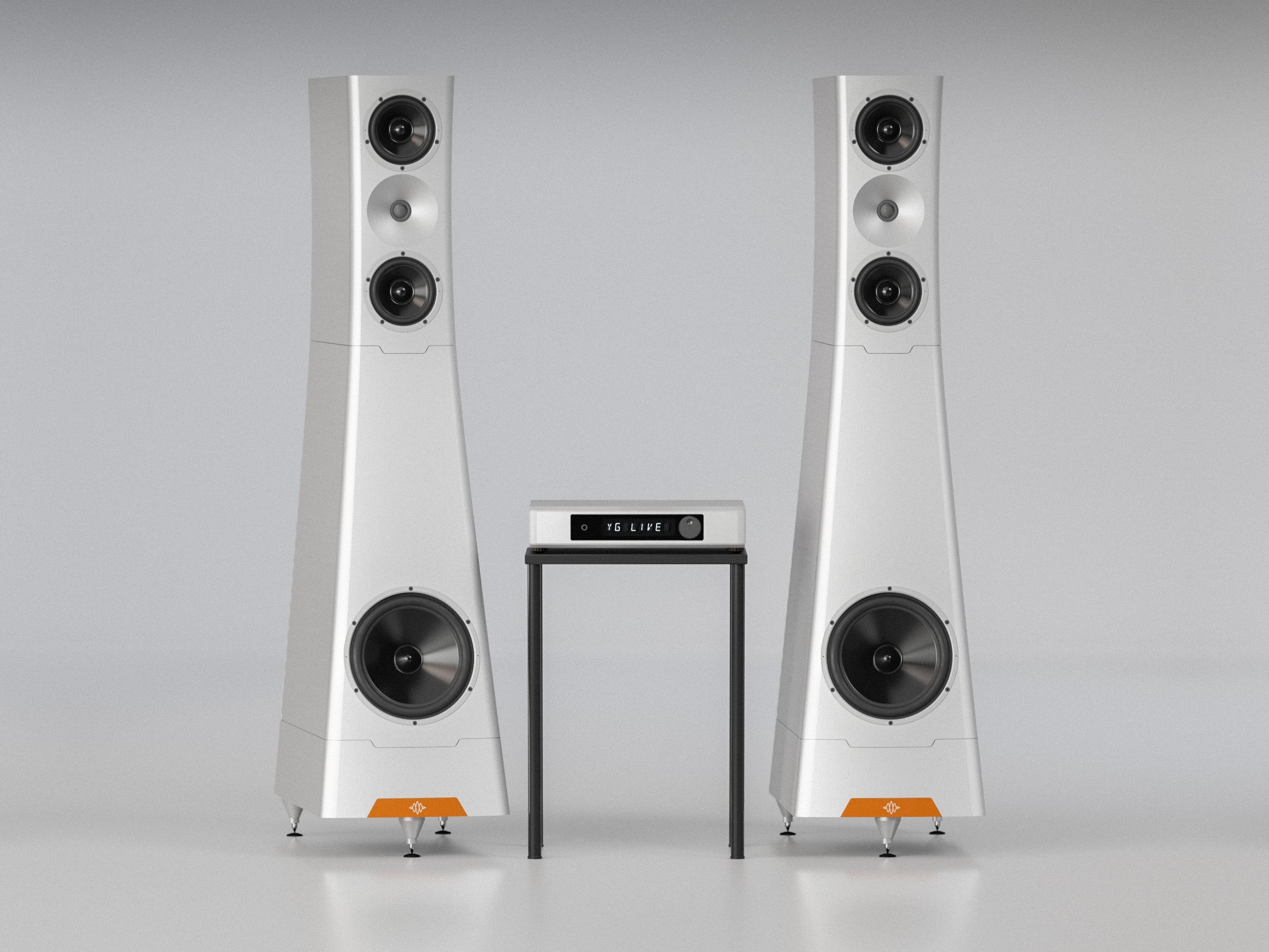

Τα YG Acoustics Live Sonja 3 ειναι ζευγος ενεργων ηχειων δαπεδου 3 δρομων, με 1x 10.25" woofer, 2x 6" midranges και 1x tweeter. Περιλαμβανεται εξωτερικος προενισχυτης με ενωσματωμενο DSP και active Crossover. Καθε ηχειο διαθετει ενσωματωμενους ενισχυτες ισχυος 4x 700W.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα ανταλλαγων, δοσεων.

Advanced DSP crossovers have been tuned on the basis of extensive listening, combined with complex, multi-domain physics and acoustic models, optimized using supercomputer and cloud computing resources.

A new, custom DSP, DAC and amplifier set-up extracts every drop of performance from the platform. Four 700W, full-range audiophile amplifiers drive allow each drive unit to be driven directly, delivering unbelievable dynamics, astounding realism and bottomless, authoritative bass, yet the whole system is cool and efficient. The result is a velvet black background with a beautiful, smooth delivery across all types of music.

The Live 3 models include new technologies and design innovations based on novel theoretical models, detailed multi-domain simulations and thousands of hours of listening. An new, hybrid Lattice tweeter uses a novel airframe in a specially-selected aerospace alloy, machined by YG Acoustics. It delivers exceptionally low distortion over a huge bandwidth, with a wide imaging sweet-spot.

Specifications

• Speaker Type: 3-way DSP active loudspeaker with preamp controller supporting analog, digital, phono and Roon Ready streaming inputs
• Lattice hybrid tweeter with advanced airframe, 2x 15 cm (6”) BilletCore drivers with advanced neodymium motor magnets, 1x 26 cm (10.25”) BilletCore drivers with ultra-high field strength motor
• Frequency Response: Usable output extends from 20 Hz to 40 kHz, Exceptionally low distortion throughout range
• Crossover: Advanced DSP crossover optimized using supercomputer and cloud computing resources, then tuned across thousands of hours of critical listening. Exceptional phase, amplitude and impulse accuracy response at all volume levels.
• Amplifier Specs:
  • Dedicated 700 W amp per drive unit = 2.8 kW per channel
  • 0.0006% THD+N 20 Hz to 20 kHz at half peak power
  • 137 dB SNR unweighted ref. peak power
  • 93% efficiency at peak power
  • 250 μΩ output impedance
• Pre Digital Inputs:
  • AES (XLR), SPDIF (BNC), TOSLINK, USB, Ethernet AES, SPDIF, TOSLINK: 24 bit up to 192 KS/s Ethernet: 24 bits to 192 KS/s and DSD64
  • USB2 Audio: 24 bits to 384 KS/s and DSD64/128 (DoP)
• Analog Inputs:
  • 2 × Line inputs RCA,Maximum input: 2.2 Vrms, Impedance: 10kΩ
• Phono Input Specs:
  • Sensitivity: MM: 2.5mV to 5mV; MC: 0.25mV to 0.5mV
  • Input load: MM: 47kΩ; MC: 50Ω, 100Ω, 500Ω, 1kΩ
  • RIAA Accuracy: +/-0.25dB, 50Hz – 15kHz
  • THD+N: <0.01% 1kHz A-weighted SNR: >70dB A-weighted
• General Specs:
  • Controller: 94 × 400 × 316 mm H×W×D
  • Controller weight: 8.7kg
  • Speaker dimensions: 148 × 35 × 64 cm H×W×D
  • Speaker weight: 120 kg per channel unpackaged
• Finishes
  • Standard finishes are silver and black
  • Please contact your dealer for other finish options
