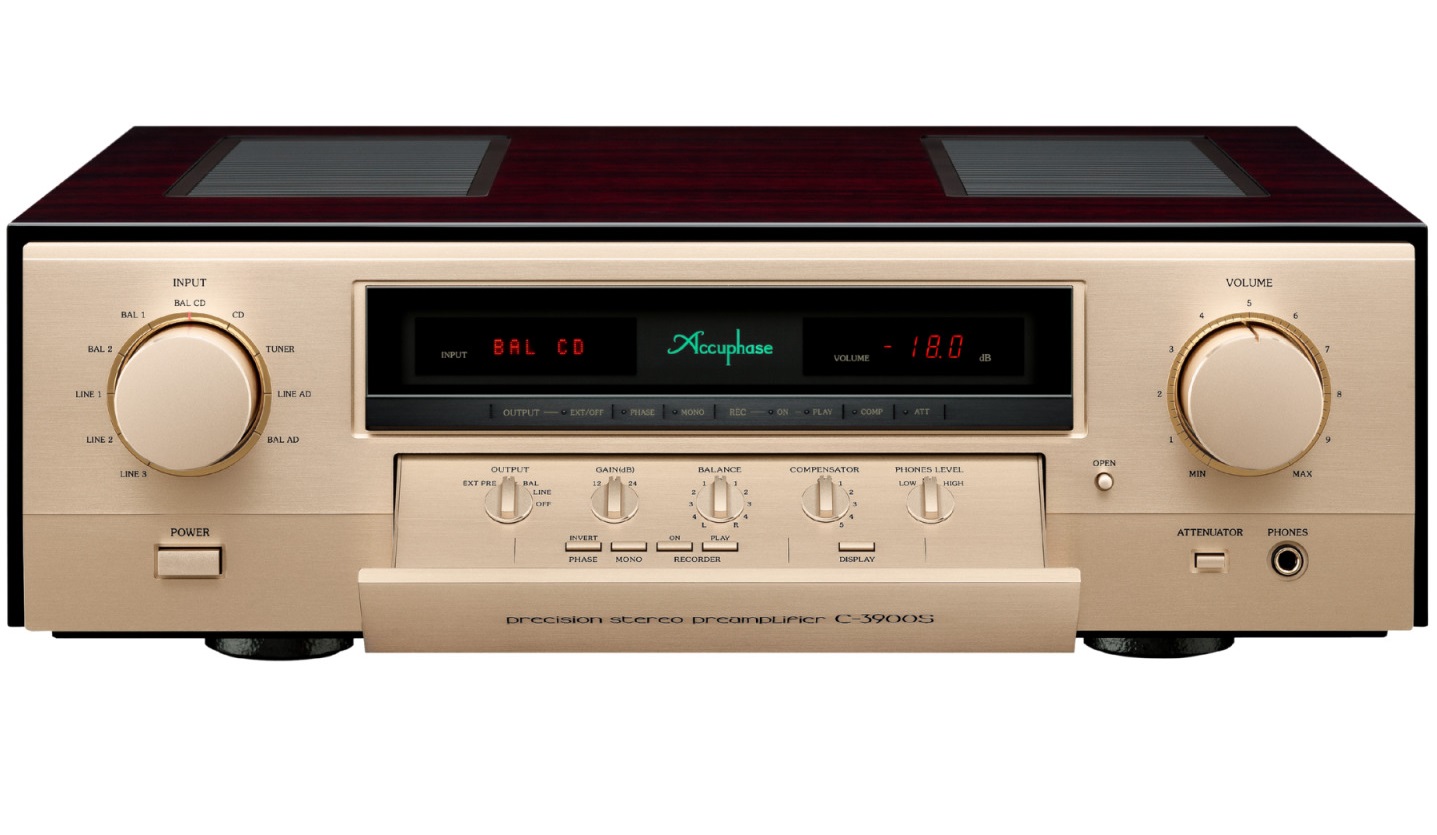

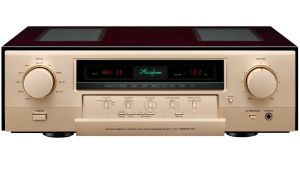

Ο Accuphase C-3900-S ειναι full balanced προενισχυτης 7 εισοδων.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

The evolution of preamplifiers in the history of volume control. Accuphase has addressed the issue of variable resistance with our original AAVA technology, which evolved into Balanced AAVA, and later became Dual Balanced AAVA. The Dual Balanced AAVA with ANCC installed in the C-3900S represents circuitry technology that achieves the ultimate in volume control. The C-3900S is a premium preamplifier for breathing life into deeply emotional performances and songs.

Features

• Dual Balanced AAVA volume control
• High-gain discrete current feedback type input amplifier
• ANCC technology minimizes noise and distortion
• Newly developed volume sensor construction
• Separate toroidal power transformers for left and right
• Newly developed filtering capacitors
• Separate unit amplifiers for left and right
• Printed circuit boards using glass cloth fluorocarbon resin
• Wood cabinet with natural grain finish
• High-performance headphone amplifier

Specifications

• Input Sensitivity / Impedance: 252 mV / 20 kΩ (Line), 252 mV / 40 kΩ (Balanced)
• Frequency Response: 3 Hz – 300 kHz (+0, –3 dB)
• Total Harmonic Distortion: 0.005 %
• Intermodulation Distortion: 0.001 %
• Signal-to-Noise Ratio: 127 dB (Balanced, IHF-A weighted)
• Gain: 12 dB (Balanced / Line → Pre Output)
• Output Voltage and Impedance (Pre Output): 1.13 V, 50 ohms
• Maximum Output Level: 18 V (Balanced), 9 V (Line)
• Tone Controls: None (pure line-stage)
• Output Load Impedance: 600 ohms or higher
• Channel Separation: 140 dB (Balanced)
• Phase Inversion: Possible (per channel)
• Volume Control: Balanced AAVA (Accuphase Analog Vari-gain Amplifier)

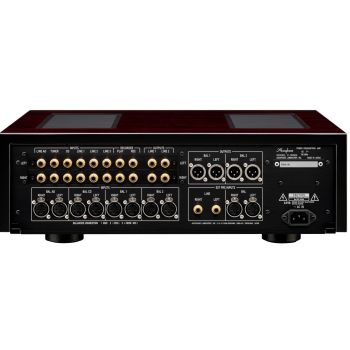

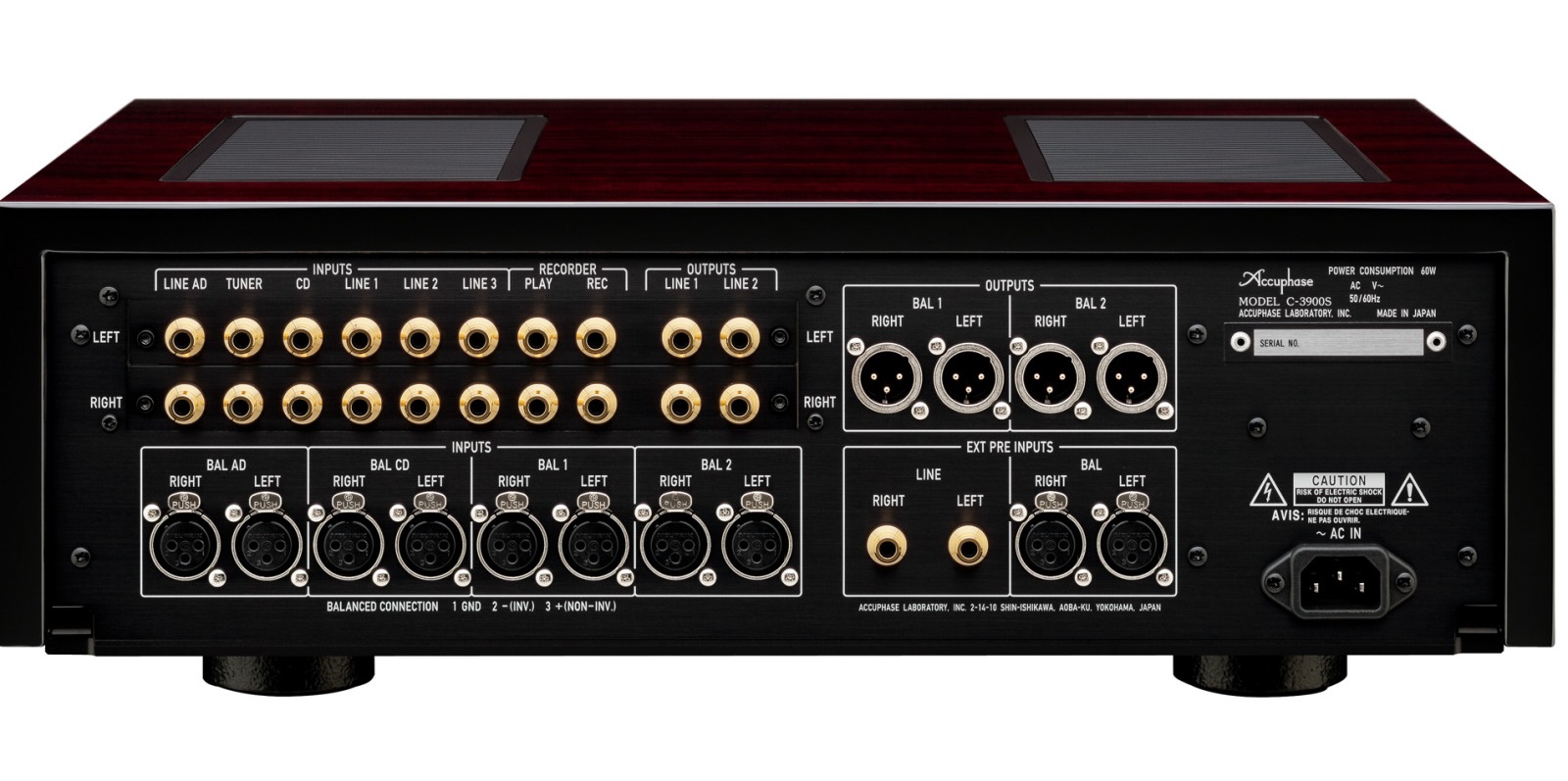

• Inputs: 5 × Line (RCA), 3 × Balanced (XLR), Recorder In / Out
• Outputs: 2 × Balanced (XLR), 2 × Line (RCA), 1 × Recorder Out, 1 × Line Output for sub
• Power Requirements: AC 120 V / 230 V / 240 V, 50/60 Hz (depending on destination)
• Power Consumption: 48 W
• Dimensions (W × H × D): 465 × 156 × 407 mm
• Weight: 24.6 kg
