Το Sbooster BOTW P&P ECO MKII 15-16V ειναι τροφοδοτικο (και φιλτρο) που παρεχει 15-16 Volts συνεχους ρευματος για switchers, routers, optical isolators κλπ.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

With the BOTW P&P ECO audio upgrade the purification of the current starts immediately there where the polluted current enters the power supply. The dual stage mains filter and earth line choke removes high frequency pollution before the current reaches the transformer. The transformer is a custom-made audio grade transformer with electrostatic shielding. The transformer of the MKII power supply is also magnetic shielded.

The electronic design is innovative: it gets 50% more energy out of the used electronics and consumes even up to 35% less energy than a conventional design. The BOTW P&P ECO audio upgrade concept is so efficient that it consumes only a bit more energy than the standard supplied high efficient, but also highly polluting switch mode adapter. The BOTW P&P ECO costs annually only a couple of euro extra on your energy bill for a priceless sound experience.

At the end of the DC cable you find our unique split-current system. The power supply part of the BOTW P&P ECO provides the split-current system with continuous powerful and clean power, so the electronics can do their job profoundly: 1) to buffer the power, so that the power supply becomes fast, and 2) to filter one last time the voltage and current before they enter the audio device.

Hilights

• Output Current: 50% increased current capability
• Design: Power-saving architecture
• Performance Characteristics
  • High current delivery for demanding equipment
  • Low-noise operation for sensitive audio devices
• Output Voltage: 3 selectable output voltages
• AC Input: IEC C14 inlet (compatible with high-end mains cables)
• Filtering & Protection
  • Dual-stage mains filter
  • Earth line choke
  • Overvoltage protection
• Transformer: Custom high-efficiency audio-grade transformer
• Capacitors: High-quality polypropylene film capacitors
• Power Architecture: Sbooster split current system (low-noise design)

Features

• PCB Construction
  • Double-sided 2 oz copper traces
  • Gold-plated finish
• Thermal Management: Upgraded, thicker heatsink
• Internal Wiring: Silver-plated copper conductors with PTFE insulation
• Transformer
  • Electrostatic shielding
  • High-frequency magnetic shielding
• Capacitors: Upgraded low-ESR bulk capacitors
• Circuit Design: Improved reference circuit topology
• Power Architecture: Next-generation split-current unit
• DC Output
  • New shielded DC cable with outer sleeve
  • Custom-made DC plugs
  • Gold-plated connector pins (split-current unit)

Specifications

• Mains Voltage: 100 – 240 V AC, 50 / 60 Hz
• Transformer: Audio-grade toroidal with electrostatic and magnetic shielding
• Mains Filter
  • Dual-stage high-performance filter
  • Earth line choke
• Rectification: Power Schottky barrier rectifiers
• Regulation: High-current LDO with external high-precision shunt reference
• Capacitors
  • Low-impedance, high ripple current (bulk)
  • Non-inductive polypropylene film (filter stage)
• DC Cable
  • Length: 95 cm
  • Gauge: 16 AWG
  • Construction: Spiral shielded with outer sleeve

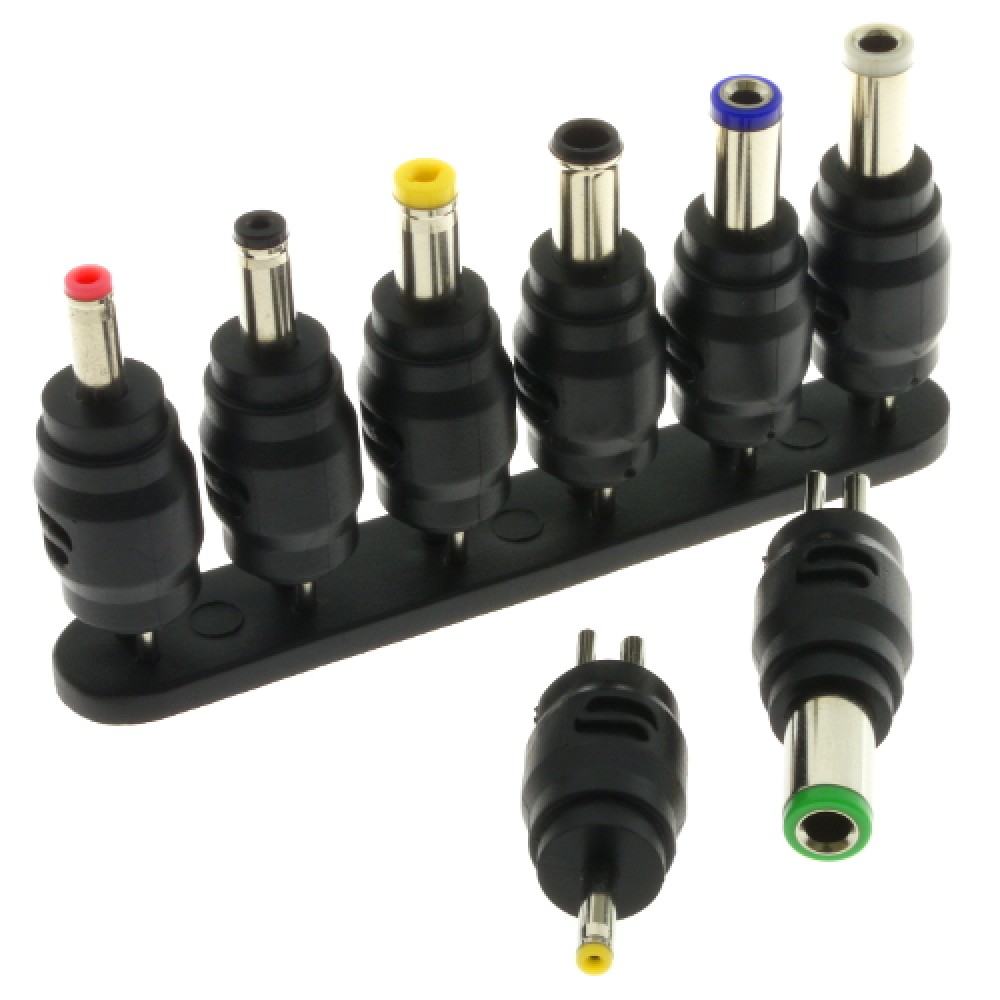

• Connector System: Gold-plated split-current unit with interchangeable DC tips
• Dimensions (W × D × H): 240 × 130 × 75 mm
• Weight: 1.85 kg
• Safety Approvals: CE
• Warranty: 24 months
