Ο MSB S202 Stereo ειναι δικαναλος τελικος ενισχυτης, ισχυος 2x 200 wrms/8Ω.

Εγγύηση Αντιπροσωπείας. Δυνατότητα δόσεων, ανταλλαγών.

Power without limits.
Thanks to a massive custom low-noise high-current toroidal transformer and rugged high-current output buffers, the S202 provides a transparent, holographic listening experience that’s completely fatigue free. This ensures that the amplifier presents consistent performance even with difficult speakers.

Input architecture.
The S202 features a discrete design with a Class-A matched impedance input stage. The result is a product with minimized signal reflections, input noise, and distortion, while also maximizing power transfer and dynamic range in a zero negative feedback design. All components were meticulously chosen for their sonic performance and longevity, ensuring your amplifier is built to last.

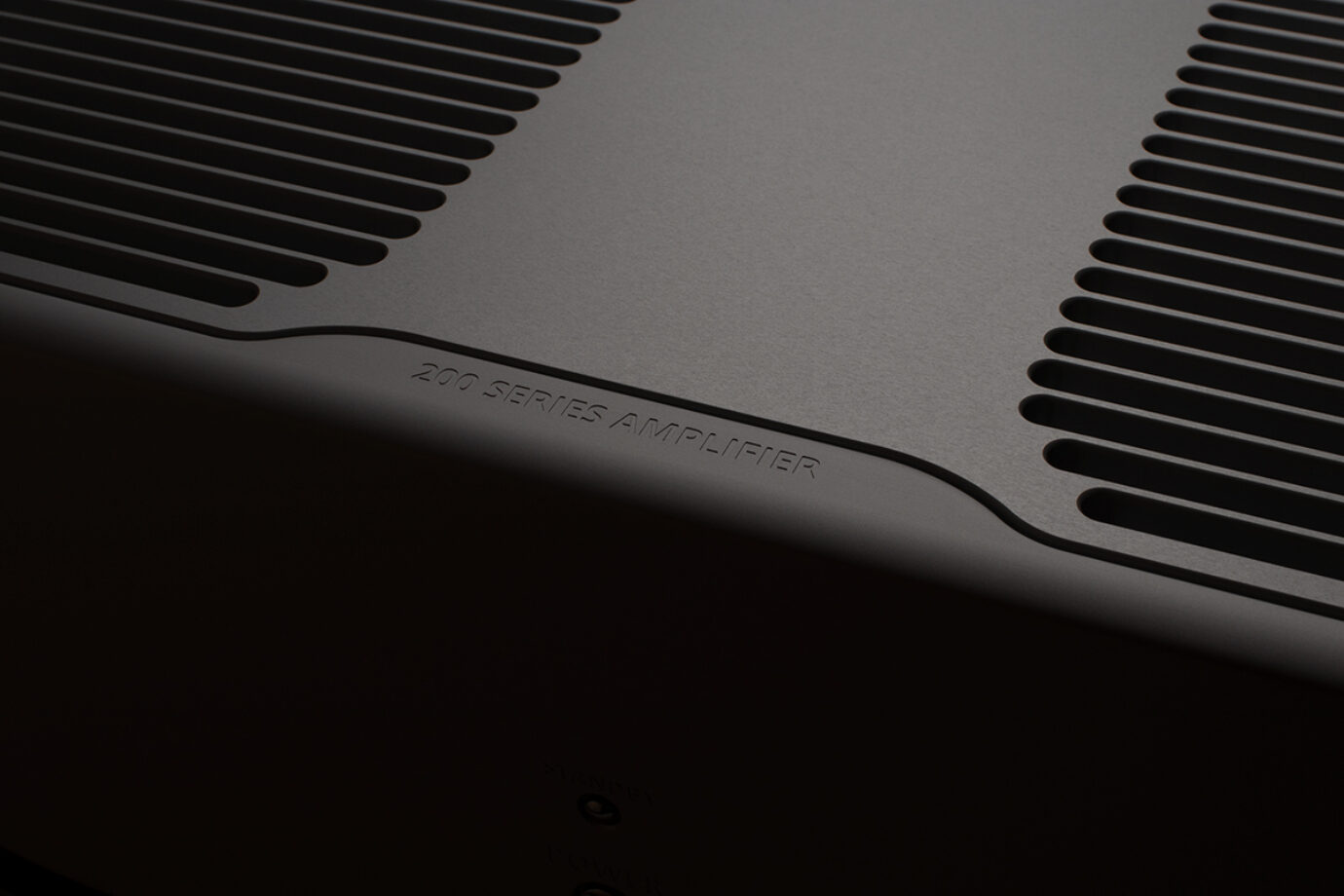

Billet CNC chassis.
The S202 amplifier is designed and lovingly crafted in our factory based in California. After 14 hours of CNC machining, a complete chassis of billet aluminium components are ready, maximizing heatsink area with a stunning visual profile. This high-efficiency design provides a surface area of over 3,000 in² per amplifier. High-power heat pipes distribute heat evenly for optimal thermal and electrical performance.

Core values.
Building the S202 amplifier with a core enclosure greatly improves its reliability and performance. Upon completion, the cores are rigorously tested and stocked for orders, ensuring the highest quality product is ready at a moment’s notice. With this segmentation, your system is optimized for performance and resilience.

Smart control features.
The S202 is equipped with a simple, user-friendly control interface. Intuitive push buttons, remote commands, and the 12V triggers guarantee control over power and standby modes. Further control of amplifier “power on” timers and soft-start circuits allow a multi-amplifier system to power up without putting strain on your listening room’s electrical system.

Powerful configurations.

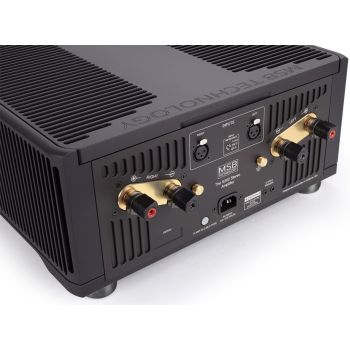

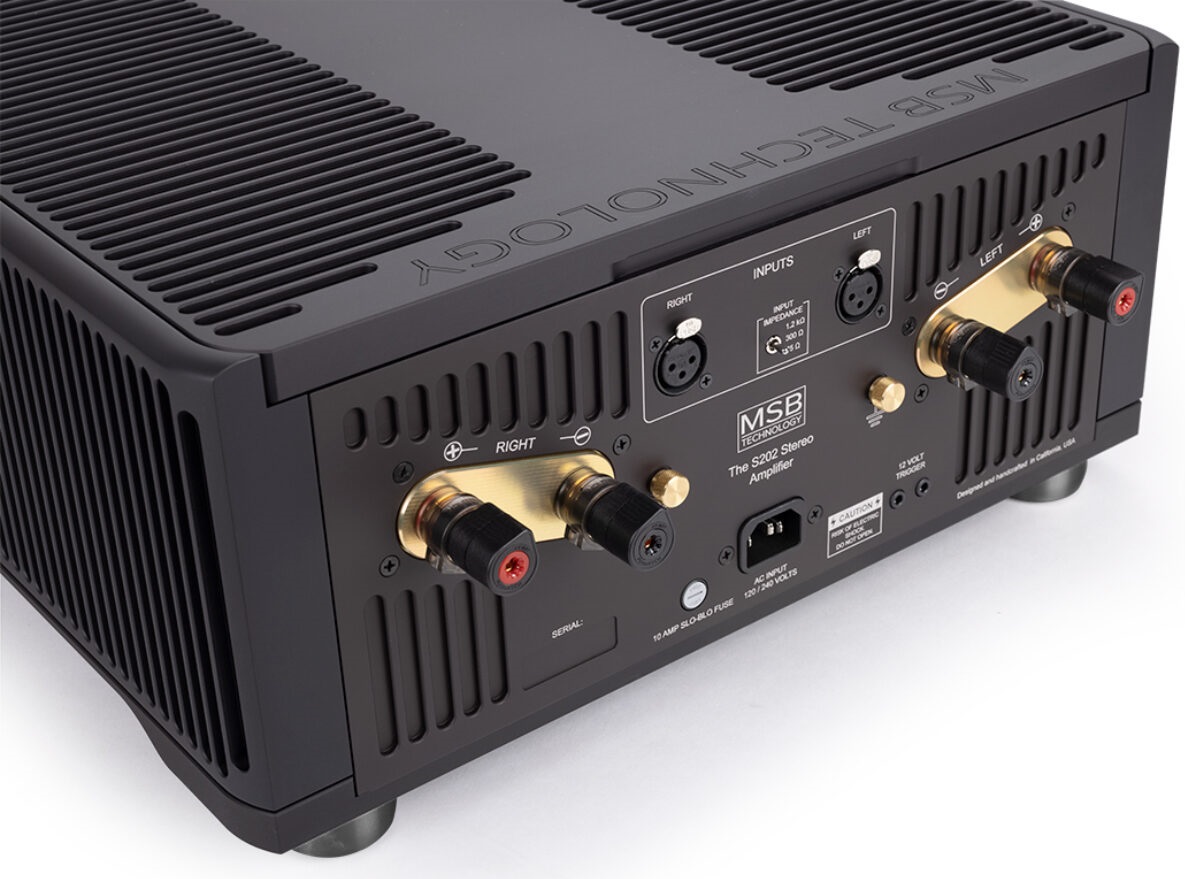

Intuitively oriented speaker lugs direct your speaker cables in the right direction without strain. Multiple ground posts enable EMI reduction strategies, including shielded cables and system star grounds.

Specifications

• Power:
  • Static power consumption: 90 W
  • Operating voltage: 120 / 240 V (auto switching), 100 V (fixed)
  • Fuse: 1/4" × 1-1/4" 10 A 250 V slow blow
• Inputs:
  • Balanced XLR inputs ×2
• Outputs:
  • Speaker outputs: 1 binding post set per channel
• Controls:
  • Input impedance selector
  • Power on/off button
  • Standby button
  • Display dimmer
  • 12 V mode switch
  • MSB 12 V trigger ports ×2
• Amplifier performance:
  • Continuous power output (8 Ω, <1% THD): 200 W
  • Continuous power output (4 Ω, <1% THD): 380 W
  • Frequency response (20 Hz – 20 kHz): ±0.03 dB
  • Signal-to-noise ratio (20 Hz – 22 kHz): >130 dB (>133 dBA)
  • Equivalent input noise (22 kHz BW): 0.65 μV
  • Crosstalk @ 2 kHz: < −110 dB
  • Gain (150 Ω source impedance): 23.8 dB
• Impedance:
  • Input impedance (user selectable): 75 Ω / 300 Ω / 1.2 kΩ
  • Output impedance (20 Hz – 20 kHz): 0.01 Ω
• Topology:
  • Input / gain stage:
    • Class A
    • Double balanced
    • Impedance matched
    • Fully discrete
    • Independent power supply
  • Output stage:
    • Class AB
    • Balanced
    • Medium bias
    • Current gain only
• Chassis dimensions:
  • Width: 404 mm
  • Depth: 483 mm
  • Height (without feet): 165 mm
  • Height (with feet): 178 mm
• Weight: 41 kg
• Feet:
  • Thread: M6 × 1
  • 3 or 4 foot configuration
• Shipping dimensions:
  • Width: 610 mm
  • Depth: 718 mm
  • Height: 419 mm
• Shipping weight: 62 kg
