Το Advance Paris WTX-StreamTubes είναι network audio streamer με αναλογικό στάδιο εξόδου λυχνίας Class A. Χρησιμοποιεί 2 λυχνίες Raytheon 5703 (military quality), tri-core ψηφιακή επεξεργασία και DAC Wolfson WM8740 24-bit/192 kHz. Συνδεσιμοτητα/Εισοδοι: Wi-Fi, Ethernet, USB-A (και προαιρετικα Bluetooth). Εξοδοι: 1x RCA Line, 1x Digital Coaxial και 1x Optical.

Εγγύηση Αντιπροσωπείας. Δυνατότητα δόσεων.

The Advance Paris WTX-STREAMTUBES is a high-fidelity network audio streamer designed to combine modern digital streaming with the musical warmth of a Class A tube output stage. At its core are two Raytheon 5703 subminiature tubes (military grade), working alongside a tri-core digital processing architecture and a Wolfson WM8740 24-bit/192 kHz DAC to deliver a refined, natural and engaging sound signature.

Supporting both wired Ethernet and wireless Wi-Fi connectivity, the WTX-STREAMTUBES allows direct network playback from computers, NAS servers and streaming services, while integrated Bluetooth enables quick wireless playback from smartphones and tablets. Multiple digital and analog outputs make it a versatile hub, whether feeding an integrated amplifier directly or acting as a digital transport into an external DAC.

With a compact chassis, external power supply and simple plug-and-play operation, the WTX-STREAMTUBES is designed to modernize classic Hi-Fi systems without sacrificing musicality, offering a bridge between contemporary streaming convenience and traditional analog sound aesthetics.

Specifications

• General Specifications
  • Name / Model: WTX-STREAMTUBES
  • Product type: Network audio streamer & Bluetooth receiver with tube output stage
  • Processing architecture: Tri-core digital processing
  • Operating modes: Network streaming / Bluetooth audio
  • Plug & Play operation: Supported
• Network & Wireless Connectivity
  • Ethernet: RJ-45 LAN connection
  • Wi-Fi: Integrated WLAN for wireless network streaming
  • Bluetooth version: Bluetooth 5.0
  • Supported Bluetooth codecs: SBC, AAC, aptX, aptX HD
  • Wireless range: approx. 10 m (Bluetooth)
• DAC & Tube Output Stage
  • DAC chipset: Wolfson WM8740
  • DAC resolution: up to 24-bit / 192 kHz
  • Dynamic range: approx. 117 dB
  • Tubes: 2 × Raytheon 5703 (military quality)
  • Output stage topology: Class A tube stage
  • Clock design: Low-jitter architecture
• Audio Performance
  • Frequency response: 20 Hz – 20 kHz (±0.5 dB)
  • Total harmonic distortion (THD): approx. 0.003% @ 1 kHz
  • Signal-to-noise ratio: approx. 97 dB

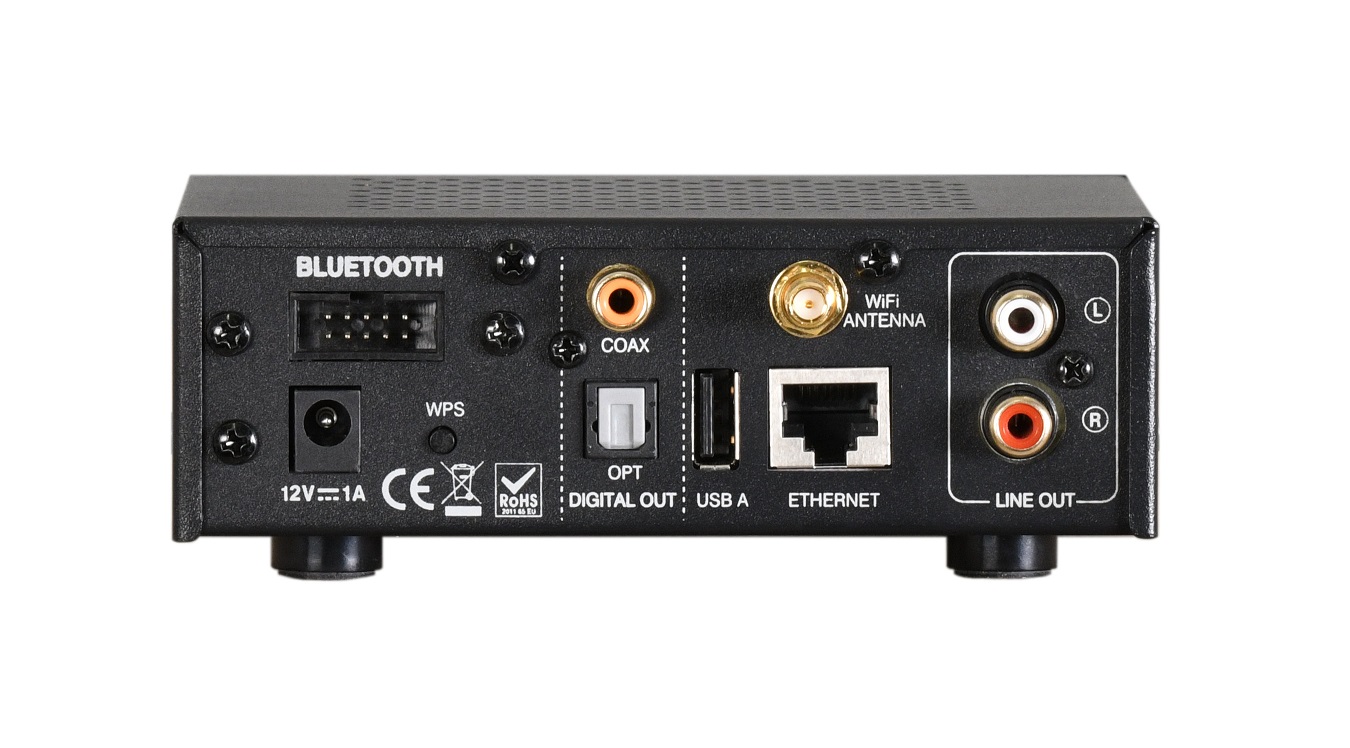

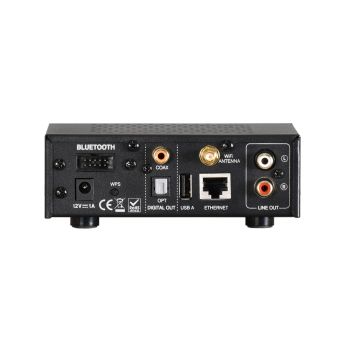

• Outputs & Connections
  • Analog audio output: Stereo RCA (L/R)
  • Digital audio outputs:
    • Optical (S/PDIF)
    • Coaxial (S/PDIF)
  • Network connections: Ethernet RJ-45, Wi-Fi
  • Bluetooth antenna: Integrated
• Power Supply
  • External power adapter: Included
  • AC input: 100–240 V ~ 50/60 Hz
  • DC output: 12 V
• Dimensions & Weight
  • Dimensions (W × D × H): approx. 130 × 120 × 50 mm
  • Net weight: approx. 0.6 kg
