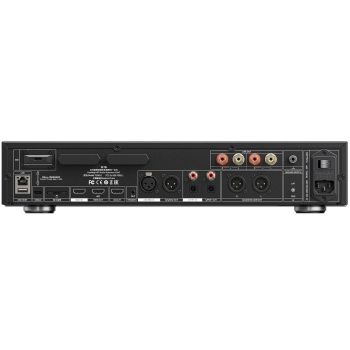

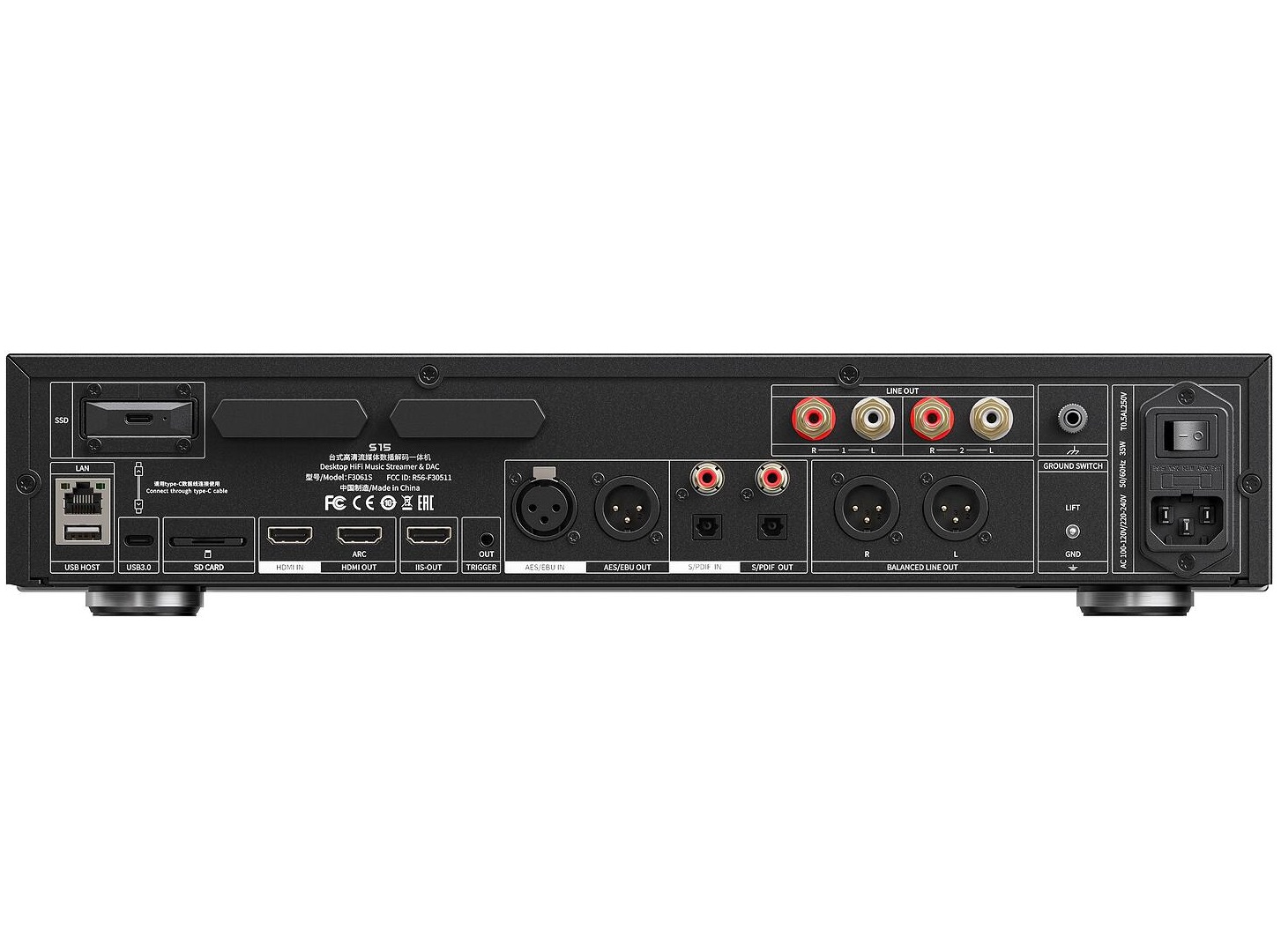

Το Fiio S15 ειναι network player streamer προενισχυτης, dac. Εισοδοι: 1x Coaxial, 1x Optical, 1x HDMI, 1x USB-C 3.0, 1x Ethernet, WiFi, Bluetooth. Εξοδοι: 1x XLR Analog, 2x RCA Analog, 1x Optical, 1x Coaxial.

Εγγυηση Αντιπροσωπειας (Audiovisual). Δυνατοτητα δοσεων.

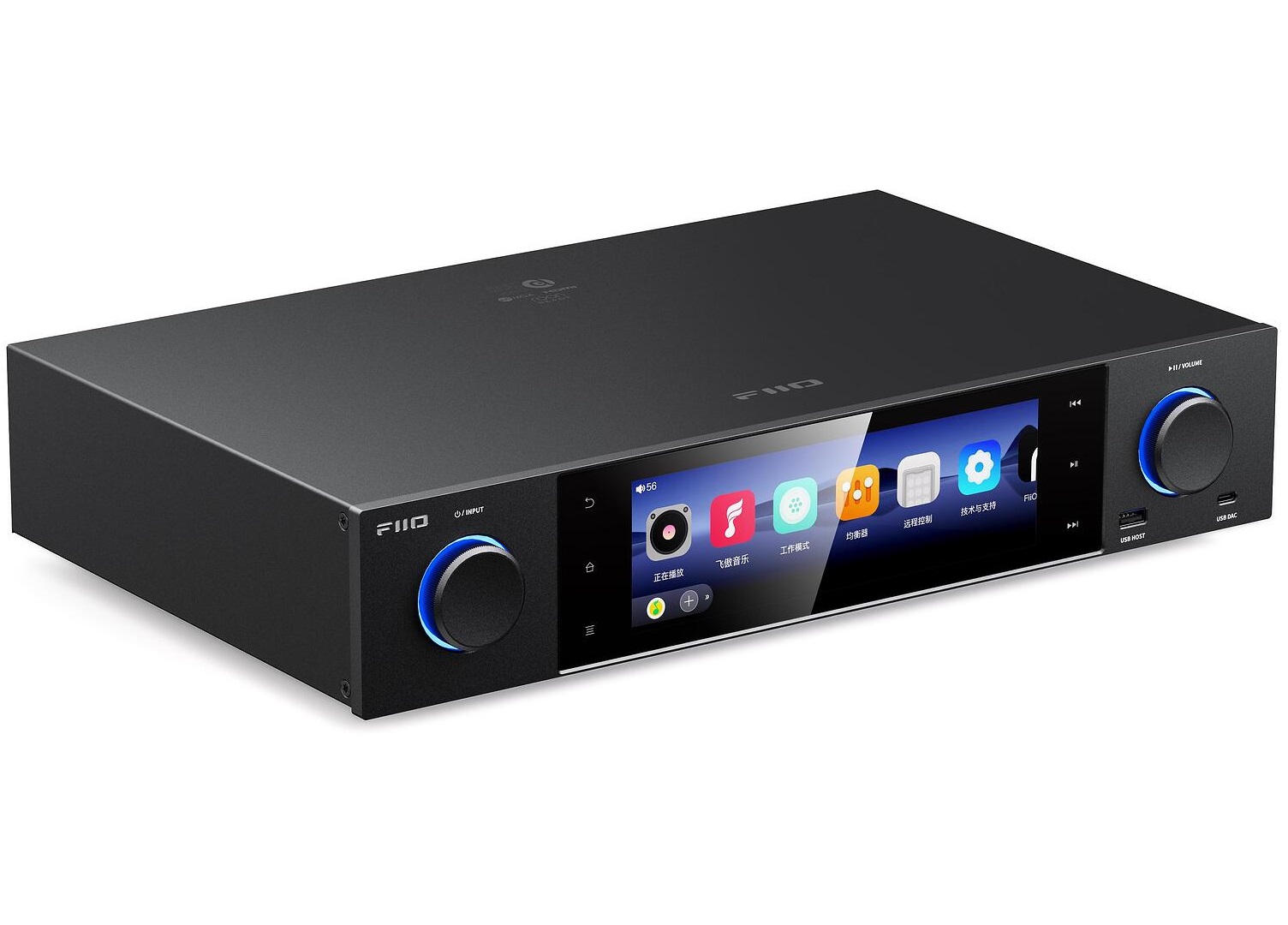

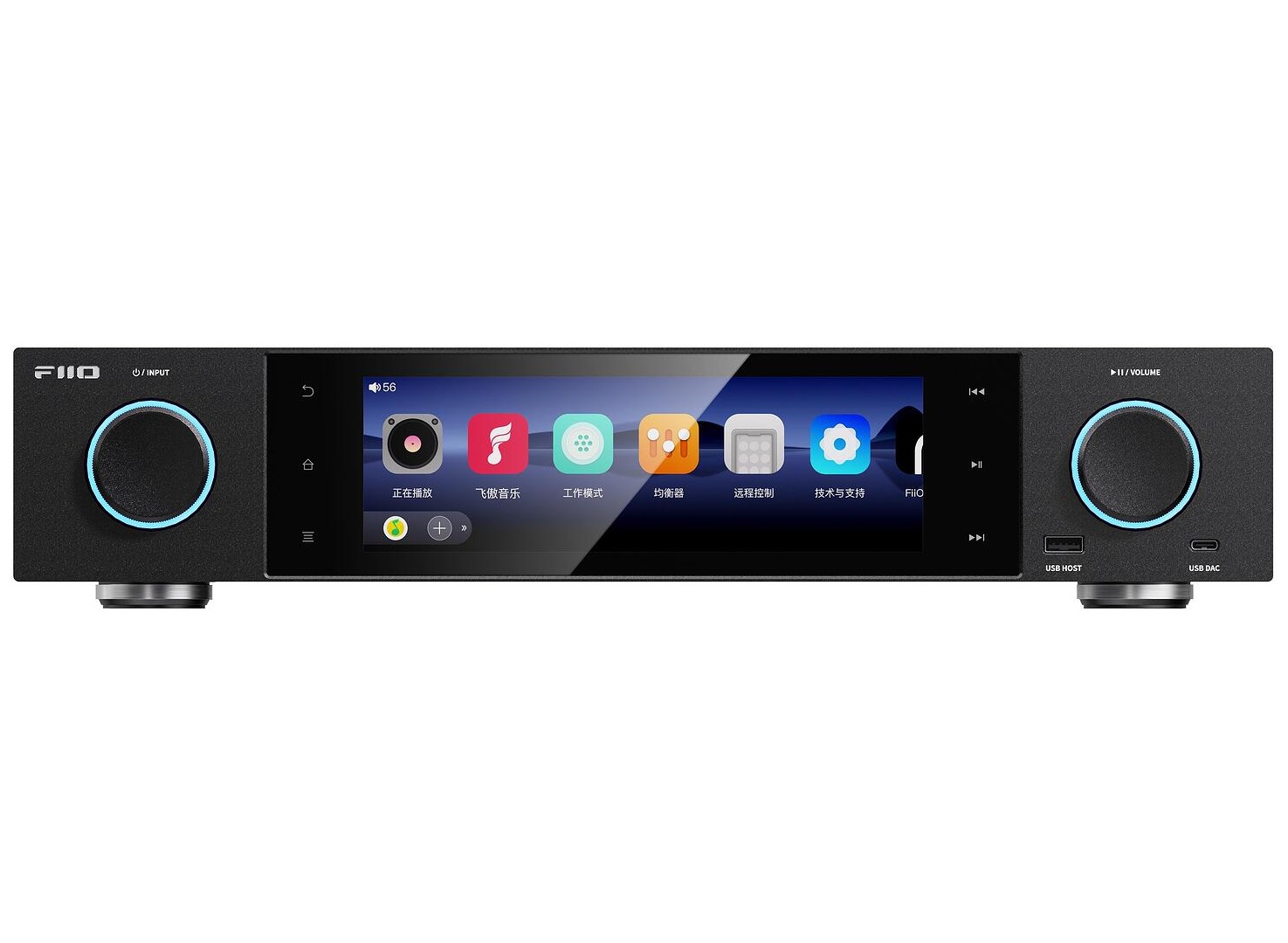

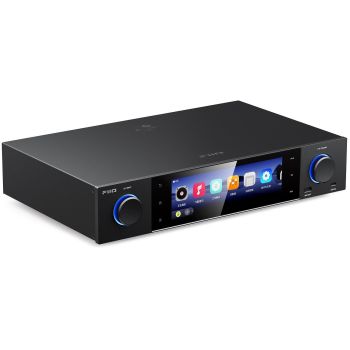

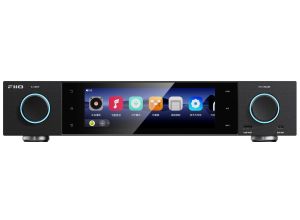

FiiO is set to announce a horizontally shaped, classic-sized 43cm wide device with a 7.84-inch touchscreen (400x1280 pixel resolution) that dominates the center of the front panel. Called the S15, it is a DAC, streamer, preamplifier, two-way Bluetooth.

Specifications

• Operating System: Android 12 + Adapted Landscape Display System
• Storage Expansion: M.2 SSD; microSD Card Slot
• Hardware Specs: SoC: Qualcomm Snapdragon 660, 4 GB RAM + 64 GB ROM (approx. 46 GB available)
• Bluetooth Chip: Qualcomm QCC5125
• USB Chip: XMOS XU316
• DAC: AK4191 + AK4499EX
• Display: 7.84-inch
• Bluetooth Specs: Bluetooth Transmission: Bluetooth 5.0, AAC/SBC/aptX/aptX HD/LDAC/LHDC; Bluetooth Reception: Bluetooth 5.1, SBC/AAC/aptX/aptX LL/aptX HD/aptX Adaptive/LDAC
• Decoding Specifications: Native PCM up to 384 kHz/32-bit; DSD256 (native)
• USB DAC: Supports 768 kHz/32-bit (EQ mode supports up to PCM 192 kHz); DSD512 (native)
• Coaxial Input: up to 192 kHz/24-bit
• AES Input: up to 192 kHz/24-bit
• Optical Input: up to 96 kHz/24-bit
• HDMI Input: up to 192 kHz/24-bit
• Digital Output USB Audio: 768 kHz/32-bit; DSD512 (supports DoP/D2P/Native)
• Coaxial Output: 384 kHz/24-bit; DSD128 (D2P/DoP)
• Optical Output: 192 kHz/24-bit
• AES Output: 384 kHz/24-bit; DSD128 (D2P/DoP)
• HDMI Output: 192 kHz/24-bit
• Preamplifier RCA Output: L+R = 4.5 Vrms + 4.5 Vrms (1 kHz@10 kΩ)
• Preamplifier XLR Output: L+R = 8.9 Vrms + 8.9 Vrms (1 kHz@10 kΩ)
• Line Output RCA: L+R = 2.4 Vrms + 2.4 Vrms (1 kHz@10 kΩ)
• XLR Output: L+R = 4.8 Vrms + 4.8 Vrms (1 kHz@10 kΩ)
• Audio Parameters: Frequency Response: 20 Hz–70 kHz: Attenuation <2.8 dB; Signal-to-Noise Ratio: ≥131 dB (A-weighted); Noise Floor: L+R <1.8 µV (A-weighted); THD+N: <0.00023% (1 kHz/0 dB@10 kΩ)
• Color: Black, Silver
• Dimensions: Approximately 430 x 274.5 x 89.5 mm
• Weight: Approximately 5.6 kg
• What’s in the Box: 1x S15, 1x Screwdriver for installing the hard disk cage, 1x Spare Fuse, 1x Power Cable, 1x Bluetooth Remote Control, 1x Hard Disk Cage Data Cable (USB 3.0), 1x M.2 Hard Disk Cage, Warranty Card, Quick Start Guide, Operating Instructions for the Hard Disk Cage, Remote Control Diagram, 1x USB-A Dust Plug, 1x USB-C Dust Plug, 1x 3.5 mm Audio Cable
