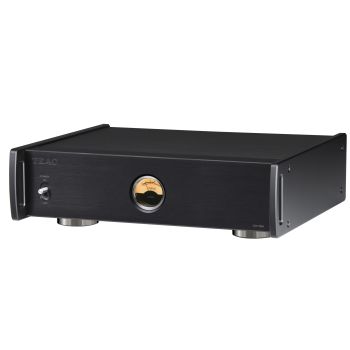

Το Teac CG-10M-X ειναι master clock generator στα 10MHz. Εξοδοι ρολογιου 4x BNC.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

TEAC Reference OCXO – An Oven-controlled Crystal Oscillator
Since temperature has a huge effect on accuracy of the crystal oscillator, minimizing temperature changes and maintaining it at an ideal level are extremely important in order to generate an accurate clock signal. The CG-10M-X employs an innovative oven-controlled crystal oscillator, the TEAC Reference OCXO to reduce oscillation frequency fluctuations caused by temperature changes.

A Class-Leading Ultra High-Precision Clock
Thanks to the TEAC Reference OCXO, the CG-10M-X delivers an ultra high-precision 10MHz clock signal – within ±3 ppb of frequency temperature characteristics and within ±0.1 ppm of frequency precision – to DACs and digital players.
A unique laser-engraved serial number and the TEAC Reference OCXO logo on every OCXC case is proof of the rigorous quality inspection undertaken during the manufacturing process.

Four BNC Clock Output Connectors

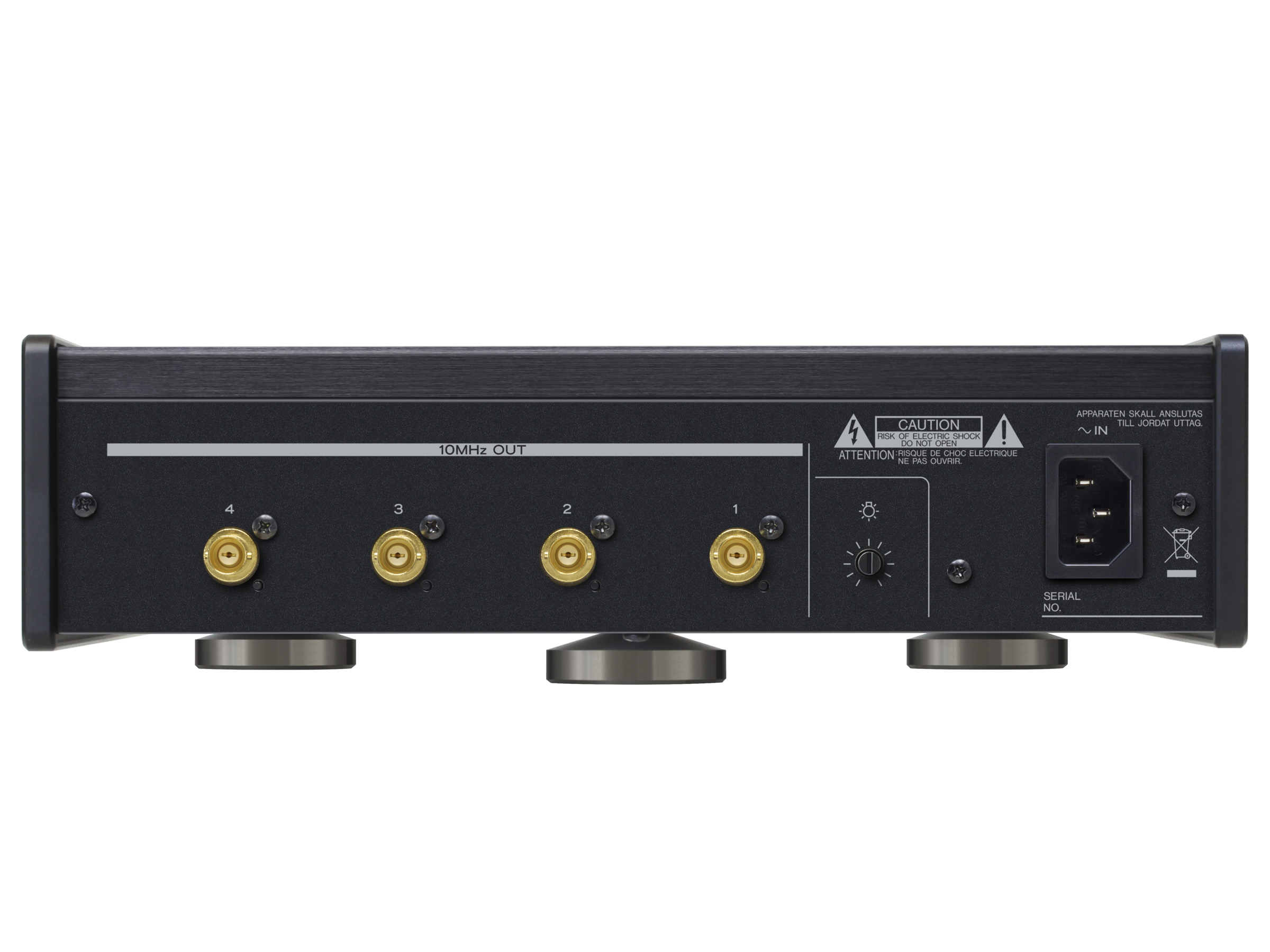

Four gold-plated BNC connectors (50Ω) are provided to deliver clock signals to multiple devices. Up to four devices that support a 10MHz input may be connected simultaneously, including DACs, network players and Super Audio CD/CD players, digital transports.

Independent and Isolated Circuit Design
Each circuit in the CG-10M-X – from the power supply section to the buffer-amp at the output stage, – is completely isolated to prevent cross-interference when multiple devices are connected to the BNC connectors.
By incorporating a buffer-amp into each circuit, no degradation of the signal waveform occurs when the generated clock signal is shared by several devices.
In the “X” edition, the buffer-amp circuit, the power supply circuit have been refined to achieve an even higher level of sound quality.

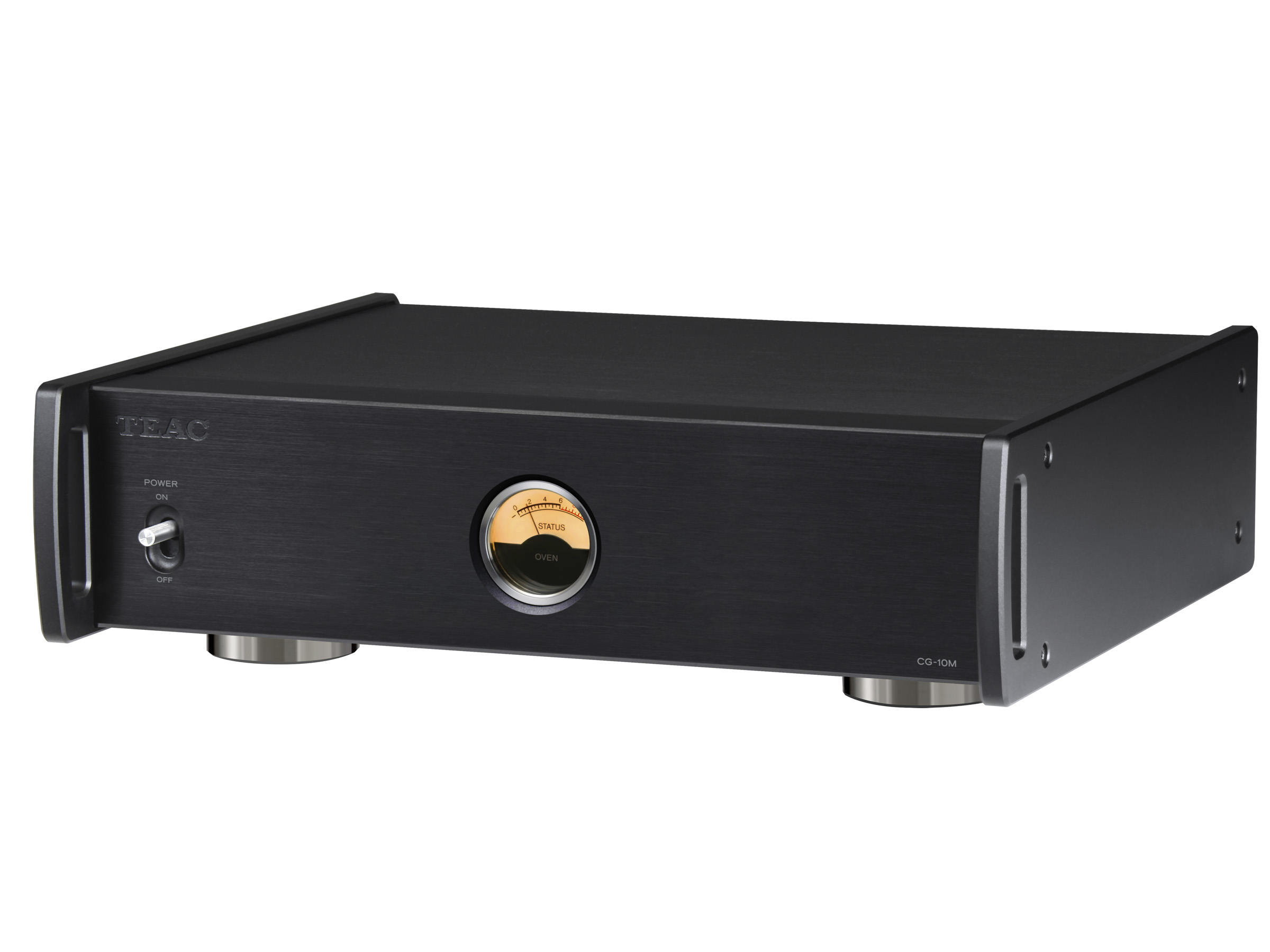

Oven Status Gauge for Clock Stability Monitoring

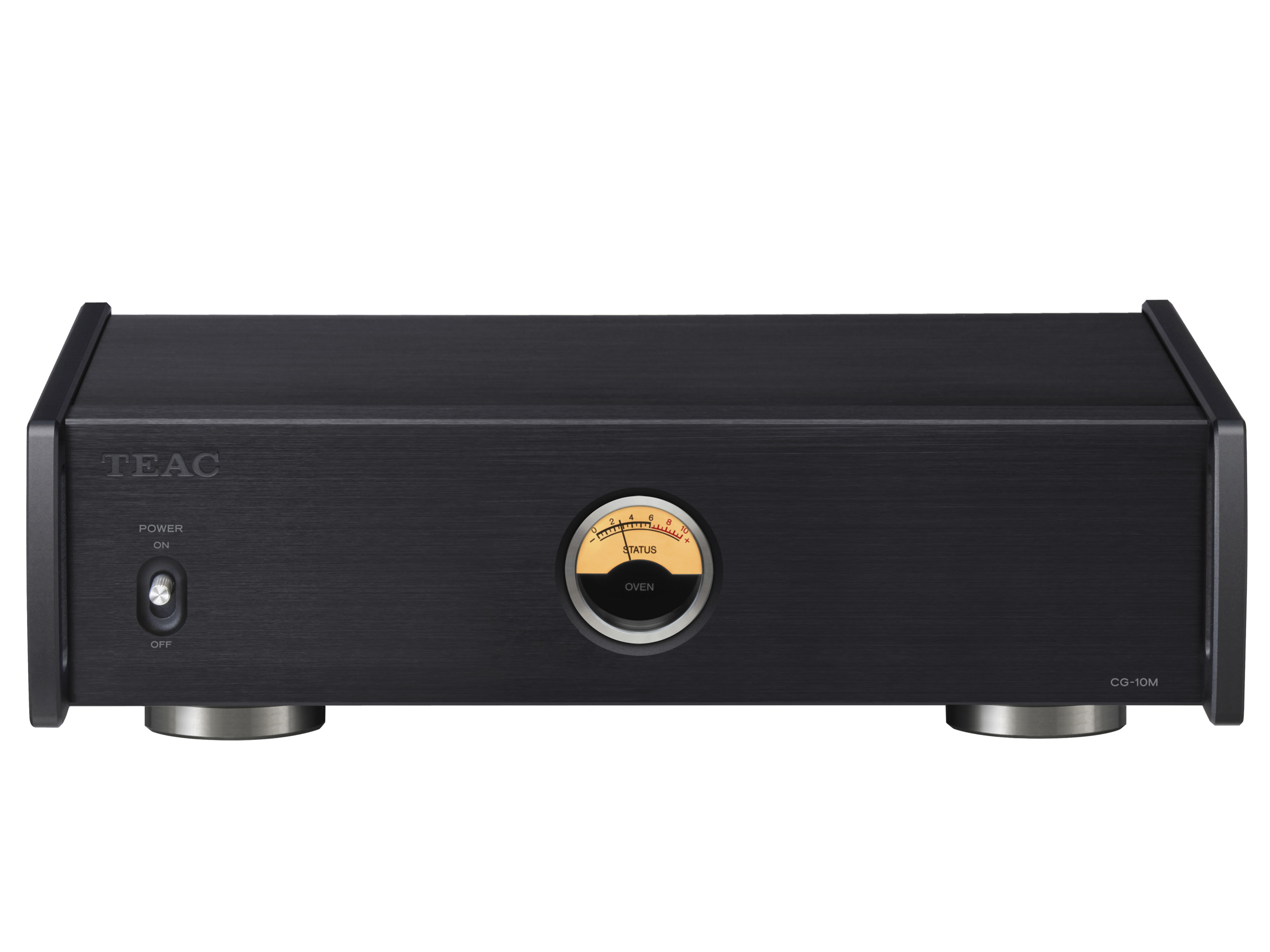

The Oven Status Analogue Gauge located in the middle of the unit, a TEAC trademark in recent years, shows the stability of the crystal oscillator when in use. As the temperature of the oven that contains the crystal oscillator reaches to the ideal temperature for accurate clock generation, power consumption of the oven decreases and the gauge points to zero, signaling to the user that the digital processing on the connected device is now controlled by an extremely accurate 10MHz clock signal.
Note: The oscillator is usually stable about 2 minutes after the power is turned on. However, at least 10 minutes are necessary for the clock to reach an ideal condition.

Features

• TEAC Reference OCXO – An Oven-controlled Crystal Oscillator
• A Class-Leading Ultra High-Precision Clock that achieves frequency temperature characteristics within ±3ppb, and frequency precision within ±0.1ppm
• Four BNC Clock Output Connectors (Gold-plated)
• Independent and Isolated Circuit Design
• Refined Buffer Amplifier Circuit and Power Supply Circuit for higher sound quality
• Toroidal-Core Power Transformer
• Oven Status Gauge for Clock Stability Monitoring
• 3-Point Support Stressless Foot
• A Bobust Full-Metal Chassis, Combined with an A4-Size Footprint
• Semi-Floating Top Panel
• Available in Black and Silver to match the Reference 500 Series

Specifications

• Clock Outputs:
  • Connectors: BNC × 4 (gold-plated)
  • Output Sampling Frequency: 10MHz
  • Output Impedance: 50Ω
  • Output Level: 0.5Vrms (sine wave)
• OCXO (Crystal Oscillator):
  • Clock stabilization time: 2 minutes
  • Frequency temperature characteristics: within ±3ppb
  • Frequency precision: within ±0.1ppm (when shipped new)
• Operation Power: UK/Europe: AC 220–240V, 50Hz
• Power Consumption: UK/Europe: 15.8W (warming up), 10.8W (stable)
• Overall Dimensions: (W × H × D) 290 × 84.5 × 248.7 mm
• Weight: 3.6 kg
• Operating Temperature: +5? to +35?
• Included Accessories:
  • Power cord × 1
  • Pads × 3
  • Owner’s Manual (including Warranty Card)
