Η AudioTechnica AT VM-95EN ειναι κεφαλη για πικαπ με nude ελλειπτικη βελονα (καλυτερη αναγνωσιμοτητα σε σχεση με τις σφαιρικες). Εξοδος 3,5 mV

Δυνατοτητα δοσεων.

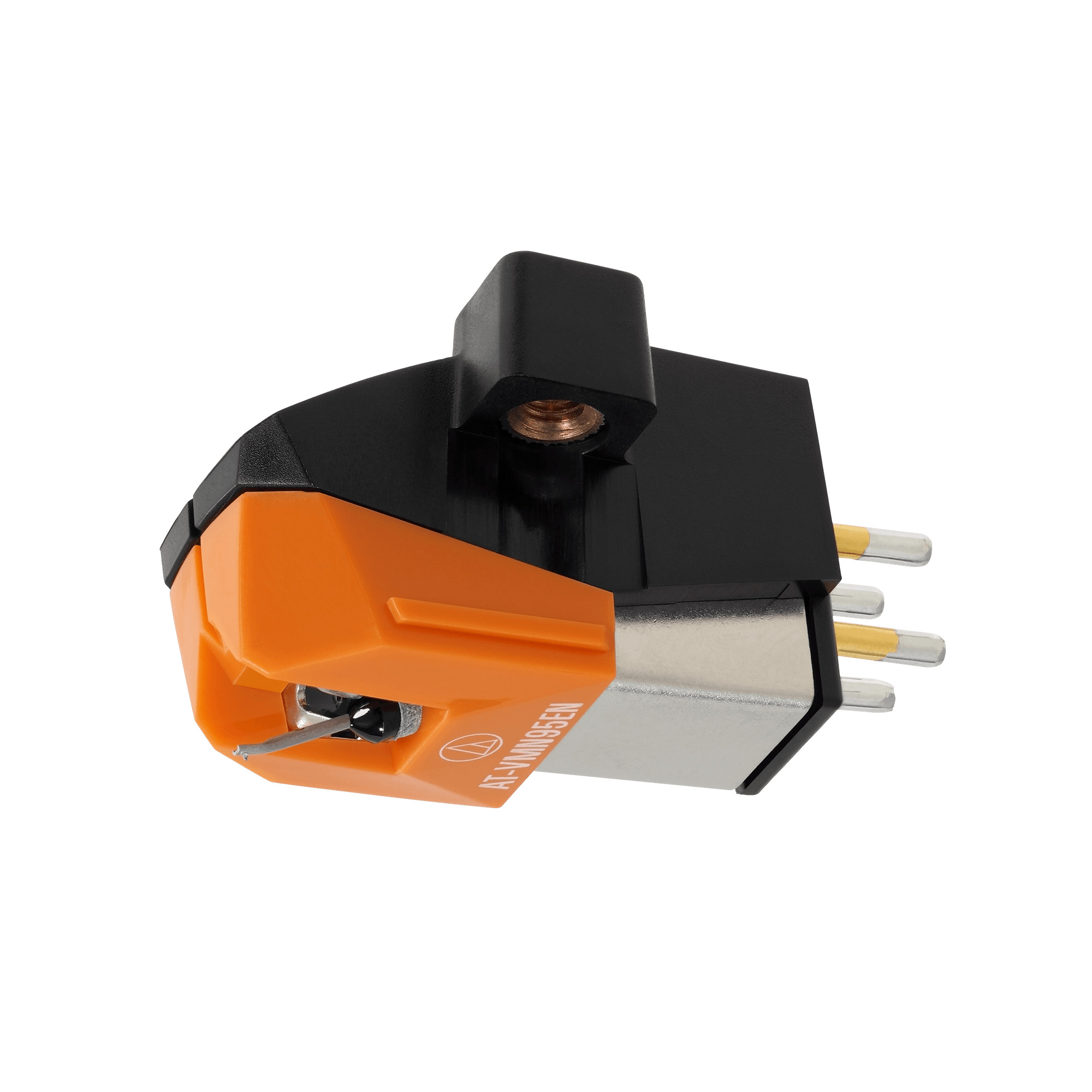

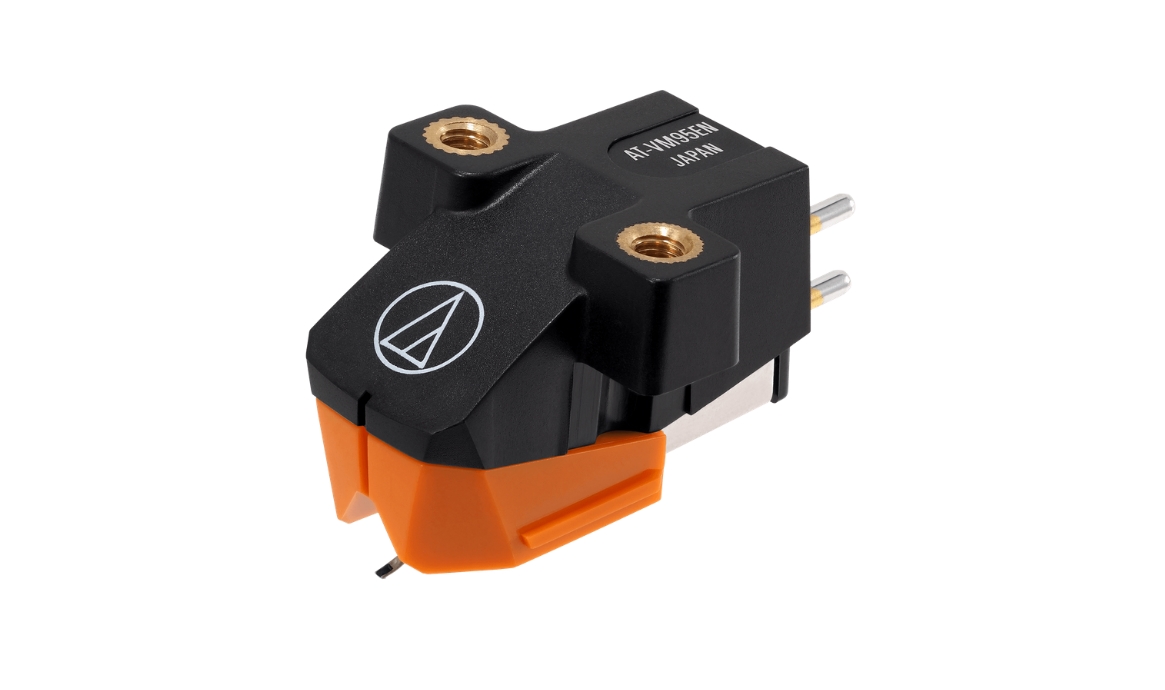

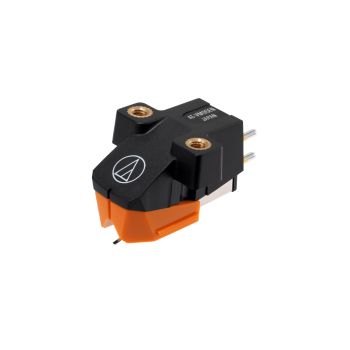

VM95EN series Elliptical stereo cartridge

This VM95 Series cartridge with 0.3 x 0.7 mil elliptical nude stylus fits half-inch mount turntables. The cartridge offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.

Specifications

• Frequency Response 20 - 23,000 Hz
• Channel Separation 22 dB (1 kHz)
• Vertical Tracking Angle 23°
• Vertical Tracking Force 1.8 to 2.2g (2.0g standard)
• Stylus Construction Nude Round Shank
• Recommended Load Impedance 47,000 Ω
• Coil Impedance 3.3 kΩ (1 kHz)
• DC Resistance 485 Ω
• Coil Inductance 550 mH (1 kHz)
• Output Voltage 3.5 mV (@ 1 kHz, 5 cm/sec)
• Output Channel Balance 2.0 dB (1 kHz)
• Stylus Shape Elliptical
• Cantilever Aluminium Pipe
• Static Compliance 20 x 10 – 6 cm / dyne
• Dynamic Compliance 7 x 10 – 6 cm / dyne (100 Hz)
• Mounting 1/2” centres
• Cartridge Weight 6.1g
• Dimensions 17.2 x 18.9 x 28.3 ( H x W x D mm)
• Accessories Included: Two 11 mm installation screws, Two 8 mm installation screws, Two washers, Non-magnetic screwdriver
• Recommended Load Capacitance     100-200 pF
• Replacement Stylus AT-VMN95EN

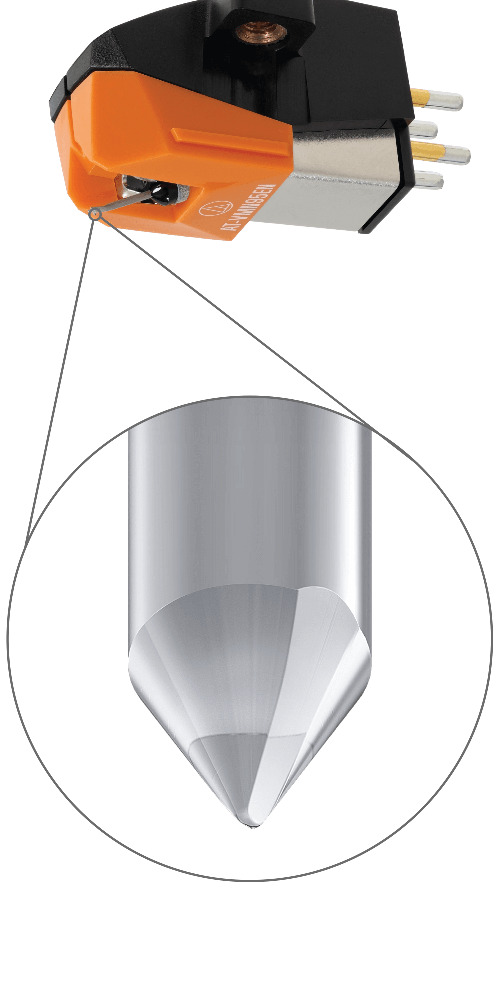

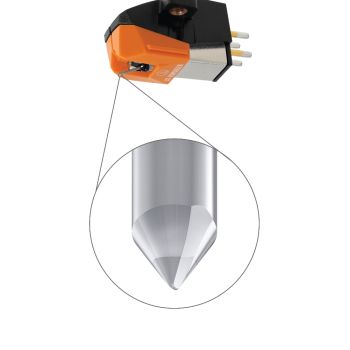

• Stylus Size 0.3 x 0.7 mil
• Type VM Stereo Dual Magnet
• Wire Used for Coil T.P. Copper

Compatible Stylus

• AudioTechnica Stylus AT-VMN95C
• AudioTechnica Stylus AT-VMN95E
• AudioTechnica Stylus AT-VMN95EN
• AudioTechnica Stylus AT-VMN95ML
• AudioTechnica Stylus AT-VMN95SH
• AudioTechnica Stylus AT-VMN95SP 78rpm
