Η AudioTechnica VM95C ειναι κεφαλη για πικαπ με σφαιρικη βελονα. Εξοδος 4mV.
Δυνατοτητα δοσεων.

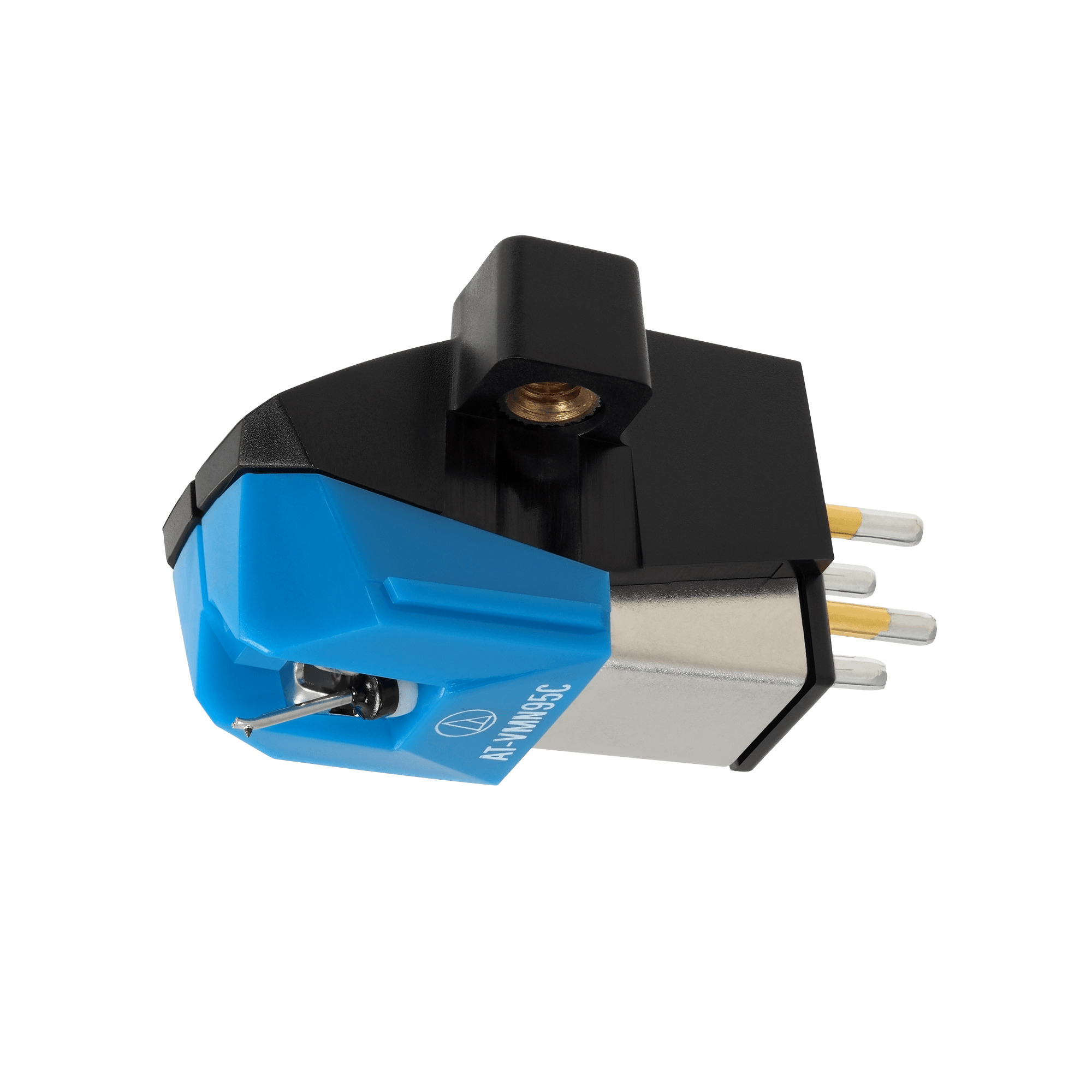

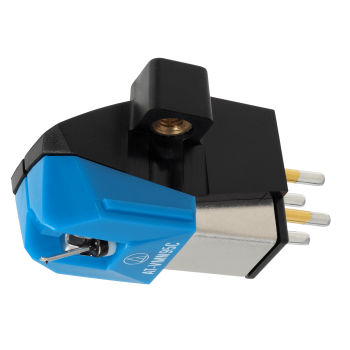

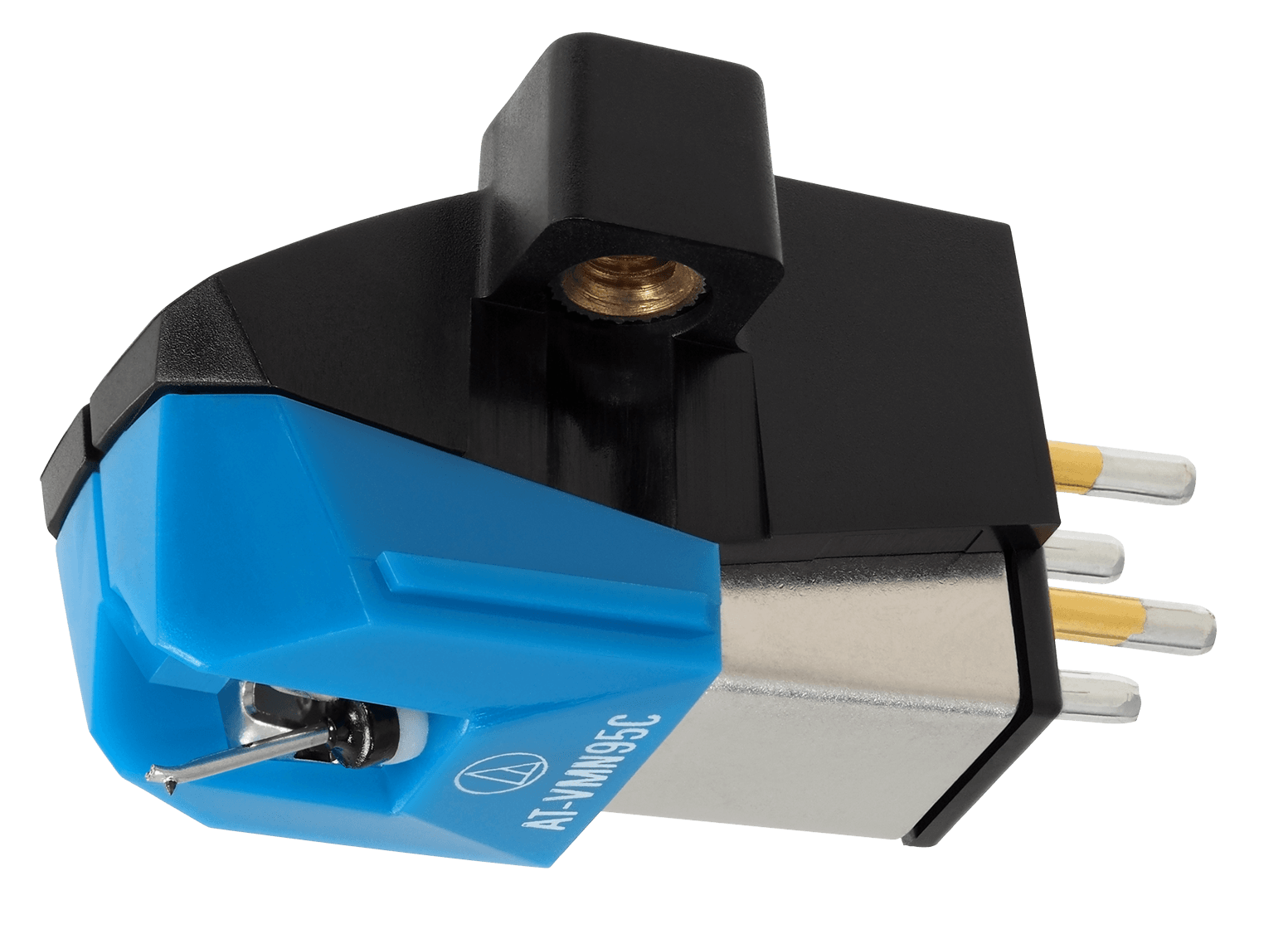

This VM95 Series cartridge with 0.6 mil conical stylus fits half-inch mount turntables. The cartridge’s special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.
VM95 series Conical stereo cartridge
The AT-VM95C, the new Audio-Technica entry model Conical cartridge will replace the legendary AT90 Series models such as AT91, AT91R and CN5625AL
Also the AT-VM95C is a “budget” cartridge featuring a conical stylus, the compatibility in the range will allow to upgrade with any of the 4 other LP styli of the Series such as Elliptical, Elliptical Nude, Microlinear and Shibata.
- Aluminium cantilever
- 4.0mV output voltage
- Compatible body with all VM95 Series stylus assemblies
- Replacement for AT91, AT91R and CN5625AL
VM95 Series - Styli compatibility
Every cartridge diamond stylus becomes worn after a period of play.
Around 500 hours for a conical stylus, 300 hours for an Elliptical stylus, 1000 hours for a Microlinear stylus, and 800 hours for a Shibata stylus.
Our VM95 Series dual moving magnet cartridges can be used almost forever by replacing the interchangeable stylus. It is no longer necessary to purchase a complete cartridge when your diamond is worn out, you can simply buy the matching replacement stylus, but also enjoy the experience of upgrading your cartridge with a different stylus.
The six models of VM95 Series cartridges all use the same electromagnetic engine-body, therefore each of the six replacement styli are perfectly compatible.
- AT-VMN95C
- AT-VMN95E
- AT-VMN95EN
- AT-VMN95ML
- AT-VMN95SH
- AT-VMN95SP
AT-VM9E Series compatibility with the AT-XP Series DJ Cartridges
- The electromagnetic engine-body of XP-Series, is fully compatible with all replacement styli of VM95 Series and will deliver more output voltage than VM95 Series cartridge. So providing improved compatibility with phono inputs of Professional DJ Mixers.
- VM95 Series electromagnetic engine-body is also compatible with the three replacement styli of the DJ cartridge AT-XP Series, nevertheless, the electromagnetic engine-body of XP-Series, will deliver more output voltage than VM95 Series cartridge in order to provide better compatibility with phono inputs of Professional DJ Mixers.
- Note that typical tracking force when using XP Series styli is three grams as opposed to two grams for VM95 Series styli.
- The suspension design and compliance of XP-Series styli have been optimized for intensive DJ’ing, including possible manual cueing and back-cueing.
- The VM95 Series suspension design and compliances of VM95 Series have been designed for optimum audiophile reproduction.
- ATN-XP7
- ATN-XP5
- ATN-XP3
Specifications
- Stylus Construction Bonded round shank
- Recommended Load Impedance 47,000 ohms
- Coil Impedance 3.3 k ohms (1 kHz)
- DC Resistance 485 ohms
- Coil Inductance 550 mH (1 kHz)
- Output Voltage 4.0 mV (1 kHz, 5 cm/sec.)
- Output Channel Balance 2.5 dB (1 kHz)

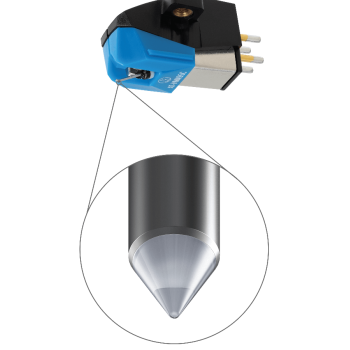

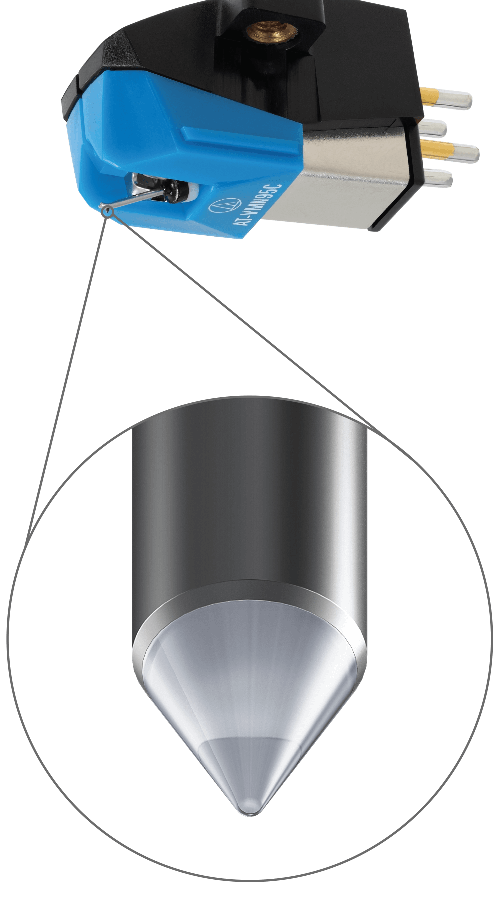

- Stylus Shape 0.6 mil conical
- Cantilever Aluminum pipe
- Static Compliance 17 x 10 – 6 cm / dyne
- Dynamic Compliance 6.5 x 10 – 6 cm / dyne (100 Hz)
- Mounting Half-inch
- Cartridge Weight 6.1g
- Dimensions 17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D
- Accessories Included Two 11 mm installation screws, two 8 mm installation screws, two washers
- Model AT-VM95C
- Mounting Feature Half-inch mount
- Recommended Load Capacitance 100 to 200 pF
- Replacement Stylus AT-VMN95C
- Stylus Size 0.6 mil
- Type VM Stereo Dual Magnet
- Weight 6.1 g (0.22 oz)
- Wire Used for Coil T.P. Copper
