Η AudioTechnica AT-VM740xML ειναι κεφαλη διπλου μαγνητη, για πικαπ με γυμνη microlinear βελονα (nude microlinear stylus) με aluminium cantilever. Εξοδος 3.2 mV.

Δυνατοτητα δοσεων.

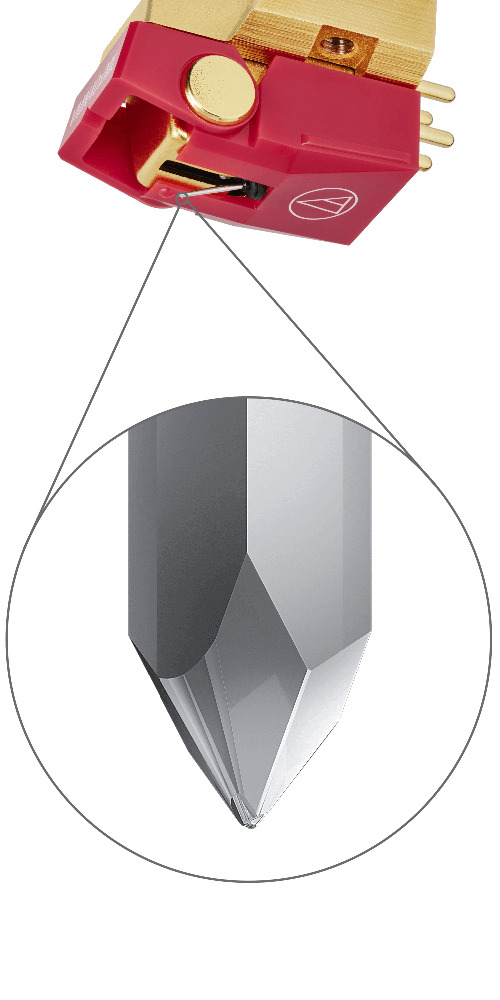

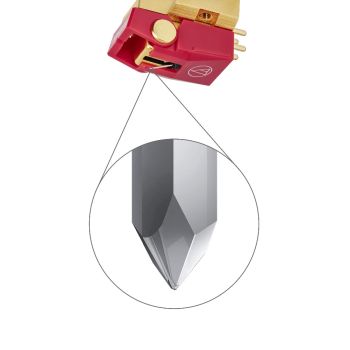

All VMx cartridges feature a generator with paratoroidal coil construction: two coils per channel – one stacked behind the other – for greatly improved efficiency. A center shield plate separates the left and right channels to reduce crosstalk and maintain a clear stereo image. The copper wire used for the coils has been upgraded to PCUHD® (Pure Copper Ultra High Drawability), resulting in richer, more nuanced audio reproduction. The number of coil turns has also been slightly reduced to improve transient response, allowing the cartridge to react more quickly to signal changes for stunningly clean music with lifelike immediacy. The lightweight microlinear stylus of the AT-VM740xML allows it to trace the record groove with incredible accuracy, resulting in nuanced audio reproduction that elliptical and conical styli simply can’t match.

We’ve also added threaded inserts to the die-cast aluminum body of each VMx cartridge, making it easier to mount (just two screws required), especially to the integrated tonearms common on high-end turntables. And a new V-cut in the stylus’s flip-up protector provides quick reference of the stylus position, serving as a guide when lowering the stylus onto a record.

Specifications

• Frequency Response: 20 – 25,000 Hz
• Channel Separation: 25 dB (1 kHz)
• Vertical Tracking Angle: 20°
• Tracking Force
  • 1.8 – 2.2 g
  • 2.0 g standard
• Stylus Construction: Nude Microlinear
• Recommended Load Impedance: 47 kΩ
• Coil Impedance: 3.2 kΩ (1 kHz)
• DC Resistance: 750 Ω
• Coil Inductance: 480 mH (1 kHz)
• Output Voltage: 3.2 mV (1 kHz, 5 cm/sec.)
• Output Balance: 1.0 dB (1 kHz)
• Cantilever: Aluminium tapered pipe
• Compliance
  • Static: 20 × 10 cm/dyne
  • Dynamic: 7 × 10 cm/dyne (100 Hz)
• Dimensions
  • Height: 29 mm
  • Width: 18.3 mm
  • Depth: 17.5 mm
• Accessories Included
  • Cartridge installation screws (M2.6)
  • 10 mm × 2
  • 8 mm × 2
  • 5 mm × 2
  • Washer × 2
  • Non-magnetic screwdriver
  • Brush
• Threaded Hole: M2.6 × 2
• Recommended Load Capacitance: 150 – 250 pF
• Replacement Stylus: AT-VMN40xML (sold separately)
• Stylus Curvature Radius: 2.2 × 0.12 mil
• Type: VM
• Weight: 8.8 g
• Notes
  • The replacement stylus is compatible with AT-VMx series products.
  • 5 mm cartridge installation screws secure the cartridge inside the box during purchase and should be retained.
  • Specifications may change without notice for product improvement.

Compatible Stylus (Excludes mono models)

• AT-VMN10xCB (conical / bonded / aluminium cantilever)
• AT-VMN20xEB (elliptical / bonded / aluminium cantilever)
• AT-VMN30xEN (elliptical / nude / aluminium cantilever)
• AT-VMN40xML (microlinear / nude / aluminium cantilever)
• AT-VMN45xML (microlinear / nude / boron cantilever)
• AT-VMN50xSH (Shibata / nude / boron cantilever)
• AT-VMN60xSL (special line contact / nude / boron cantilever)

Important Notice: Since all AT-VMx and VM Series cartridges share the same body design and have a removable stylus, you can use almost any AT-VMNx or VMN replacement stylus* with any VMx or VM cartridge for easy experimentation with sound characteristics.
