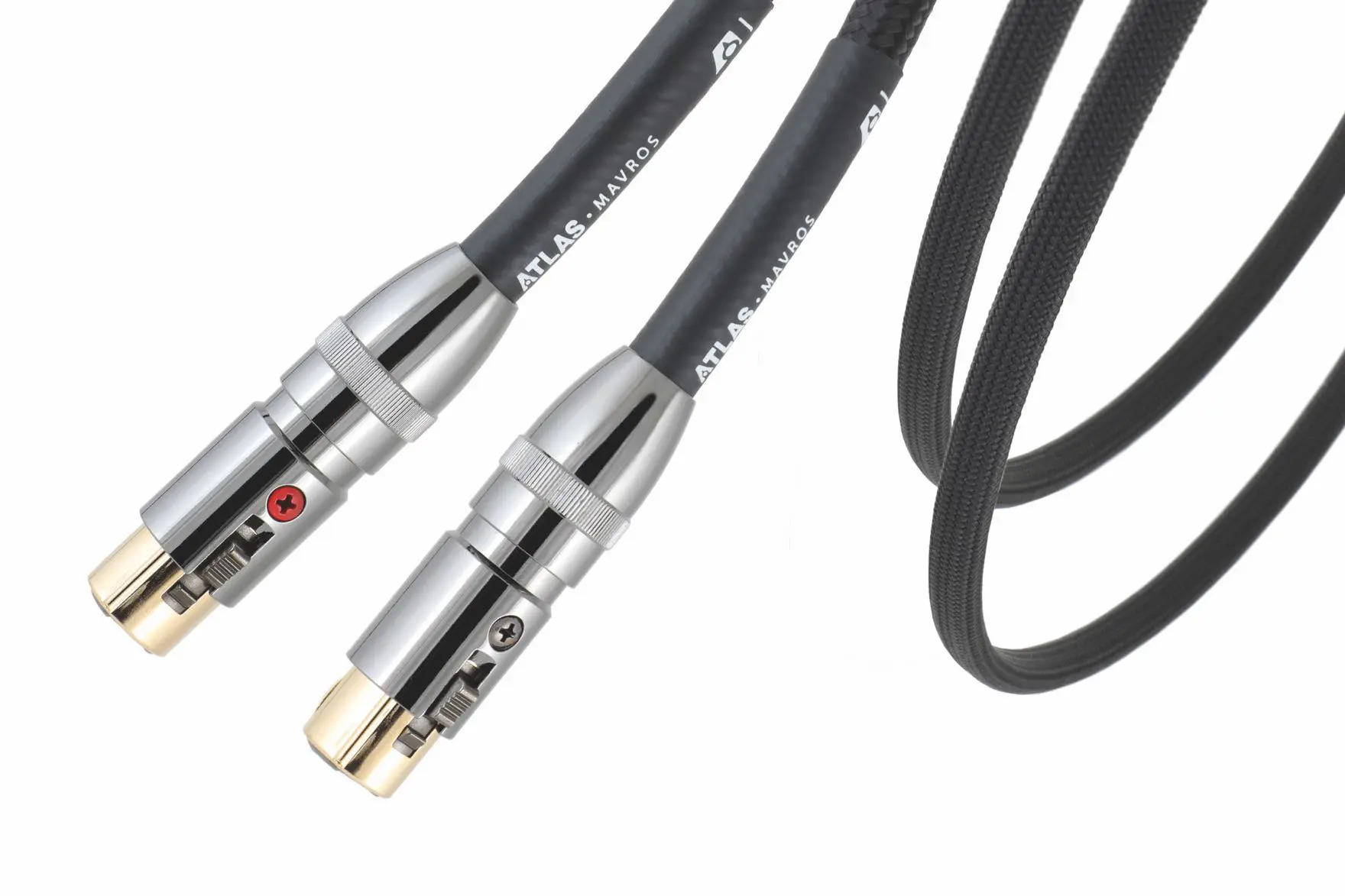

Το Atlas Mavros OCC XLR ειναι ζευγος καλωδιων balanced audio interconnects, τερματισμενο με βυσματα XLR.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

We based our ‘dd’ (dual-drain) configuration on techniques originally developed for our top-of-the-range analogue RCA interconnects. Twin symmetrical drain wires connect the screen to the cable return/plug interface, allowing cable termination without distorting, twisting or mechanically stressing the precision-laid screen.
range, but utilising copper rather than silver conductors.

The Mavros XLR is a superb interconnect designed to complement the performance of high-performance audio systems by achieving maximum signal transfer. We begin with the conductor, using the very highest quality '6N' (99.99997% purity) copper manufactured using the OCC 'Ohno Continuous Cast' technique, tension-wrapped in a multi-layer microporous PTFE dielectric.

To minimise the ‘barriers’ caused by connecting different materials, the cable features OCC copper pins with our customary precision cold-weld connection — facilitating true ‘source to destination’ signal flow. Termination is with our aluminium alloy ‘dark Chrome’ XLR connectors.

By reducing the number of materials and break points in the signal path, our objective is to minimise discontinuity and loss in the signal path, resulting in more consistent construction and audibly-improved audio performance.

Specifications

• Construction: Symmetrical/solid
• Conductor: OCC Copper
• Dielectric: Microporous PTFE/PEF
• Screen: Foil/OFC braid; Dual Drain
• Capacitance: 28.54 pF/m
• Inductance: 0.866 µH/m
• Resistance: 0.0199 Ohms/m
• Outside Diameter: 10.8 mm
• Colour/Finish: Black Fabric/Luxe options
