Το SimAudio Moon-110Lp V2 ειναι phono stage MM και MC. Διαθετει παραμετροποιησεις αντιστασης, χωρητικοτητας και κερδους (load, capacitance, gain).

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

Features

• End-user adjustable impedance loading (47kΩ, 475Ω, 100Ω, 10Ω)
• End-user adjustable capacitance loading (0pF, 100pF, 330pF, 430pF)
• End-user adjustable gain settings for moving magnet and moving coil cartridges (40dB, 50dB, 54dB, 60dB, 66dB)
• End user selectable curve (IEC/RIAA)
• Four layer PCB tracings using pure copper for low impedance characteristics
• Inductive DC Filtering for a significantly lower noise floor
• Compact, rigid all-aluminum chassis with gold-plated RCA connectors
• Designed to be powered up at all times for optimal performance

Specifications

• Circuit Layout Mirror-image symmetrical circuit
• Single-ended inputs 1 pair (RCA)
• Input Impedance - Adjustable 10Ω / 100Ω / 475Ω / 47kΩ
• Input Capacitance - Adjustable 0 / 100pF / 330pF / 430pF
• Gain Level - Adjustable 40dB / 50dB / 54dB / 60dB / 66dB
• Curve IEC / RIAA
• Signal-to-noise Ratio (full scale @40 dB gain) 104 dB
• Signal-to-noise Ratio (full scale @60 dB gain) 87 dB
• Frequency Response 20Hz - 20kHz (± 0.5dB)
• Intermodulation Distortion 0.002%
• THD (20Hz - 20kHz) 0.002%
• Power Consumption @ idle 2 W
• AC Power Requirements 240V 50Hz
• Shipping Weight 1.5 kg
• Dimensions (W x H x D) 12.7 x 4.2 x 16.5 cm

In the Box

• External AC power supply
• AC mains

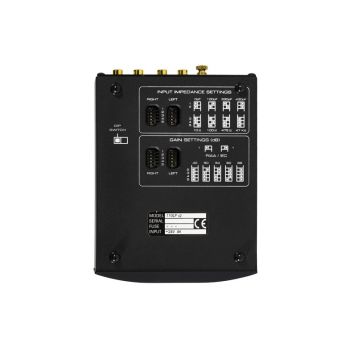

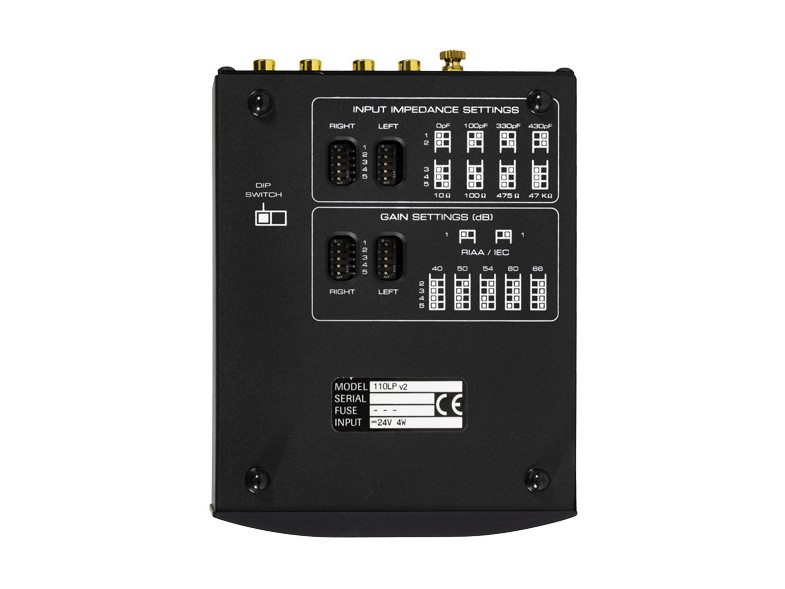

• Stick for under-panel dipswitches settings
• Warranty and product registration information (USA and Canada only)
