Luxman EQ-500

Ο Luxman EQ-500 ειναι vacuum tube προενισχυτης ΜΜ/MC κεφαλων. Πληρως παραμετροποιησιμος ως προς το gain, capacity και impedance.

7050.00€

Διαθεσιμότητα: 1-3 ημέρες

ΔΩΡΕΑΝ ΑΠΟΣΤΟΛΗ ΣΕ ΟΛΗ ΤΗΝ ΕΛΛΑΔΑ

Ο Luxman EQ-500 ειναι vacuum tube προενισχυτης ΜΜ/MC κεφαλων. Πληρως παραμετροποιησιμος ως προς το gain, capacity και impedance.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

The joy of analog reproduction is the indulgence of the harmonic density and tonal character of vinyl playback, faithfully reproducing sound vibration and resonance inscribed on analog records without interruption. The EQ-500 phono equalizer amplifier is a vacuum tube design for all stages to provide the ultimate experience in the expressive and colourful reproduction of music. Fine adjustment and switching functions that are easily accessible on the elegant front panel allow you to enjoy the real pleasure of analog reproduction. The debut of LUXMAN’s masterpiece phono equalizer amplifier, the EQ-500, brings a new dimension that offers an extensive menu of the finest details of analog reproduction allowing you to recreate that ideal sound from your memory.

Features

RIAA-dedicated non-feedback CR type amplification circuit
All stages of the EQ-500 are vacuum tube. For the 1 and 2 stage a SRPP (Shunt Regulated Push-Pull) circuit is used which features low impedance, low distortion and prolongs the life of vacuum tubes. For the final stage a cathode follower parallel circuit is used with the ability to lower impedance further.The excellent sound quality of the CR circuit, supported by linear characteristics, is a direct result of the quality and accuracy of the parts used. LUXMAN has achieved the ultimate in high grade analog reproduction in the EQ-500 thanks to more than half a century of experience in manufacturing vacuum tube amplifiers and the selection of high performance parts. To protect minute analog signals from noise and magnetic field interference, the main sections of the EQ-500 are strongly shielded. The loopless chassis design of the EQ-500 isolates any ground impedance increase and magnetic field caused by the chassis current.

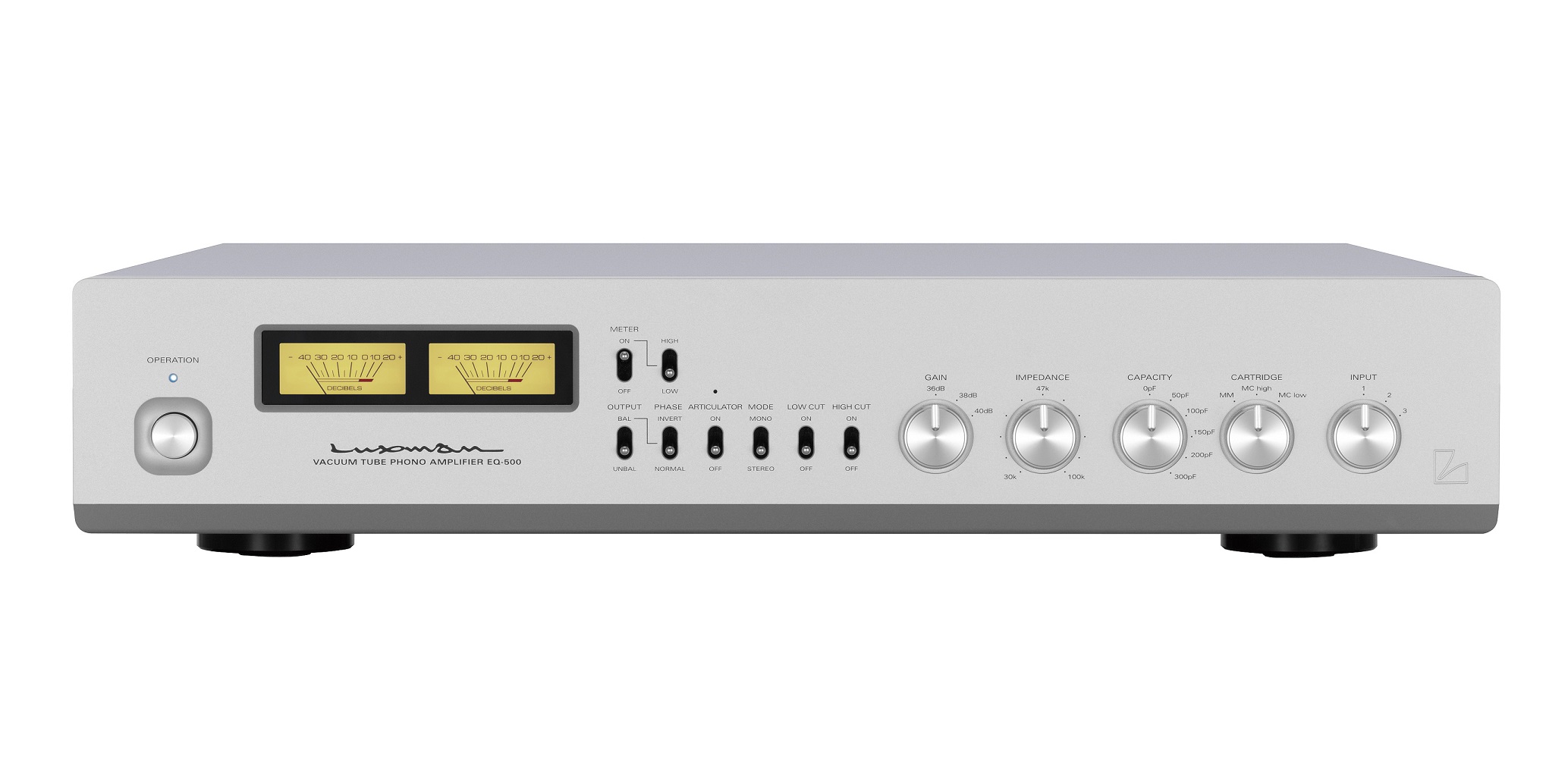

Stylish thin body with pointer type analog meters
The EQ-500 is housed in an elegantly thin chassis that can be mounted easily on a control amplifier. Stylish pointer type analog VU meters with a sensitivity selection switch monitor the output levels and sit on the blaster white front panel alongside a variety of additional control switches to create the sound close to your taste.

Optimizing the cartridge load adjustment
The EQ-500 features a load capacity selection function from which 6 levels (0/50/100/150/200/300pF) can be selected according to the characteristics of the cartridge to be used. Com bined with the load impedance selection function (30k to 100k ohms continuously variable) the original potential of the cartridge can be fully exploited.

Control functions
All main control functions can be operated from the front panel of the EQ-500; articulator function (cartridge demagnetizer), 3 position gain selection, unbalanced/balanced output selection, phase invert, monaural mode, low cut and high cut switches.

An all-stage vacuum tube phono equalizer to suit diverse and specific tastes
The phono equalizer amplifier plays a unique role as part of an amplification system with respect to the characteristics and delicacy of signals. Because of this uniqueness, phono equalizers have been designed using various kinds of circuit methods and elements and have captivated the interest of enthusiasts for whom the detail of the sound is paramount. The EQ-500 is equipped with the circuit technology and musical essence inherent to its predecessor, the E-06 from LUXMAN. First launched in the 1980’s, the E-06 is still a highly respected masterpiece of the CR type. This renowned circuit technology has been newly improved in the EQ-500 and uses vacuum tubes for all of the amplifier elements to bring the spirit of analog sound inscribed on the vinyl discs into life.

Vacuum tubes manufactured by JJ Electronic in Slovakia
The vacuum tubes specified for the EQ-500 are manufactured by JJ Electronic in Slovakia and have a reputation for high quality and superior performance. The characteristics of the gold plated ceramic tube sockets are ideal due to their solidity and low contact resistance. A stable voltage can be supplied to the amplification circuit using a rectifying tube and a choke coil.

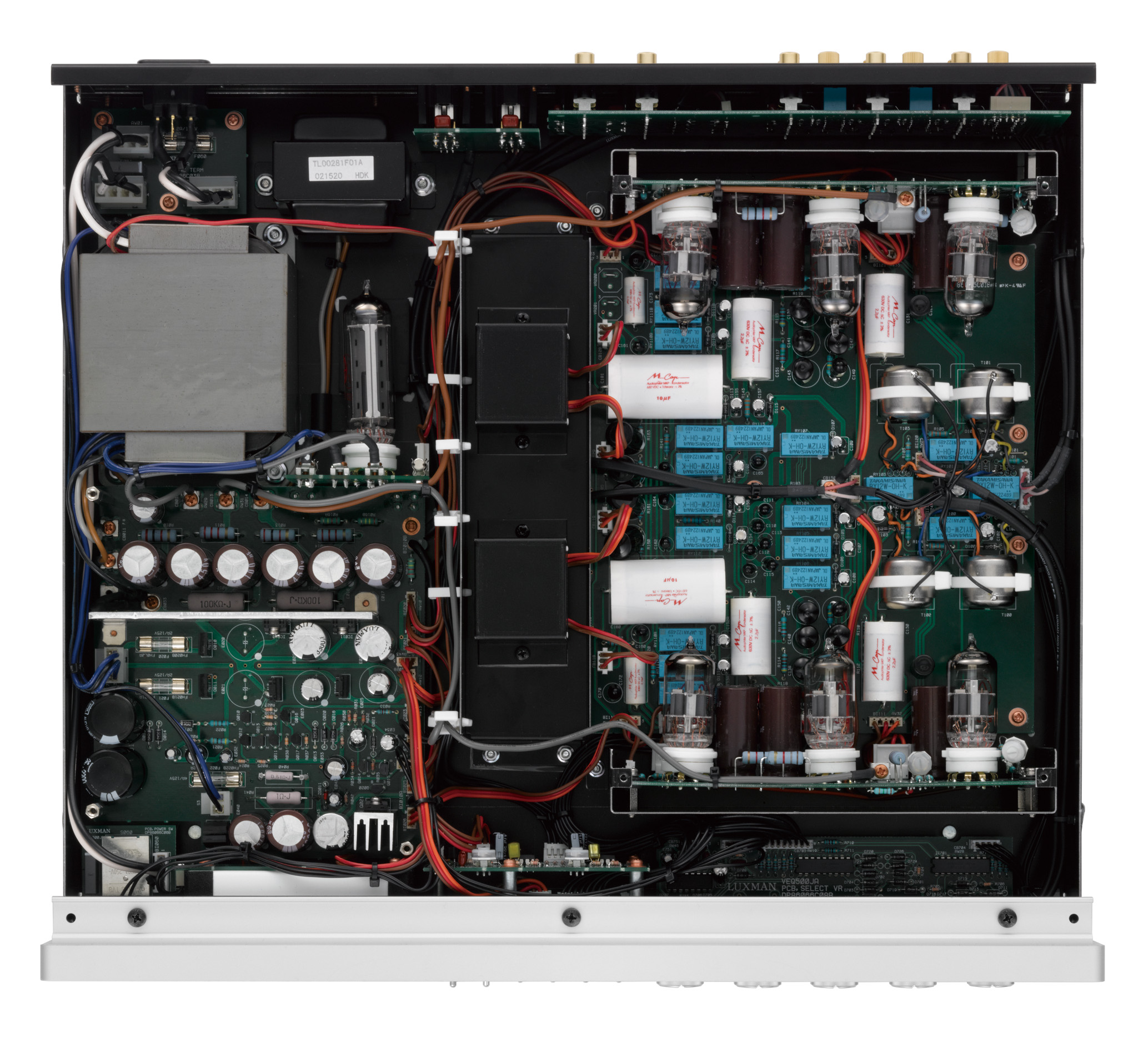

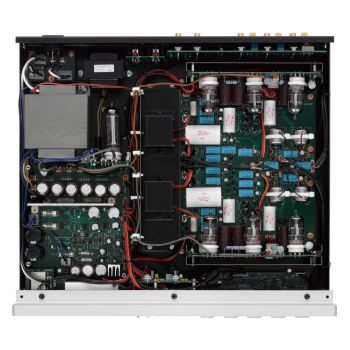

Large output transformer and 4 units of MC transformers
A large-capacity output transformer as well as MC step up transformers each playing a critical role in determining the sound quality and performance are made of super permalloy that particularly enhances the response to small signals. In addition, 4 units of MC step up transformers are mounted for MC-HIGH, MC-LOW, right and left independently.

Original custom built parts
The coupling capacitors that have been chosen for the EQ-500 are manufactured by Mundorf in Germany, world renowned for their ‘Audiophile’ tenacious tonal quality. Original custom built components are abundant in the design of the EQ-500 ensuring the ultimate in sound quality and reliability for each circuit including OFC internal wiring.

High-rigidity insulator
The high-rigidity insulator legs carved from solid block aluminium to suppress any vibration reaching the internal circuits of the EQ-500.

Specifications

Channel separation (10kHz)

65dB

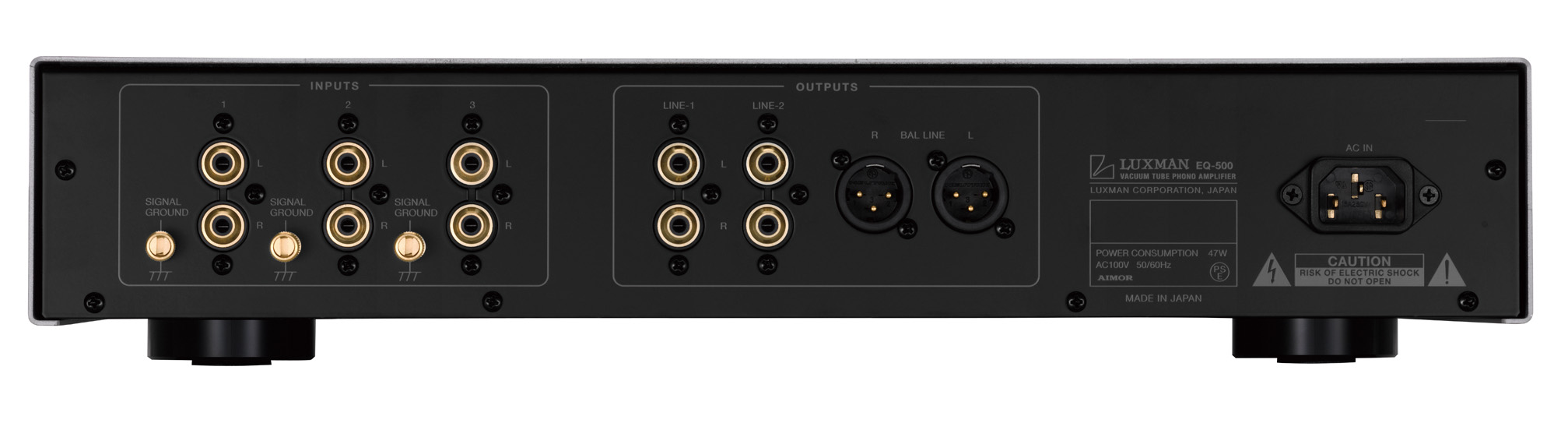

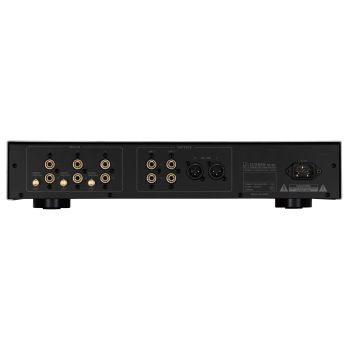

Input

Unbalanced line x 3

Output

Unbalanced line x 2, Balanced line x 1

Power supply

230V~(50Hz) / 115V~(60Hz)

Power consumption

47W

External dimensions

440(W) x 92(H) x 397(D) mm
front side knob of 5mm and rear side
terminal of 12mm included in depth

Net weight

12.5kg (main unit)

Accessories

Power cable

Circuiting system

SRPP, final stage cathode follower
Non-feedback CR type equalizer

Vacuum tube used

ECC83 x 4 pieces, ECC82 x 2 pieces,
and EZ81 x 1 piece

Input sensitivity (1kHz, When the gain is set to 36dB)

MM: 4mV
MC: high 0.44mV, MC: low 0.18mV

Input impedance

MM: 30kΩ to 100kΩ (variable)
MC: high 40Ω, MC: low 2.5Ω

Rated output/output impedance

250mV/850Ω

Gain(1kHz, When the gain is set to 36dB)

MM: 36dB
MC: high 55dB, MC: low 63dB

Maximum allowable input (1kHz)

MM: 300mV, MC: high 34mV,
MC: low 13mV

RIAA deviation

MM/MC high/MC low:
20Hz to 20kHz (±0.3dB)
