Η συσκευη Tsakiridis Devices Super Athena-R είναι ένας ειδικά κατασκευασμένος ρυθμιστής γραμμής (line conditioner), που διαθέτει φίλτρο γραμμής 2500 W, πηνίο ισχύος (choke) 800 W, μετασχηματιστή απομόνωσης και διόρθωση συντελεστή ισχύος (Power Factor Correction). Περιλαμβανει οθονη απεικονισης παραμετρων ποιοτητας του ρευματος και bluetooth για monitoring σε κινητο. H Athena-R ενσωματωνει κατασκευαστικες βελτιωσεις σε σχεση με το απλο μοντελο αλλα την προσφερουμε στην ιδια ΤΕΛΙΚΗ τιμη.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

Super Athena-R provides a 2500W mains filter with overvoltage and voltage surge protection. The filter circuit is designed to have the minimum effect possible to the power lines.
An 800W isolation transformer is also available in Super Athena for further isolation of your audio sources in order to give a cleaner sound to your audio system.
Super Athena incorporates a power factor correction circuit. This feature optimizes the power consumption of your sound system and also minimizes the parasitic harmonic content on the DC supplies of your equipment resulting in better sound performance.

Super Athena contains a power choke of 4000W. This choke acts as an extremely low impedance power source for your audio equipment. Especially when an amplifier needs to draw instantaneously a large current, the power choke is able to provide it, hence improving the dynamics of your amplifier.
The handmade isolation transformer and power choke are tested thoroughly for quality and reliability.

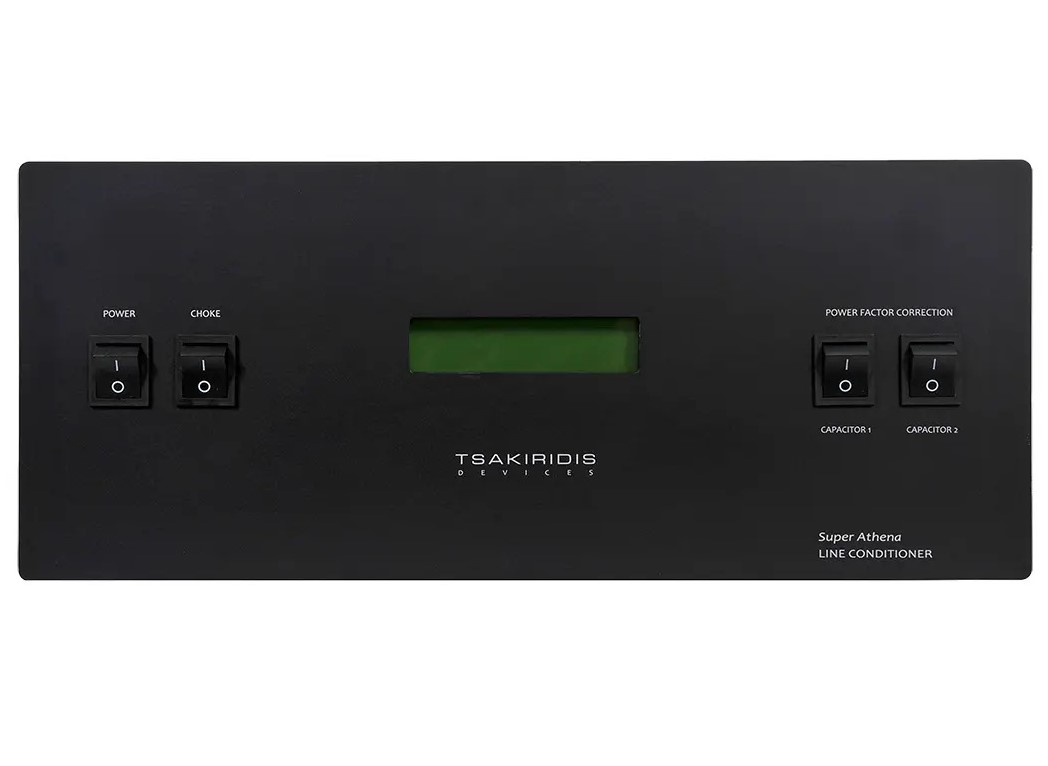

An informative display shows in real time all the power parameters needed.
An android app is available to monitor the power parameters and save them in an excel format file for further evaluation.

Optional DC blocker circuit is available upon request. This option blocks any DC component of the mains power supply. If a DC component is present on the mains and not blocked, then the power transformers of your equipment will get hotter and may produce a humming noise.
Soft start circuit is available upon request. The soft start is very useful especially if you have high power amplifiers. The soft start function can be applied to the direct mains sockets to the filtered sockets or to the isolated sockets and in any combination of these socket groups as desired.

Specifications

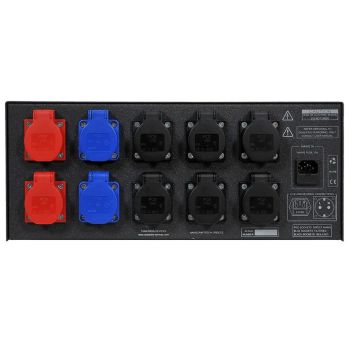

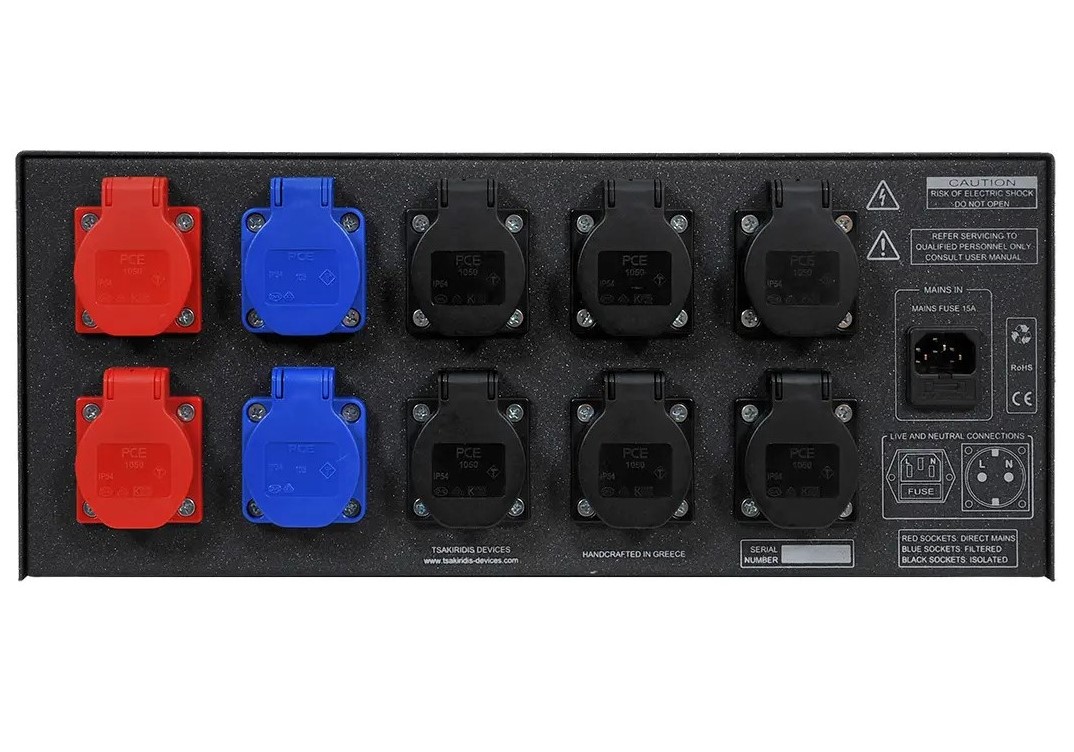

• 10 sockets Type F or type B respectively
• Line Filter
• Power Choke
• 2 Direct mains sockets
• 2 filtered sockets
• 6 type F or type B filtered & isolated sockets
• All internal connectors solded with silver solder.
• All 10 sockets with 6.0mm (eightfold) thick cables than standard (2.5mm) Super Athena.
• Separate Chain Wire Connenctions (StaR) for all sockets.
• StaR ground wiring
• Overvoltage protection
• Surge protection
• Power Factor correction
• Informative display with real time power parameters
• Android app for power parameters monitoring and evaluation
• Optional DC Blocker circuit (upon request-extra charge)
• Optional Soft start circuit (upon request-extra charge)
• Total power capability: 2500W
• Line filter power capability: 2500W
• Power Choke power: 4000W
• Isolation Transformer max power: 800W
• Weight: 35kgr
• Dimensions (WxDxH): 43x36x19 cm
