Marantz PM-10 silver gold

Ο Marantz PM-10 ειναι στερεοφωνικος, τηλεχειριζομενος δικαναλος ενισχυτης, ισχυος 2x200 wrms στα 8 ohm. Εγγυηση αντιπροσωπειας. Δυνατοτητα δοσεων.

Τιμή Καταλόγου: 9999.00€
9199.00€

Διαθεσιμότητα: 1-3 ημέρες

ΔΩΡΕΑΝ ΑΠΟΣΤΟΛΗ ΣΕ ΟΛΗ ΤΗΝ ΕΛΛΑΔΑ

Ο Marantz PM-10 ειναι στερεοφωνικος, τηλεχειριζομενος δικαναλος ενισχυτης, ισχυος 2x200 wrms στα 8 ohm.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

Amplifiers are at the core of Marantz history:
its very first product was a high-quality preamplifier designed to make the most of the then-new LP record format. And with a history stretching all the way to that ground-breaking Audio Consolette – which Saul B Marantz started manufacturing in 1952, and which soon became the first real Marantz product, the Model 1 preamplifier – , it’s no surprise that the company’s very latest Premium Series model, the PM-10, is an integrated amplifier built to set new standards with all of today’s music formats.

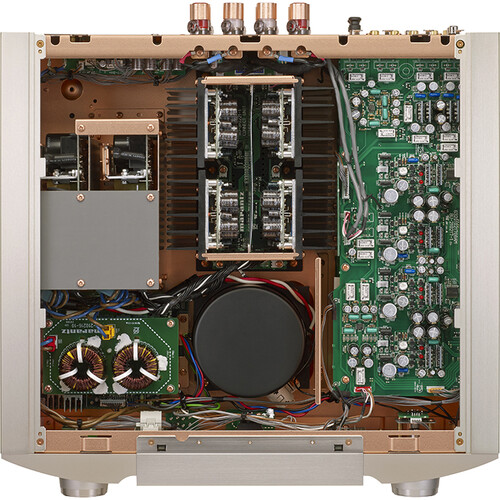

In fact, this massively powerful integrated amplifier is constructed more like a high-end separate preamplifier and a pair of monobloc power amps, but all in one beautifully finished case, designed both to maximise performance and create a strong visual statement.
PM-10 integrated amplifier     Making an integrated amplifier with dual monobloc design fitting in a normal size cabinet is made possible by the use of a stereo switching amplifier. Its aim? To reveal the maximum musical involvement from everything from LPs to the latest high-resolution audio files and beyond, and with all the power and control required to drive the most demanding loudspeakers, allowing them to perform at their best.

Key Features

  • The new reference class Integrated amplifier
  • Four switching power amplifier channels in bridged mode (two per channel) for maximum grip and drive
  • True Balanced Concept from input to speaker to realise ground-free signal management
  • Massive power: 200Wpc per channel into 8ohms, and 400Wpc into 4ohms
  • Easy driving of a wide range of speakers
  • Wide-ranging dynamic ability thanks to instant high-current power supply
  • Fully balanced throughout: both preamplifier and power amplifiers
  • Marantz Hyper Dynamic Amplifier Modules (HDAM) in preamp stage
  • Dual mono power amplifier configuration
  • Separate power supplies for preamplifier and control processor, and for each power amp channel
  • Discrete phono stage for moving coil and moving magnet cartridges in its own shielded case.
  • High-quality construction with double-layer chassis, 5mm thick aluminium top lid, solid aluminium front, copper plated chassis and high-purity copper speakers terminals
  • Double thickness copper PCB for the output section and main power supplies

Specifications

Channels 2
Current Feedback Topology
Full balanced circuitry architecture
Double Mono Power Amp construction
Phono EQ: Standard / Marantz Musical / Marantz Musical Premium - / - / o
HDAM version SA3
Power Transformer: Toroidal / El SMPS
High Grade Audio Components
Customised Components
Symmetric PCB Layout
Aluminium extrusion heat sink o (Separate)
Copper plated chassis
Balance / Bass / Treble / Loudness o / - / - /





Linear Drive Power Supply o (pre-amplifier stage)
Liniear volume control
BI-AMP and Multichannel option
Shottky diodes
Input buffer amp (all inputs / CD only) o / -
System block shielding: copper / metal / none o / - / -
Double Layer Bottom Plate
Low noise LCD display
Power Amp direct
5mm aluminium top plate

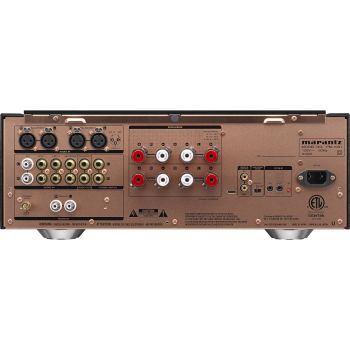

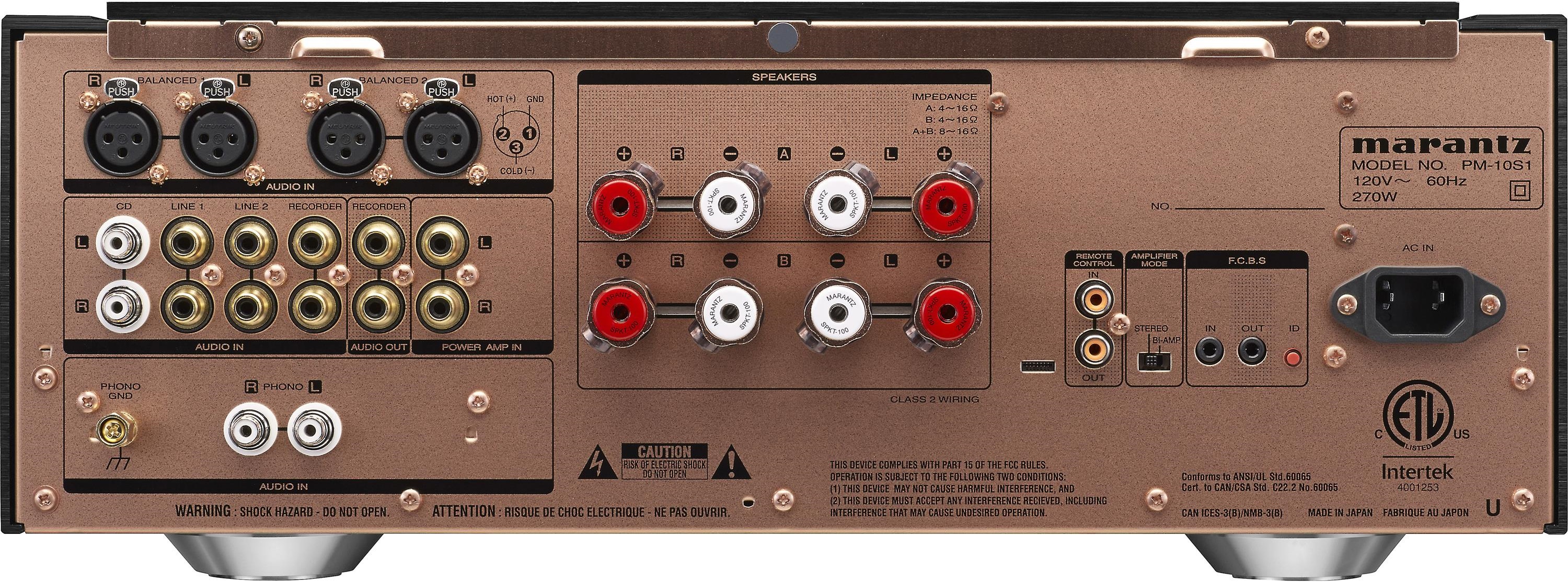

Audio Inputs 7
Phono Input: MM / MC o / o
Audio Outputs 1
Balanced In / Out 2 / -
Power Amp Direct IN
Gold Plated Cinch o / CD & Phono nickel-plated
Speaker A / B
Speaker Terminals Marantz SPKT-100+
Number of terminals 4
D-Bus
Floating Control Bus (3.5 mm mono jack x 2)
Headphone Out



Power Output (8 / 4 Ohm RMS) 200 W / 400 W
Frequency Response 5 Hz - 50kHz
Total Harmonic Distortion 0.01%
Damping Factor 500
Input Sensitivity: MM 2.6 mV / 47 kohm
Input Sensitivity: MC 280
Input Sensitivity: High level 400 mV / 20 kohm
Input Sensitivity: Balanced High level 800 mV / 40 kohm
Signal to Noise Ratio: High level 111 dB(2V input/Rated output)
Input Sensitivity: Power Amp Direct IN 1,5 V / 20 kohm
Signal to Noise Ratio: Power Amp Direct IN 113 dB



Available colors: Gold / Silver / Black / Silver-Gold o / - / o / -
Metal Front Panel
Power Consumption in W 270
Standby Consumption in W 0.3
Auto power off
Detachable Power Cable
Remote Control RC004PMSA
System Remote Function
Maximum Dimensions (W x D x H) in mm 440 x 168 x 453
Weight in kg 21.5
