Το M2Tech-Manunta Evo-Phono-3 ειναι ενα phono MM/MC, πληρως ρυθμιζομενο (MM gain 40-52 db, MC gain 50-82 db, MC Capacitance 0-120 pF, MC input Impendance 10-1000 Ω).

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

Specifications

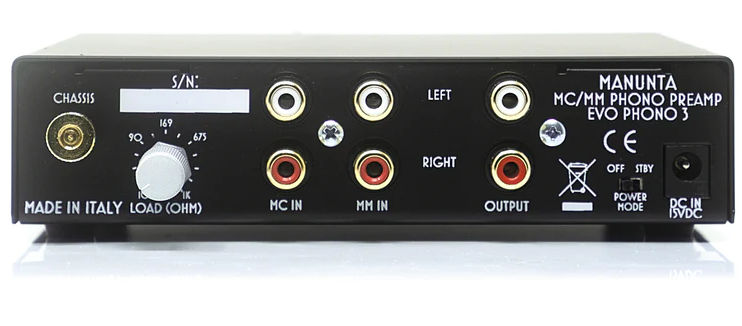

Inputs & Outputs

• Inputs: MC (high gain), MM (normal gain)
• Outputs: Line out

Audio

• Frequency Response: 5Hz to 30kHz RIAA +/0.25dB
• S/N R: 87dBA (MM, 46dB), 80dBA (MC, 56dB)
• THD+N: 0.05% (5mVrms, 1kHz, MM, 46dB)

Electrical

• MC Gain: 50, 55, 56, 60, 61, 62, 65, 66, 67, 70, 71, 72, 75, 76, 77, 82 dB
• MM Gain: 40, 46, 52 dB
• MC Input Impedance: 10 Ohms to 1 kOhms
• MM Input Impedance: 47 kOhms
• MM Input Capacitance: 0, 100, 220, 320 pF
• Supply Voltage: 15VDC
• Power Consumption: 4.5VA

Size & Weight

• Size: 105x100x46mm (wxdxh)
• Weight: net 0,3kg, gross 0,7kg
