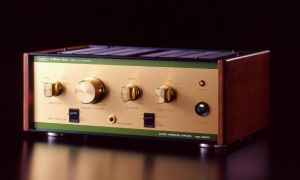

O Leben CS-300XS ειναι ολοκληρωμενος δικαναλος ενισχυτης με λυχνιες , 2x15wrms με EL84 Sovtek.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα ανταλλαγων, δοσεων.

Small and powerfull tube EL84 made by Sovtek/Russia

• The CS-300X(S) is equipped with SOVTEK Tube EL-84 which has been welknown by audiophiles for its high sound quality against its small size.
• A high input sensitivity of EL84 does not require a complicated circuit and accordingly, it can create a low distortion output signal.

Highest-End Audio Grade Components:

• Resistors: Precision Industrial Grade ±1%
• First-Stage By-Pass Condenser: Ultimate audio-grade "OS Condenser" developed by Sanyo
• Last-Stage By-Pass Condenser: "Fine-Gold" by Nichicon
• Joint Condenser: Metalized Polypropylene Condenser with Mesh Shielding
• NF Overshoot Prevention Condenser: Ceramic condenser
• Cathode Resistor: 4W type instead of 3W type
• Output Transformer: Newly developed transformer with wider high-frequency range

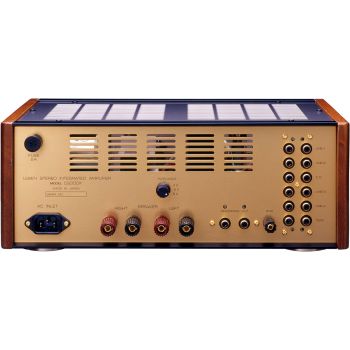

• Speaker Terminals: WBT-type binding posts, from April 2005 production onward

Other Luxurious Parts:

• Tube Shield Base: 24K gold-plated
• Side-Wood Panels: Canadian White Ash

Integrated Amplifier Functions:

• Tape Monitor
• Headphone Output

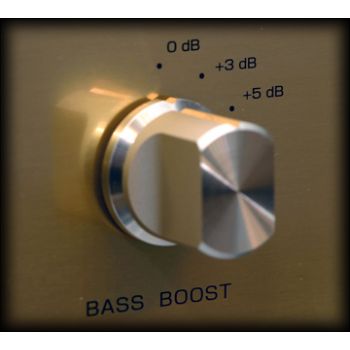

• Bass Boost Switch
• Speaker / Headphone Selector
• Variable Output Impedance: 4Ω / 6Ω / 8Ω
• Operation Lamp Indicator
• Power-On Indicator LED

Specifications

• Tubes:
  • 4 x EL84 (Sovtek)
  • 2 x 12AX7A (Sovtek)
• Output Power: 15W x 2
• Frequency Response: 15Hz – 100kHz (-2dB)
• Distortion: 0.7% at 10W
• Input Sensitivity: 600mV
• Input Impedance: 100kΩ
• Output Impedance: 4Ω / 6Ω / 8Ω, selectable
• Power Consumption: 82W
• Dimensions: 360 x 270 x 140 mm, W x D x H
• Weight: 10.5kg
• Included Accessory: Detachable AC power cable
