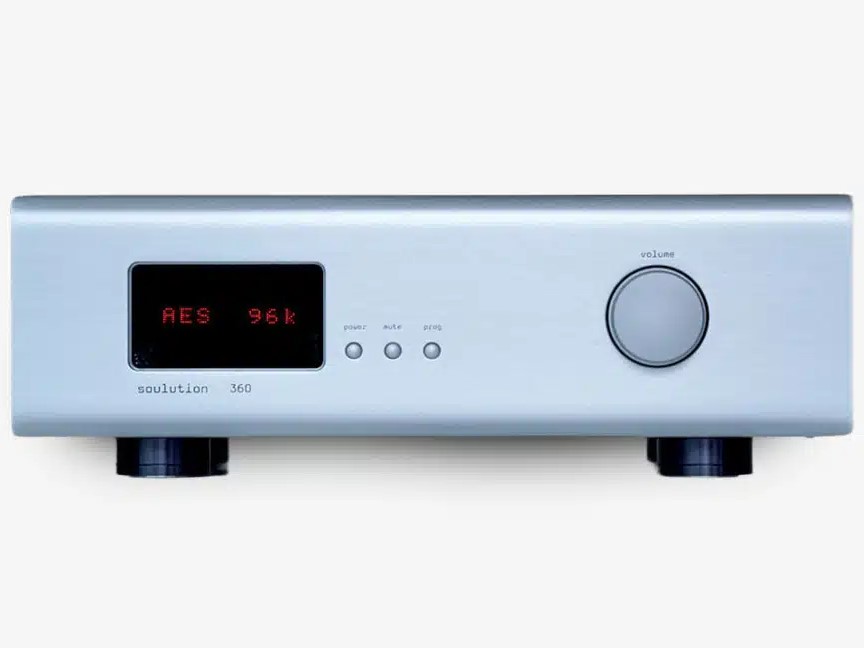

Το Soulution 360 DAC ειναι ψηφιοαναλογικος μετατροπεας (DAC) PCM 24bit/192kHz και DXD 32bit/384kHz.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα ανταλλαγων, δοσεων.

Features

• Highlights With its 4 digital inputs (SPDIF, AES/EBU, Network, USB) provides connectivity to a wide selection of digital sources. A powerful DSP converts all incoming digital music signals to the DXD format, performs the zeroPhase processing and the LEEDH volume control. One PCM1792 in mono configuration per channel takes care of the digital to analog conversion of the music signals. The internal digital filtering of the chip is bypassed for optimal results. The passive reconstruction filter sports custom made high precision components ensuring stable filter characteristics, prerequisite for a perfect compensation with the zeroPhase technology.
• Zeroφtech Every D/A converter requires an analog low pass filter in its output in order to suppress high frequency noise and aliasing signals. Smallest timing errors provoked by this filter get eliminated.
• LEEDH volume control Digital volume controls do suffer from truncation errors when reducing the level of the music signal. The 360s volume control based on LEEDH processing does significantly reduce these errors.

Specifications

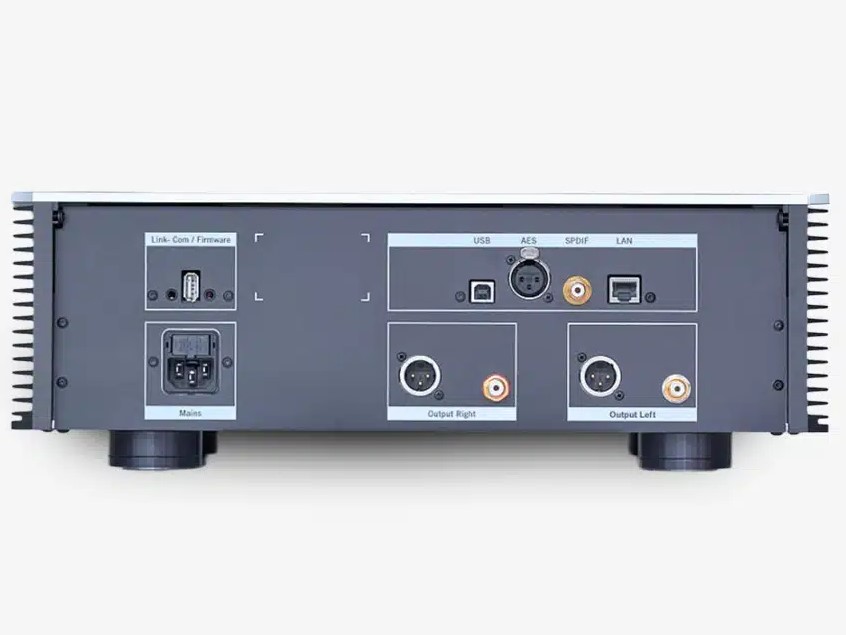

• Digital inputs
  • 1 × AES/EBU (110 Ω)
  • 1 × SPDIF (75 Ω)
  • 1 × USB
  • 1 × Network
• Input formats
  • PCM    16bit-24bit, 32kHz-192kHz
  • DXD (24bit, 384kHz) for network input
• Input formats DSD (DoP)    1bit
  • 2.82- 5.64 MHz (DSD64 - DSD128)
• LINK (remote turn-on) 2 x jack 3.5mm
• Volume control – 79 to + 0dB
• Frequency response (– 3 dB) 0 – 200kHz
• THD < 0.0003%
• Spot noise < -140 dBV/√Hz
• Analog outpts 1 x balanced (XLR), 1 x unbalanced (RCA)
• Output voltage (at max. volume) 4 Vrms balanced (XLR), 2 Vrms unbalanced (RCA)
• Ouput current (Peak) > 0.2 A
• Output impedance 10 Ω balanced (XLR), 5 Ω unbalanced (RCA)
• Dimensions (WxDxH) 430 x 350 x 142 mm
• Weight  10kg
