Το Gold Note DS-1000 EVO ειναι PCM/DSD dac 32bit/384kHz. Διαθετει WiFi, Bluetooth. Roon Ready, Airplay, MQA, Qobuz, Deezer, Spotify Connect, Tidal, Tidal Connect, vTuner.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

The DS-1000 EVO is the most advanced streaming DAC we have ever designed, combining advanced technology solutions applied to the digital-to-analogue domain with our unique know-how in delivering compelling sound quality, or, as we call it, the Italian Sound.
The core of the DS-1000 EVO is the Dual-Mono D/A converter design, powered by two AKM AK4493 converters to ensure the highest fidelity is always preserved during the conversion stage, with virtually zero crosstalk.
Streaming is as easy as pressing play on Tidal thanks to Tidal Connect, or simply connecting your computer with a USB cable – no audio file will be a problem, supporting MQA, PCM (up to 32bit/384kHz) and DSD (up to DSD512).

Completing the design, the output stage in Class A features audio-grade discrete components selected to deliver our unique Italian sound.

Specifications

• D/A Converter Chip: 2x AKM AK4493
• Frequency Response: 20Hz – 20kHz ±0.1dB
• Total Harmonic Distortion (THD): 0.001% max
• Signal To Noise Ratio: 125dB
• Dynamic Range: 120dB
• Network Connectivity: LAN/WLAN (WiFi) 802.11a/b/g/n/ac Dual Band (10/433Mbps), Bluetooth: High Definition 5.0 (44/16)
• High Quality Streaming: Roon Ready, Airplay, MQA, Qobuz, Deezer, Spotify Connect, Tidal, Tidal Connect, vTuner

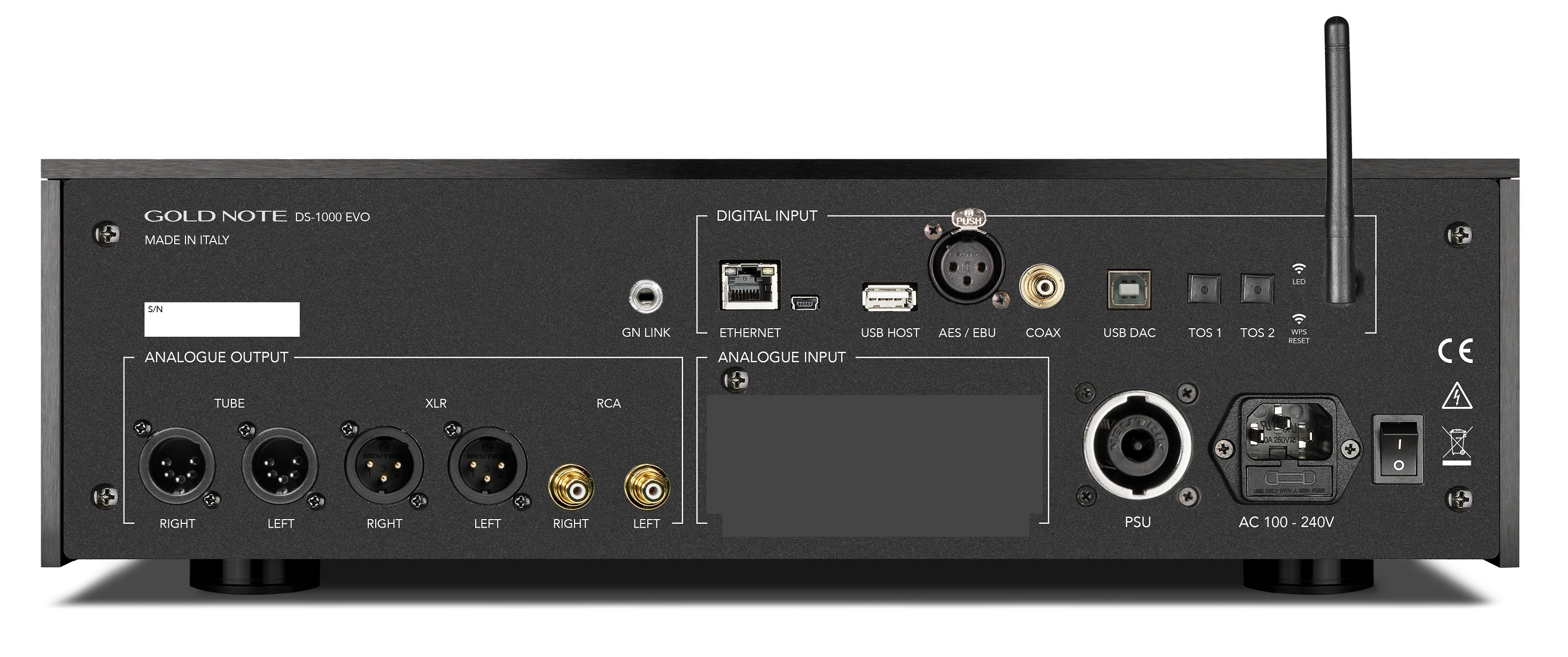

• Digital Inputs:
  • 1x RCA coaxial PCM up to 24bit/192kHz
  • 1x AES/EBU balanced PCM up to 24bit/192kHz
  • 2x TOS-Link PCM up to 24bit/192kHz
  • 1x USB-B asynchronous up to DSD512 and PCM up to 32bit/384kHz
  • 1x USB-A port DSD256 and PCM up to 32bit/384kHz, formatted in FAT32/NTFS (32Gb max for pen drives)
• Audio Outputs Preamp:
  • 1x RCA unbalanced
  • 1x XLR balanced
  • 1x Headphone 6.3mm jack on front panel
• Output Impedance: RCA 50Ω, XLR 100Ω
• Power Supply: 100–240V / 50–60Hz
• Power Consumption: 30W
• Fuse: 2A T
• Dimensions: 430mm W | 135mm H | 375mm D
• Weight: Kg 10 – net
• Weight: Kg 15 – boxed
