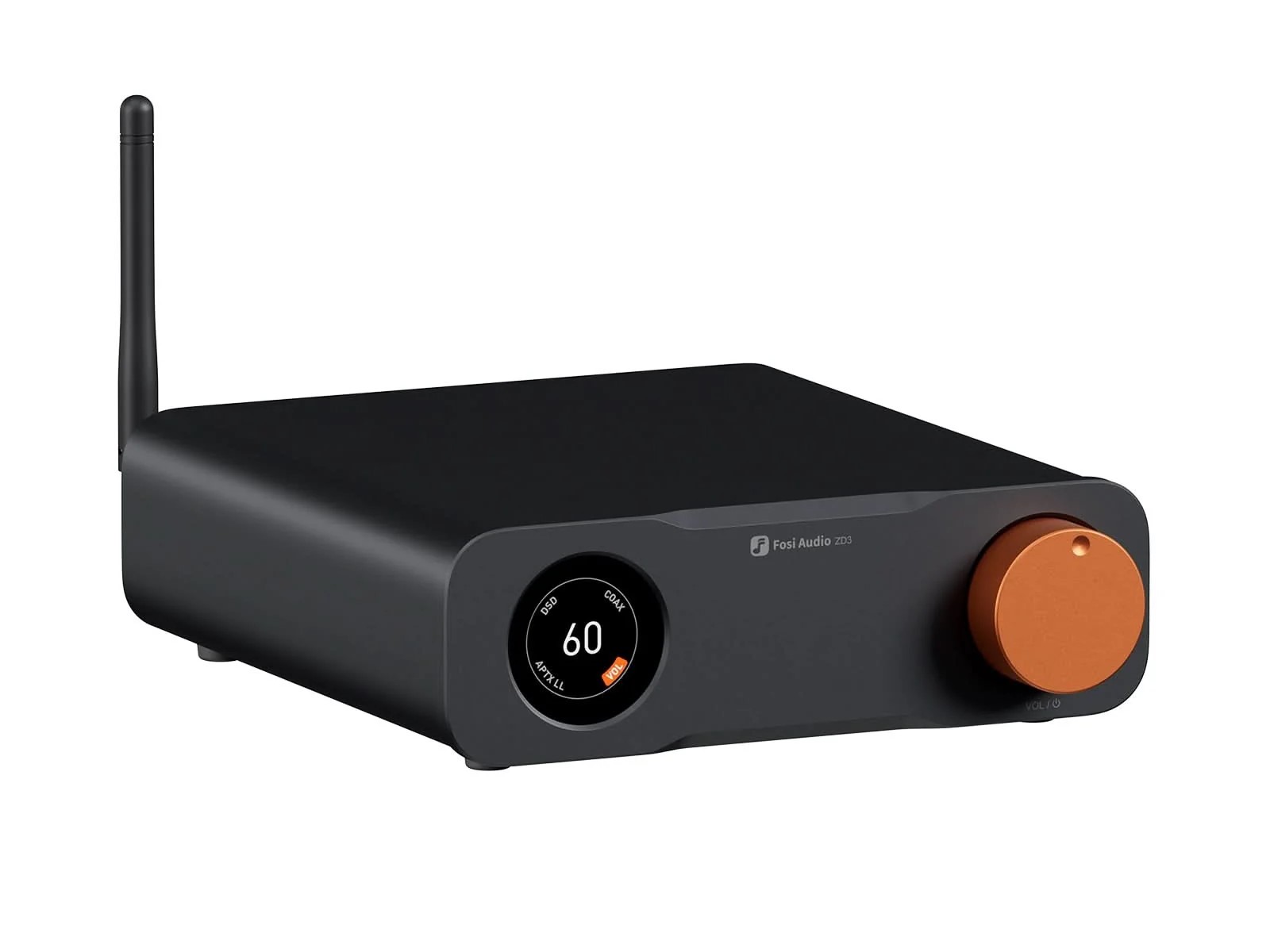

Το Fosi Audio ZD3 ειναι dsd dac με ενσωματωμενο δεκτη Bluetooth. Διαθετει εξοδους 1x pair XLR, 1x pair RCA. Εισοδοι: 1x HDMI ARC, 1x Coaxial, 1x Optical και 1x USB-B.

Εγγυηση αντιπροσωπειας. Δυνατοτητα δοσεων.

Flagship Desktop DAC: A fully balanced digital-to-analog converter preamp with multiple inputs and outputs. Fosi Audio’s first DAC to support HDMI ARC input and comes equipped with a high-performance ES9039Q2M chip to deliver rich and superior sound.

Premium Chipset: The ZD3 features the chipset consisting of XMOS XU316+ES9039Q2M+QCC3031+LME49720. It supports high audio resolution, with a maximum capability of DSD512 and PCM 32bit/768kHz sampling rates, providing unparalleled clarity and depth.

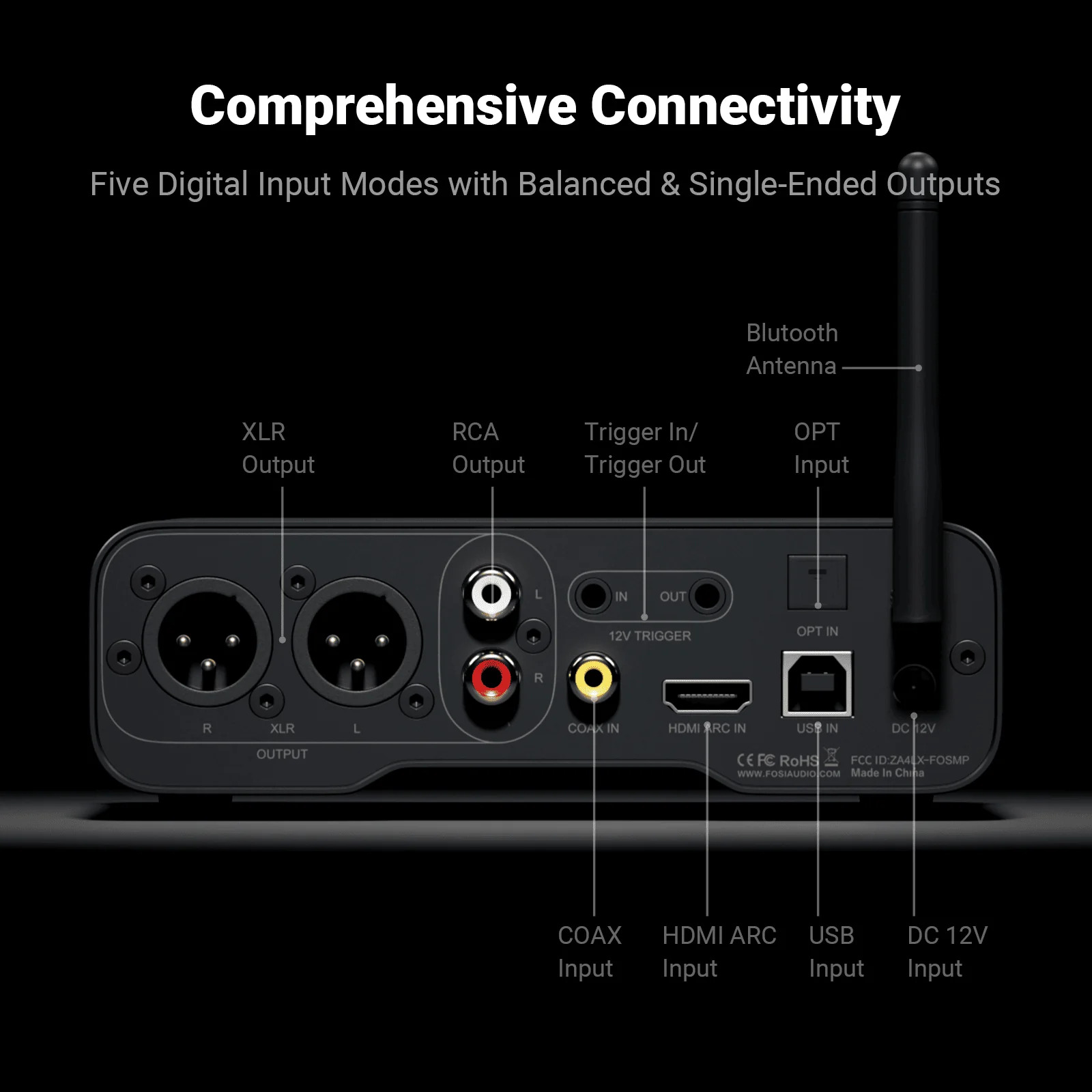

Versatile & Flexible: The ZD3 offers comprehensive connectivity, supporting inputs like Bluetooth, USB, OPT, COAX, HDMI ARC, and balanced XLR/RCA outputs. This flexibility allows you to customize your audio system to suit various setups and scenarios

Ease of Use: The ZD3 adopts a 1.5-inch OLED display, remote control, preamp bypass switch, and 12V trigger in/out interfaces, allowing synchronized power on/off with other home audio devices, all for a good user experience.

Family Design: Featuring the same design language as the ZA3 amplifier: compact and exquisite appearance and audiophile-grade components for high performance and excellent sound quality. Pair it with the ZA3 to create a robust home audio system.

Specifications

• Chip Set: XMOS XU316 + ESS 9039Q2M + QCC3031 + LME49720
• Maximum Sampling Rate:
  USB: PCM 32bit/768kHz; DSD512
  OPT/COAX: PCM 24bit/192kHz
  Bluetooth: PCM 24bit/48kHz
• Output Level: XLR: 5Vrms RCA: 2.5Vrms
• Input Mode:USB, HDMI (ARC), Coaxial, Optical, Bluetooth
• Output Mode: XLR, RCA
• SINAD: 126dB
• THD: ≥120dB
• THD+N: <0.00008%
• Dynamic Range: ≥123dB
• Noise Floor: ≤2μV
• Bluetooth Version: 5.0
• Bluetooth Connection Distance: ≥13m
• Bluetooth Transmission Audio Format: aptX HD, aptX, AAC, SBC
• Power Supply: DC 12V 1.5A
• USB Compatible Devices: Windows 7, 8, 8.1, 10, 11 (Some require drivers; please refer to the user manual)Mac OS X, Linux (No driver required)
