Το FiiO BR15 R2R ειναι 24bit/192kHz dac. Εισοδοι: 1x Coaxial, 1x Optical, 1x USB-C, Bluetooth. Εξοδοι: 1x RCA Line, 1x XLR Line, 1x Coaxial (same with input).

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

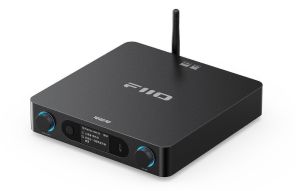

The FiiO BR15 R2R redefines wireless audio with a fully differential 24-bit R2R DAC, Bluetooth 6.0, and Qualcomm’s flagship QCC5181 chipset. Supporting LDAC, aptX Adaptive, and aptX Lossless codecs, it delivers CD-quality sound at up to 2.1 Mbps—letting you stream freely while preserving every musical nuance.

At its core, the quad-channel R2R DAC employs 192 precision thin-film resistors (48 per channel) with 0.1% tolerance, ensuring ultra-low noise and minimal distortion. The DAC can run in NOS (non-oversampling) or OS (oversampling) mode, giving audiophiles control over tonal character and detail retrieval.

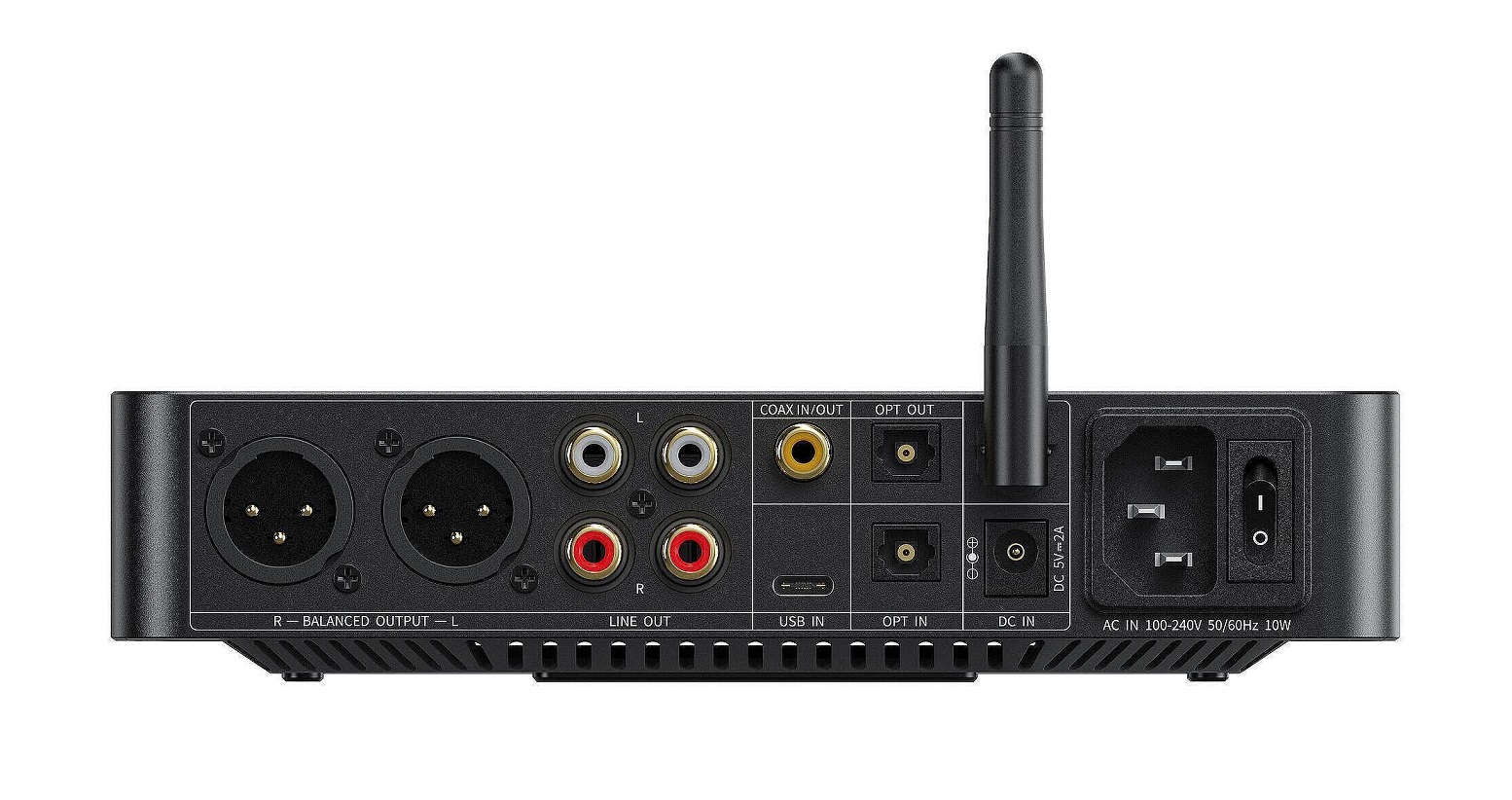

The BR15 R2R integrates seamlessly with any setup thanks to Bluetooth, USB, coaxial, and optical decoding inputs, plus RCA, XLR, and digital outputs. Whether paired with active speakers, an amplifier, or an external DAC, it adapts effortlessly to your playback chain.

Equipped with a global 10-band PEQ and AUTO EQ via the FiiO Control app, users can fine-tune the frequency response or match specific headphones. A fully balanced audio circuit, pop-noise suppression, and AC/DC dual power system ensure stable, clean performance.

The 1.47-inch color LCD provides live feedback—volume, codec, sampling rate, EQ status—while an infrared remote and FiiO Control app offer full convenience from anywhere in the room. With its refined industrial design and Hi-Res Audio / Hi-Res Wireless certification, the BR15 R2R stands as the ultimate bridge between audiophile fidelity and wireless freedom.

Specifications

• Model: FiiO BR15 R2R
• Bluetooth chip: Qualcomm QCC5181, Bluetooth 6.0
• DAC architecture: FiiO proprietary true 24-bit R2R DAC with 192 thin-film resistors
• Main controller: ESP32-S3
• USB interface: XMOS XU316
• Display: 1.47-inch color LCD screen
• Supported Bluetooth codecs: LDAC, aptX Lossless, aptX Adaptive, aptX HD, aptX, AAC, SBC, LC3
• Decoding capability:
  • USB: PCM up to 384 kHz / 32-bit, DSD256
  • Coaxial: up to 192 kHz / 24-bit, DSD64
  • Optical: up to 96 kHz / 24-bit, DSD64
• Outputs:
  • RCA: 2.2 Vrms
  • XLR balanced: 4.4 Vrms
  • Optical (S/PDIF)
  • Coaxial (S/PDIF)
• Input interfaces: Bluetooth, USB, Optical, Coaxial
• Frequency response: 20 Hz – 65 kHz (attenuation < 2.9 dB)
• Signal-to-noise ratio (SNR): ≥ 119 dB (A-weighted)
• Noise floor: < 5.1 µV (A-weighted)
• Total harmonic distortion + noise (THD+N): < 0.015% (1 kHz, 0 dB @ 10 kΩ)
• PEQ: 10-band parametric EQ with AUTO EQ
• Power supply: AC / DC dual supply with automatic DC priority
• Dimensions (W × D × H): 210 × 188 × 42 mm
• Weight: 0.76 kg
• Color options: Black / Silver
• Included accessories: Remote control, AC power cable, RCA cable, quick start guide, warranty card
