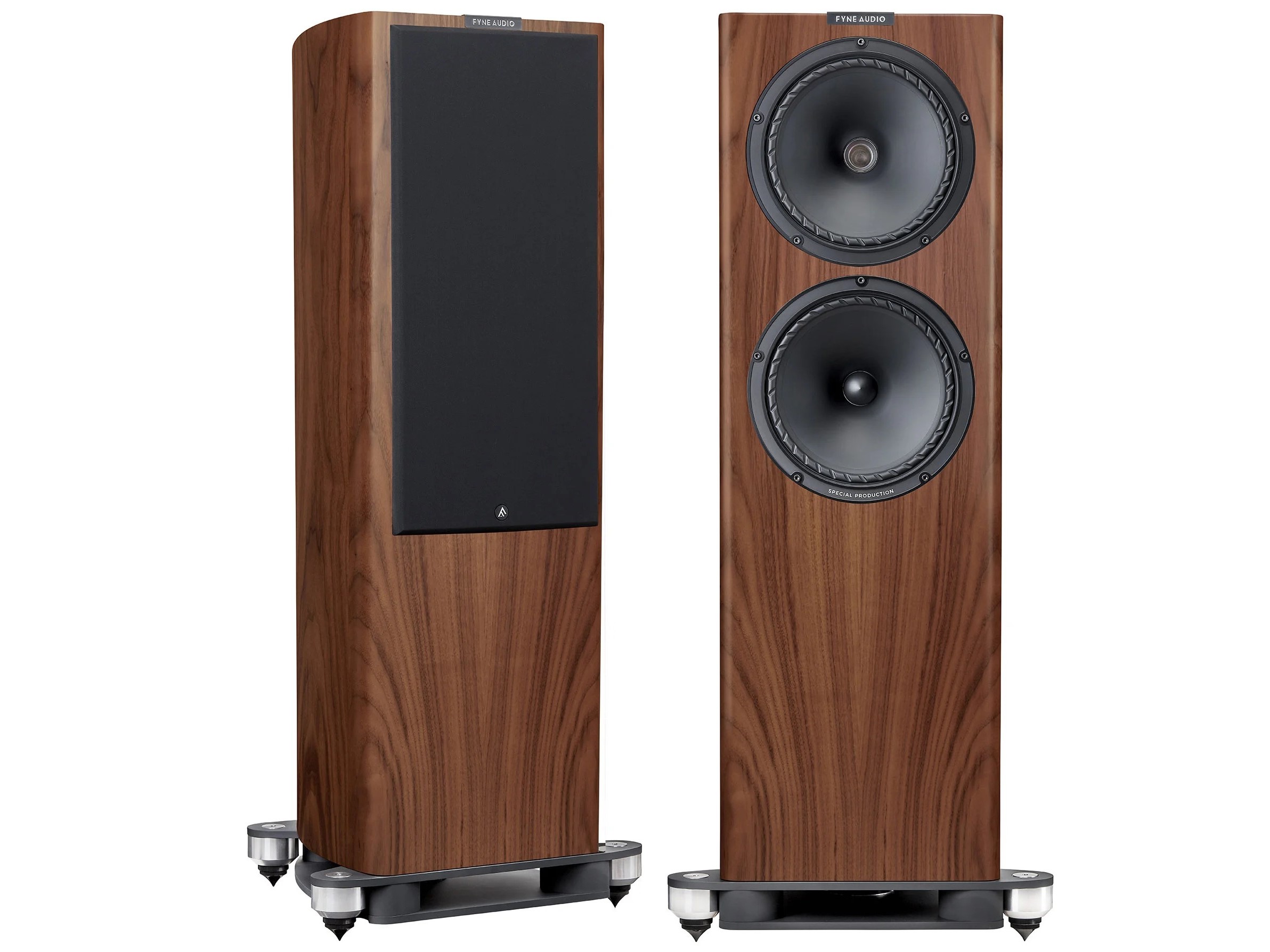

Τα Fyne Audio F704SP ειναι ζευγος ηχειων δαπεδου 2,5 δρομων. Υλοποιειται με 2x 12" woofers και 1x 0.75" magnesium dome tweeter. Ευαισθησια 96db. Συνιστωμενη ισχυς ενισχυτη 30-300 watts.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

The F704SP (Special Production) merges the dynamic force of the F704 with the refinement of the elite F1 Series, delivering breathtaking realism and musicality. At its core, Fyne’s 300mm IsoFlare point source driver pairs a 12″ multi-fibre bass/mid cone with a 3″ titanium dome compression tweeter for seamless time alignment, exceptional clarity, and pinpoint imaging. A second 300mm bass driver extends low frequency depth, while the BassTrax Tractrix diffuser system ensures deep, controlled 360 degree room filling bass.

An upgraded crossover featuring ClarityCap capacitors, Vishay resistors, and cryogenic treatment refines signal purity for an immersive, high-fidelity experience. The robust aluminium sandwich plinth, derived from the flagship F1-12S, provides exceptional stability, enhances bass dispersion, and improves overall performance.

Specifications

• System Type
  • Configuration: 2½-way, downwards firing port with BassTrax™ Tractrix diffuser, twin cavity loading system
• Amplifier & Power
  • Recommended amplifier power (RMS): 30 – 300 W
  • Continuous power handling (RMS): 150 W
• Electroacoustic Performance
  • Sensitivity (2.83 V @ 1 m): 96 dB
  • Nominal impedance: 8 Ohm
  • Frequency response (-6 dB, typical in-room): 22 Hz – 26 kHz
• Drive Units
  • IsoFlare point source driver: 1 × 300 mm multi-fibre bass/midrange cone with FyneFlute surround, 75 mm titanium dome compression tweeter, neodymium magnet system
  • Dedicated bass driver: 1 × 300 mm multi-fibre cone with FyneFlute surround
• Crossover
  • Crossover frequencies: 250 Hz & 850 Hz
  • Crossover type: Bi-wired passive low-loss network, 2nd order low-pass, 1st order high-pass, cryogenically treated
• Cabinet & Construction
  • Construction: Pressed high-density birch ply with extensive internal bracing
  • Finishes: Natural Walnut, Piano Gloss Walnut, Piano Gloss Black, Piano Gloss White
• Dimensions & Weight
  • Dimensions (H × W × D): 1353 × 579 × 568 mm
• Mounting Reference Positions
  • S-Trax position (from cabinet front edge): 119 mm
  • SuperTrax position (from cabinet front edge): 95 mm
