Τα ATC SCM7 ειναι ζευγος ηχειων 2 δρομων, με 1x 5" και 1x soft tweeter 1". Ευαισθησια 84db, διαχειριση ισχυος 75-300 Watts.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

Features

• New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide.
• 125mm ATC mid-bass unit with integral soft dome.
• In-house, hand-wound  ribbon wire mid-bass voicecoil.
• Massive optimised mid-bass motor assembly.
• Flat impedance curve allowing easy load for amplifiers.

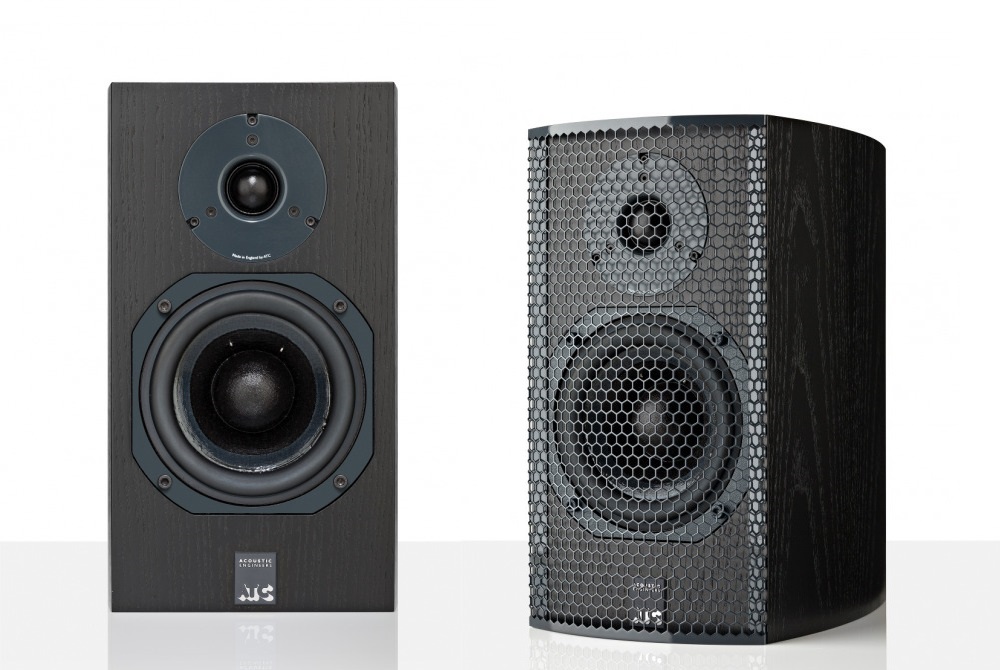

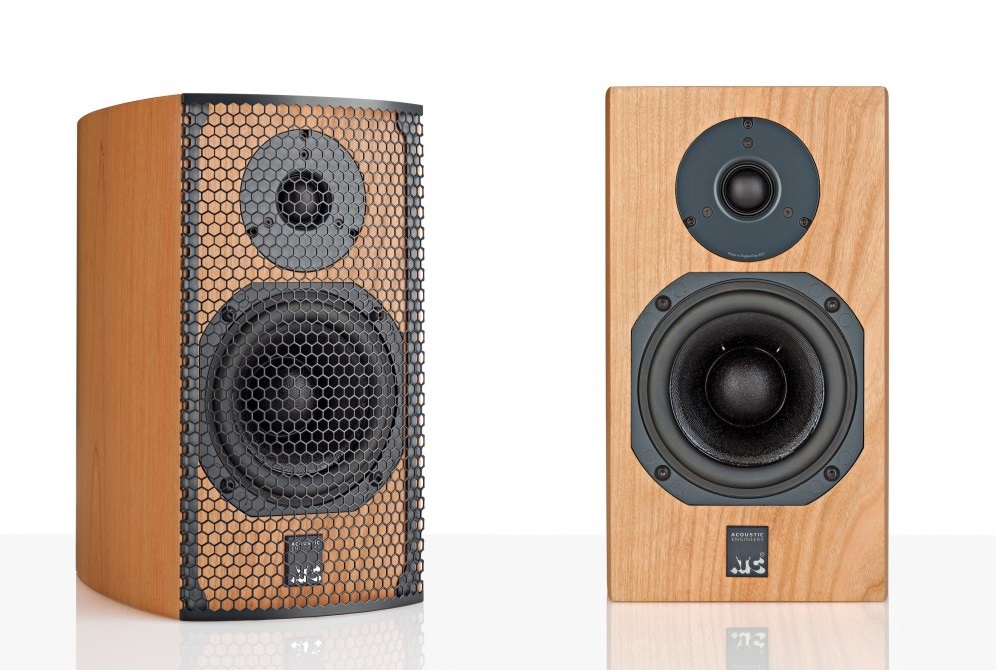

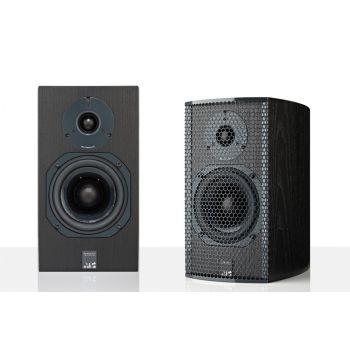

• Veneered Finish Options – Cherry, Black Ash.

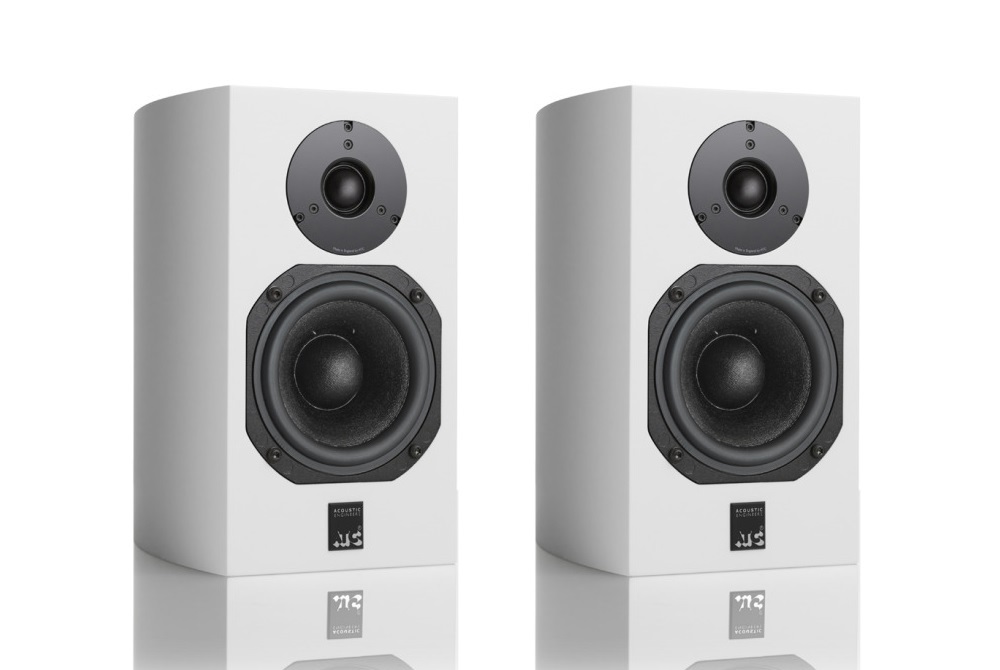

• Painted Finish Options – Satin Black, Satin White.
• 6 year warranty.

Specifications

• Drive Units
  • HF driver: ATC 25 mm neodymium soft dome
  • Mid/LF driver: ATC 125 mm SC
• Electroacoustic Performance
  • Matched response: ±0.5 dB
  • Frequency response (-6 dB): 60 Hz – 22 kHz
  • Dispersion: ±80° coherent horizontal, ±10° coherent vertical
  • Sensitivity: 84 dB @ 1 W @ 1 m
  • Maximum SPL: 103 dB
• Amplifier & Load
  • Recommended power amplifier: 75 – 300 W
  • Nominal impedance: 8 Ohm
• Crossover: Crossover frequency 2.5 kHz
• Connections: Binding posts / 4 mm plugs, bi-wire
• Dimensions & Weight
  • Cabinet dimensions (H × W × D): 30.0 × 17.4 × 21.5 cm
  • Grille additional depth: 2.8 cm
  • Weight: 7.5 kg
