Τα ATC SCM40A ειναι ζευγος ενεργων ηχειων 3 δρομων δαπεδου, με 1x 6,5", 1x 2.9" soft dome midrange και 1x soft tweeter 1". Ισχυς ενισχυτων 150, 60 και 32 watts.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

Features

• New ATC designed and built dual suspension 25mm soft dome HF unit with precision alloy wave guide.
• ATC Soft Dome mid-range driver.
• ATC 164mm short coil bass driver.
• All drive units incorporate massive optimised motor assemblies.
• On-board grounded source 242 watt Class A/B Tri-amplifier.
• Active crossover filters and overload protection.

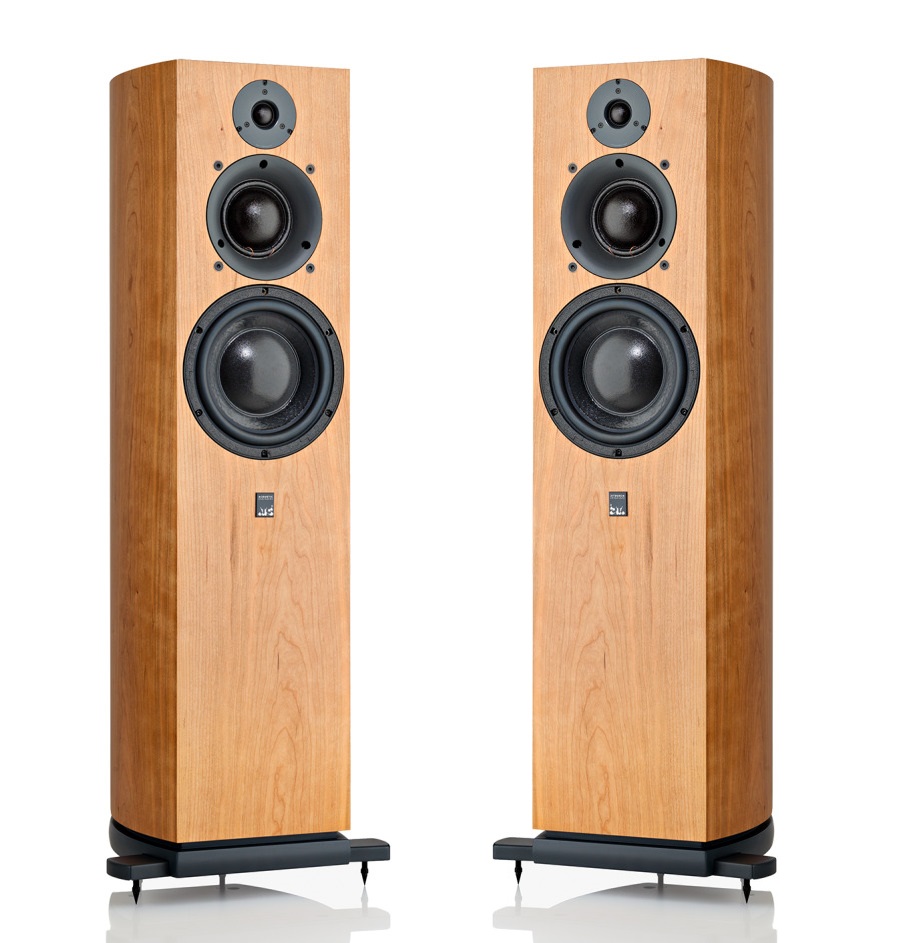

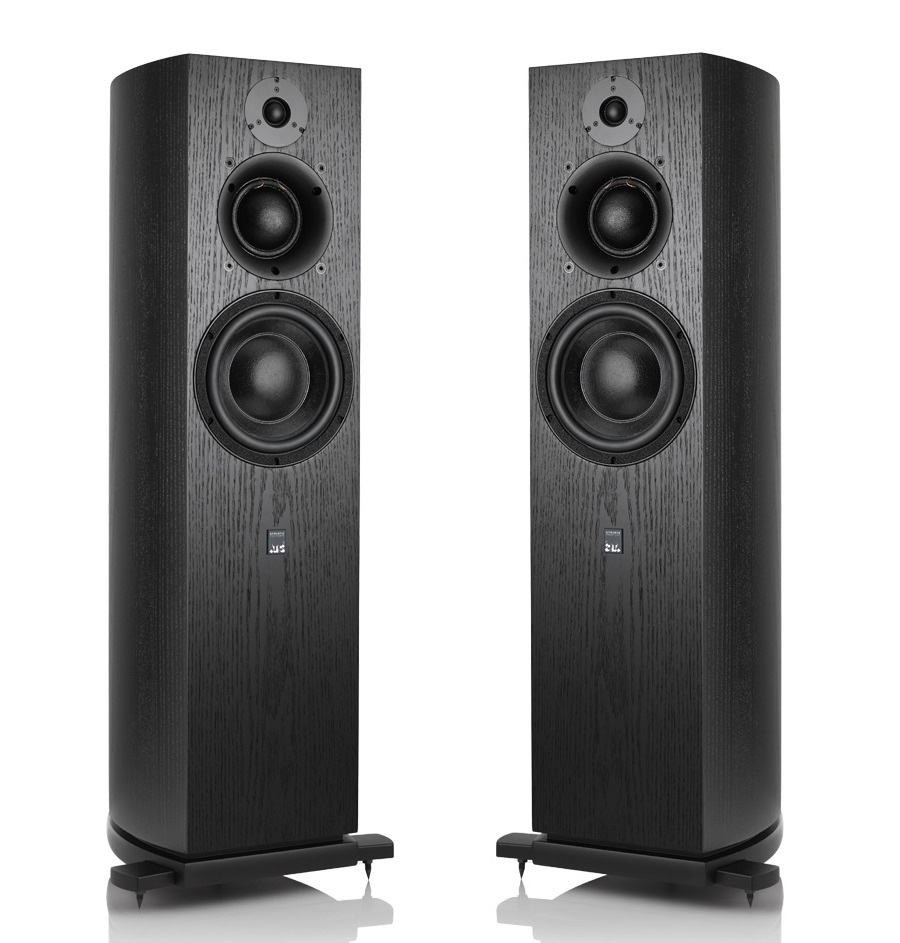

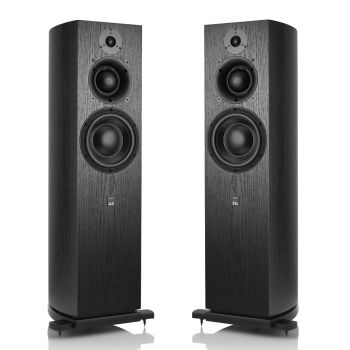

• Veneered Finish Options – Cherry, Black Ash.

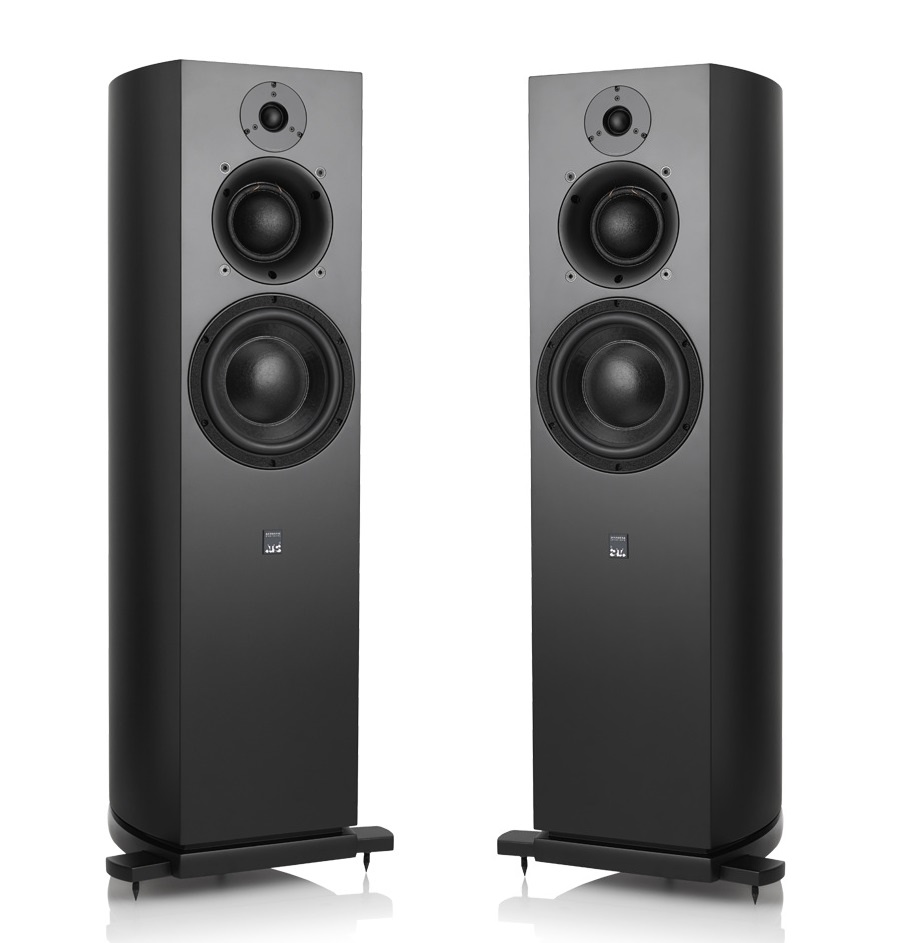

• Painted Finish Options – Satin Black, Satin White.
• 6 year warranty.

Specifications

• Drive Units
  • HF driver: ATC 25 mm dual-suspension tweeter
  • Midrange driver: ATC 75 mm soft dome
  • LF driver: ATC 164 mm SC
• Electroacoustic Performance
  • Matched response: ±0.5 dB
  • Frequency response (-6 dB): 48 Hz – 22 kHz
  • Dispersion: ±80° coherent horizontal, ±10° coherent vertical
  • Maximum SPL: 112 dB
• Crossover
  • Crossover frequencies: 380 Hz & 3.5 kHz
  • Filters: 4th order, critically damped with phase compensation
• Input & Protection
  • Input connector: Female XLR
  • Input sensitivity: 1 V
  • Overload protection: Active FET momentary gain reduction
  • Fault protection: DC fault protection and thermal trip, rear-panel LED indication
• Amplification
  • Amplifier output: 150 W (LF), 60 W (MF), 32 W (HF)
• Dimensions & Weight
  • Cabinet dimensions (H × W × D, incl. foot plinth & amplifier): 98.0 × 37.0 × 34.4 cm
  • Additional height (spikes): +2.5 cm
  • Additional depth (grille): +3.4 cm
  • Weight: 36 kg
• Spikes: 4 per cabinet, M8 × 1.25 mm
