Τα ATC SCM40 ειναι ζευγος ηχειων 3 δρομων δαπεδου, με 1x 6,5", 1x 2.9" soft dome midrange και 1x soft tweeter 1". Ευαισθησια 85db, διαχειριση ισχυος 75-300 Watts.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

Features

• New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide.
• ATC 164mm bass driver.
• Massive optimised motor assembly.
• ATC Soft Dome mid-range driver.
• Flat impedance curve allowing easy load for amplifiers.

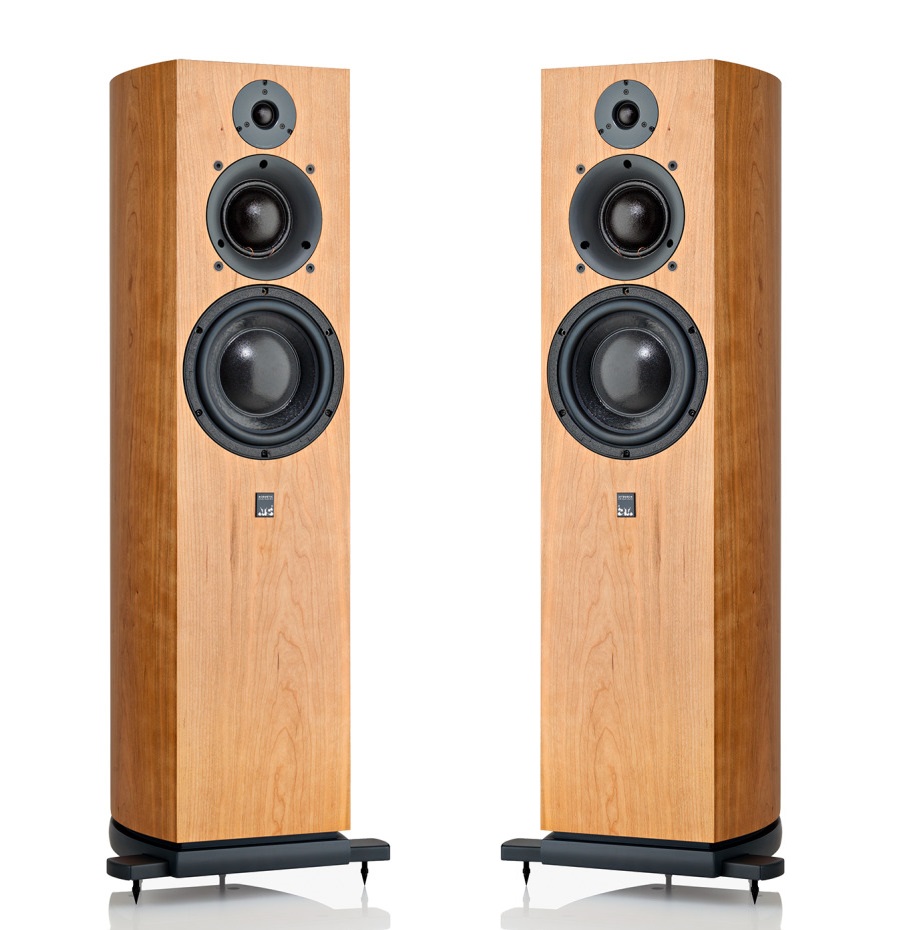

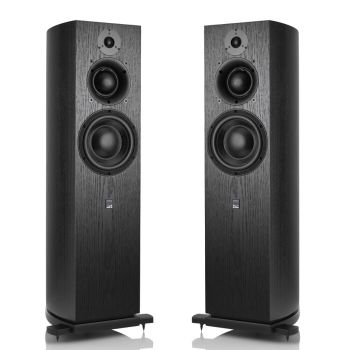

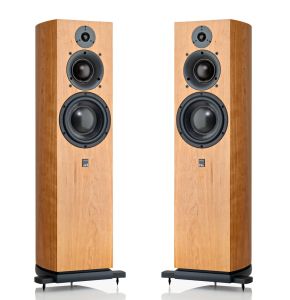

• Veneered Finish Options – Cherry, Black Ash.

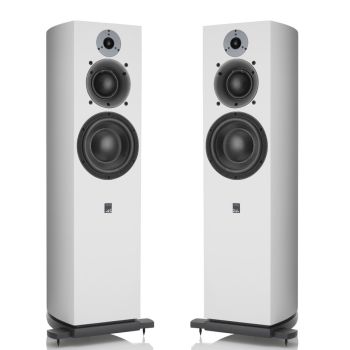

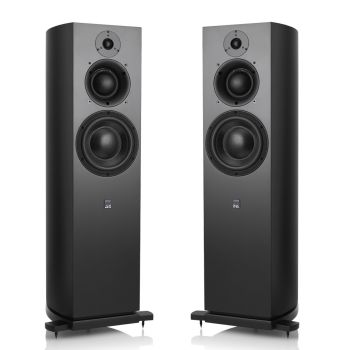

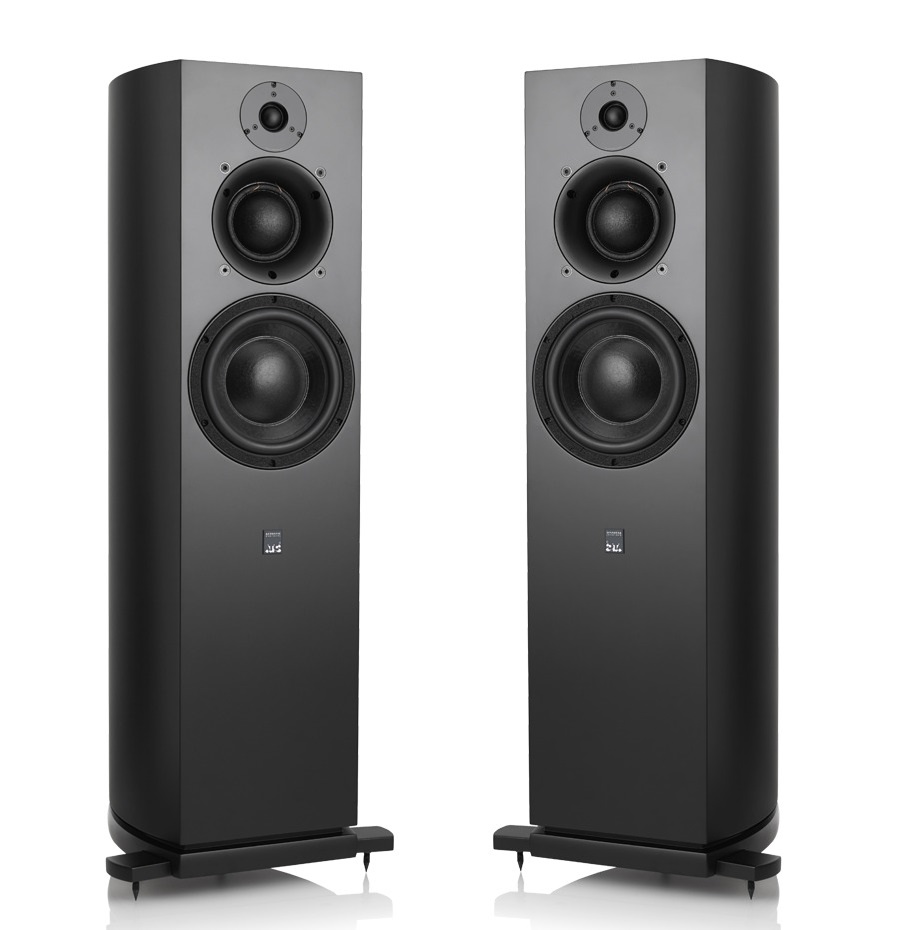

• Painted Finish Options – Satin Black, Satin White.
• 6 year warranty.

Specifications

• Drive Units
  • HF driver: ATC 25 mm neodymium
  • Midrange driver: ATC 75 mm soft dome
  • LF driver: ATC 164 mm SC
• Electroacoustic Performance
  • Matched response: ±0.5 dB
  • Frequency response (-6 dB): 48 Hz – 22 kHz
  • Dispersion: ±80° coherent horizontal, ±10° coherent vertical
  • Sensitivity: 85 dB @ 1 W @ 1 m
  • Maximum SPL: 112 dB
• Amplifier & Load
  • Recommended power amplifier: 75 – 300 W
  • Nominal impedance: 8 Ohm
• Crossover
  • Crossover frequencies: 380 Hz & 3.5 kHz
• Connections: Binding posts / 4 mm plugs, tri-wire
• Dimensions & Weight
  • Dimensions (H × W × D, incl. foot plinth): 98.0 × 37.0 × 30.5 cm
  • Additional height (spikes): +2.5 cm
  • Additional depth (grille): +3.4 cm
  • Weight: 31 kg
• Spikes: 4 per cabinet, M8 × 1.25 mm
