Τα ATC SCM19A ειναι ζευγος ενεργων ηχειων 2 δρομων δαπεδου, με 1x 6" και 1x soft tweeter 1". Ισχυς ενισχυτων 150 και 32 watts.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

Features

• New ATC designed and built dual suspension 25mm soft dome HF unit with precision alloy wave guide.
• “SL” spec bass driver with 75mm integral Soft Dome.
• 9kg optimised short-coil/long gap motor assembly.
• On-board grounded source 182 watt Class A/B Bi-amplifier.
• Active crossover filters and overload protection.

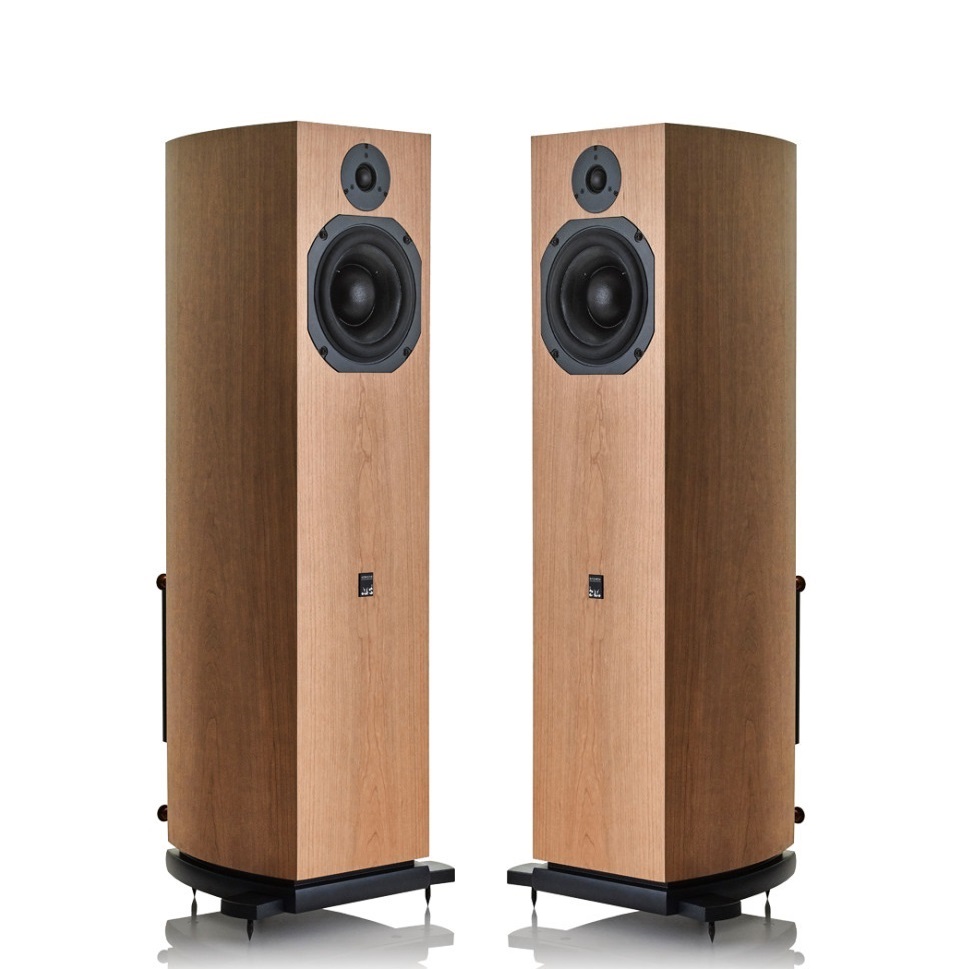

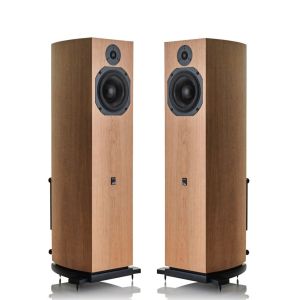

• Veneered Finish Options – Cherry, Black Ash.

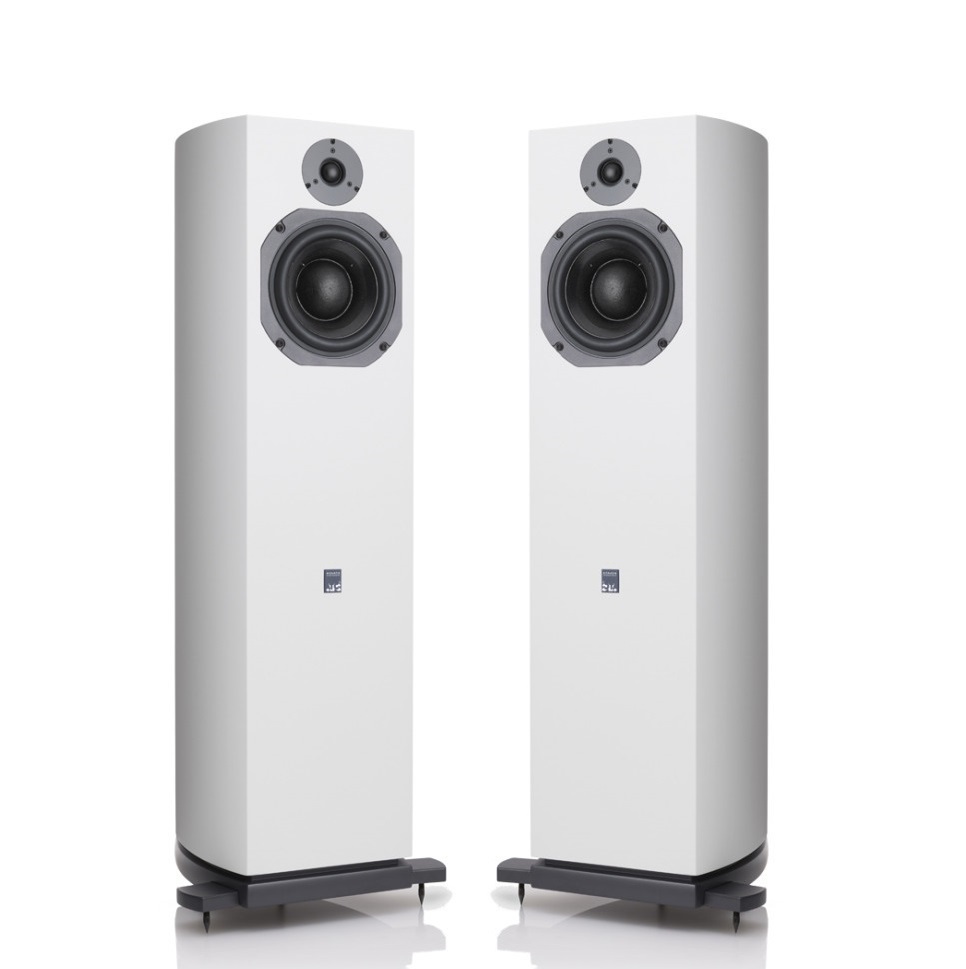

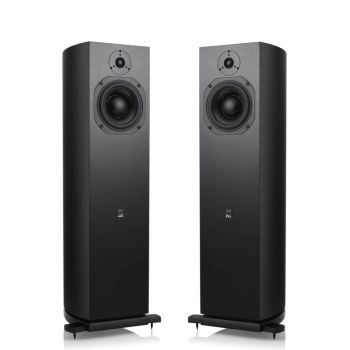

• Painted Finish Options – Satin Black, Satin White.
• 6 year warranty.

Specifications

• Drive Units
  • HF driver: ATC 25 mm dual-suspension tweeter
  • Mid/LF driver: ATC 150 mm SL
• Electroacoustic Performance
  • Matched response: ±0.5 dB
  • Frequency response (-6 dB): 54 Hz – 22 kHz
  • Dispersion: ±80° coherent horizontal, ±10° coherent vertical
  • Maximum SPL: 108 dB
• Crossover: Crossover frequency 2.5 kHz
• Input & Signal Handling
  • Input connector: Female XLR
  • Input sensitivity: 1 V
  • Filters: 2nd order, critically damped with phase compensation
  • Overload protection: Active FET momentary gain reduction
• Amplification
  • Amplifier output: 150 W (LF), 32 W (HF)
• Dimensions & Weight
  • Dimensions (H × W × D, incl. foot plinth & amplifier): 98.0 × 37.0 × 34.4 cm
  • Additional height (spikes): +2.5 cm
  • Additional depth (grille): +3.4 cm
  • Weight: 31 kg
• Spikes: 4 per cabinet, M8 × 1.25 mm
