Τα ATC SCM19 ειναι ζευγος ηχειων 2 δρομων, με 1x 6" και 1x soft tweeter 1". Ευαισθησια 85db, διαχειριση ισχυος 75-300 Watts.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

Features

• New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide.
• “SL” spec bass driver with 75mm integral soft dome.
• 9kg optimised short-coil/long gap motor assembly.
• In-house, hand-wound precision flat wire coil.
• Flat impedance curve allowing easy load for amplifiers.

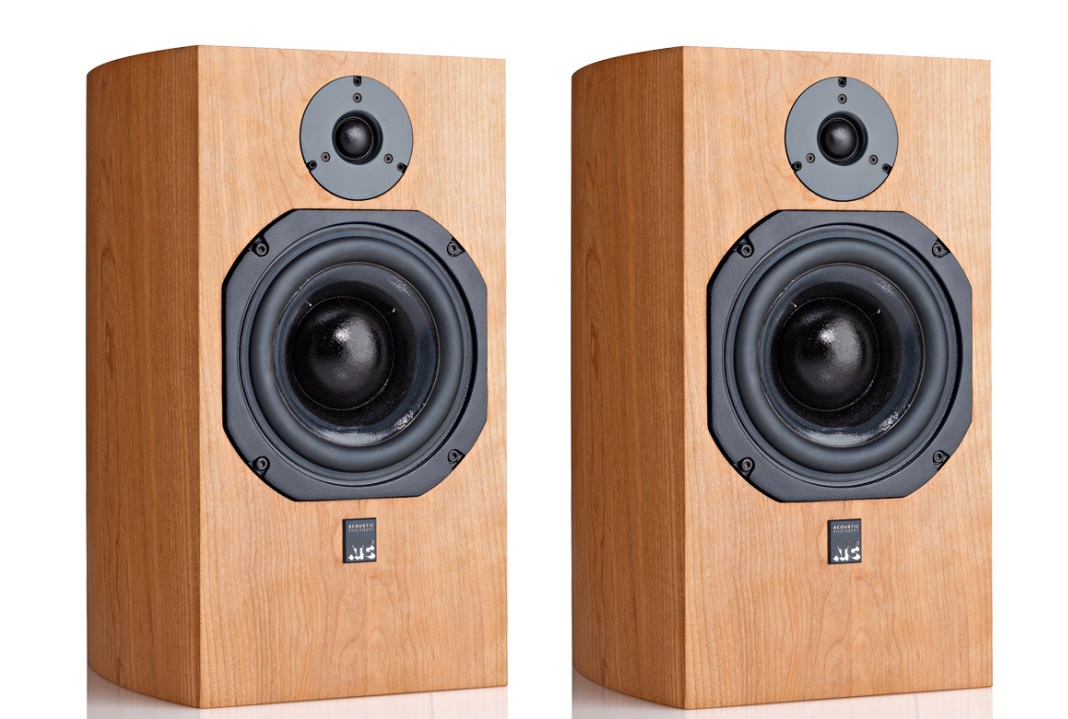

• Veneered Finish Options – Cherry, Black Ash.

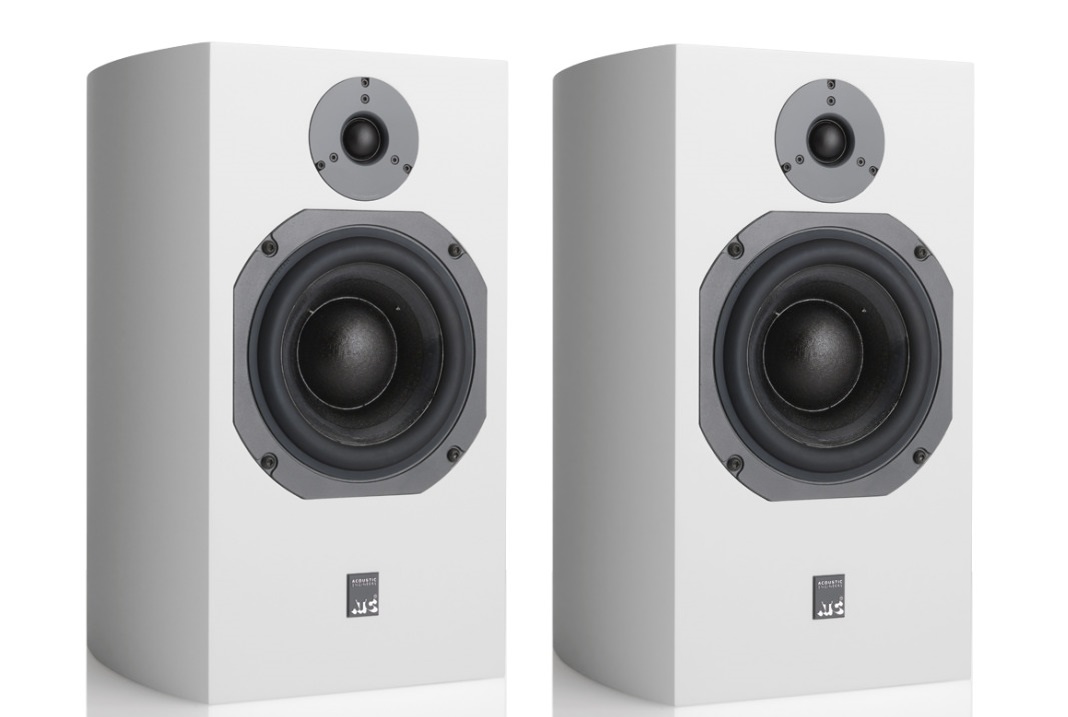

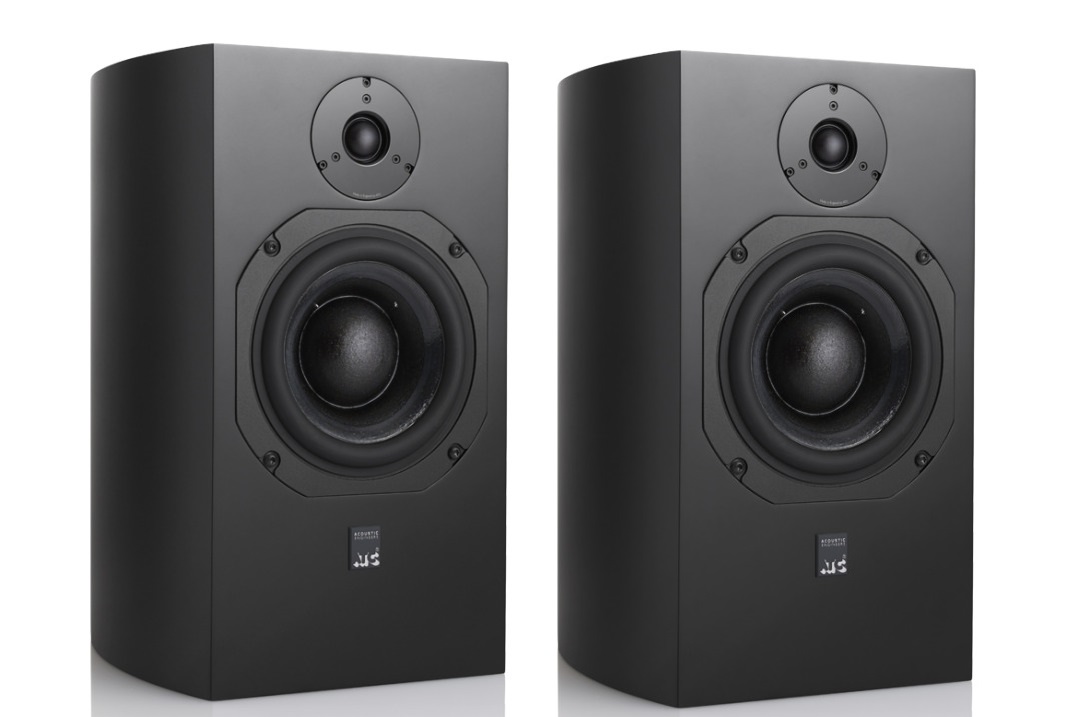

• Painted Finish Options – Satin Black, Satin White.
• 6 year warranty.

Specifications

• Drive Units
  • HF driver: ATC 25 mm neodymium soft dome
  • Mid/LF driver: ATC 150 mm SL
• Electroacoustic Performance
  • Matched response: ±0.5 dB
  • Frequency response (-6 dB): 54 Hz – 22 kHz
  • Dispersion: ±80° coherent horizontal, ±10° coherent vertical
  • Sensitivity: 85 dB @ 1 W @ 1 m
  • Maximum SPL: 108 dB
• Amplifier & Load
  • Recommended power amplifier: 75 – 300 W
  • Nominal impedance: 8 Ohm
• Crossover: Crossover frequency 2.5 kHz
• Connections: Binding posts / 4 mm plugs, bi-wire
• Dimensions & Weight
  • Cabinet dimensions (H × W × D): 43.8 × 26.5 × 30.0 cm
  • Grille additional depth: 3.4 cm
  • Weight: 17.8 kg
