Το FiiO KA15 είναι φορητό USB DAC και ενισχυτής ακουστικών με 3.5mm single-ended και 4.4mm balanced εξόδους, για χρήση με smartphones, tablets και υπολογιστές. Διαθέτει έγχρωμη οθόνη 0.96" και λειτουργία Desktop Mode για αυξημένη ισχύ.

Εγγύηση Αντιπροσωπείας. Δυνατότητα δόσεων.

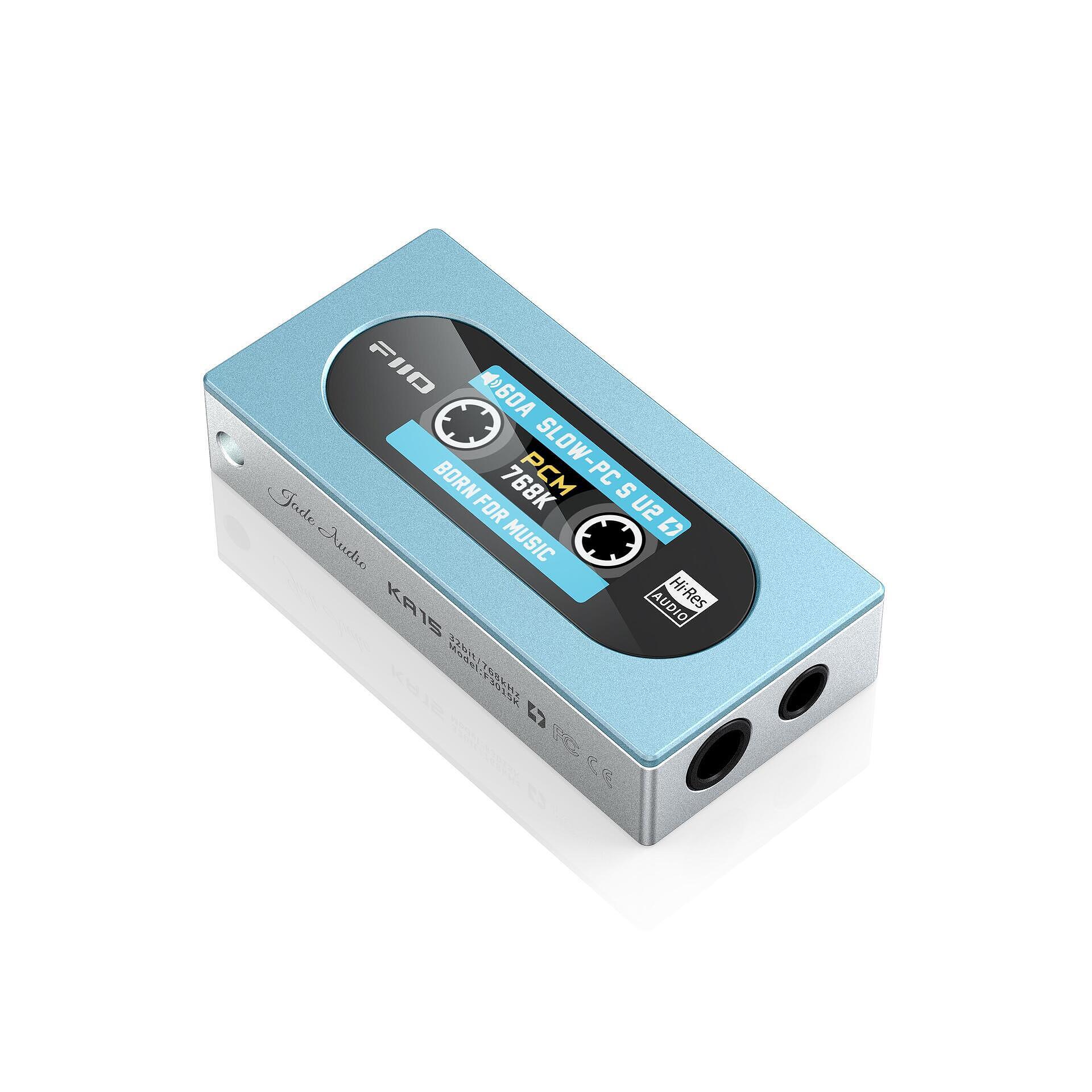

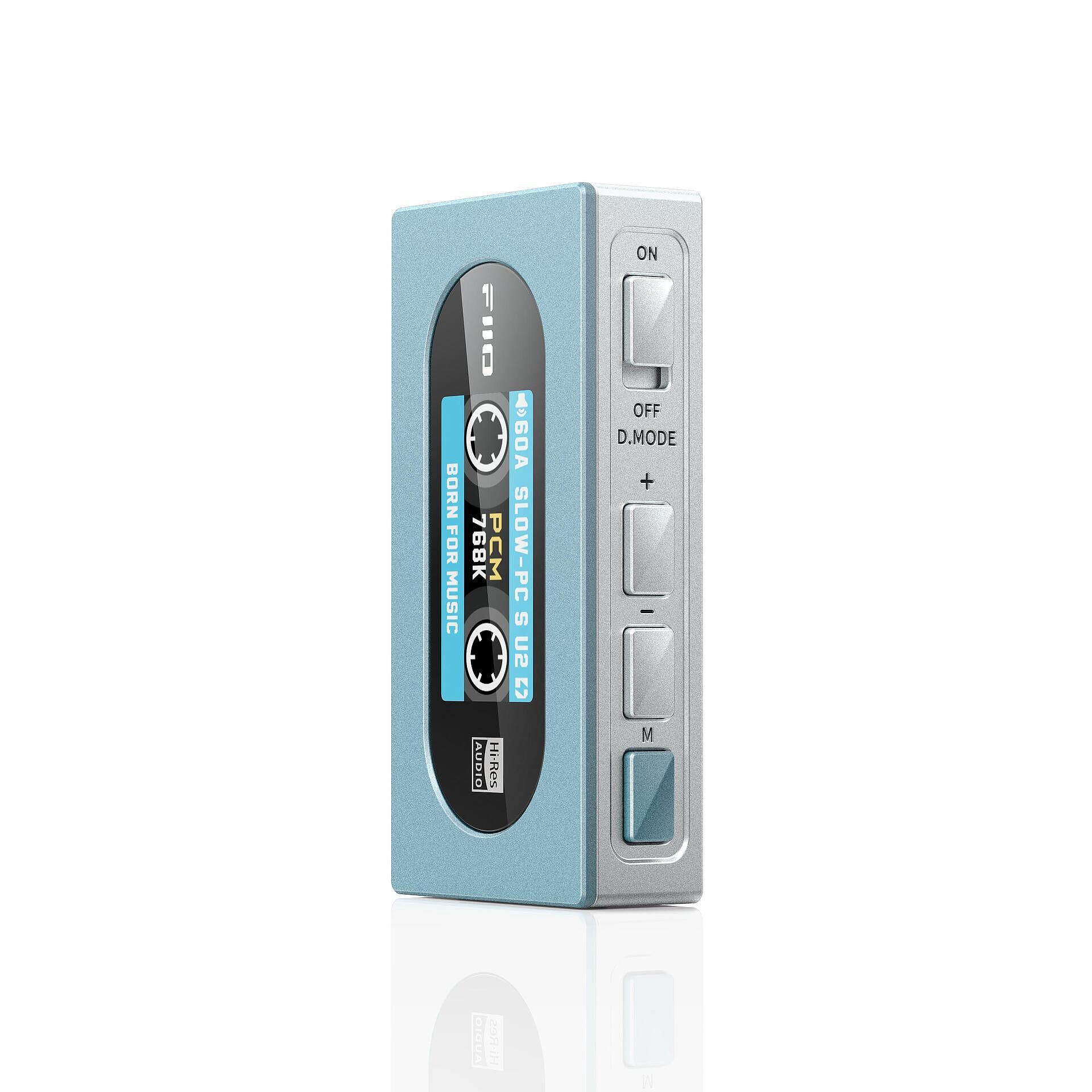

The FiiO KA15 is a compact yet powerful portable USB DAC and headphone amplifier featuring dual CS43198 DAC chips and dual SGM8262 op-amps. It supports up to 768 kHz / 32-bit PCM, native DSD256, and offers both 3.5 mm and 4.4 mm outputs. A 0.96-inch IPS color display provides real-time system status, gain level, sampling rate, and EQ adjustments. With a Desktop Mode that increases output power, and a retro-inspired chassis design, the KA15 combines portability, performance, and versatility for both IEMs and full-size headphones.

Specifications

• Name/Model: KA15
• DAC chips: CS43198 × 2
• Op-amps: SGM8262 × 2
• USB interface: USB-C (data + power)
• Display: 0.96-inch IPS color screen
• Outputs: 3.5 mm single-ended, 4.4 mm balanced
• Supported formats (USB DAC): PCM up to 768 kHz / 32-bit; Native DSD256
• Dimensions: 52 × 25 × 11 mm
• Weight: approx. 21 g
• Balanced output (4.4 mm, Desktop Mode, 32 Ω): ≥ 560 mW + 560 mW
• Balanced output (4.4 mm, 300 Ω): ≥ 78 mW + 78 mW
• Single-ended output (3.5 mm, 32 Ω): ≥ 50 mW + 50 mW
• Output impedance: < 1.2 Ω (balanced), < 0.8 Ω (single-ended)
• SNR (balanced): ≥ 123 dB (A-weighted)
• SNR (single-ended): ≥ 122 dB (A-weighted)
• THD+N (balanced, 32 Ω): < 0.0004%
• Noise floor (balanced): < 3.2 µV
• Noise floor (single-ended): < 1.7 µV
• Frequency response (balanced): 20 Hz – 50 kHz
• Gain modes: Low / High
• EQ: 10-band PEQ (via FiiO Control)
• Compatibility: smartphones, tablets, laptops, desktop devices
