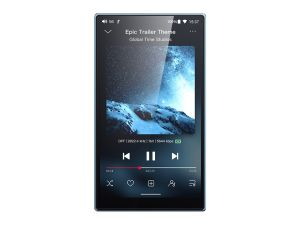

Το FiiO JM21 είναι φορητό Hi-Res audio player (DAP) υψηλής απόδοσης, με ultra-λεπτό σώμα και dual DAC, ιδανικό για ακρόαση με IEM ή ακουστικά. Διαθέτει 4.7" οθόνη. Έξοδοι 3.5 mm single-ended και 4.4 mm balanced.

Εγγύηση Αντιπροσωπείας. Δυνατότητα δόσεων.

The FiiO JM21 is a state-of-the-art portable Android 13 digital audio player (DAP) that combines flagship-class hardware with a slim form factor. Powered by an 8-core Qualcomm Snapdragon 680 (6 nm), it delivers smooth, lag-free navigation and playback performance. Dual Cirrus Logic CS43198 DAC chips with dual SGM8262 op-amps form a fully balanced audio circuit, ensuring clean, detailed sound with excellent channel separation and dynamic range — whether you listen through the 4.4 mm balanced output or the 3.5 mm single-ended jack.

With up to 700 mW + 700 mW balanced output (32 Ω), the JM21 can drive demanding full-size headphones while maintaining headroom and clarity. The 4.7″ high-definition display and portable 156 g body (only 13 mm thin) make it a versatile player for both on-the-go listening and critical stationary sessions. Expandable storage via microSD (up to 2 TB) and support for high-res PCM & DSD playback make the JM21 a flexible, future-proof music source.

Specifications

• General
  • Name/Model: JM21
  • Hardware solution: Main controller Qualcomm Snapdragon 680; DAC: CS43198 × 2; Amp: SGM8262 × 2
  • Working mode: Android mode / Pure music mode / USB DAC mode / Bluetooth receiving mode
  • Color: Sky blue, Black
  • Weight: About 156 g
  • Dimensions: About 120.7 × 68 × 13 mm
  • Volume control: Physical buttons
  • Display: 4.7-inch (750 × 1334) bezel-less display
  • ROM / Usable storage: 32 GB ROM / about 22 GB usable; 64 GB ROM / about 52 GB usable
  • RAM: 3 GB / 4 GB
  • Adaptive impedance:
    • PO (3.5 mm): 8–150 Ω
    • BAL (4.4 mm): 8–350 Ω
  • microSD card: Single microSD card expansion, theoretically supports up to 2 TB
  • Channel balance: L20–R20 (0.5 dB per level)
• Buttons and Ports
  • Buttons:
    • Power on/off × 1
    • Volume buttons × 2
    • Play/Pause × 1
    • Previous track × 1
    • Next track × 1
  • USB Type-C: USB 2.0 × 1 (charging / data transfer)
  • Headphone output: Standard 3.5 mm port
  • Balanced headphone output: Standard 4.4 mm port
  • Coaxial output: Standard 3.5 mm port (shared with PO)
  • Line output: Shared 3.5 mm + 4.4 mm ports
• Special Functions
  • Wi-Fi: 2.4 GHz / 5 GHz, supports DLNA, AirPlay, Wi-Fi song transfer, etc.
  • Bluetooth transmission (5.0): AAC / SBC / aptX / aptX HD / LDAC / LHDC
  • Bluetooth reception (5.0): SBC / AAC / LDAC
  • FiiO Link: Android supports Wi-Fi and Bluetooth control, iOS supports Bluetooth control
  • Firmware upgrade: Supports upgrading through local storage, microSD card and OTA
  • Operation method: Supports gesture operation, two-button and three-button operations
  • Max. supported sampling rate:
    • USB DAC: Up to 384 kHz / 32-bit; DSD256 (Native)
    • Local decoding: Up to 384 kHz / 32-bit; DSD256 (Native)
    • USB Audio: Up to 768 kHz / 32-bit; DSD512 (DoP / D2P / Native supported)
    • Coaxial output: Up to 384 kHz / 24-bit; DSD128 (D2P / DoP)
  • Poweroff timer: Supports idle / sleep poweroff
• Power Supply Parameters
  • Power supply: Supports 5 V / ≥ 2 A
  • Charging time:
    • 3 GB + 32 GB version: About 2 h (with 5 V / 2 A charger)
    • 4 GB + 64 GB version: About 2.5 h (with 5 V / 2 A charger)
  • Battery life and test conditions:
    • 3.5 mm headphone output:
      • 3 GB + 32 GB: About 12.5 h
      • 4 GB + 64 GB: About 16 h
      • Volume: 49, Gain: High gain, Display: Off
      • Test signal: MP3 44.1 kHz / 16-bit, EQ off, Load 32 Ω
    • 4.4 mm balanced headphone output:
      • 3 GB + 32 GB: About 9.5 h
      • 4 GB + 64 GB: About 12.5 h
      • Volume: 38, Gain: High gain, Display: Off
      • Test signal: MP3 44.1 kHz / 16-bit, EQ off, Load 32 Ω
• Audio Parameters – Headphone Output 3.5 mm (USB DAC, High gain)
  • Output power:
    • L + R ≥ 360 mW + 360 mW (16 Ω, THD+N < 1%)
    • L + R ≥ 245 mW + 245 mW (32 Ω, THD+N < 1%)
    • L + R ≥ 30 mW + 30 mW (300 Ω, THD+N < 1%)
  • Output impedance: < 1 Ω
  • Crosstalk: ≥ 70 dB
  • Peak output voltage: 7.9 Vp-p
  • SNR: ≥ 124 dB (A-weighted)
  • THD+N: < 0.0012% (1 kHz / -4 dB @ 32 Ω)
  • Frequency response:
    • 20 Hz–80 kHz: attenuation < 0.7 dB
    • 20 Hz–20 kHz: attenuation < 0.02 dB
  • Noise floor: < 1.6 μV (A-weighted)
• Audio Parameters – Balanced Headphone Output 4.4 mm (USB DAC, High gain)
  • Output power:
    • L + R ≥ 605 mW + 605 mW (16 Ω, THD+N < 1%)
    • L + R ≥ 700 mW + 700 mW (32 Ω, THD+N < 1%)
    • L + R ≥ 80 mW + 80 mW (300 Ω, THD+N < 1%)
  • Output impedance: < 1.5 Ω
  • Crosstalk: ≥ 110 dB
  • Peak output voltage: 13.2 Vp-p
  • SNR: ≥ 129 dB (A-weighted)
  • THD+N: < 0.0006% (1 kHz / -4 dB @ 32 Ω)
  • Frequency response:
    • 20 Hz–80 kHz: attenuation < 0.7 dB
    • 20 Hz–20 kHz: attenuation < 0.03 dB
  • Noise floor: < 1.7 μV (A-weighted)
