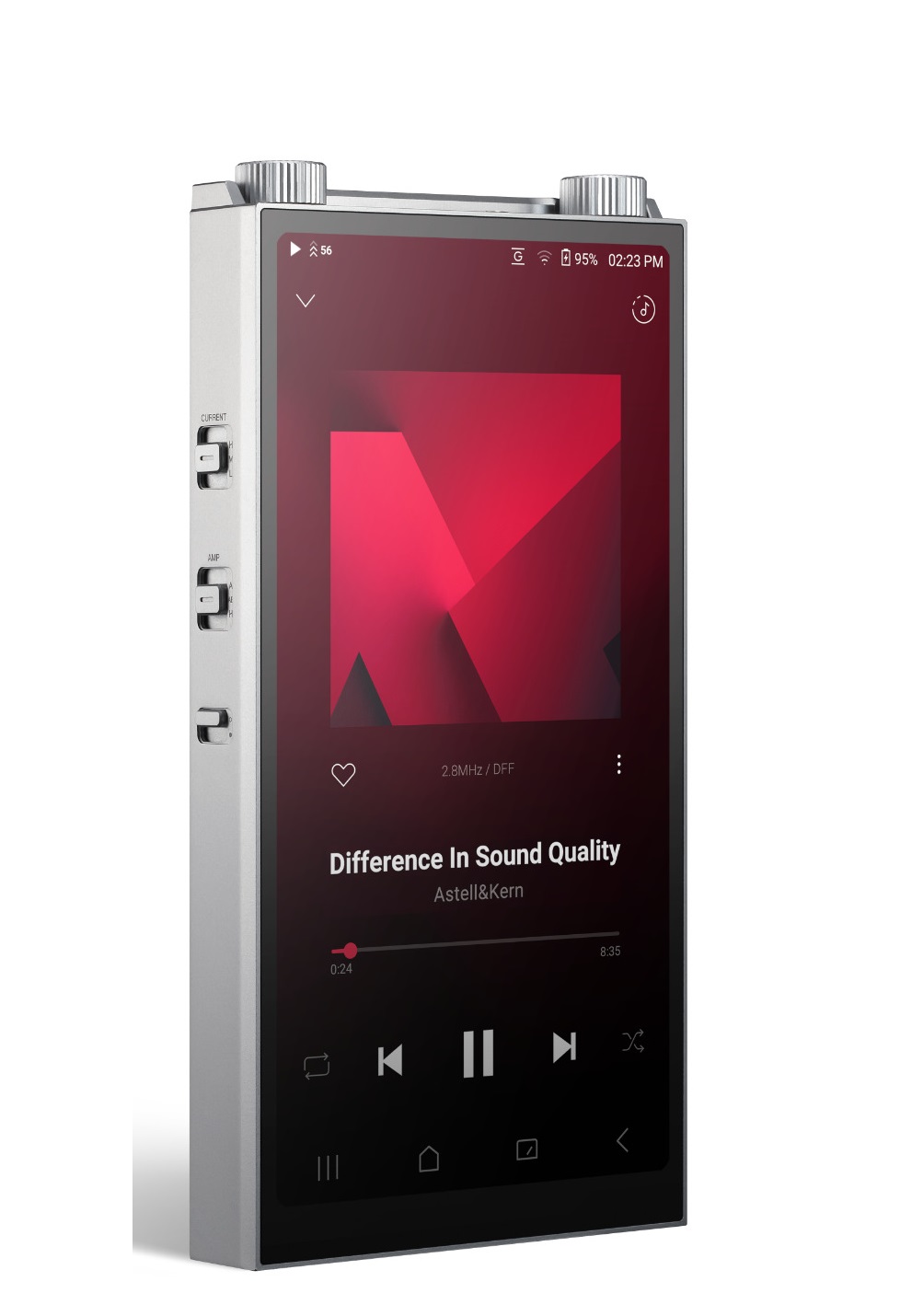

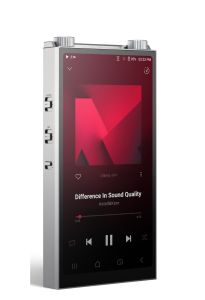

Το Astell&Kern PD20 ειναι ενα φορητο player (DAP), με 32bit/768kHz dsd dac, δεκτη WiFi και Bluetooth 5.3 Qualcomm aptX.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

Features

Specifications

• General
  • Colour: Silver
  • Material: Aluminum
  • Processor: Octa-core
  • Operating Temperature: 0 – 40 °C
• Audio Format Support
  • PCM: 8 kHz – 768 kHz (8 / 16 / 24 / 32-bit)
  • DSD Native
    • DSD64 (2.8 MHz)
    • DSD128 (5.6 MHz)
    • DSD256 (11.2 MHz)
    • DSD512 (22.4 MHz)
  • Supported Formats
    • WAV
    • FLAC
    • WMA
    • MP3
    • OGG
    • APE
    • AAC
    • ALAC
    • AIFF
    • DFF
    • DSF
• DAC & Audio Performance
  • DAC: ESS ES9027PRO ×4 (Quad-DAC)
  • Total Harmonic Distortion (THD)
    • 0.0003% @ 1 kHz (Unbalanced)
    • 0.0004% @ 1 kHz (Balanced)
  • Signal-to-Noise Ratio
    • 124 dB @ 1 kHz (Unbalanced)
    • 127 dB @ 1 kHz (Balanced)
  • Crosstalk
    • -133 dB @ 1 kHz (Unbalanced)
    • -140 dB @ 1 kHz (Balanced)
  • Frequency Response
    • ±0.005 dB (20 Hz – 20 kHz) Unbalanced
    • ±0.010 dB (20 Hz – 20 kHz) Balanced
    • ±0.020 dB (20 Hz – 70 kHz) Unbalanced
    • ±0.020 dB (20 Hz – 70 kHz) Balanced
• Connectivity
  • Bluetooth
    • Version: 5.3
    • Profiles: A2DP, AVRCP
    • Codecs: Qualcomm® aptX™ HD, LDAC, LHDC, SBC, AAC
  • Wi-Fi: 802.11 a / b / g / n / ac (2.4 / 5 GHz)
  • Input: USB Type-C (charging / PC / Mac connection)
• Outputs
  • 3.5 mm Unbalanced Output
  • 3.5 mm Optical Output
  • 4.4 mm Balanced Output (5-pole)
• Output Performance
  • Fixed Output Level
    • 5 Vrms (Unbalanced)
    • 10 Vrms (Balanced)
  • Output Impedance
    • 0.7 Ω (3.5 mm)
    • 1.7 Ω (4.4 mm)
• Display
  • Screen Size: 6″ touchscreen
  • Resolution: 2160 × 1080 (2K)
• Storage
  • Internal Storage: 256 GB NAND
  • Memory Expansion: microSD ×1 (max. 2 TB)
• Battery
  • Capacity: 5,770 mAh / 3.8 V Li-Polymer
  • Battery Life: approx. 14 hours (FLAC 16-bit / 44.1 kHz, volume 50, Class AB, LCD off)
• System Compatibility
  • Windows 8 / 10 / 11 (32 / 64 bit)
  • Mac OS X 10.7 or later
• Dimensions
  • Height: 155.7 mm
  • Width: 77.55 mm
  • Depth: 17.3 mm
• Weight: 0.31 kg
