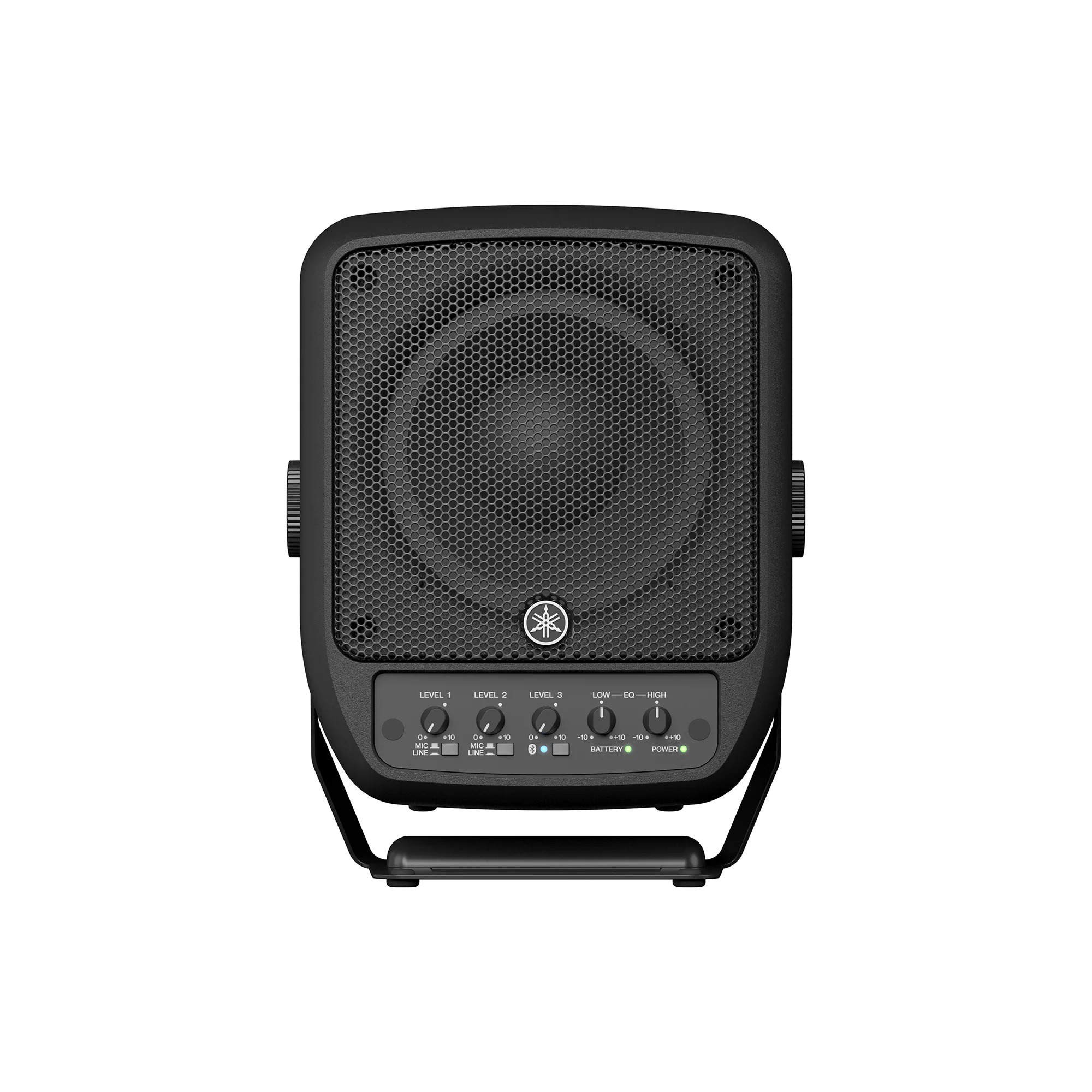

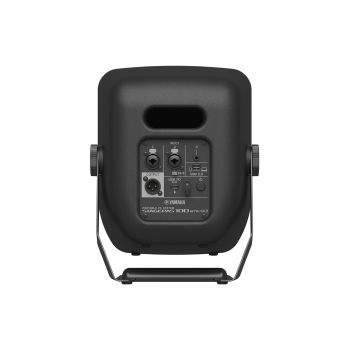

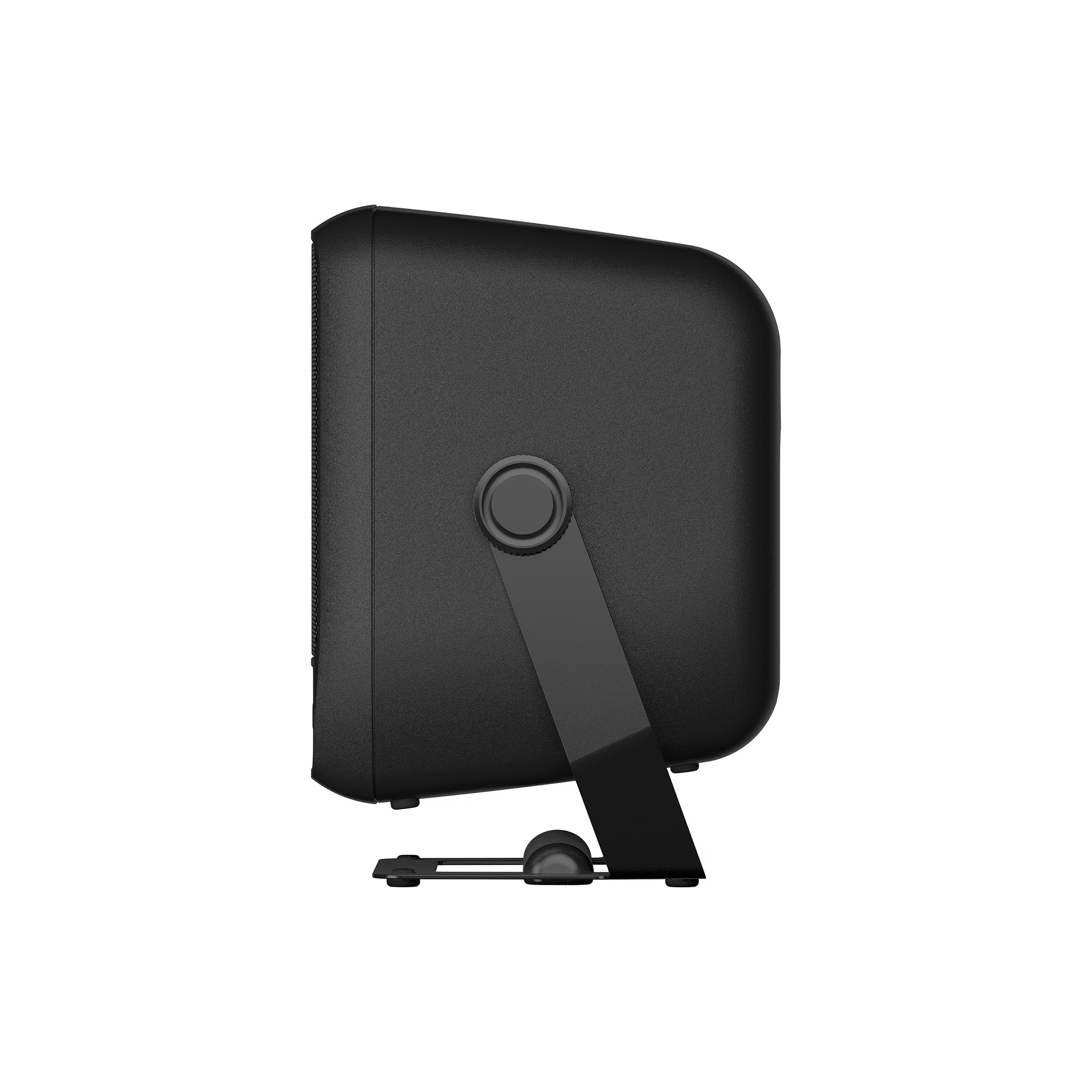

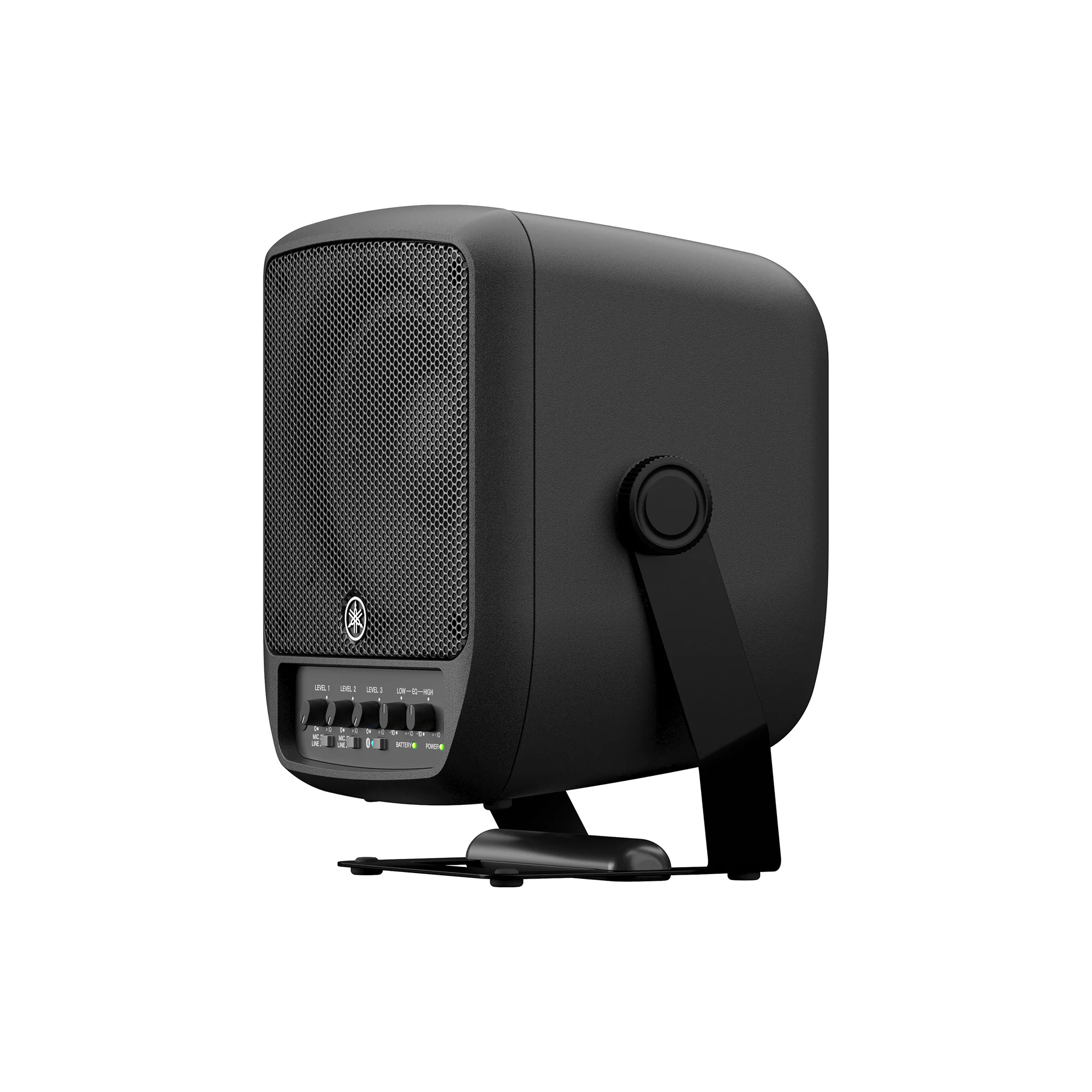

Το Yamaha Stagepas 100BTR mkII ειναι ενεργο φορητο (με επαναφορτιζομενη μπαταρια λιθιου) ηχειο 2 δρομων. Διαθετει 1x 6,5" woofer και 1x 1" coaxial tweeter με ενισχυτη 100wrms, class-D. Είναι εξοπλισμένο με Bluetooth και ενσωματωμένο digital mixer 3 καναλιών με EQ 2 περιοχών.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

Portable PA system equipped with a 100 W power amp, coaxial compression driver with 1.4” voice coil HF and 6.5” cone LF, a 3-channel mixer, and internal lithium-ion battery

Features

• 100 W Class-D amplifier
• 1.4” HF + 6.5” LF high-quality coaxial compression driver using an FIR filter for the crossover
• 3-channel mixer with 2 monaural mic/line inputs and 1 line input
• Equipped with a 2-band master EQ
• Compatible with Hi-Z input on Channel 2
• Equipped with mix-out output
• Carrying handle also functions as an adjustable stand
• Supports audio accompaniment via Bluetooth
• Optional carrying bag (BAG-STP100) available for transport
• Internal lithium-ion battery

Specifications

• Type: 2-way bi-amp powered speaker with integrated mixer
• I/O:
  • Inputs:
    • INPUT 1: Combo (mic / line)
    • INPUT 2: Combo (mic / line, Hi-Z compatible)
    • INPUT 3: Stereo mini jack (line)
  • Output:
    • XLR3-32 (mixed output from INPUT 1–3)
  • Digital I/O:
    • USB Type-C ×1 (2 IN / 2 OUT)
    • USB Audio Class 2.0 compliant
    • Sampling rate: up to 48 kHz
    • Bit depth: 16-bit
• Bluetooth:
  • Version: 5.0 (Class 1)
  • Profiles: A2DP / HEP
  • Codecs: SBC, AAC, CVSD, mSBC
• Mixing capability:
  • Mixing channels: 3
  • Input channel functions: Hi-Z on CH2
  • Output channel functions: 2-band EQ
• Speaker configuration:
  • Speaker type: Coaxial speaker with compression driver
  • Low frequency driver: 6.5" cone, 1.7" voice coil
  • High frequency driver: 1" throat compression driver, 1.4" voice coil
• Frequency range (-10 dB): 70 Hz – 20 kHz
• Coverage angle: 90° horizontal × 90° vertical
• Crossover frequency: 1.8 kHz (FIR-X)
• Maximum output level (1 m, on-axis): 120 dB SPL
• Amplification:
  • Amplifier class: Class D
  • Dynamic power: 100 W (LF: 93 W, HF: 7 W)
  • Cooling: Natural convection (fanless)
• Power:
  • Power consumption: 10 W (idle), 30 W (1/8 power), 50 W (rated)
  • Power requirements: USB Power Delivery 60 W (20 V / 3 A) – 100 W (20 V / 5 A)
• Battery:
  • Type: Lithium-ion
  • Capacity: 60 Wh
  • Operating time: up to 6 hours (approx. 5 hours at 1/16 power)
  • Charging time: approx. 2.5 hours
• Cabinet:
  • Material: Plastic (PP)
  • Handle: Bottom-mounted, rotatable
• Mounting:
  • Mounting point: 1 × 3/8"
  • Mounting depth: 12 mm (center of handle)
• Dimensions (W × H × D): 239 × 310 × 215 mm (with handle)
• Weight: 5.5 kg
• Optional accessory:
  • Carrying bag: BAG-STP100
