Το Yamaha Stagepas 1K mkII ειναι ενεργο ηχειο δαπεδου line array. Διαθετει 1x 12" woofer και 10x 1.5" mid/high drivers με ενισχυτη 1100wrms, class-D. Είναι εξοπλισμένο με Bluetooth και ενσωματωμένο digital mixer 5 καναλιών με EQ 4 περιοχών.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

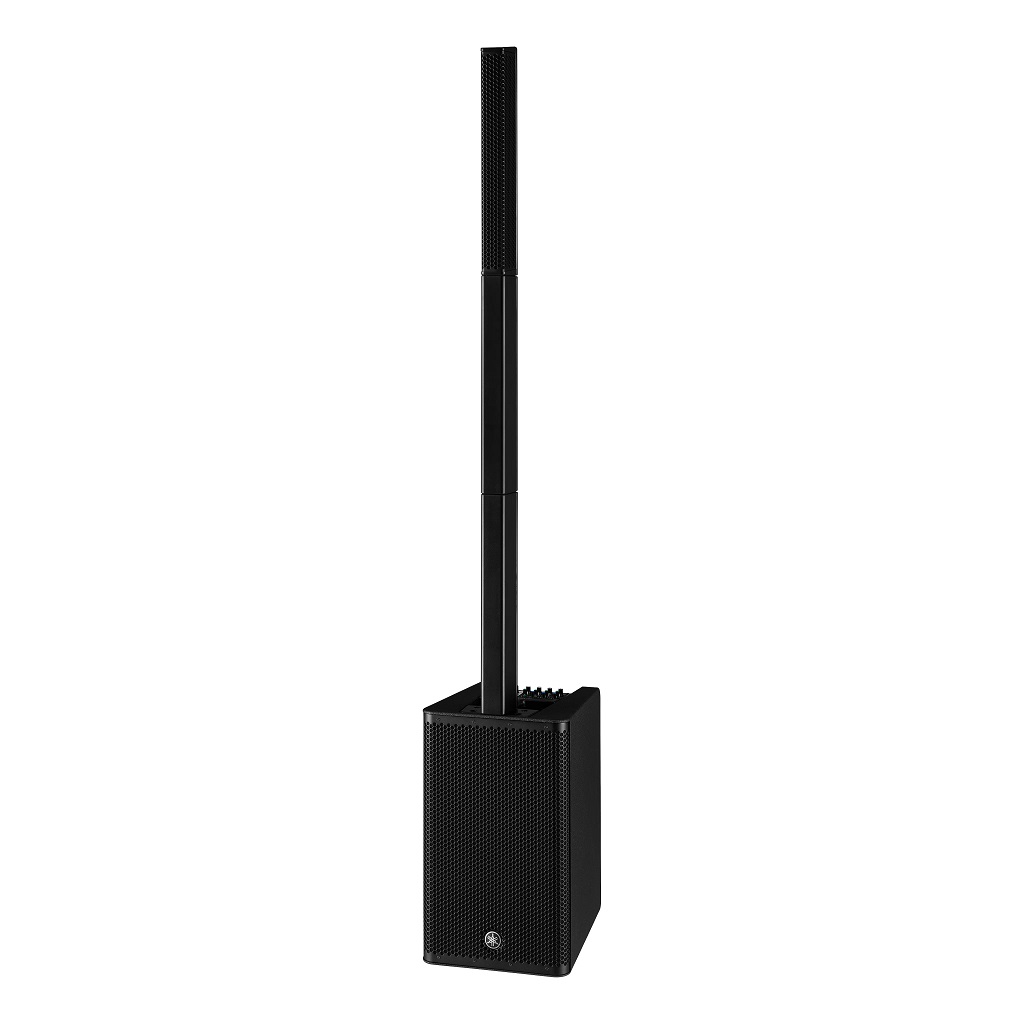

The Yamaha STAGEPAS 1K mkII is an all-in-one portable PA system designed to deliver high sound pressure levels and wide, consistent coverage with a compact and fast-deploying format. It combines a powerful 1100 W Class-D amplifier with a speaker configuration consisting of a 12-inch powered subwoofer and a slim line array made up of ten 1.5-inch drivers, achieving uniform horizontal and vertical dispersion and a maximum output of up to 125 dB SPL.

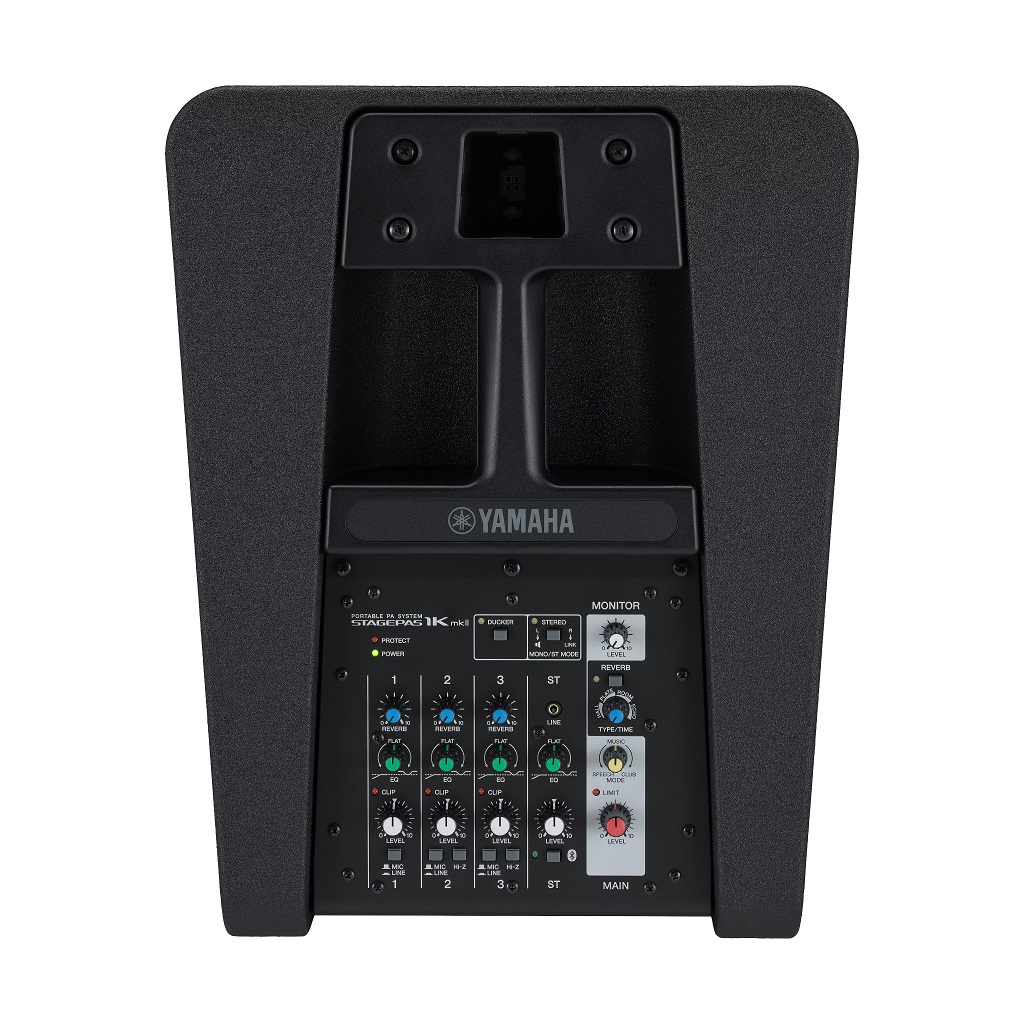

At the core of the system is a built-in 5-channel digital mixer, offering three mono mic/line inputs and one stereo line input. Two of the mono channels support Hi-Z input for direct connection of instruments such as guitars. Each channel is equipped with a one-knob EQ, allowing fast and intuitive tonal adjustment without complex setup procedures.

The STAGEPAS 1K mkII includes onboard signal processing designed to enhance clarity and control in live environments. This includes SPX digital reverb with multiple programs and parameter control, application-specific MODE settings for speech, music or club use, and a priority ducker function that automatically lowers background levels when a microphone signal is detected.

Wireless audio playback is supported via Bluetooth 5.0, enabling direct streaming from mobile devices. Additional control and advanced parameter access are available through the STAGEPAS Controller app for iOS and Android, providing remote mixer operation, detailed EQ adjustments and system management from a smartphone or tablet.

Features

• 1100W power output
• Biggest in the class 12-inch subwoofer for low frequency
• 1.5-inch x10 slim line array speaker for high frequency
• Digital mixer (3 mono mic/line + 1 stereo line)
• Multi band comp “MODE” for master output
• 1-knob EQ per channel
• High resolution SPX digital reverb (4 types, parameter control)
• Priority Ducker for stereo channel
• 4 band PEQ per channel via remote control APP “STAEGPAS Controller”
• 2x Hi-Z (high impedance) inputs
• Link out and monitor out
• Dedicated cover included
• Optional reverb foot switch (FC5)
• Optional dolly (DL-SP1K) for more portability

Specifications

• Type: Powered subwoofer with line array speaker
• Mixing capability:
  • Mixing channels: 5 (Mono ×3 + Stereo ×1)
  • Input channel functions:
    • Hi-Z: CH2 / CH3
    • 1-knob EQ: CH1–3 / ST
  • Output channel functions: MODE (SPEECH / MUSIC / CLUB)
• I/O:
  • Inputs:
    • Mono ×3 (mic/line)
    • Stereo ×1 (line)
    • Mono ×2 (line)
    • Link in ×1
  • Outputs:
    • Link out ×1
    • Monitor out ×1
• Bluetooth:
  • Bluetooth version: 5.0
  • Profile: A2DP
  • Codecs: SBC, AAC
• Control and others:
  • Reverb foot switch support
  • STAGEPAS Controller app (iOS / Android)
• On-board processors:
  • DSP: SPX digital reverb
  • Programs: 4
  • Parameter control: Supported
• Speaker configuration:
  • Powered subwoofer: Bass-reflex type
  • Line array speaker: Enclosed type
• Frequency range (-10 dB): 37 Hz – 20 kHz
• Coverage area: Horizontal 170° × Vertical 30°
• Crossover frequency: 240 Hz
• Maximum output level (1 m, on-axis): 125 dB SPL
• Components:
  • Low frequency:
    • Powered subwoofer: 12" (30 cm) cone
  • High frequency:
    • Line array speaker: 1.5" (3.8 cm) cone ×10
• Amplifier class: Class D
• Power rating:
  • Dynamic power: 1100 W
• Power consumption:
  • Idle: 25 W
  • 1/8 power: 91 W
• Power requirements:
  • 100 V 50/60 Hz
  • 110–120 V 60 Hz
  • 220–240 V 50/60 Hz
• Handle: Top of powered subwoofer ×1
• Dimensions (W × H × D):
  • System (maximum): 334 × 2000 × 418 mm
  • Line array speaker: 67 × 582 × 86 mm
  • Powered subwoofer: 334 × 550 × 418 mm
  • Spacer: 67 × 555 × 86 mm (each)
• Weight:
  • System (maximum): 23.0 kg
  • Line array speaker: 1.8 kg
  • Powered subwoofer: 20.0 kg
  • Spacer: 0.6 kg (each)
• Accessories:
  • Power cord ×1

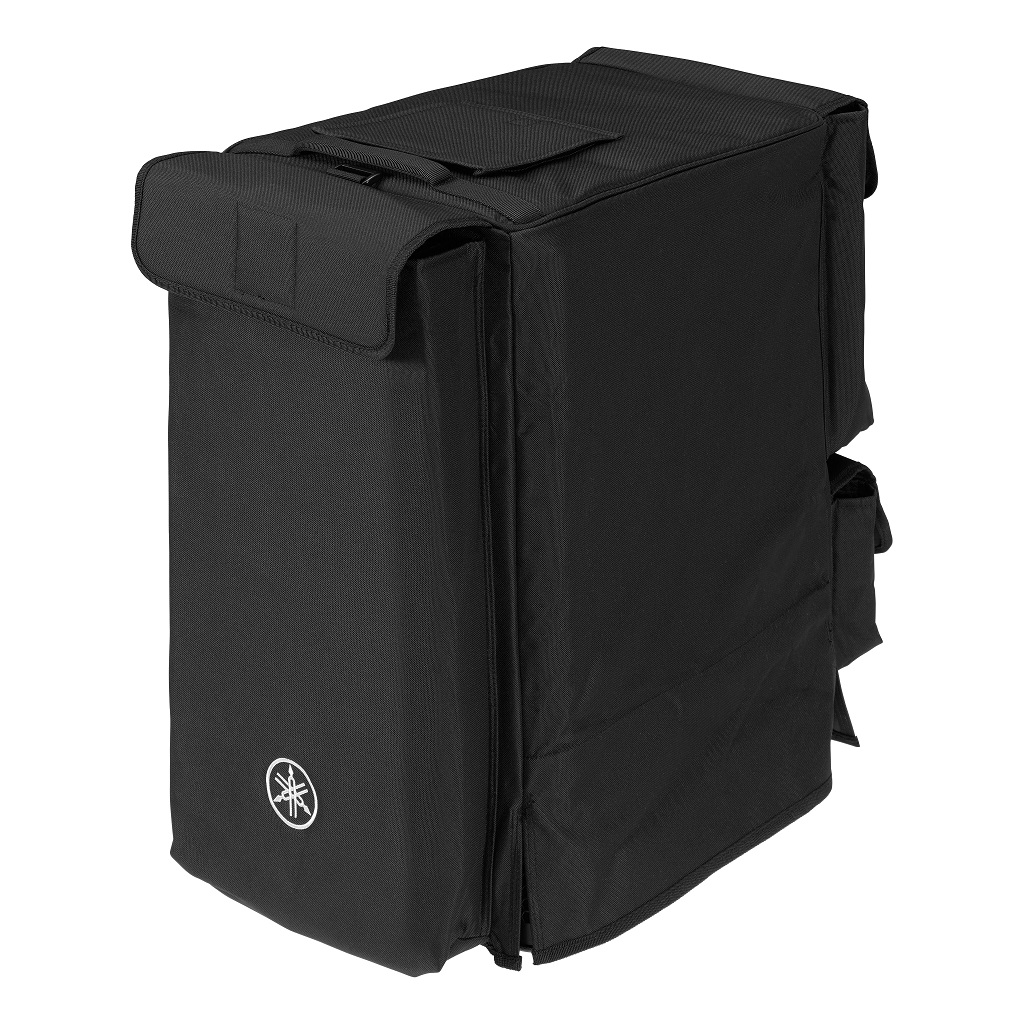

  • Cover ×1
• Optional accessories:
  • Yamaha DL-SP1K (dedicated dolly)
  • FC5 foot switch (reverb ON/OFF)
