Ο Chord Ultima ειναι ολοκληρωμενος ενισχυτης 2x125 wrms στα 8Ω.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

The ULTIMA INTEGRATED is a class-leading 125-watt integrated amplifier benefitting from the latest dual-feed-forward error-correction topology, Chord Electronics’ legendary proprietary ultra-high-frequency power supplies, plus an unmistakable industrial aesthetic.

Designed by Chord Electronics’ founder, owner and chief engineer, John Franks, the advanced ULTIMA circuit monitors and immediately corrects audio signals before the output stage, for astonishing signal accuracy from a one-box integrated device.

The ULTIMA INTEGRATED also takes advantage of the very latest developments in advanced low-distortion power supplies – devices offering exceptionally low noise and outstanding amplifier operation – for even greater fidelity.

A four-input design, one fully balanced and three unbalanced, all enjoy individual buffering and are selectively filtered against potential ingress from radio frequency interference; selection switching is via microprocessor-controlled sealed relays.

The ULTIMA INTEGRATED is the first new Chord Electronics integrated amplifier for seven years and remains the sole full-width integrated model in the range.

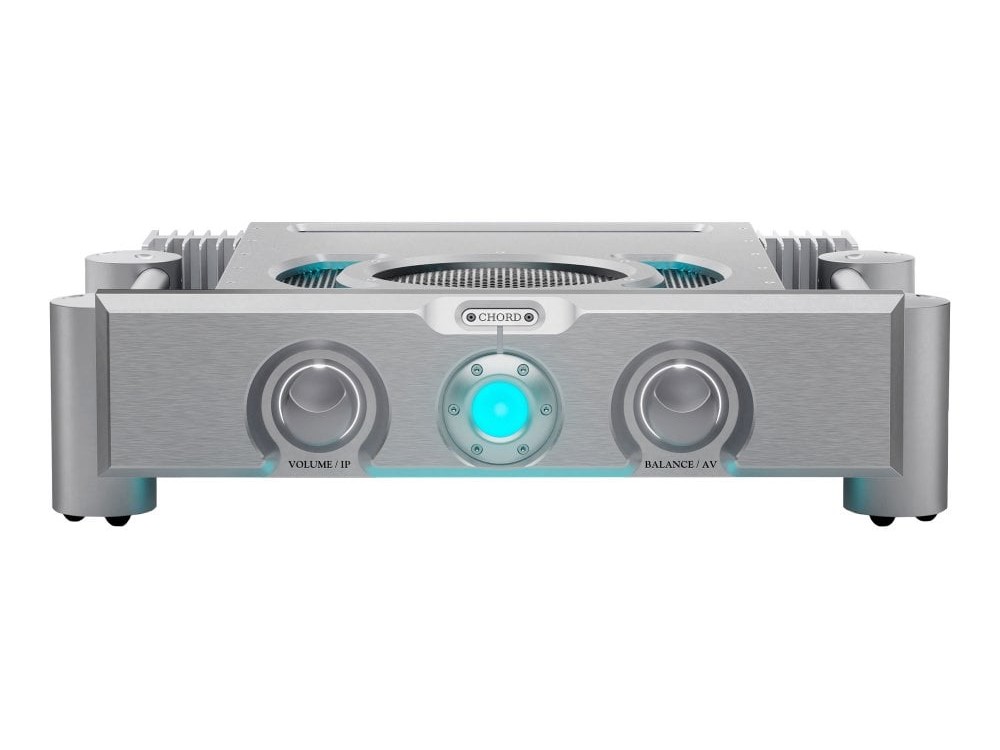

All metalwork is precision-machined from solid aircraft-grade aluminium, including Chord Electronics’ iconic Integra Legs. The fascia sports a 28-mm-thick front panel with a perfectly symmetrical aesthetic, centered around a spherical power on/off control with polychromatic lighting, flanked by illuminated volume and balance controls.

Features

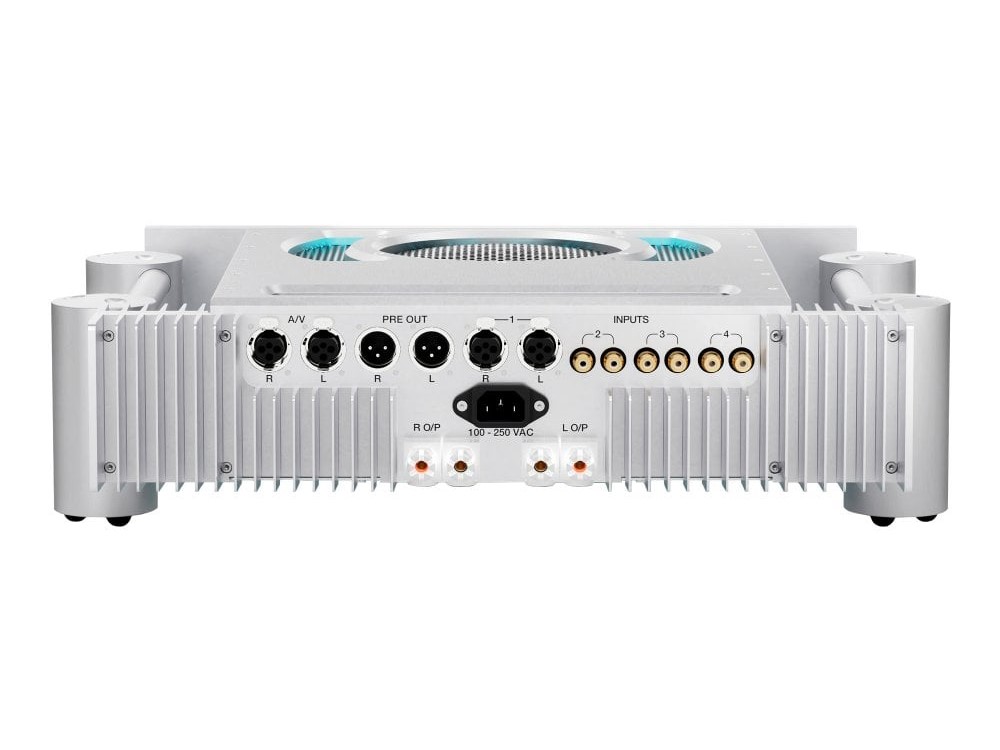

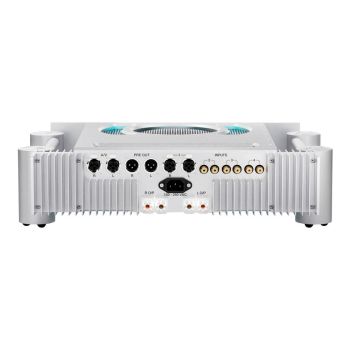

• Inputs: 1x stereo balanced XLR inputs, 3x stereo unbalanced RCA
• Outputs: 1x stereo XLR
• Dual feed-forward error correction
• HF Switch mode power supply
• Proprietary MOSFET
• Fully Balanced Circuitry
• 1x stereo balanced XLR AV bypass input
• 1 x 12 V trigger output/input

Specifications

• Frequency response 10 Hz-200 kHz +/- 3 dB
• THD 0.01 % 20 Hz-20 kHz
• Signal-to-noise ratio 90 dB on all inputs
• Input impedance 100 kΩ
• Input maximum voltage 3 V RMS
• Output maximum voltage 35 V RMS
• Gain 21dB
• Channel separation 100 dB
• Operation voltage 80-250 V AC auto-switching
• Power output 125 W into 8Ω
• Power consumption 200 W
• Dimensions with included Integra legs: 13 cm(H) x 48 cm(W) x 38 cm(D)
• Dimensions with optional side blocks (can not be stacked): 11 cm(H) x 43 cm(W) x 38 cm (D)
• Weight: 14.75 kg
