Ο Roksan Caspian 4G ειναι δικαναλος ενισχυτης 2x 105 W (στο 1 kHz, 8 ohms). Διαθετει ενσωματωμενο dac.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

The Caspian Integrated Amplifier delivers total performance through its innovative Euphoria amplification architecture and advanced analogue connections, offering a flawless presentation of music via any source. The evolutionary Rapture DAC technology, for improved digital to analogue signal conversion, allows for a near perfect signal transfer, and ensures that the Euphoria dual amplification architecture delivers total performance from whatever source a user connects.

Features

• RCA, XLR and Subwoofer Outputs
• Bluetooth aptX
• Moving Magnet Phono Stage
• Euphoria Amplification
• Rapture DAC Technology
• MaestroUnite Setup & Control App

Specifications

• Power Amplifier Section
  • Power Amplifier Technology: Dual Mono Euphoria Amplifier
  • Amplifier Class: AB
  • Output Power
    • 2 × 105 W @ 8 Ω (235 VAC @ 1% THD, both channels driven)
    • 2 × 200 W @ 4 Ω (235 VAC @ 1% THD, both channels driven)
  • THD+N (1 W @ 1 kHz): <0.007%
  • Gain: 29 dB
  • Signal to Noise: >85 dB
  • Power Supply: 600 VA / 36,400 µF per rail
• Connectivity
  • Analogue Inputs
    • 2 × RCA Stereo (A1, A2)
    • 1 × Balanced XLR (A3)
  • Digital Inputs
    • 2 × Coax (D1, D2)
    • 2 × Optical (D3, D4)
    • Bluetooth Audio

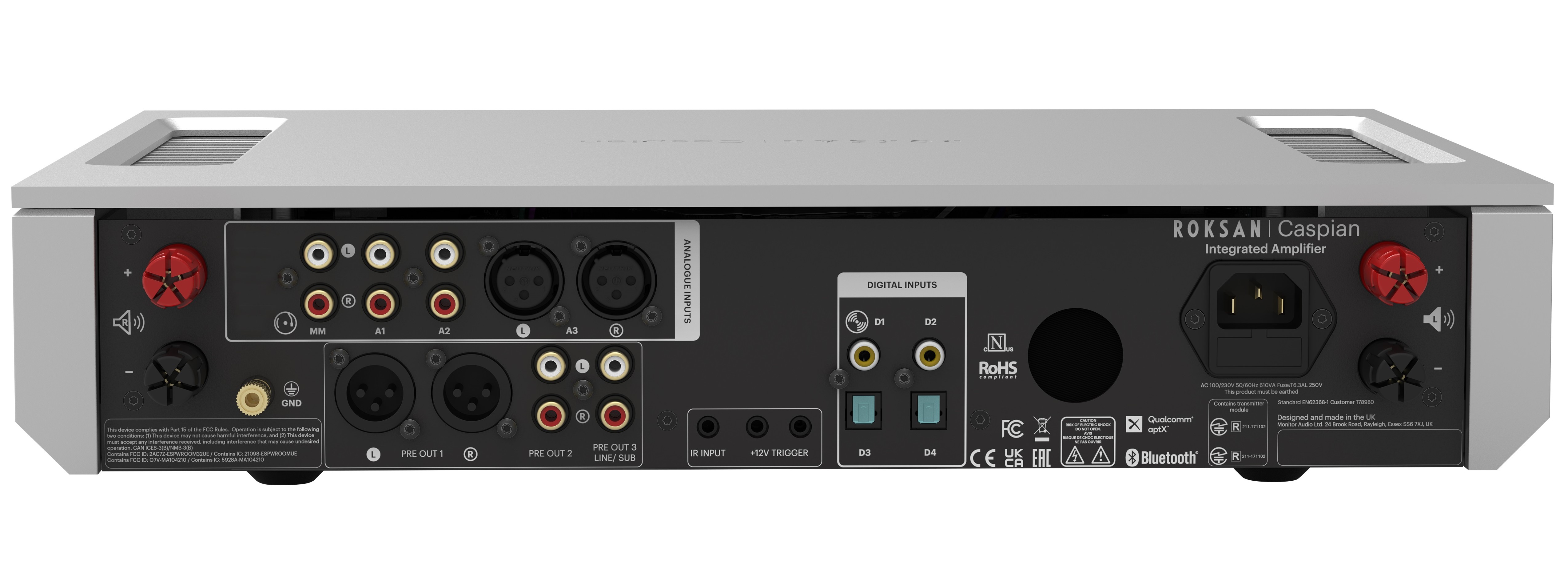

  • Analogue Outputs
    • 1 × Balanced XLR (Pre1)
    • 1 × RCA Stereo (Pre2)
    • 1 × RCA Stereo (Pre3)
    • 1 × Subwoofer
  • Speaker Connections: 1 × Pair Speaker Binding Posts (L & R)
  • Other Inputs / Outputs
    • Wi-Fi 4
    • BLE
    • 12V Trigger
    • Wired IR
• User Interface
  • Primary Interface: Dynamic Control Dial with haptic feedback
  • Secondary Interface: N/A
  • Remote Control: Black 15-button IR remote (anodised aluminium)
• Phono Section
  • Inputs: MM / MC
  • Gain MM: 53 dB
  • Gain Adjustment MM
    • Low (-6 dB)
    • Mid (0 dB default)
    • High (+6 dB)
  • Input Impedance MM: 47 kΩ / 100 pF
  • Gain MC: 73 dB
  • Gain Adjustment MC
    • Low (-6 dB)
    • Mid (0 dB default)
    • High (+6 dB)
  • Input Impedance MC: 100 Ω / 470 pF
  • RIAA Response Accuracy: ±0.3 dB (20 Hz – 20 kHz)
• DAC Section
  • DAC Technology: Rapture DAC, Dual Mono Balanced
  • Format Support: PCM
  • Sampling Rate: up to 24 bit / 192 kHz
• Pre-Amplifier Section
  • Volume Control Technology: Hybrid Digital Analogue
  • Volume Control Matching: <0.25 dB
  • Maximum Input Level: 6.7 Vrms
  • Music Sense: A2 input
  • AV Mode: A2 input
  • Intelligent DSP: Yes
• Bluetooth
  • Protocol: A2DP Audio Profile
  • Codecs
    • SBC
    • aptX
    • AAC
  • Range: >15 m
• Digital Input Performance
  • Coax Inputs: up to 24 bit / 192 kHz
  • Optical Inputs: up to 24 bit / 192 kHz
  • HDMI ARC & eARC: No
• Maestrounite
  • Supported: Yes
  • Network Connectivity: Bluetooth LE, Wi-Fi 4 (OTA updates only)
  • Mobile Application
    • iOS
    • Android
  • Over-the-Air Updates: Supported
• Power & Control
  • Wired IR Input: 5 – 14 V mono 3.5 mm jack
  • 12V Trigger Input: 5 – 14 V dual polarity
  • 12V Trigger Passthrough: 3.5 mm jack
  • Nominal Mains Voltage: Auto-selecting 100-120 VAC & 220-240 VAC
  • Power Consumption
    • Max 610 VA
    • Standby 0.5 W
    • Network Standby 2 W
• Mechanical
  • Available Finishes
    • Silver
    • Black
  • Construction: Extruded and machined aluminium chassis with aluminium heatsinks
  • External Dimensions (H × W × D): 93 × 432 × 378 mm
  • Weight: 15.2 kg
