Ο Roksan Caspian 4G Streaming Amplifier ειναι δικαναλος ενισχυτης 2x 105 W (στο 1 kHz, 8 ohms). Διαθετει ενσωματωμενο dac, phono MM/MC, network player με BluOs, δεκτη bluetooth.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

The Caspian Streaming Amplifier unleashes the power of BluOS, premium multi-room high-resolution wireless streaming through the smart implementation of Euphoria, Caspian’s powerful twin-independent amplification architecture, the revolutionary Rapture DAC technology, for improved digital to analogue signal conversion, and an advanced pre-amplifier and phono stage. All from a sleek aluminium design that exudes quality.

Features

• BluOS Premium Multi-Room Audio for wireless, high-resolution audio streaming across up to 64 zones.
• 105 Watts into 8 Ohms / 200 Watts into 4 Ohms for clean, powerful sound in every channel.
• Euphoria Dual-Mono AB Amplifier Architecture for unmatched power and control.
• Rapture DAC Technology for flawless digital-to-analogue conversion.
• Advanced Pre-Amplifier to maintain a pristine signal throughout your system.
• High-Performance Phono Stage, individually calibrated to perfection for vinyl lovers.
• Precision Machined Aluminium Case with integrated heatsinks for premium aesthetics and performance.
• Available Finishes: Choose between elegant Silver or timeless Black.

Specifications

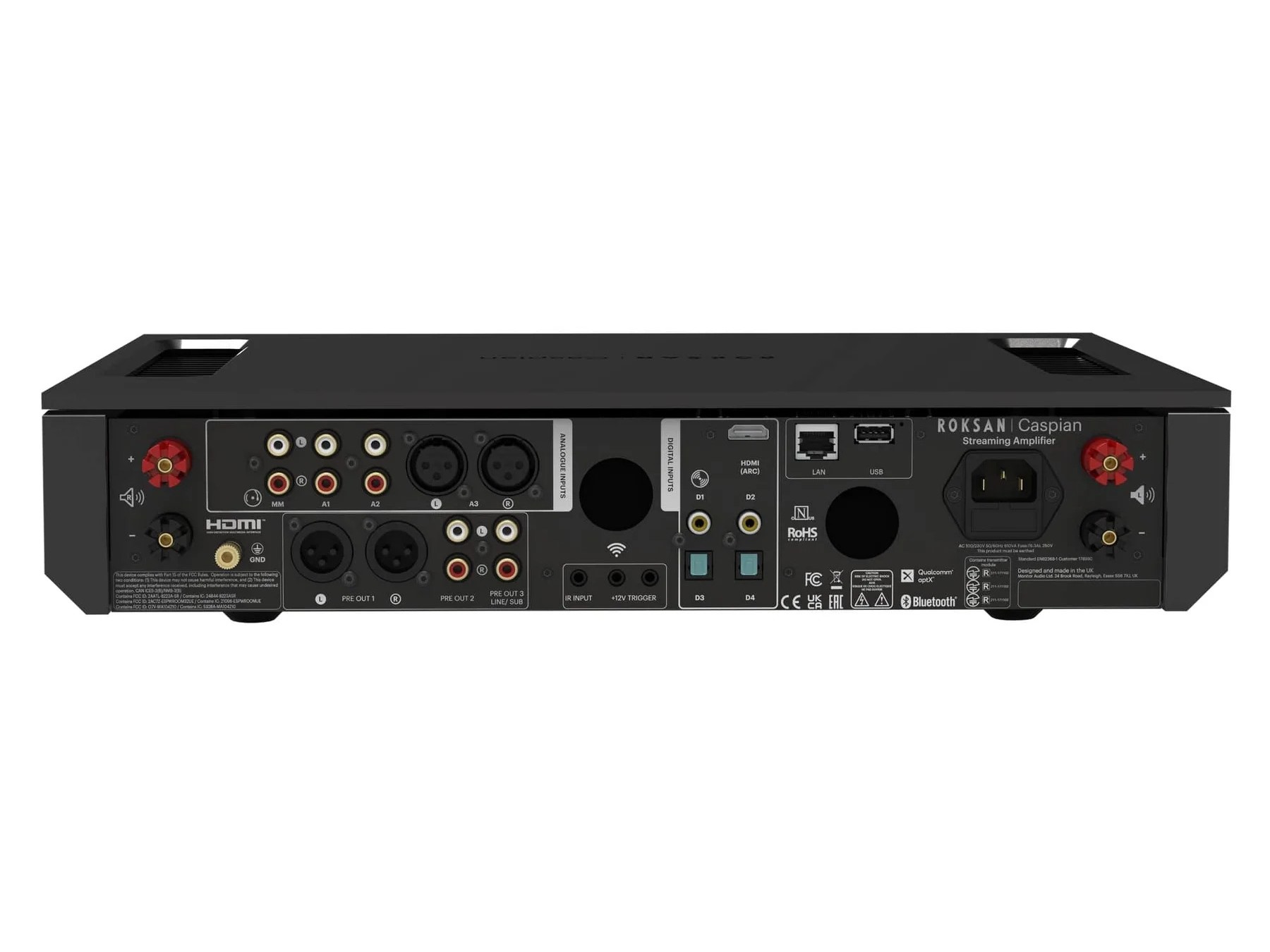

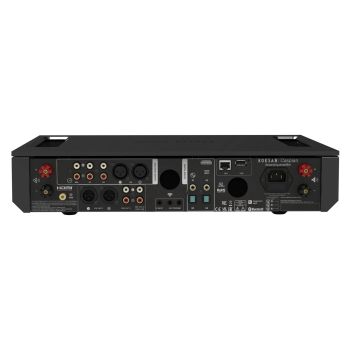

• Connectivity
  • Analogue Inputs
    • 2 × RCA Stereo (A1, A2)
    • 1 × Balanced XLR (A3)
  • Digital Inputs
    • 2 × Coax (D1, D2)
    • 2 × Optical (D3, D4)
    • Bluetooth Audio
    • BluOS
    • HDMI eARC
  • Analogue Outputs
    • 1 × Balanced XLR (Pre1)
    • 1 × RCA Stereo (Pre2)
    • 1 × RCA Stereo (Pre3)
  • Amplifier Output: 1 × Pair of Speaker binding posts (L & R)
  • Other Inputs / Outputs
    • Gigabit Ethernet RJ45
    • Wi-Fi 5
    • Wi-Fi 4
    • BLE
    • 12V Trigger
    • Wired IR
  • Power: IEC C14, Fused 6.2AT
• User Interface
  • Primary Interface (on unit): Dynamic Control Dial with haptic feedback
  • Secondary Interface (on unit)
    • Backward
    • Play/Pause
    • Forward
  • Remote Control: Black 15-button IR remote (anodised aluminium case)
• Power Amplifier Section
  • Power Amplifier Technology: Dual Mono Euphoria Amplifier
  • Amplifier Class: AB
  • Output Power
    • 105 W @ 8 Ω (235 VAC @ 1% THD, both channels driven)
    • 200 W @ 4 Ω (235 VAC @ 1% THD, both channels driven)
  • THD+N (1 W @ 1 kHz): <0.007%
  • Gain: 29 dB
  • Signal to Noise: >85 dB
  • Gain Matching: <0.5 dB
  • Frequency Linearity (20 Hz – 20 kHz): ±0.25 dB
  • Power Supply: 600 VA / 36,400 µF per rail
• Phono Section
  • Inputs: MM
  • Gain MM: 53 dB
  • Gain Adjustment MM
    • Low (-6 dB)
    • Mid (0 dB default)
    • High (+6 dB)
  • Input Impedance MM: 47 kΩ / 100 pF
  • Gain MC: 73 dB
  • Gain Adjustment MC
    • Low (-6 dB)
    • Mid (0 dB default)
    • High (+6 dB)
  • Input Impedance MC: 100 Ω / 470 pF
  • RIAA Response Accuracy MM/MC: ±0.3 dB (20 Hz – 20 kHz)
• Rapture DAC
  • DAC Technology: Rapture DAC, Dual Mono Balanced
  • Format Support: PCM
  • Sampling Rate: up to 24 bit / 192 kHz
• Pre-Amplifier Section (Amp, Pre1, Pre2)
  • Volume Control Technology: Hybrid Digital Analogue
  • Volume Control Matching: <0.25 dB
  • THD+N (3.9 Vrms, A-Weighted): <0.0008%
  • Signal to Noise Ratio (3.9 Vrms, A-Weighted): >108 dB
  • Maximum Output Level: 3.9 Vrms
  • Supported Features
    • Pre-Output
    • Line Level Output (Fixed Level)
    • Sub-Woofer Output (Low-Pass Filtered)
    • Intelligent DSP
• Pre-Amplifier Section (Pre3)
  • Volume Control Technology: Digital
  • Volume Control Matching: <0.25 dB
  • THD+N (3.9 Vrms, A-Weighted): <0.003%
  • Signal to Noise Ratio (3.9 Vrms, A-Weighted): >108 dB
  • Maximum Output Level: 3.9 Vrms
  • Supported Features
    • Pre-Output
    • Line Level Output (Fixed Level)
    • Sub-Woofer Output (Low-Pass Filtered)
    • Intelligent DSP
• Bluetooth
  • Protocol: A2DP Audio Profile
  • Codecs
    • SBC
    • aptX
    • AAC
  • Range: >15 m
• Digital Inputs Performance
  • Coax Inputs (D1, D2): up to 24 bit / 192 kHz
  • Optical Inputs (D3, D4): up to 24 bit / 192 kHz
  • HDMI ARC & eARC: Yes (2.0)
• Analogue Inputs
  • Maximum Input Level: 6.7 Vrms
  • Music Sense: A2 input
  • AV Mode: A2 input
• BluOS Section
  • BluOS Streaming Supported: Yes
  • Audio Formats
    • MP3
    • AAC
    • WMA
    • OGG
    • WMA-L
    • ALAC
    • OPUS
  • Hi-Resolution Audio Formats
    • MQA
    • FLAC
    • WAV
    • AIFF
  • Sampling Rate: up to 192 kHz
  • Bit Depth: 16 – 24 bit
  • Network Connectivity: Gigabit Ethernet RJ45, Wi-Fi 5
  • Supported Network File Storage Protocol: SMB
  • USB: 1 × Type-A
  • Supported Operating System: Windows & macOS network playback
  • Mobile Application: BluOS Controller App
  • Third Party Certified Services
    • Apple AirPlay
    • Spotify Connect
    • Tidal Connect
  • ROON Ready: TBC
  • Control Integrations
    • Creston
    • Control4 (OS3 / OS2)
    • RTI
    • URC
    • Lutron
    • NICE
    • GIRA
• Maestrounite
  • Supported: Yes
  • Network Connectivity: Bluetooth LE, Wi-Fi 4 (OTA updates only)
  • Mobile Application
    • iOS
    • Android
  • Over-the-Air Updates: Supported
• Other
  • Wired IR Input: 5 – 14 V mono 3.5 mm jack
  • 12V Trigger Input: 5 – 14 V, 3.5 mm jack dual polarity
  • 12V Trigger Passthrough: 3.5 mm jack
  • Nominal Mains Voltage: Auto-selecting 100-120 VAC & 220-240 VAC
  • Power Consumption
    • Max 610 VA
    • Standby 0.5 W
    • Network Standby 2 W
• Mechanical
  • Available Finishes
    • Silver
    • Black
  • Construction: Extruded and machined aluminium chassis with aluminium heatsinks
  • External Dimensions (H × W × D): 93 × 432 × 378 mm
  • Weight: 15.5 kg
  • Sold As: Single
