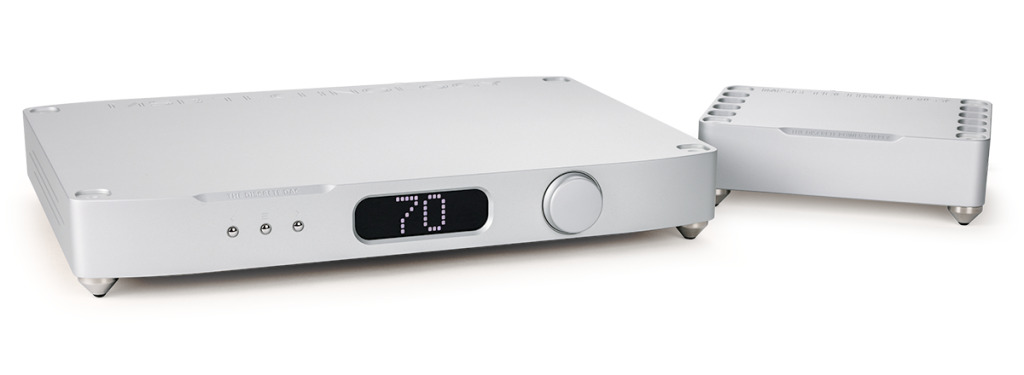

Το MSB Technology Discrete ειναι R2R dac 2 τμηματων (Discrete DAC και Discrete Power Supply).

Εγγύηση Αντιπροσωπείας. Δυνατότητα δόσεων, ανταλλαγών.

The Prime DAC Module.
With two prime DACs, we yield an unprecedented level of detail, reproducing the musicality, soundstage, and texture of an original performance, bringing the artist to you. A fully balanced, ultra-high precision, discrete ladder DAC architecture ensures each note tells a story. Additionally, MSB’s robust in-house design enables the finest quality playback of PCM and native DSD, while our low impedance circuitry drives your amplification directly without adding coloration or buffering noise. The end result is a digital experience defying expectations.

A display for the listening chair
Equipped with high-visibility and a wide viewing angle, the display is both stunning and easy-to-read. This attention to detail demonstrates our love for functional and intuitive features. The LED display, which is slaved to the audio clock, is refreshed using the Femto Clock as the time reference, ensuring that your analog system is not polluted with any harmful digital noise created by the display. The in-house discrete design is then enclosed into its own shielded CNC pocket for optimal EMI isolation. Sit back and be immersed.

Integrated clock. Flexible Configurations.
A modular I/O card keeps even the discrete DAC flexible, repairable, and upgradeable.  Along with an integrated clock, changing this card allows switching between single-ended and balanced outputs.

Engaging with the future.
MSB thrives off the innovation required to meet consumer demands. We’re constantly improving digital input modules to stay at the forefront of the high-end audio industry, ensuring you’re always equipped with the most current digital file formats and interfaces. Focusing on our network renderer and USB input, your audio tech will be on the cutting edge. Put simply, your DAC is ready for the future.

A better USB solution
The Pro USB was developed to offer a multi-part USB solution that features complete electrical isolation and all the performance of MSB’s proprietary Pro ISL input. The Pro USB is offered as a stand alone module for users who already have an MSB DAC that is equipped with a Pro ISL input as well as a starter kit with a Pro ISL input, plus everything you need to get up and running.

• Complete electrical isolation
• Up to 24 bit – 768kHz
• MQA decoding
• Up to 8X DSD
• Up to 1km lossless transmission

Superior streaming
The MSB Renderer was developed using an in-house hardware design running an ultra-low noise A5 processor for optimal audio playback performance. Over the air updates will ensure that your renderer always has the latest capabilities and ultimate convenience.

• Up to 32 bit – 768kHz
• MQA decoding
• Roon Endpoint
• Up to 4X DSD
• UPnP Protocol
• DLNA Protocol

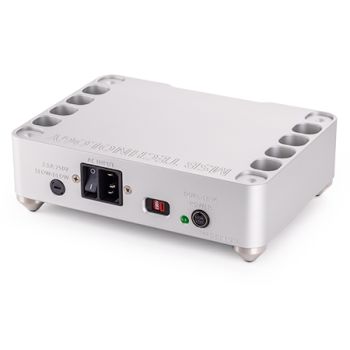

Discrete Power Supply.
Superior conversion begins with clean and stable low-noise power. The Discrete Power Supply feeds the DAC with dual low-noise power streams that are linear and independent. That’s not all—the CNC unibody aluminum chassis provides the discrete power supply with optimal thermal performance and an elegant design aesthetic. The DAC comes equipped with a single power supply, but can be augmented with a second discrete power supply to enable optimized power isolation between all major components.

Completely modular.
Paired with performance increases, our modular design ethos increases flexibility for future updates and product support, guaranteeing a long-term product investment. As you pursue higher levels of playback, an MSB upgrade path is always available to help drive your own desire for innovation. Whether it’s a software update or a leading-edge modular component, we’re here to help the most valued aspect of MSB—our customers.

Discrete Dac Specifications

• DAC architecture: Discrete DAC
• Supported formats (input dependent):
  • PCM: 44.1 kHz to 3,072 kHz, up to 32-bit
  • DSD: 1× DSD, 2× DSD, 4× DSD, 8× DSD
  • DSD over DoP: supported on all inputs

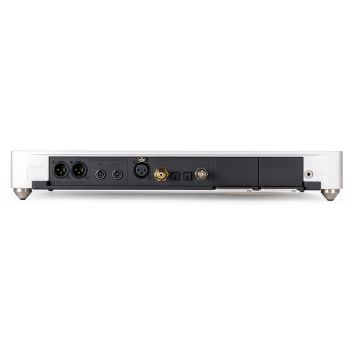

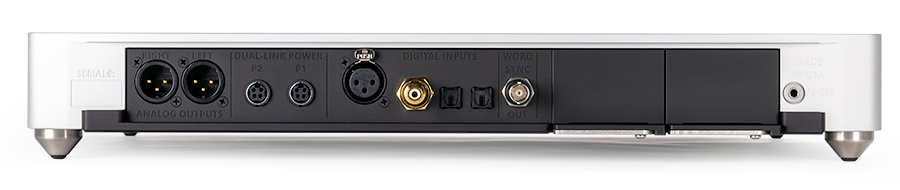

• Digital inputs:
  • RCA coaxial ×1
  • XLR ×1
  • Word-Sync ×1
  • Toslink ×2
  • Advanced isolated input module slots ×2
• Analog outputs:
  • XLR balanced outputs
  • Maximum output level: 3.57 Vrms
  • Output impedance: 300 Ω balanced
  • Galvanic isolation: supported
• Volume control:
  • Adjustment steps: 1 dB
  • Range: 0 – 106
  • Volume control bypass: selectable via menu
• Display:
  • Discrete LED audio clock synchronous display
  • Adjustable brightness
  • Auto-off function
• Controls:
  • Isolated RS-232
  • IR remote control
  • Front panel interface
• Power consumption: 35 W (fully configured Discrete DAC)
• Chassis dimensions:
  • Width: 432 mm
  • Depth: 305 mm
  • Height (without feet): 51 mm
  • Height (with feet): 65 mm
• Weight: 8.2 kg
• Feet:
  • Thread: M6 × 1
• Shipping dimensions:
  • Width: 558.8 mm
  • Depth: 457.2 mm
  • Height: 177.8 mm
• Shipping weight: 12.3 kg
• Included accessories:
  • User manual
  • MSB remote control
  • USB charging cable
  • Dual-link power splitter
  • Rubber feet ×4
  • Plastic foot inserts ×4

Discrete Power Supply Specifications

• AC voltage:
  • 100 V (fixed)
  • 120 / 240 V (selectable)
• Power consumption: 45 W (with fully configured Premier DAC)
• Chassis dimensions:
  • Width: 209.6 mm
  • Depth: 152.4 mm
  • Height (without feet): 50.8 mm
  • Height (with feet): 65 mm
• Weight: 2.5 kg
• Product feet:
  • Thread: M6 × 1
• Shipping dimensions:
  • Width: 431.8 mm
  • Depth: 279.4 mm
  • Height: 127 mm
• Shipping weight: 3.7 kg
• Included accessories:
  • IEC power cord
  • Dual-link power cable
