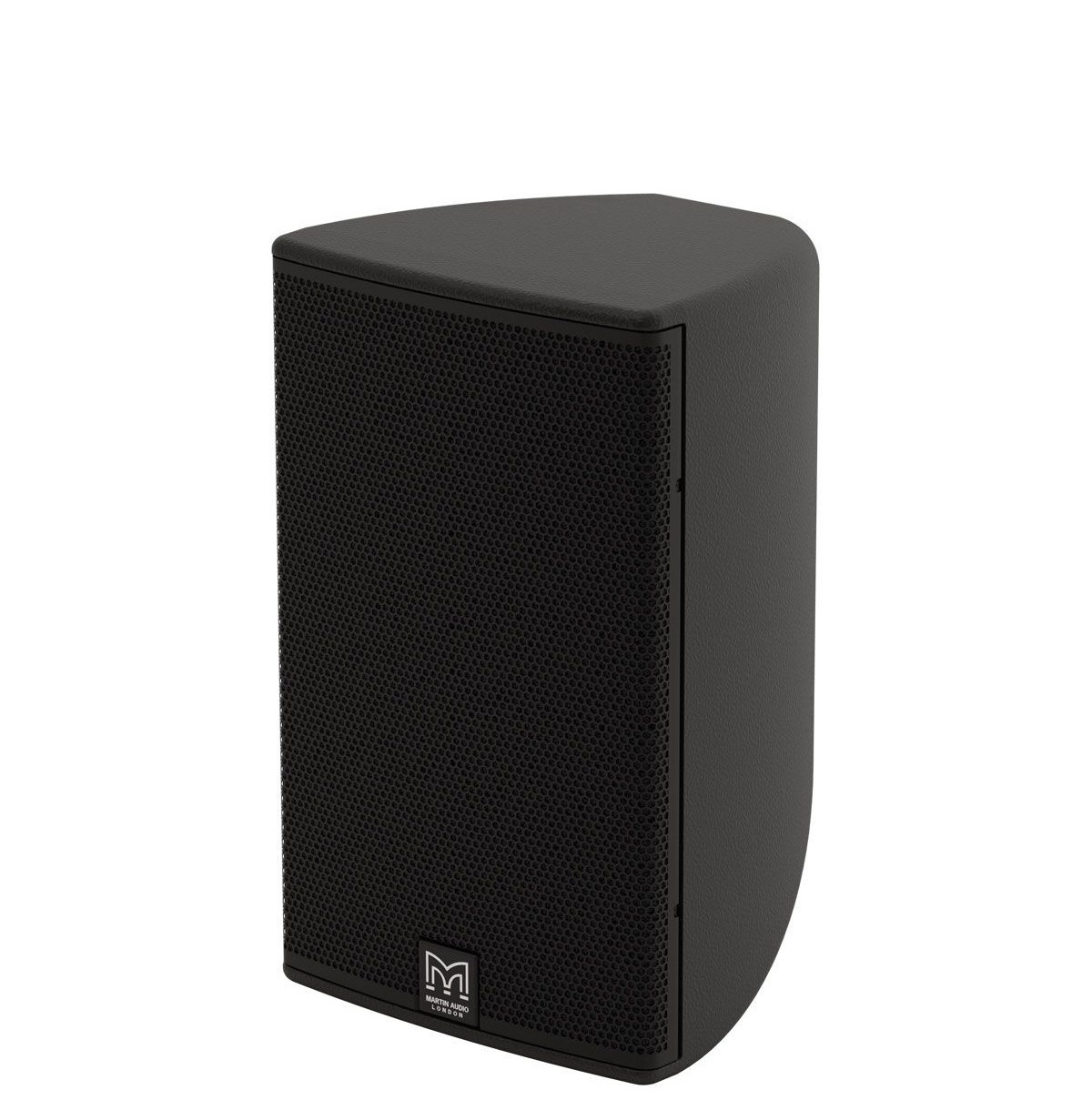

Το Martin Audio CDD8TX-WR ειναι ηχειο εξωτερικου χωρου, 2 δρομων με 1x 8" woofer και 1x 1" fabric dome tweeter. Ρυθμισιμα σε 8Ω/70V/100V. Ειναι αδιαβροχα με βαθμο ανθυγροτητας IP54.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

The Coaxial Differential Dispersion technology employed in the CDD8-WR delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience, while having wide horizontal coverage close-up. Its innovative CDD driver achieves ‘point source’ summation of the LF and HF sections — eliminating off-axis variations in frequency response associated with non-coaxial designs. Improving on conventional coaxial designs, which can suffer from high-frequency beaming, the driver features a static waveguide that merges seamlessly with the unique cone shape — maintaining the dispersion pattern out to very high frequencies.

Applications

• Outdoor Restaurants
• Bars
• Hotel Areas
• Nearfield Systems in Outdoor Stadia
• Transport Hubs
• Concourses and Theme Parks

Features

• Design: Ultra-compact CDD™ passive two-way system
• Technology: Coaxial Differential Dispersion™
• Enclosure: UPM Formi composite
• Installation: Vertical and horizontal mounting options
• Driver: User-rotatable coaxial drive unit
• Grille: Screw-free, water and particle resistant
• Environmental Rating: IP54
• Operating Temperature: -20°C to +70°C
• Outdoor Use: Suitable when sheltered from direct exposure
• Mounting: Weatherised, discreet accessories
• Finish: Black or white
• Transformer: 70V / 100V line (no low impedance)

Specifications

• Type: Ultra-compact, coaxial Differential Dispersion passive two-way system
• Frequency Response: 70 Hz – 20 kHz (±3 dB), -10 dB @ 55 Hz
• Driver:
  • LF: 8” (200 mm) / 2” (50 mm) voice coil, long excursion, shared ferrite motor system with HF
  • HF: 1” (25 mm) exit / 1.4” (38 mm) voice coil, polyimide dome compression driver
• Rated Power: 120 W AES, 240 W peak
• Transformer Settings:
  • 70 V: 120 W, 60 W, 30 W, 15 W (no low impedance)
  • 100 V: 120 W, 60 W, 30 W (no low impedance)
• Sensitivity: 94 dB
• Maximum SPL: 115 dB continuous, 121 dB peak
• Nominal Impedance: Transformer taps at 42, 83, 166, 333 Ω
• Dispersion (-6 dB): 110°–80° horizontal, 60° vertical (user-rotatable)
• Crossover: 2.3 kHz passive
• Enclosure: 14 litre composite material
• Finish: Black or white
• Protective Grille: Zinc plated steel, powder coated with weatherised backing
• Environmental Rating: IP54
• Connectors:
  • Terminal block with spring connections
  • Weatherproof input panel with cable gland
  • Phoenix 5-way connector:
    • 70 V: Common, 15 W, 30 W, 60 W, 120 W
    • 100 V: Common, 30 W, 60 W, 120 W
• Fittings: 6 × M6 inserts for wall / ceiling brackets
• Dimensions (W × H × D): 25.6 × 41.0 × 25.2 cm
• Weight: 11.1 kg
