Το Martin Audio CDD8-WR ειναι ηχειο εξωτερικου χωρου, 2 δρομων με 1x 8" woofer και 1x 1" polyamide dome tweeter. Αντισταση 8Ω. Ειναι αδιαβροχα με βαθμο ανθυγροτητας IP54.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

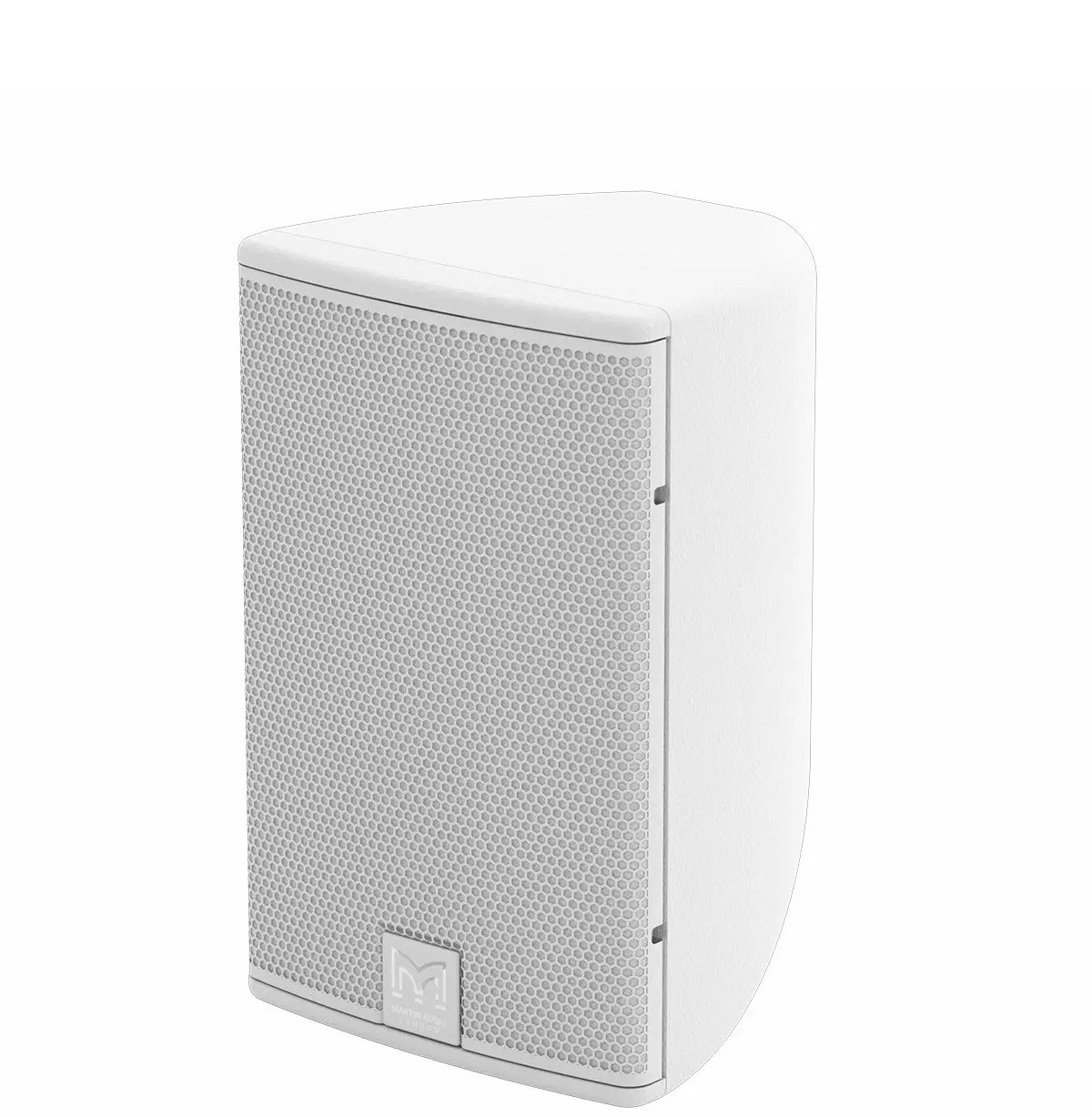

The CDD8-WR is a weatherised ultra-compact two-way passive loudspeaker system suitable for outdoor applications where it will be subject to changing environmental conditions, but sheltered from direct exposure to the elements. It features an integrated 8” (200mm) LF/1” (25mm) exit HF Coaxial Differential Dispersion driver which can be easily rotated for horizontal or vertical orientation depending on venue design requirements. Its small size gives no indication of its high output capability. As a stand-alone loudspeaker, it has a multitude of applications and can also be incorporated as an infill loudspeaker in distributed systems using larger CDD models, such as the CDD12-WR and CDD15-WR.

Applications

• Outdoor Restaurants
• Bars
• Hotel Areas
• Nearfield Systems in Outdoor Stadia
• Transport Hubs
• Concourses and Theme Parks

Features

• Ultra-Compact, CDD™ passive two-way system
• Coaxial Differential Dispersion™ technology
• Elegant UPM Formi composite enclosure
• Outdoor operation when sheltered from direct exposure to elements
• Operating temperature -20°C to +70°C
• Environmentally tested to meet IP54
• User-rotatable coaxial drive unit
• Vertical and horizontal mounting options
• Screw-free water and particle resistant grille
• 8Ω nominal impedance
• Discreet weatherised mounting accessories
• Black or white standard colour options

Specifications

• Construction
  • Type: Ultra-Compact coaxial Differential Dispersion passive 2-way
  • Enclosure Volume: 14 litre composite cabinet
  • LF Driver: 8" (200 mm) long-excursion, 50 mm voice coil, shared ferrite motor with HF
  • HF Driver: 1" exit / 1.4" (38 mm) polyimide dome compression driver
  • Crossover: 2.3 kHz passive
  • Protective Grille: Zinc-plated steel, powder-coated, weatherised backing
  • Environmental Rating: IP54
  • Fittings: 6 × M6 inserts for wall / ceiling brackets
• Performance
  • Frequency Response: 70 Hz – 20 kHz ±3 dB
  • Low Frequency Extension: -10 dB @ 55 Hz
  • Rated Power: 200 W AES / 800 W peak
  • Sensitivity: 94 dB
  • Maximum SPL: 117 dB continuous / 123 dB peak
  • Nominal Impedance: 8 Ω
  • Dispersion (-6 dB): 110°–80° horizontal, 60° vertical (rotatable)
• Connections
  • Connector: Low-profile 13A push-lock
  • Weatherproof input panel with cable gland
  • Pinout: Input+ / Input− / Link− / Link+
• Dimensions
  • Width: 256 mm
  • Height: 410 mm
  • Depth: 252 mm
• Weight: 9.8 kg
• Finish: Black / White

Archetectural Specifications

The loudspeaker shall be a passive, two-way system ultilising Coaxial Differential Dispersion technology. Its transducers shall consist of a reflex-loaded 8” low frequency driver with a water-resistant cone and a coaxially-mounted 1” exit high frequency compression driver. The HF driver shall be loaded by a static waveguide that merges with moving waveguides added to the cone of the low frequency driver to define the HF horn geometry.

The coaxial driver shall be user-rotatable to enable vertical or horizontal operation as required by the application. Horizontal dispersion shall vary from 110° to 80° and vertical dispersion shall be 60°. The on-axis frequency response shall be 70Hz-20kHz +/- 3dB and the loudspeaker shall produce a maximum SPL of 123dB peak calculated at 1 metre. Power handling shall be 200W AES, 800W peak. Rated impedance shall be 8 ohms.

The input connector shall be a low-profile 13A push-lock type with a waterproof cover incorporating a cable gland. Low and high frequency sections shall be integrated by an internal 2.3kHz passive network. For optimal the loudspeaker shall be operated in conjunction with a dedicated electronic controller.

The enclosure shall be made from rigid composite material and fitted with threaded inserts with stainless steel screws for wall and ceiling mounting. The drivers shall be protected by a powder coated, zinc plated steel grille with Declon® backing and a secondary grille with hydrophobic mesh. The loudspeaker shall meet the IP54 environmental rating.

Dimensions (W x H x D) shall be 256mm x 410mm x 252mm. Weight shall be 9.8kg.
