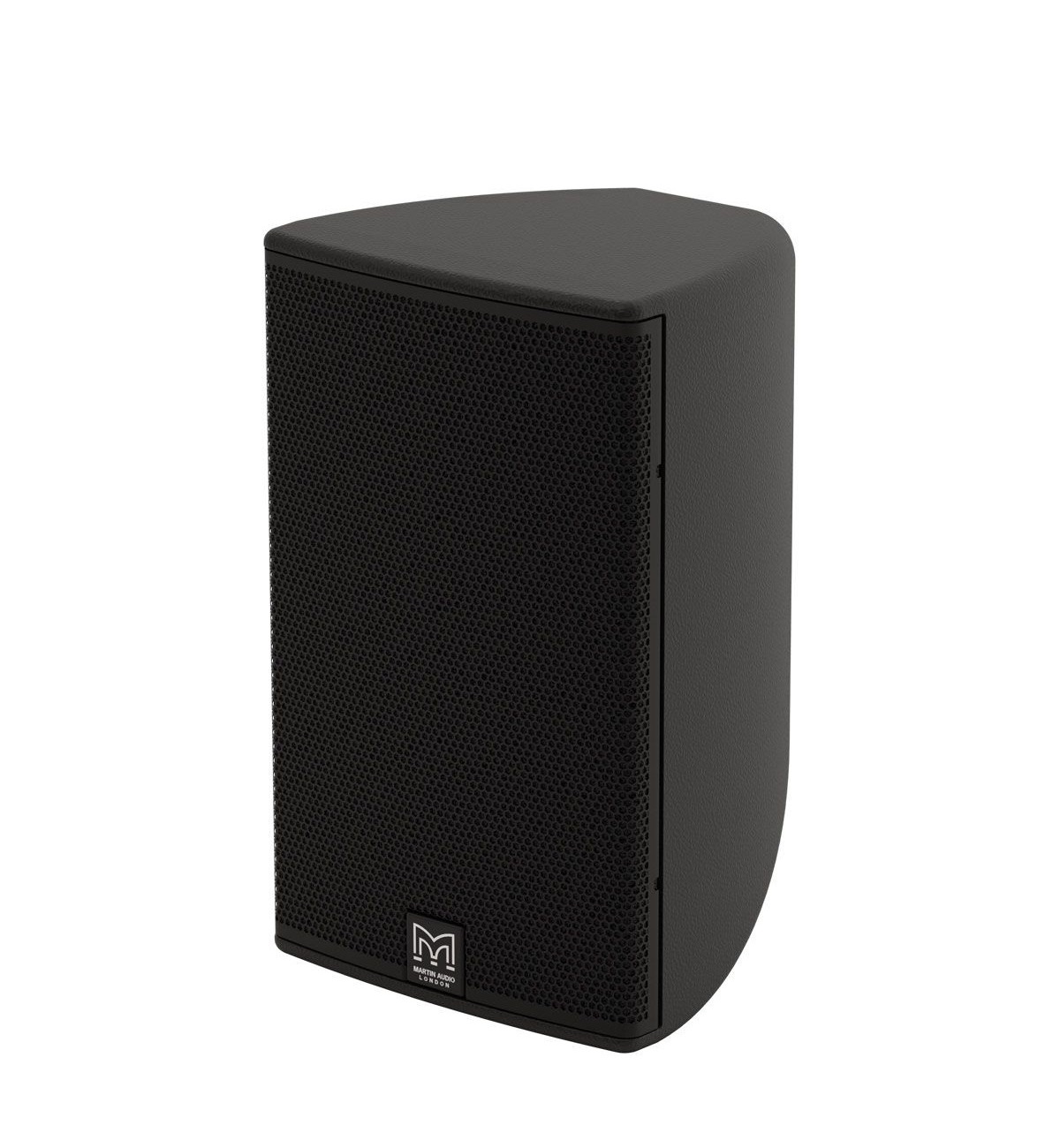

Το Martin Audio CDD6TX-WR ειναι ηχειο εξωτερικου χωρου, 2 δρομων με 1x 6.5" woofer και 1x 1" fabric dome tweeter. Ρυθμισιμα σε 8Ω/70V/100V. Ειναι αδιαβροχα με βαθμο ανθυγροτητας IP54.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

The CDD6TX-WR is a weatherised two-way passive micro speaker incorporating a 70V/100V line transformer and designed for discreet positioning in architectural installations — including bars, museums, foyers, concourses, exhibition centres and HoW as well as outdoor applications where it will be subject to changing environmental conditions, but sheltered from direct exposure to the elements. It can reproduce surprisingly high levels of music program and can also be used as a fill system in conjunction with larger CDD Series. It features a 6.5” (165mm) LF/1” (25mm) HF Coaxial Differential Dispersion driver inside an elegant UPM Formi composite enclosure with a dual cable gland for easy daisy-chaining of cabinets without the need for external breakout boxes.

Applications

• Bars and Restaurants
• Museums and AV spaces
• Convention Centres
• Hotels
• Retail Outlets
• Leisure Centres
• Houses of Worship
• Outdoor Restaurants, Bars, Hotel areas
• Nearfield Systems in Outdoor Stadia
• Transport Hubs
• Concourses and Theme Parks

Features

• Ultra-Compact, CDD™ passive two-way system
• Coaxial Differential Dispersion™ technology
• Elegant ABS moulded enclosure
• Outdoor operation when sheltered from direct exposure to elements
• Operating temperature -20°C to +70°C
• Environmentally tested to meet IP54
• User-rotatable coaxial drive unit
• Vertical and horizontal mounting options
• Screw-free water and particle resistant grille
• 8Ω nominal impedance
• Discreet weatherised mounting accessories
• Black or white standard colour options
• 70V/100V line transformer
• Supplied with ‘pan and tilt’ weatherised mounting bracket

Specifications

• Construction
  • Type: Ultra-Compact coaxial Differential Dispersion passive 2-way
  • Enclosure Volume: 9 litre composite cabinet
  • LF Driver: 6.5" (165 mm) long-excursion, 38 mm voice coil, ferrite motor
  • HF Driver: 1" (25 mm) fabric dome, neodymium motor
  • Crossover: 2.5 kHz passive
  • Protective Grille: Zinc-plated steel, powder-coated, weatherised backing
  • Environmental Rating: IP54
  • Fittings: 4 × M6 inserts for wall / ceiling brackets
• Performance
  • Frequency Response: 80 Hz – 20 kHz
  • Low Frequency Extension: -10 dB @ 70 Hz
  • Rated Power: 150 W AES / 600 W peak
  • Sensitivity: 91 dB
  • Maximum SPL: 113 dB continuous / 119 dB peak
  • Nominal Impedance: 8 Ω
  • Dispersion (-6 dB): 110°–80° horizontal, 80° vertical (rotatable)
• Transformer Settings
  • 100V: 12.5 W / 25 W / 50 W
  • 70V: 6.5 W / 12.5 W / 25 W / 50 W
• Connections
  • Connector: Low-profile 13A push-lock
  • Weatherproof dual cable gland input panel
  • Pinout: Input+ / Input− / Link− / Link+
• Dimensions
  • Width: 210 mm
  • Height: 325 mm
  • Depth: 210 mm
• Weight: 6.77 kg
• Finish: Black / White

Archetectural Specifications

The loudspeaker shall be a passive, two-way system ultilising Coaxial Differential Dispersion technology. Its transducers shall consist of a reflex-loaded 6.5” low frequency driver with a water-resistant cone and a coaxially-mounted 1” dome high frequency driver. The HF driver shall be loaded by a static waveguide that merges with moving waveguides added to the cone of the low frequency driver to define the HF horn geometry.

The coaxial driver shall be user-rotatable to enable vertical or horizontal operation as required by the application. Horizontal dispersion shall vary from 110° to 80° and vertical dispersion shall be 80°. The on-axis frequency response shall be 80Hz-20kHz +/- 3dB and the loudspeaker shall produce a maximum SPL of 119dB peak calculated at 1 metre. Power handling shall be 150W AES, 600W peak. Rated impedance shall be 8 ohms.

The input connector shall be a low-profile 13A push-lock type with a waterproof cover incorporating a dual cable gland. Low and high frequency sections shall be integrated by an internal 2.5kHz passive network. For optimal performance the loudspeaker shall be operated in conjunction with a dedicated electronic controller.

The enclosure shall be made from rigid composite material and fitted with threaded inserts with stainless steel screws for wall and ceiling mounting. The drivers shall be protected by a powder coated, zinc plated steel grille with Declon® backing and a secondary grille with hydrophobic mesh. The loudspeaker shall meet the IP54 environmental rating and incorporate a 70V/100V line transformer.

Dimensions (W x H x D) shall be 210mm x 325mm x 210mm. Weight shall be 6.5kg.
